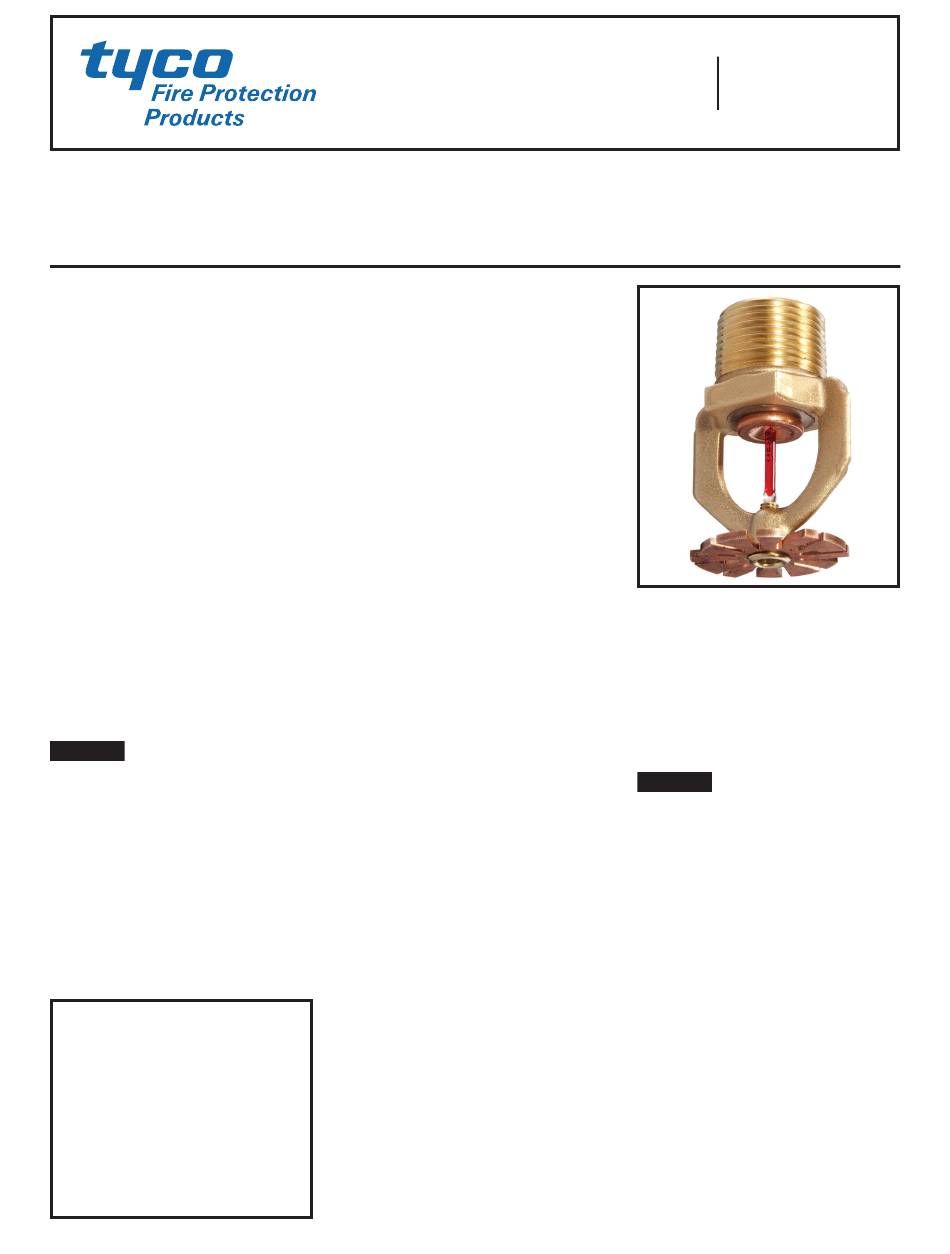

Model ESFR-14
14.0 K-factor Pendent Sprinklers
Early Suppression, Fast Response
General
Description

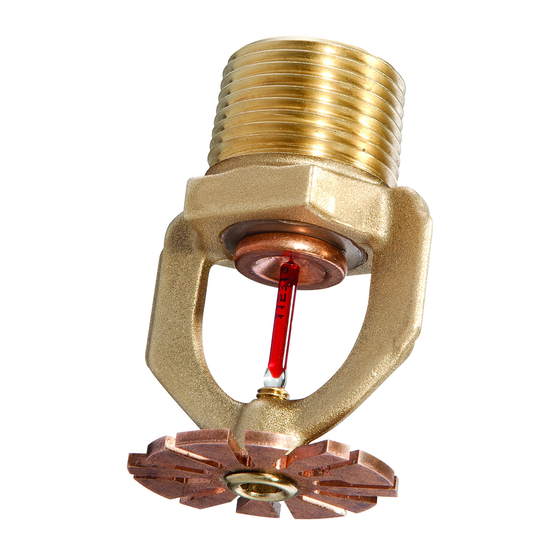

TYCO Model ESFR-14, 14.0 K-factor,
Pendent Sprinklers (TY6236) are Early
Suppression, Fast Response (ESFR)
sprinklers having a nominal K-factor
of 14.0. They are suppression-mode
sprinklers that are especially advan-
tageous as a means of eliminating the
use of in-rack sprinklers when protect-
ing high-piled storage.
Model ESFR-14 Sprinklers are primarily
designed for protection of the following
storage arrangements:
• most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics
• some storage arrangements of
rubber tires, roll paper, flammable
liquids
For more specific criteria, refer to Table
A in this technical data sheet as well as
the applicable design standard.
NOTICE
The TYCO Model ESFR-14 Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association (NFPA), in addition
to the standards of any other authorities
having jurisdiction (e.g., FM Approvals).
Failure to do so may impair the perfor-
mance of these devices.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA,
FM Approvals installation standard, or
other applicable standard, must be ref-
erenced to ensure applicability and to
obtain complete installation guidelines.
The general guidelines in this technical
data sheet are not intended to provide
complete installation criteria.
Sprinkler
Identification
Number (SIN)
TY6236 – Pendent, K=14.0
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connections
3/4 inch NPT or
ISO 7-R 3/4
Discharge Coefficient
K=14.0 gpm/psi
1/2
(201,6 lpm/bar
Temperature Ratings
155°F (68°C)
200°F (93°C)
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Bulb (3 mm) . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Sealing Assembly . . Beryllium Nickel w/TEFLON
DECEMBER 2015
Worldwide
www.tyco-fire.com
Contacts
Design
Criteria
The following general guidelines pro-
vided for the TYCO Model ESFR-
14, 14.0 K-factor, Pendent Sprinklers
(TY6236) can be used for quick
reference.
NOTICE
The National Fire Protection Associa-
tion and FM Approvlas provide instal-
lation standards that must be used to
properly design an automatic sprinkler
system utilizing Early Suppression,
Fast Response (ESFR) Sprinklers. The
guidelines provided by NFPA and FM
1/2
)
Global may differ; consequently, the
appropriate standard must be used for
a given installation.
In all cases, the appropriate NFPA or
FM Approvals installation standard
must be referenced to assure appli-
cability and to obtain complete instal-
lation guidelines, since the following
general guidelines are not intended to
provide complete installation criteria.
TFP319
