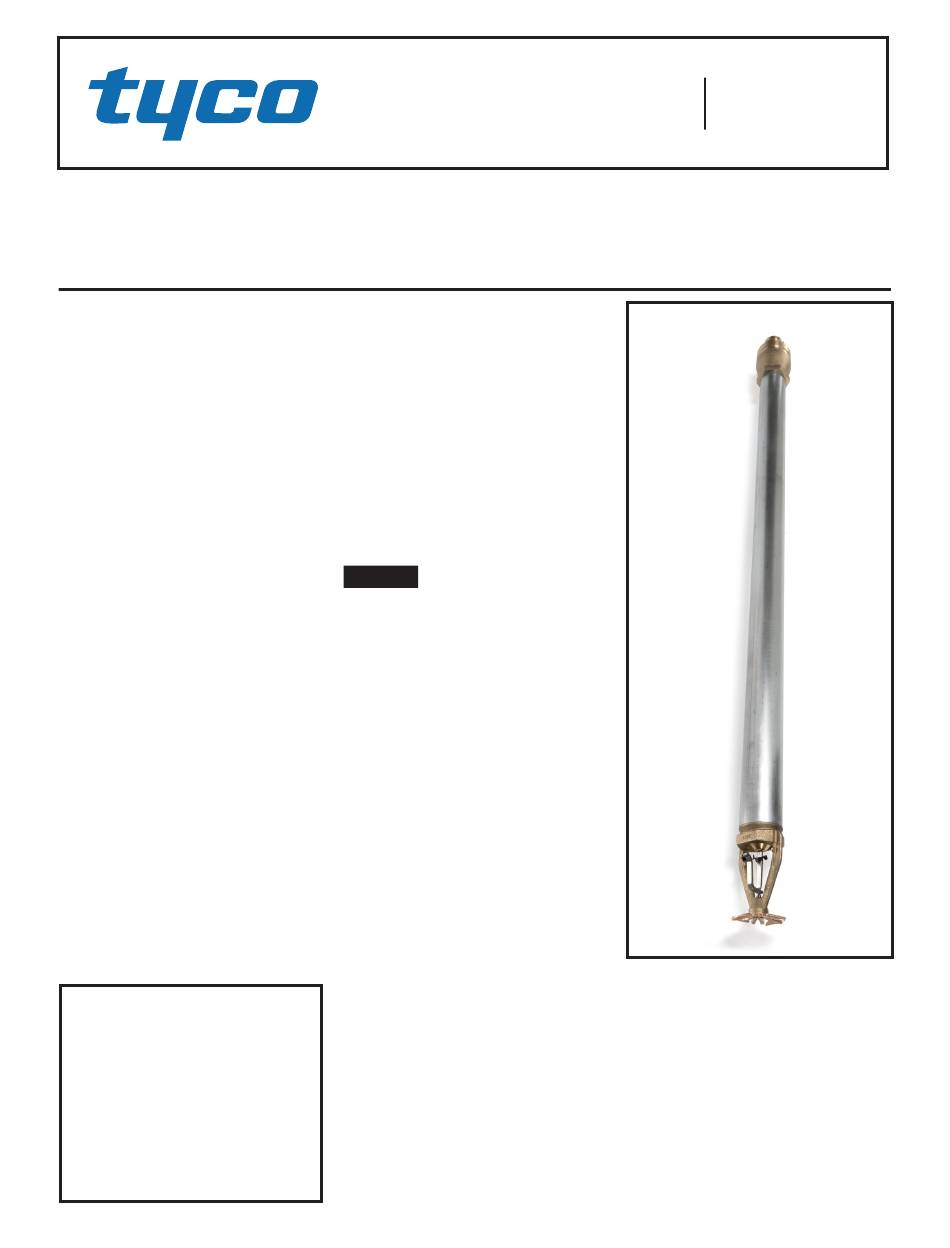

Model ESFR-17 Dry Type Pendent Sprinklers
Early Suppression Fast Response
16.8 K-factor
General
Description
The TYCO Model ESFR-17 Dry Type
Pendent Sprinklers (TY7229) are "Early
Suppression Fast Response Sprin-
klers" having a nominal K-factor of 16.8.
They are suppression mode sprinklers
that are especially advantageous as a
means of eliminating in-rack sprinklers
when protecting high-piled box-in-box
refrigerated storage areas.

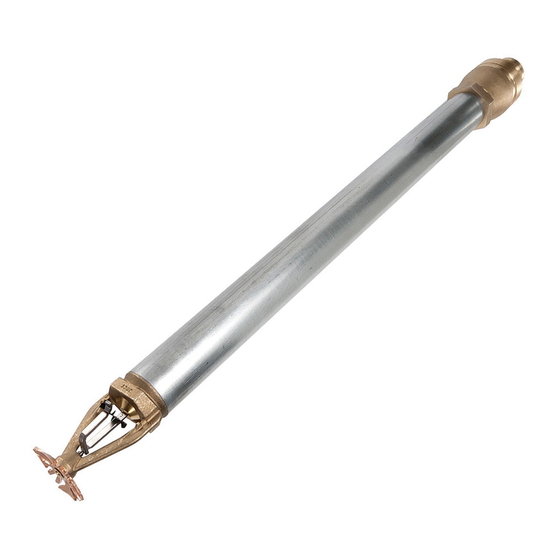

The Model ESFR-17 Dry Type Sprinkler
consists of an ESFR sprinkler per-
manently secured to a sprinkler drop
featuring an inlet with both grooved
and threaded connections. The drop
between the inlet and sprinkler remains
dry
until
the
sprinkler
allowing for a pendent sprinkler instal-
lation on a wet pipe sprinkler system
where the dry drop and sprinkler are
located in an area subjected to freezing
temperatures.
The Model ESFR-17 Dry Type Sprin-
klers are primarily used for ceiling only
sprinkler protection (i.e., no need for
in-rack sprinklers) and used to protect
solid piled, palletized, and rack storage
that is subject to freezing tempera-
tures. The water supply is provided
from a wet pipe system located outside
of the refrigerated storage area. The
Model ESFR-17 Dry Type Sprinklers
feature all of the same design criteria
as 16.8 K-factor ESFR Pendent Sprin-
klers, and substantially lowers the
end head pressure requirement as
compared to the 14.0 K-factor ESFR
Dry Type Pendent Sprinklers.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
Combining a 16.8 K-factor with a
dry type sprinkler design, the Model
ESFR-17 Dry Type Sprinklers provides
the system designer with features that
offer flexibility when sizing system
piping, as well as possibly reducing or
eliminating the need for a system fire
pump when protecting high-piled box-
in-box refrigerated storage areas.
The ESFR-17 Dry Type Sprinkler also
includes two Insulating Seal Assem-
blies to seal the top and the bottom
of the clearance space where the
sprinkler drop protrudes through the
cold storage ceiling.
NOTICE
The Model ESFR-17 Dry Type Pendent
Sprinklers (TY7229) described herein
operates,
must be installed and maintained in
compliance with this document, as well
as with the applicable standards of the
National Fire Protection Association, in
addition to the standards of any author-
ities having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted with
any questions.
Sprinkler
Identification
Number (SIN)
TY7229
AUGUST 2012
Technical Services
www.tyco-fire.com
800-381-9312
+1-401-781-8220
TFP320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESFR-17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco ESFR-17

  • Page 1 800-381-9312 Technical Services +1-401-781-8220 www.tyco-fire.com Model ESFR-17 Dry Type Pendent Sprinklers Early Suppression Fast Response 16.8 K-factor General Combining a 16.8 K-factor with a dry type sprinkler design, the Model Description ESFR-17 Dry Type Sprinklers provides the system designer with features that...
  • Page 2: Technical Data

    FRAME ARM SIDE" TOWARD CLEARANCE SPRINKLER RECESS DEFLECTOR SPRINKLER DEFLECTOR FIGURE 1 FIGURE 2 MODEL ESFR-17 DRY TYPE PENDENT SPRINKLER (TY7229) W-TYPE 26 SPRINKLER WRENCH Technical Temperature Ratings 165°F (74°C) Data 214°F (101°C) Finish Approvals Refer to Physical Characteristics UL Listed...
  • Page 3: Operation

    ANSI B16.4 (Class 125). Dry Type Sprinkler and the clearance hole must be sealed. Sealing is ac- Design Do not install Model ESFR-17 Dry Type complished by use of the Insulating Sprinkler into elbow fittings. The inlet Seal Assemblies (Figure...
  • Page 4: Installation

    The TYCO Model ESFR-17 Dry Type Grooved Flexible Coupling or the Pendent Sprinklers (TY7229) must Step 2. Install the Model ESFR-17 Dry 2 Inch Figure 577 Grooved Rigid be installed in accordance with this Type Pendent Sprinkler in the pendent Coupling.
  • Page 5: Care And Maintenance

    Maintenance housings and place over the gasket. Verify that the coupling housings are over the gasket and that the coupling The TYCO Model ESFR-17 Dry Type housing keys are fully engaged into Pendent Sprinklers (TY7229) must the grooves. be maintained and serviced in accor- Step 6.
  • Page 6 PROTECTED DIA. Minimum 5" (125 mm) clearance required for Sprinkler Inlet AREA and proper installation of Insulating Seal Assembly. FIGURE 3 MODEL ESFR-17 DRY TYPE PENDENT SPRINKLER - THREADED FITTING 1-3/8" (35 mm) Temperature Minimum Exposed At Sprinkler Located Barrel Length,...
  • Page 7 INSULATING SEAL ASSEMBLY PENDENT SPRINKLER - INSTALLATION ORIENTATION MARK GROOVED MECHANICAL WELDED GROOVED GROOVED OUTLET TEE GROOVED OUTLET DROP NIPPLE GROOVED RIGID OR FLEXIBLE COUPLING (REFER TO DESIGN CRITERIA) FIGURE 7 MODEL ESFR-17 DRY TYPE PENDENT SPRINKLER TYPICAL GROOVED CONNECTION SCENARIOS...
  • Page 8: Ordering Procedure

    Each Insulating Seal Assembly kit consists of one (1) Insulation Ring, one (1) Insert, one (1) Housing, and two (2) screws. Specify: Insulating Sealing Assembly, P/N 911061500. Copyright © 2012 Tyco Fire Protection Products. All rights reserved. TEFLON is trademark of The DuPont Corporation.
