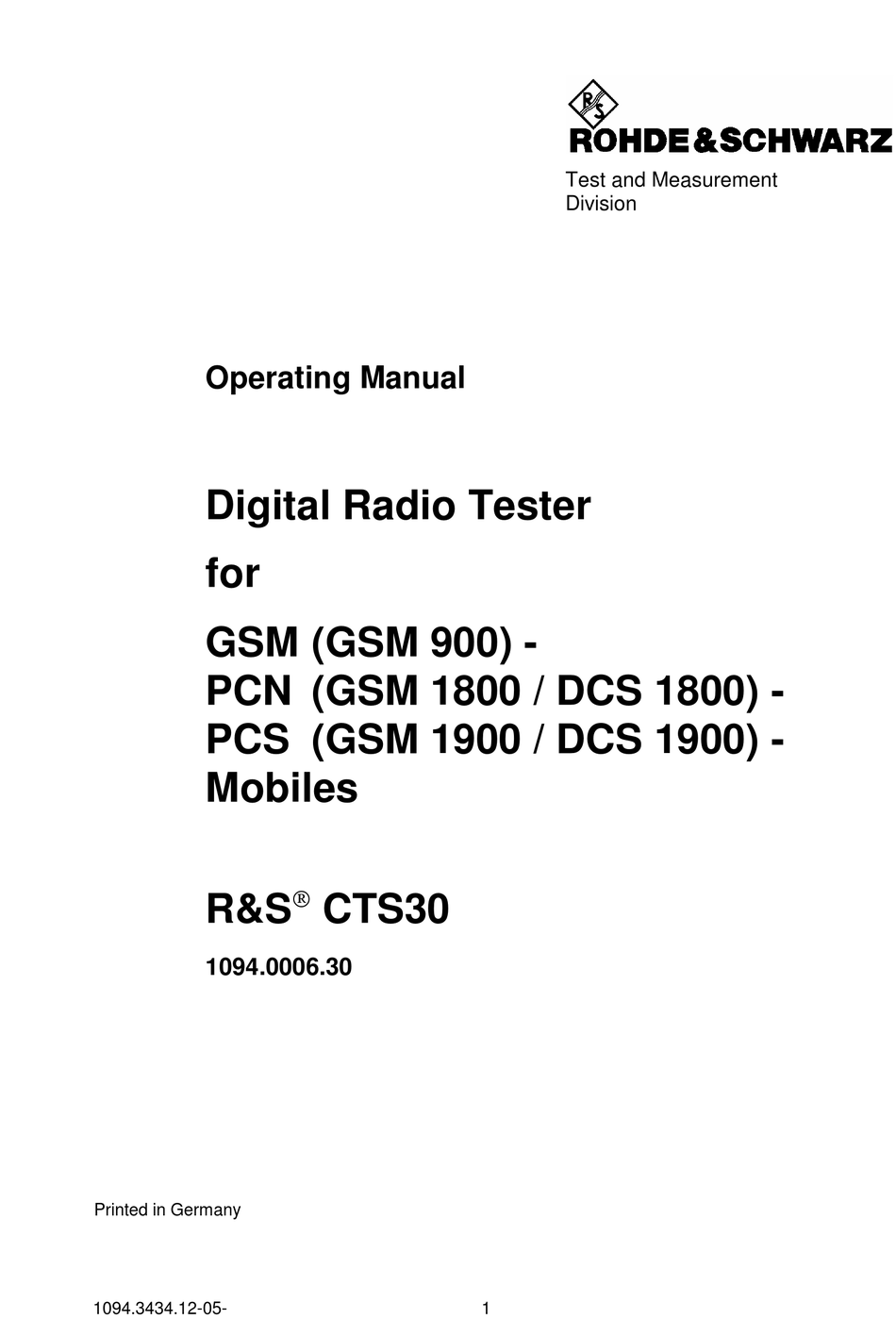

Operating Manual
Digital Radio Tester
for
GSM (GSM 900) -
PCN (GSM 1800 / DCS 1800) -
PCS (GSM 1900 / DCS 1900) -
Mobiles
R&S
1094.0006.30
Printed in Germany
1094.3434.12-05-
CTS30
Test and Measurement
Division
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTS30 and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz CTS30

Summary of Contents for Rohde & Schwarz CTS30

  • Page 1 Test and Measurement Division Operating Manual Digital Radio Tester GSM (GSM 900) - PCN (GSM 1800 / DCS 1800) - PCS (GSM 1900 / DCS 1900) - Mobiles  R&S CTS30 1094.0006.30 Printed in Germany 1094.3434.12-05-...
  • Page 2 Dear Customer, R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. 1094.3434.12-05-...
  • Page 3 CTS30 Tabbed Divider Overview Data Sheet Safety Instructions Certificate of quality EC Certificate of Conformity List of R & S Representatives Introduction Tabbed Divider 1 ..................Preparation for Use Tabbed Divider 2 ................ Remote Control Tabbed Divider 3 ................Windows Application CTSgo Tabbed Divider 4 ...............
  • Page 5 Supplement to Data Sheet CTS Technical Specifications The technical specifications and the functions of CTS30 are identical with those given in the CTS data sheet for GSM. However, operation of CTS 30 is controlled by Application Software CTSgo supplied with the instrument.
  • Page 7 Before putting the product into operation for the first time, make sure to read the following S a f e t y I n s t r u c t i o n s Rohde & Schwarz makes every effort to keep the safety standard of its products up to date and to offer its customers the highest possible degree of safety.
  • Page 8 Safety Instructions Observing the safety instructions will help prevent personal injury or damage of any kind caused by dangerous situations. Therefore, carefully read through and adhere to the following safety instructions before putting the product into operation. It is also absolutely essential to observe the additional safety instructions on personal safety that appear in other parts of the documentation.
  • Page 9 Safety Instructions 4. If products/components are mechanically 10. Intentionally breaking the protective earth and/or thermically processed in a manner connection either in the feed line or in the that goes beyond their intended use, product itself is not permitted. Doing so can hazardous substances (heavy-metal dust result in the danger of an electric shock such as lead, beryllium, nickel) may be...
  • Page 10 Safety Instructions 19. If a product is to be permanently installed, matching Rohde & Schwarz type (see the connection between the PE terminal on spare parts list). Batteries and storage site and the product's PE conductor must batteries are hazardous waste. Dispose of be made first before any other connection them only in specially marked containers.
  • Page 11 Por favor lea imprescindiblemente antes de la primera puesta en funcionamiento las siguientes informaciones de seguridad Informaciones de seguridad Es el principio de Rohde & Schwarz de tener a sus productos siempre al día con los estandards de seguridad y de ofrecer a sus clientes el máximo grado de seguridad. Nuestros productos y todos los equipos adicionales son siempre fabricados y examinados según las normas de seguridad vigentes.
  • Page 12 Informaciones de seguridad Tener en cuenta las informaciones de seguridad sirve para tratar de evitar daños y peligros de toda clase. Es necesario de que se lean las siguientes informaciones de seguridad concienzudamente y se tengan en cuenta debidamente antes de la puesta en funcionamiento del producto. También deberán ser tenidas en cuenta las informaciones para la protección de personas que encontrarán en otro capítulo de esta documentación y que también son obligatorias de seguir.
  • Page 13 Informaciones de seguridad seguridad (control a primera vista, control de peligro a causa de la radiación conductor protector, medición de resistencia electromagnética. El empresario está de aislamiento, medición de medición de la comprometido a valorar y señalar areas de corriente conductora, control trabajo en las que se corra un riesgo de...
  • Page 14 Informaciones de seguridad 12. No utilice nunca el producto si está dañado el 20. En caso de que los productos que son cable eléctrico. Asegure a través de las instalados fijamente en un lugar sean sin medidas de protección y de instalación protector implementado, autointerruptor o adecuadas de que el cable de eléctrico no similares objetos de protección, deberá...
  • Page 15 Informaciones de seguridad 27. Baterías y acumuladores no deben de ser 31. Las asas instaladas en los productos sirven expuestos a temperaturas altas o al fuego. solamente de ayuda para el manejo que Guardar baterías y acumuladores fuera del solamente está previsto para personas. Por alcance de los niños.
  • Page 17 Certificate No.: 98121 This is to certify that: Equipment type Order No. Designation CTS30 1094.0006.30 Digital Radio Tester complies with the provisions of the Directive of the Council of the European Union on the approximation of the laws of the Member States...
  • Page 19 CTS30 Introduction Introduction Tester CTS is a value-for-money instrument for function tests, as well as detailed service testing on digital mobiles. These tests are performed using a personal computer. Application Software CTSgo is supplied with the tester. The CTSgo program comes in two versions.
  • Page 21 CTS30 Putting into Operation Preparation for Use When unpacking the instrument, don't forget the items and accessories which are included. When transporting the instrument in future it is strongly recommended that the protective caps included in the shipping box for protection of the front and rear panel are used. This serves to prevent damage to the protruding items on the front and rear panels.
  • Page 22 Putting into Operation CTS30 Explanation of Front and Rear View This page shows the front and rear view of the instrument, with short explanations on the controls and connectors. DIGITAL RADIO TESTER CTS 30 1094.0006.30 RF OUT 2 GSM High level output...
  • Page 23 CTS30 Putting into Operation Instrument with wide-range voltage input Fan of power supply unit Service connector (e. g. for ext. monitor) (controlled) MONITOR Power switch on/off 100 ... 240 V / 160 VA 50 ... 60 Hz (uncontrolled) KEYBOARD RS 232...
  • Page 24 Putting into Operation CTS30 Commissioning 2.2.1 Setting up the Instrument For convenient operation of the instrument note the following: • Do not cover the ventilation openings! • Ambient temperature +5 to +40 °C. • Avoid moisture and condensation, if it occurs however, the instrument must be thoroughly dried before switching on.
  • Page 25 CTS30 Putting into Operation 2.2.3 Connecting the Instrument to the Personal Computer Connect the RS232 serial interface of CTS (rear panel) to the serial interface of your personal computer using the cable supplied (the installation of the CTSgo software is described in detail in chapter 3 of the manual for Windows Application CTSgo).

  • Page 27: Table Of Contents

    CTS30 Contents Contents 3 Remote Control .......................... 3.1 3.1 Introduction ..........................3.1 3.2 Brief Instructions ........................3.1 3.3 Switchover to Remote Control ....................3.2 3.4 Device Messages (Commands and Device Responses) ............3.2 3.5 Structure and Syntax of the Device Messages ..............3.3 3.5.1...

  • Page 29: Remote Control

    CTS30 Remote Control Remote Control Introduction The instrument is equipped with a serial interface (RS 232-C). The connector is located at the rear of the instrument and permits to connect a controller for remote control. The instrument supports the SCPI version 1992.0 (Standard Commands for Programmable Instruments).

  • Page 30: Switchover To Remote Control

    Remote Control CTS30 Switchover to Remote Control On power-on, the instrument is always in the manual operating state ("LOCAL" state) and can be operated via the front panel. It is switched to remote control ("REMOTE" state) as soon as it receives a command from a controller.

  • Page 31: Structure And Syntax Of The Device Messages

    CTS30 Remote Control Structure and Syntax of the Device Messages 3.5.1 SCPI Introduction SCPI (Standard Commands for Programmable Instruments) describes a standard command set for programming instruments, irrespective of the type of instrument or manufacturer. The goal of the SCPI consortium is to standardize the device-specific commands to a large extent.
  • Page 32 Remote Control CTS30 SOURce POWer POLarity MODE EXTernal STATe INTernal POLarity COUPling Fig. 3-1 Tree structure of the SCPI command systems using the SOURce system by way of example Some key words occur in several levels within one command system. Their effect depends on the structure of the command, that is to say, at which position in the header of a command they are inserted.

  • Page 33: Structure Of A Command Line

    CTS30 Remote Control Long and short form: The key words feature a long form and a short form. Either the short form or the long form can be entered, other abbreviations are not permissible. Example: STATus:QUEStionable:ENABle 1= STAT:QUES:ENAB 1 Note: The short form is marked by upper-case letters, the long form corresponds to the complete word.
  • Page 34 Remote Control CTS30 Example: SOURce:FM:MODE LOCKed;:SOURce:FM:INT:FREQuency 1kHz " " This command line is represented in its full length and contains two commands separated from each other by the semicolon. Both commands are part of the SOURce command system, subsystem FM, i.e. they have two common levels.

  • Page 35: Responses To Queries

    CTS30 Remote Control 3.5.4 Responses to Queries A query is defined for each setting command unless explicitly specified otherwise. It is formed by adding a question mark to the associated setting command. According to SCPI, the responses to queries are partly subject to stricter rules than in standard IEEE 488.2.

  • Page 36: Parameters

    Remote Control CTS30 3.5.5 Parameters Most commands require a parameter to be specified. The parameters must be separated from the header by a "white space". Permissible parameters are numerical values, Boolean parameters, text, character strings and block data. The type of parameter required for the respective command and the permissible range of values are specified in the command description (see Section 3.6).
  • Page 37 CTS30 Remote Control Text Text parameters observe the syntactic rules for key words, i.e. they can be entered using a short or long form. Like any parameter, they have to be separated from the header by a white space. In the case of a query, the short form of the text is provided.

  • Page 38: Overview Of Syntax Elements

    Remote Control CTS30 3.5.6 Overview of Syntax Elements The following survey offers an overview of the syntax elements. The colon separates the key words of a command. In a command line the colon after the separating semicolon marks the uppermost command level.

  • Page 39: Description Of Commands

    CTS30 Remote Control Description of Commands 3.6.1 Notation In the following sections, all commands implemented in the instrument are first listed in tables and then described in detail, separated according to the command system. The notation corresponds to the one of the SCPI standards to a large extent.
  • Page 40 Remote Control CTS30 Special characters A selection of key words with an identical effect exists for several commands. These key words are indicated in the same line, they are separated by a vertical stroke. Only one of these key words has to be indicated in the header of the command.

  • Page 41: Common Commands

    CTS30 Remote Control 3.6.2 Common Commands The common commands are taken from the IEEE 488.2 (IEC 625-2) standard. Same commands have the same effect on different devices. The headers of these commands consist of "*" followed by three letters. Many common commands refer to the status reporting system which is described in detail in Section 3.8.
  • Page 42 Remote Control CTS30 *IDN? IDENTIFICATION QUERY queries the instrument identification. The device response is for example: ROHDE&SCHWARZ,CTSzz,ssssss/sss,x.xx yy.yy.yy (zz is the model no., eg 55 or 65 ssssss/sss is the serial no., eg 101183/005 x.xx is the software version, eg V 1.00 yy.yy.yy is the date, eg 18.10.93)
  • Page 43 CTS30 Remote Control *PRE 0...255 PARALLEL POLL REGISTER ENABLE sets parallel poll enable register to the value indicated. Query *PRE? returns the contents of the parallel poll enable register in decimal form. *PSC 0 | 1 POWER ON STATUS CLEAR determines whether the contents of the ENABle registers is maintained or reset in switching on.

  • Page 44: Instrument Model And Command Processing

    Remote Control CTS30 Instrument Model and Command Processing The instrument model shown in Fig. 3-2 has been made viewed from the standpoint of the servicing of remote-control commands. The individual components work independently of each other and simultaneously. They communicate by means of so-called "messages".

  • Page 45: Status Reporting System

    CTS30 Remote Control Status Reporting System The status reporting system (cf. Fig. 3-4) stores all information on the present operating state of the instrument and on errors which have occurred. This information is stored in the status registers and in the error queue.
  • Page 46 Remote Control CTS30 CONDition part The CONDition part is directly written into by the hardware or the sum bit of the next lower register. Its contents reflects the current instrument status. This register part can only be read, but not written into or cleared. Its contents is not affected by reading.

  • Page 47: Overview Of The Status Registers

    CTS30 Remote Control 3.8.2 Overview of the Status Registers vacant -&- RQS/MSS -&- -&- -&- vacant -&- vacant vacant -&- -&- -&- -&- -&- -&- IST flag (Response to parallel poll) Power on -&- User Request -&- Command Error -&- Execution Error -&-...

  • Page 48: Description Of The Status Registers

    Remote Control CTS30 3.8.3 Description of the Status Registers 3.8.3.1 Status Byte (STB) and Service Request Enable Register (SRE) The STB is already defined in IEEE 488.2. It provides a rough overview of the instrument status by collecting the pieces of information of the lower registers. It can thus be compared with the CONDition part of an SCPI register and assumes the highest level within the SCPI hierarchy.

  • Page 49: Event-Status-Reg. (Esr) And Event-Status-Enable-Reg. (Ese)

    CTS30 Remote Control 3.8.3.2 Event-Status-Reg. (ESR) and Event-Status-Enable-Reg. (ESE) The ESR is already defined in IEEE 488.2. It can be compared with the EVENt part of an SCPI register. The event status register can be read out using command "*ESR?".

  • Page 50: Error-Queue Query

    Remote Control CTS30 3.8.4 Error-Queue Query Each error state in the instrument leads to an entry in the error queue. The entries of the error queue are detailed plain-text error messages which can be queried via the remote control using command "SYSTem:ERRor?".
  • Page 51 Test and Measurement Division ® Windows Application CTSgo CTS-K6 (Version 1.81) 1079.2001.01 Printed in the Federal Republic of Germany 1079.2001.01 (Edition 3)

  • Page 53: Contents

    ® CTS-K6 Windows Application CTSgo 1 Contents 1 Contents ............................1 2 Introduction ............................. 7 First Steps with CTSgo ......................7 Basic Knowledge Required ..................... 7 Preconditions for System Use ....................7 Suitable Serial Cables ......................8 2.4.1 Cable for Xon/Xoff Protocol....................8 2.4.2 Cable for Hardware Protocol RTS/CTS ................
  • Page 54 ® Windows Application CTSgo CTS-K6 6 Getting Familiar with CTSgo ....................16 Explanation of Terms ......................16 6.1.1 Title Bar .......................... 16 6.1.2 Menu Bar ........................16 6.1.3 Pulldown Menu ....................... 16 6.1.4 Popup Menu ........................17 6.1.5 Toolbar ........................... 17 6.1.6 Status Bar........................
  • Page 55 ® CTS-K6 Windows Application CTSgo Measurement Menus......................42 7.2.1 Report Settings....................... 42 7.2.2 Start..........................44 7.2.3 Stop ..........................44 7.2.4 Pause ..........................44 7.2.5 Step ..........................44 7.2.6 Freeze ..........................44 7.2.7 Continue ......................... 44 Configuration Menu in the GSM Autotest ................45 7.3.1 Network ..........................
  • Page 56 ® Windows Application CTSgo CTS-K6 Configuration Menu in the DECT Autotest ................65 7.5.1 PP Base Settings ......................65 7.5.2 FP Base Settings......................66 7.5.3 Select Tests........................68 7.5.4 FP Test Set 1 ......................... 69 7.5.5 FP Test Set 2 ......................... 70 7.5.6 FP Test Set 3 .........................
  • Page 57 ® CTS-K6 Windows Application CTSgo 8 GSM Measurement Report ...................... 89 Header of Measurement Report .................... 89 Output of Measurement Information in the Report ............. 90 Summary of Results in the Measurement Report ............... 91 Appendix to Measurement Report ..................91 9 DECT Measurement Report ....................
  • Page 58 ® Windows Application CTSgo CTS-K6 16Problems, Questions and Solutions ................109 16.1 Components Missing Signaled upon Program Startup............ 109 16.2 Serial Interface Cannot be Opened..................109 16.3 CTS Cannot be Remote-Controlled ..................109 16.4 Program Signals Timeout ....................109 16.5 Serial Data Transmission Impaired by Mouse Movements..........109 16.6 Location Update Cannot be Performed................

  • Page 59: Introduction

    Mouse, one free serial interface CTS30, CTS50, CTS55 or CTS65 is also required. To be able to make full use of all the program capabilities, software version 2.00 or higher should be installed on the CTS. The autotest can be performed as of software version 1.25 of the CTS.

  • Page 60: Suitable Serial Cables

    ® Windows Application CTSgo CTS-K6 2.4 Suitable Serial Cables The CTSgo program and the CTS allow for various settings of data transmission. Depending on the handshake method used, different conditions have to be met by the cable. Handshake means that the devices inform each other whether they are ready to receive data.

  • Page 61: Installation

    ® CTS-K6 Windows Application CTSgo 3 Installation This section describes the installation of CTSgo. The appearance of Windows is slightly different on your PC because of the various possible configurations, but the program contents and function of control elements are identical. 3.1 Preparation Take the set of floppies for the CTSgo variant to be installed.

  • Page 62: Step 5

    ® Windows Application CTSgo CTS-K6 3.2.5 Step 5 Enter your name and the name of your company in the dialog fields. After the entry continue with “Next”. Return to the last step is possible at any time by pressing “Back”. Fig.: Dialog of installation step 5 3.2.6 Step 6 The installation software now...

  • Page 63: Step 7

    ® CTS-K6 Windows Application CTSgo 3.2.7 Step 7 Select the folder into which the program icon is to be placed. You may create a new folder or put the icon into an already existing folder. Fig.: Dialog of installation step 7 3.2.8 Step 8 The installation software now displays all the settings made...

  • Page 64: Step 9

    ® Windows Application CTSgo CTS-K6 3.2.9 Step 9 The installation software now starts to copy the software components. If desired, the installation procedure can be terminated before completion with “Cancel”. A progress bar informs you on the current installation state. Fig.: Dialog of installation step 9 3.2.10 Step 10 During the installation the...

  • Page 65: 11Step 11

    ® CTS-K6 Windows Application CTSgo 3.2.11 Step 11 The installation was success- fully completed. With installation terminated, program can be called up. Fig.: Dialog of installation step 11 1079.2001.01...

  • Page 66: Software Components

    ® Windows Application CTSgo CTS-K6 4 Software Components The installation program installs the following components. To simplify deinstallation of the program, the components should preferably not be copied into the Windows directory. If further applications are to be used and copied to the Windows system directory by the runtime libraries below, these libraries may be cleared from the installation directory.

  • Page 67: Deinstallation Of Program Ctsgo

    ® CTS-K6 Windows Application CTSgo 5 Deinstallation of Program CTSgo Deinstallation is basically automatic on all platforms. The automatic deinstallation clears all files that have been stored in the controller during the installation. Other files like configuration files or measurement reports are not cleared. If required, these files must be manually removed. 5.1 Deinstallation under Windows 95/Windows 98 / Windows NT 4.0 To deinstall CTSgo go to the Windows system control level and click on “Software”.

  • Page 68: Getting Familiar With Ctsgo

    ® Windows Application CTSgo CTS-K6 6 Getting Familiar with CTSgo 6.1 Explanation of Terms If you are familiar with other Windows programs, associated terms and concepts will be known to you. However, to simplify your working with this manual and for the sake of clarity we recommend to briefly read through the terms used in the manual.

  • Page 69: Popup Menu

    ® CTS-K6 Windows Application CTSgo 6.1.4 Popup Menu This menu contains commands and is displayed in the main menu at the position of the mouse cursor when the righthand mouse key is pressed. Move the cursor through the commands and release the righthand mouse key on the desired command.

  • Page 70: Buttons

    ® Windows Application CTSgo CTS-K6 6.1.8 Buttons Buttons are part of dialog windows. Click on a button with the left mouse key to execute the desired function. 6.1.9 Option Boxes Option boxes permit to select one of several different options. The selected option is filled in by a point. 6.1.10 Check Boxes With these boxes an option can be activated or deactivated.

  • Page 71: 12Information Boxes

    ® CTS-K6 Windows Application CTSgo 6.1.12 Information Boxes Some dialog windows contain a user info box where information in plain text or graphics on the program status or on selection or setting results is displayed. 6.1.13 Output Boxes Output boxes look like info boxes, but they cannot be activated. 6.1.14 Progress Bars Progress bars indicate the current status of an action.

  • Page 72: Ctsgo Program Structure

    ® Windows Application CTSgo CTS-K6 6.2 CTSgo Program Structure CTSgo uses five main operating modes: • GSM autotest dialog. The GSM autotest can be started in this mode for generating new measurement reports. • GSM module test dialog. This is an interactive mode where generator settings can be made on the CTS, a GSM burst analysis performed and the IQ spectrum viewed.

  • Page 73: Gsm Autotest Dialog

    ® CTS-K6 Windows Application CTSgo 6.3 GSM Autotest Dialog After the first start, the CTSgo program is in the GSM autotest mode. The sequence control of the autotest is in the stop mode at this point in time. If you wish to change settings for the autotest, you should do it now.
  • Page 74 ® Windows Application CTSgo CTS-K6 The following elements are displayed to the right of the time of the day: Status indication of program sequence. The status check in the sequence control is made periodically. With each performed cycle the icon is rotated by 90°. Events on the serial interface also cause the icon to move.
  • Page 75 ® CTS-K6 Windows Application CTSgo You are requested to set up a call. The righthand key on the mobile shown in green flashes. 1079.2001.01...

  • Page 76: Sequence Control Of Autotest

    ® Windows Application CTSgo CTS-K6 6.3.1 Sequence Control of Autotest With the CTSgo program, the autotest mode is called. The sequence control is in the stop mode so that you can perform the configurations that are still needed. In this mode, you may choose between the following possibilities: The program is in the single-step...

  • Page 77: Structure Of Gsm Autotest

    ® CTS-K6 Windows Application CTSgo 6.3.2 Structure of GSM Autotest CTS basic configuration Preparation of test (1 run) Waiting for location update Query of mobile specification (IMSI/IMEI/power class/phase) Call setup Change of channel/PCL Setting CTS output level Power/phase/frequency error measurements Power reduction to BER level Determination of BER, query of RXLev / RXQual Preparation of test (further test runs)

  • Page 78: Gsm Module Test Dialog

    ® Windows Application CTSgo CTS-K6 6.4 GSM Module Test Dialog The GSM module test comprises three functions: operation of the CTS as generator, burst analysis using the CTS and IQ spectrum display. The module test and thus data transmission between CTS and CTSgo start in generator mode.
  • Page 79 ® CTS-K6 Windows Application CTSgo The RF generator dialog can also be terminated with Cancel. In this case, the generator settings are not changed. If required, the channel and the frequency offset can be converted to a frequency with the aid of this dialog. For further information refer to the dialog description. Like in the autotest, the user can load parameters or store the current setting with the aid of a popup menu.
  • Page 80 ® Windows Application CTSgo CTS-K6 Frequency error Measurement range Lower limit Bar center Upper limit Default -250 Hz 0 Hz +250 Hz Minimum -125 Hz 0 Hz +125 Hz Maximum -500 Hz 0 Hz +500 Hz Phase error (Peak) Measurement range Lower limit Bar center Upper limit...
  • Page 81 ® CTS-K6 Windows Application CTSgo The graphics display next to the display of the average power informs the user on whether the measured values are within the GSM tolerance mask. Measured values within tolerance mask. Measured values outside tolerance mask. Tolerance mask not evaluated.
  • Page 82 ® Windows Application CTSgo CTS-K6 The Phase error button displays popup window with the display of the phase curve versus the bit position within the ramp. The CTS also measures the phase with fourfold oversampling. Fig.: Popup menu in GSM module test dialog By pressing the spectrum button, you select...

  • Page 83: Sequence Control Of Module Test

    ® CTS-K6 Windows Application CTSgo Three markers (M1 to M3) are displayed at the points that are typical for this measurement; in addition to the absolute level, the differences from the marker with the highest level are also displayed below. The level scale is relative to the reference level of the tester, the reference level itself is indicated at the top left of the window.

  • Page 84: Structure Of Module Test

    ® Windows Application CTSgo CTS-K6 6.4.2 Structure of Module Test CTS basic configuration Setting of network and attenuation Setting of operating mode RF generator RF burst analysis IQ spectrum Setting of RF Setting of IQ Setting of RF generator spectrum analyzer parameter parameter set parameter set...

  • Page 85: Gsm Report Display

    ® CTS-K6 Windows Application CTSgo 6.5 GSM Report Display Fig.: GSM report display In the GSM report display mode, GSM measurement results are displayed like on a hardcopy. However, contrary to the print preview, paging is not shown. Depending on the length of the measurement report and the resolution of your graphics card, the displayed section may have to be moved through the report display with the aid of the horizontal and vertical scrollbars.

  • Page 86: Dect Autotest Dialog

    ® Windows Application CTSgo CTS-K6 6.6 DECT Autotest Dialog The autotest dialog in DECT mode does not considerably differ from the one in GSM mode. Depending on the operating mode previously used, the operating mode GSM autotest or DECT autotest will be active with the next program start of CTSgo.

  • Page 87: Structure Of Dect Auto Test

    ® CTS-K6 Windows Application CTSgo 6.6.1 Structure of DECT Auto Test CTS basic configuration Preparation of tests PP / FP configuration part 1 Query of RFPI of FP / Setting RFPI in the tester FP or PP configuration part 2 (Carrier,Slot,Offset) Call setup in LOOP mode Power measurement graphics/scalar, checking the template Modulation measurement graphics/scalar, measuring drift, jitter...

  • Page 88: Dect Report Display

    ® Windows Application CTSgo CTS-K6 6.7 DECT Report Display The DECT report display mode indicates the DECT measurement results. The DECT report display corresponds to the GSM report display concerning the popup menu and the other characteristics. Fig.: DECT report display mode Note: Depending on whether GSM report or DECT report is loaded, CTSgo will change the type of display accordingly.

  • Page 89: Program Menus

    ® CTS-K6 Windows Application CTSgo 7 Program Menus This section describes the commands available in the CTSgo menus. If a command can also be called via the toolbar, its icon is displayed below the headline. A command can also be called via a popup menu when the following line is displayed below the headline.

  • Page 90: Save

    ® Windows Application CTSgo CTS-K6 7.1.3 Save Popup menu Report display This command can be used to store a measurement report. A dialog window is opened where the directory can be selected and the report stored under the desired name. 7.1.4 Save As Popup menu Report display This command is similar to the Save command.

  • Page 91: Print Preview

    ® CTS-K6 Windows Application CTSgo 7.1.5 Print Preview This command is used to open the print preview dialog window in the report display. In this window, the measurement report is displayed in hardcopy format. Use the arrow keys to scroll between the pages. Icons are provided for switchover between single-page and double-page display.

  • Page 92: Export Data

    ® Windows Application CTSgo CTS-K6 7.1.8 Export Data The user may want to work with a measurement report in another Windows application. To do so, select this command to open a dialog window where the desired directory can be selected and the file assigned a new name.

  • Page 93: 11Save Configuration

    ® CTS-K6 Windows Application CTSgo 7.1.11 Save Configuration Popup menu Autotest Popup menu Module test This command saves the set configuration. A dialog window is opened where the directory can be selected and the configuration stored under the desired file name. Configuration files are assigned the extension .CFG.

  • Page 94: Measurement Menus

    ® Windows Application CTSgo CTS-K6 7.2 Measurement Menus Fig.: Measurements menu in the GSM autotest, DECT autotest Fig.: Measurements menu in the GSM module test 7.2.1 Report Settings This command opens the following dialog window: Fig.: Report settings dialog window Enter the operator name in the first input field.
  • Page 95 ® CTS-K6 Windows Application CTSgo • Automatic generation of a measurement report. After the measurement, the program remains in the autotest dialog mode. “All tests passed – Some tests failed.” is displayed. A measurement report is saved in a user-selected directory. Measurement reports are stored with consecutive numbers „00000001.MRP“...

  • Page 96: Start

    ® Windows Application CTSgo CTS-K6 Example: The measurement report is stored in computer A: Current directory: C:\CTSGO\ Picture file: C:\BITMAPS\USER.BMP To display the measurement report on computer B: Current directory: C:\MYWORKS\CTSGO\ Picture file: C:\BITMAPS\USER.BMP These settings concern both the GSM and the DECT autotest. 7.2.2 Start The Start command is used to start a new measurement.

  • Page 97: Configuration Menu In The Gsm Autotest

    ® CTS-K6 Windows Application CTSgo 7.3 Configuration Menu in the GSM Autotest Fig.: Configuration menu in the GSM Autotest 1079.2001.01...

  • Page 98: Network

    ® Windows Application CTSgo CTS-K6 7.3.1 Network This command opens the Configure Network dialog window. In this window, the measurements can be adapted to the network of your mobile. The base station power at which the mobile performs a location update is also set here.

  • Page 99: Test Parameters

    ® CTS-K6 Windows Application CTSgo Note: The choice of networks depends on the options available in your CTS! It is advisable to configure the network first and then make test configurations. 7.3.2 Test Parameters The Test Parameters command opens the dialog window shown below. This window permits to set the BCCH of the base station, the path attenuation between mobile and CTS, the number of frames used for the bit-error-rate measurement and the number of bursts for the phase and frequency-error measurement.

  • Page 100: Select Tests

    ® Windows Application CTSgo CTS-K6 More reliable results are obtained by increasing the frames and thus the number of bits, but this extends the measurement time. Note: The measurement time for the phase/frequency error measurement also depends on the number of bursts to be considered.

  • Page 101: First Connect

    ® CTS-K6 Windows Application CTSgo 7.3.4 First Connect Fig.: Configure first Connect dialog window This command permits to define the method for the first call setup. To this end, select whether the CTSgo program expects a call from the mobile or whether the call should be set up by the CTS. In the case of a mobile call, you can define an expected numerical entry, which will then be compared with the call number received and evaluated in the test report.
  • Page 102 ® Windows Application CTSgo CTS-K6 Fig.: Configure Test Set dialog window The standard BS output power is used for the following measurements: • Frequency error • Phase error (RMS and peak value are determined numerically) • Phase error (phase error curve within burst) •...

  • Page 103: Test Set 2

    ® CTS-K6 Windows Application CTSgo 7.3.6 Test Set 2 You can determine the measurements to be performed in the selected TCH channels. For details refer to the description under Test set 1. Note: This command can only be selected if Test set 2 is activated for the test. 7.3.7 Test Set 3 You can determine the measurements to be performed in the selected TCH channels.

  • Page 104: 11First Disconnect

    ® Windows Application CTSgo CTS-K6 7.3.11 First Disconnect Using this command you can determine the procedure for the first call clear-down. Select by a click on the respective box whether a call release is expected from the mobile or whether the call should be cleared down by the CTS.

  • Page 105: 15Test Set 9

    ® CTS-K6 Windows Application CTSgo 7.3.15 Test Set 9 You can determine the measurements to be performed in the selected TCH channel. For details refer to the description under Test set 1. Note: This command can only be selected if test set 9 is activated for the test. 7.3.16 Test Set 10 You can determine the measurements to be performed in the selected TCH channel.

  • Page 106: 20Remote Port

    The timeout of the CTS for responding to a query should now be defined. This parameter depends on the configuration of the individual tests. See also the note for the Test Parameters command. Note: In the case of a CTS30 the parameters of the serial interface are set as follows: • Baud rate 38400 •...

  • Page 107: 21Change Password

    ® CTS-K6 Windows Application CTSgo 7.3.21 Change Password Your configuration can be protected against unauthorized changes. To this end, enter a password in the first field and repeat it in the next. The password function is activated by selecting the “Activate” box.

  • Page 108: Configuration Menu In The Gsm Module Test

    ® Windows Application CTSgo CTS-K6 7.4 Configuration Menu in the GSM Module Test 7.4.1 Attenuation Fig.: Configure Test Parameters dialog window In the module test, this dialog permits to standardize the attenuation values of the parameter sets in generator, burst analysis and IQ spectrum mode. After entering the input attenuation and output attenuation, close the dialog window by clicking on OK.
  • Page 109 ® CTS-K6 Windows Application CTSgo Fig.: RF Generator Settings dialog window Whether the channel or the frequency is entered is selected with the Channel Input box. If frequency is entered, it is adapted to the channel and frequency offset. The entered channel or the conversion to the respective frequency also depends on the currently active network.
  • Page 110 ® Windows Application CTSgo CTS-K6 Channel (GSM900) Frequency -175 875.0 MHz -174 875.2 MHz 935.0 MHz... 935.2 MHz 935.4 MHz 959.6 MHz 959.8 MHz 994.8 MHz GSM 900 channel 995.0 MHz Fictitious channel Channel (GSM1800) Frequency 1800.0 MHz 1800.2 MHz 1805.2 MHz...

  • Page 111: Burst Analysis Settings

    ® CTS-K6 Windows Application CTSgo 7.4.3 Burst Analysis Settings The Configurations menu includes the Burst Analysis Settings submenu, where the menu items “RF Analyzer 1” to “RF Analyzer 10” can be found. Select one of these commands for editing the respective burst analysis parameter set.
  • Page 112 ® Windows Application CTSgo CTS-K6 The entered channel or the conversion to its frequency also depends on the currently active network. Channels and associated frequencies are listed in the tables below. Channels outside the currently used band are displayed on a dark background. Channel (GSM900) Frequency 875.0 MHz 875.2 MHz...
  • Page 113 ® CTS-K6 Windows Application CTSgo As a particular feature of the configuration dialog for burst analysis, you can force a certain display mode. When this configuration set is called later on, the popup windows of burst analysis will be opened or closed, certain measurements marked or some marking cleared. Select the desired display mode and make a mark the “Force Displaymode”...

  • Page 114: Iq Spectrum Settings

    ® Windows Application CTSgo CTS-K6 7.4.4 IQ Spectrum Settings The Configurations menu includes the submenu “IQ Spectrum Settings”. This submenu contains the menu items “IQ Spectrum 1” to “IQ Spectrum 10”. Select one of these commands to edit an IQ spectrum parameter set.
  • Page 115 ® CTS-K6 Windows Application CTSgo By activating the Channel Input box, you can change between channel input and frequency input. If the frequency is entered, it is adapted to the GSM channel spacing. The entered channel or the conversion to its frequency also depends on the currently active network. Channels and associated frequencies are listed in the tables below.

  • Page 116: Remote Port

    ® Windows Application CTSgo CTS-K6 The IQ spectrum parameter set can be assigned a short name in the Name field. This short name appears both in the submenu and in the labeling of the buttons of the module test dialog window. The associated network is determined for the parameter set by clicking on “GSM900“, “GSM1800“...

  • Page 117: Configuration Menu In The Dect Autotest

    ® CTS-K6 Windows Application CTSgo 7.5 Configuration Menu in the DECT Autotest Fig.: Configuration menu in the DECT autotest 7.5.1 PP Base Settings This command permits to call the “PP Base Settings“ dialog window. Use this dialog to adapt the test mode to the parameters of your portable part.

  • Page 118: Fp Base Settings

    ® Windows Application CTSgo CTS-K6 Fig.: PP Base settings dialog window Note: For information about how to switch the portable part to service mode contact your manufacturer. It is very difficult to determine the attenuation to be set for DECT devices empirically. On the one hand, fixed parts or portable parts have no antenna connectors, which is why antenna couplers must be used.
  • Page 119 ® CTS-K6 Windows Application CTSgo Fig.: FP Base settings dialog window The antenna to be used can be entered in the input field below. The input and output attenuation are entered in two further fields. Note: For information about how to switch the portable part to service mode contact your manufacturer. It is very difficult to determine the attenuation to be set for DECT devices empirically.

  • Page 120: Select Tests

    ® Windows Application CTSgo CTS-K6 7.5.3 Select Tests This command opens the dialog window below. The number of test sets for the fixed part test and the number of test sets for the portable part test are selected using the respective boxes. If you do not want to perform a fixed part test or a portable part test, clear the respective mark in the box.

  • Page 121: Fp Test Set 1

    ® CTS-K6 Windows Application CTSgo 7.5.4 FP Test Set 1 Within the test sets, you can determine the measurements to be performed for a traffic bearer. To this end, enter the carrier of the traffic bearer to be used in the first input field. You may as well enter the carrier offset.

  • Page 122: Fp Test Set 2

    ® Windows Application CTSgo CTS-K6 The following RX measurements are available: • BER (Bit Error Rate) • FER (Frame Error Rate) The RF output level of the CTS for these measurements is to be determined in the RF Level field of RX Measurements.

  • Page 123: Fp Test Set 5

    ® CTS-K6 Windows Application CTSgo 7.5.8 FP Test Set 5 You can determine the number of tests for the Traffic Bearer. For more details refer to the description of FP test set 1. Note: This command can only be called if FP test set 5 is activated for the test. 7.5.9 FP Test Set 6 You can determine the tests to be performed for the Traffic Bearer.

  • Page 124: 10Pp Test Set 1

    ® Windows Application CTSgo CTS-K6 7.5.10 PP Test Set 1 Within the test sets, you can determine the tests to be performed for a traffic bearer. To do so, enter the carrier of the traffic bearer to be used in the first input field. You can as well enter the carrier offset. In addition, you can define the used slot in the respective field.

  • Page 125: 11Pp Test Set 2

    ® CTS-K6 Windows Application CTSgo The following TX measurements are available: • NTP (Normal Transmit Power) • Power ramp (Template) • Graphics burst display in the appendix to the measurement report • Frequency offset • B-field modulation • Graphics display of modulation in the appendix to the measurement report •...

  • Page 126: 15Pp Test Set 6

    ® Windows Application CTSgo CTS-K6 7.5.15 PP Test Set 6 You can determine the tests to be performed for the specified TCH channel. For more details refer to the description of test set 1. Note: This command can only be called if PP test set 6 is activated for the tests. 7.5.16 Remote Port The same dialog window appears as for the GSM autotest, for more information refer to the respective chapter of the GSM autotest.

  • Page 127: Limits Menu In The Gsm Autotest

    ® CTS-K6 Windows Application CTSgo 7.6 Limits Menu in the GSM Autotest Fig.: Limits menu in the GSM autotest With the items in the Limits menu, the upper and lower limits for the results are set. The settings made here influence all subsequently generated measurement reports. Tolerances of already stored measurement reports will not be influenced by these settings.

  • Page 128: Average Power

    ® Windows Application CTSgo CTS-K6 Fig.: Extract from Phase / Frequency / Timing Error measurement report 7.6.2 Average Power You may specify your own tolerances for the average power measurement. According to GSM specifications, the limits depend on the power control level (PCL) used by the mobile for transmission to the base station (CTS).
  • Page 129 ® CTS-K6 Windows Application CTSgo The maximum output power of a mobile is specified by its power class (Mobile Power Class). This information is queried by the sequence control from the DUT and influences the choice of tolerance. Power class GSM 900 maximum output power 43 dBm (see note) 39 dBm...

  • Page 130: Ber Measurements

    ® Windows Application CTSgo CTS-K6 Power class GSM 1900 maximum output power 30 dBm 24 dBm 33 dBm Fig.: Limits Average Power dialog window GSM1800/GSM1900 Entered values are set by pressing OK. If the entered limit values should not be set, terminate the dialog with Cancel.

  • Page 131: Rxqual /Rxlev

    ® CTS-K6 Windows Application CTSgo Fig.: Limits BER dialog window Class II, the maximum permissible BER of which is to be specified in the first input field, contains unprotected bits. These bits normally transfer data that do not seriously impair transmission when the bits are lost.
  • Page 132 ® Windows Application CTSgo CTS-K6 Fig.: Limits RXQual / RXLev dialog window RXLev is the power received by the mobile and signaled to the base station as values from 0 to 63. RXLev value Signal strength (dBm) > -48 dBm -49 dBm to -48 dBm -50 dBm to -49 dBm -109 dBm to -108 dBm...

  • Page 133: Limits Menu In The Dect Autotest

    ® CTS-K6 Windows Application CTSgo 7.7 Limits Menu in the DECT Autotest Fig.: Limits menu in the DECT autotest With the items in the Limits menu, the upper and lower limits for the results are set. The settings made here influence all subsequently generated measurement reports. Tolerances of already stored measurement reports will not be influenced by these settings.

  • Page 134: Modulation

    ® Windows Application CTSgo CTS-K6 7.7.2 Modulation This dialog permits to define the tolerance limits for the B-field modulation, the frequency offset and the frequency drift. Entered values are set by pressing OK. If newly entered limit values should not be set, terminate the dialog with Cancel.

  • Page 135: Timing

    ® CTS-K6 Windows Application CTSgo 7.7.3 Timing This dialog permits to define the tolerance limits for the jitter and timing measurements. The entered values are set by pressing OK. If newly entered values should not be set, terminate the dialog with Cancel.

  • Page 136: Ber / Fer

    ® Windows Application CTSgo CTS-K6 7.7.4 BER / FER This dialog permits to define the upper limit for the bit error rate (BER) and frame error rate (FER) measurements. Note that the entry is made in parts per million (ppm). The entered values are set by pressing OK.

  • Page 137: Window Menu

    ® CTS-K6 Windows Application CTSgo 7.8 Window Menu Fig.: Window menu The Windows menu is only active in the report display mode. In this window, the display can be adapted to your requirements. The current size of the display is indicated in the status bar. 7.8.1 Zoom 200% Popup menu Report display This command expands the result display to 200% of the standard size.

  • Page 138: Zoom 75

    ® Windows Application CTSgo CTS-K6 7.8.5 Zoom 75% Popup menu Report display This command reduces the result display to 75% of the standard size. 7.8.6 Zoom 66% Popup menu Report display This command reduces the result display to 66% of the standard size. 7.8.7 Zoom 50% Popup menu Report display This command reduces the result display to 50% of the standard size.
  • Page 139 ® CTS-K6 Windows Application CTSgo Fig.: CTSgo help window 1079.2001.01...

  • Page 140: Using The Online Help

    ® Windows Application CTSgo CTS-K6 7.9.2 Using the Online Help This command calls the online help of the employed operating system. The help is platform-specific and depends on the installation of the operating system. It also includes instructions on the use of the help files.

  • Page 141: Gsm Measurement Report

    ® CTS-K6 Windows Application CTSgo 8 GSM Measurement Report The measurement reports generated by the autotest provide a clear overview of measurement results. This section describes the layout of the measurement reports. 8.1 Header of Measurement Report The header of the measurement report contains all static settings of the measurement, eg set input and output attenuation, CTS output power during location update and the selected BCCH channel.

  • Page 142: Output Of Measurement Information In The Report

    ® Windows Application CTSgo CTS-K6 8.2 Output of Measurement Information in the Report When a call is set up by the mobile, the call number is entered in the measurement report. You can implement a simple keyboard test. Fig.: Display of call number The information on the individual measurements is indicated in five columns.

  • Page 143: Summary Of Results In The Measurement Report

    ® CTS-K6 Windows Application CTSgo 8.3 Summary of Results in the Measurement Report A summary of test results is given on the last page of each measurement report together with the number of passed or failed tests. The total measurement time including the waiting times for operator actions is also specified.
  • Page 144 ® Windows Application CTSgo CTS-K6 Fig.: GSM Power Time Template The limit lines used by CTSgo in the display of the power time template can be obtained from the following tables. According to GSM specifications, the reference point (0.0 µs) is positioned in the middle of the bit length of bit 0.
  • Page 145 ® CTS-K6 Windows Application CTSgo Point relative absolute Point relative absolute -59.0 dB -36.0 dBm -59.0 dB -36.0 dBm -30.0 dB -17.0 dBm -30.0 dB -17.0 dBm -6.0 dB -4.0 dB 4.0 dB 4.0 dB 1.0 dB 1.0 dB -1.0 dB -1.0 dB -6.0 dB -4.0 dB...
  • Page 146 ® Windows Application CTSgo CTS-K6 The second graphics of the measurement report shows the phase error for each quarter bit in the useful part of Fig.: Appendix to measurement report: phase curve the GSM burst. Depending on the upper limit of the phase error selected in the CTSgo configuration, a red tolerance line is drawn in at this point.

  • Page 147: Dect Measurement Report

    ® CTS-K6 Windows Application CTSgo 9 DECT Measurement Report The measurement reports generated by the autotest provide a clear overview of measurement results. This section describes the layout of measurement reports. 9.1 Header of Measurement Report The header of the measurement report contains all static settings of the measurement, eg set input and output attenuation, channel and slot of dummy carrier for the PP test and the selected RFPI (Radio Fixed Part Identity) for the fixed part and the portable part test.

  • Page 148: Summary Of Measurements In The Measurement Report

    ® Windows Application CTSgo CTS-K6 column four. This may happen when synchronization is lost during the measurement. Information on used slot), employed channel and the channel offset or the associated test set are indicated in the first column instead of the modified parameters. This additional information is written in italics. You can include a simple echo test in the measurement, the result of which is indicated below.
  • Page 149 ® CTS-K6 Windows Application CTSgo The graphics display of power ramp and modulation within the burst is appended to the measurement report. The curve display is shown in blue. The tolerance mask is recorded in red. Note: The tolerance mask is defined at various points A to F. DECT Power Time Template The limit lines used by CTSgo in the display of the DECT power time template can be obtained from the following table.
  • Page 150 ® Windows Application CTSgo CTS-K6 The second graphics display of the measurement report shows the modulation within the burst. The modulation used during the measurement is always Fig31. Recording starts at bit position -38. It can be clearly seen that still no burst is being received by the tester. Then follows the sync field including the preamble for time synchronization between FP and PP.

  • Page 151: 10Drag & Drop Support

    ® CTS-K6 Windows Application CTSgo 10 Drag & Drop Support The program supports the implemented drag & drop function of Windows in two ways. Drag & drop allows the user to move a selected file of a folder across the main window of an application with the left mouse key held down and to release the key when the desired position is attained.

  • Page 152: 11Exchanging Measurement Report Data

    ® Windows Application CTSgo CTS-K6 11 Exchanging Measurement Report Data Fig.: English and German report display CTSgo does not store country-specific information or texts in the measurement report files. If you have performed measurements with the English version of CTSgo and want to view the test results with the German version, window labeling as well as the information on date and time will be adapted to the desired language.

  • Page 153: 12Examples Of Application

    ® CTS-K6 Windows Application CTSgo 12 Examples of Application The procedure for configuring the autotest will be explained with the aid of two examples. Read through these examples if you are still not at ease with the operation of CTSgo. Before starting the examples, the following steps should be performed: •...

  • Page 154: Extended Gsm Test

    ® Windows Application CTSgo CTS-K6 12.2 Extended GSM Test In our second example, and extended test of a GSM900 mobile is to be performed. After a first call has been set up by CTS, all kind of GSM transmitter measurements are to be performed in channels 1, 62 and 124 at the PCLs 5, 10 and 15.

  • Page 155: Dect Test

    ® CTS-K6 Windows Application CTSgo • Open the File menu and select Save Configuration. Enter a name, eg ENDTEST.CFG in the Save Configuration dialog window and select the directory where the file should be stored. • Open the Measurement menu and click on Start. 12.3 DECT Test In our third example, a DECT set consisting of a fixed part and a portable part is to be measured.

  • Page 156: 13Working With Different User Profiles

    ® Windows Application CTSgo CTS-K6 13 Working with Different User Profiles CTSgo allows for two different user profiles, the configurator and the operator profile. The operator mainly focuses on loading configurations and then starting the test. In order to prevent surrounding base stations from disturbing the measurements, the operator can change the settings of the BCCH and TCH channels.

  • Page 157: 14Integrating Operator-Specific Hints

    ® CTS-K6 Windows Application CTSgo 14 Integrating Operator-specific Hints When it is called up for the first time, CTSgo generates further configuration files “CTS_GO.DS1“ “CTS_GO.DS2“ . The file “CTS_GO.DS1“ refers to autotest, “CTS_GO.DS2“ to the DECT autotest. These configuration files permit to integrate the output of additional information in the test run.

  • Page 158: The Section Everytime

    ® Windows Application CTSgo CTS-K6 14.1 The Section Everytime This section contains 9 entries. The individual entries are displayed shortly after the start of the autotest in the order Text1/Filename1, Text2/Filename2 and Text3/Filename3. If several graphics displays are to be shown one after the other, it is recommended to define the popup window for text as well, since otherwise the second graphics, for instance, would immediately overwrite the first one.

  • Page 159: The Section Monthly

    ® CTS-K6 Windows Application CTSgo 14.3 The Section Monthly This section contains 9 entries. The individual entries are displayed shortly after the start of the autotest in the order Text1/Filename1, Text2/Filename2 and Text3/Filename3. If several graphics displays are to be indicated one after the other, it is recommended to define the popup window for text as well, since otherwise the second graphics, for instance, would immediately overwrite the first one.

  • Page 160: 15Adapting The Appearance Of Ctsgo

    ® Windows Application CTSgo CTS-K6 15 Adapting the Appearance of CTSgo The user-defined graphics integration described before is also possible in a large display field of the main dialog instead of in a popup window. For this purpose, bit 15 must be set in the initialization file “CTS_GO.INI“...

  • Page 161: 16Problems, Questions And Solutions

    ® CTS-K6 Windows Application CTSgo 16 Problems, Questions and Solutions 16.1 Components Missing Signaled upon Program Startup In addition to executable EXE files, the program contains runtime libraries (“DLLs“) which are loaded upon program start. These runtime libraries are first searched for in the specified current directory of CTSgo and then, if required, in the Windows system directory.

  • Page 162: Location Update Cannot Be Performed

    ® Windows Application CTSgo CTS-K6 16.6 Location Update Cannot be Performed For a correct location update, the C0 carrier power received by the mobile must be sufficiently high. Increase the base-station power (CTS) for the location update in the Configure Network dialog. A test SIM card should be used in addition.

  • Page 163: Can Several Ctss Be Controlled From A Pc

    ® CTS-K6 Windows Application CTSgo 16.13 Can Several CTSs be Controlled from a PC ? Several CTSs can be controlled from a PC if a sufficient number of free serial interfaces is available. To avoid interactions of the individual interfaces, a separate interrupt has to be used by each interface. With CTSgo a selection can only be made between the serial interfaces COM1 to COM4.
  • Page 164 ® Windows Application CTSgo CTS-K6 [Selected Tests] Key= First Connect 0001 Test Set 1 0002 Test Set 2 0004 Test Set 3 0008 Test Set 4 0010 Test Set 5 0020 Test Set 6 0040 Second Connect 0080 Test Set 7 0100 Test Set 8 0200...

  • Page 165: Can Configuration Overwriting Be Avoided

    ® CTS-K6 Windows Application CTSgo [DECT Selected Tests] Key= FP Tests 0001 FP Test Set 1 0002 FP Test Set 2 0004 FP Test Set 3 0008 FP Test Set 4 0010 FP Test Set 5 0020 FP Test Set 6 0040 PP Tests 0080...

  • Page 166: 17Other Features

    ® Windows Application CTSgo CTS-K6 17 Other Features 17.1 Debugging CTSgo can prepare a protocol for all the data transferred via the serial interface. To activate this features, the command line for program call can be extended to “CTS_GO.EXE /SERPROT“. To this end, add “/SERPROT”...

  • Page 167: 18Index

    CTS_GO.HLP 14 B-field 98 CTS_GO.INI 14, 108, 111 B-field modulation 70, 73, 82 CTS_GO.ULV 14, 104 Bit modulation 26 CTS30 Parameter 54 Bit sequences 82 CTSgo functions 16 Bit timing 50 current directory 43 Bit-error rate 47 Current directory 111...
  • Page 168 ® Windows Application CTSgo CTS-K6 Display mode 61 Green lamp 31 DLL 109 GSM 1800 46 double-page display 39 GSM 1900 46 Drag & Drop 33, 99, 110 GSM 900 46 GSM autotest 40 Dummy Bearer 65, 66 Dummy Carrier 95 GSM Autotest 21 Dynamic range 59, 62 GSM channel 57...
  • Page 169 ® CTS-K6 Windows Application CTSgo Passed 90, 95 —M— Password 55 MAC identity 66 Path 43 MAC level 65 Pause 44 Main dialog 108 PCL 47, 76, 90, 91 Main window 99 Peak 28, 50 Marker 31 Peak phase error 75 maximum output power 77 Peak power 28 Peripherals 7...
  • Page 170 ® Windows Application CTSgo CTS-K6 relative 91 —T— relative path 43 Tabulated form 40 Remote-control interface 54 Report display 33 Target directory 10 Residual bit error rate 79 TCH 47, 49 Template 70, 73 Resolution 7, 108 Result display 27 Terminator 54 Results 21 Test 24...
  • Page 171 CTS30 List of Error Messages/Annex B List of Error Messages The following list contains all error messages for errors occurring in the instrument. The meaning of negative error codes is defined in SCPI, positive error codes mark errors specific of the instrument.
  • Page 172 List of Error Messages/Annex B CTS30 Contiuation: Command Error Error code Error text in the case of queue poll Error explanation Missing parameter -109 The command contains too few parameters. Example: The command CONFigure:RFGen:FREQuency requires a frequency indication. Header separator error -111 The header contains an impermissible separator.
  • Page 173 CTS30 List of Error Messages/Annex B Continuation: Command Error Error text in the case of queue poll Error code Error explanation Invalid string data -151 The command contains a faulty string. Example:An END message has been received prior to the terminating apostrophe.
  • Page 174 List of Error Messages/Annex B CTS30 Device Specific Error; sets bit 3 in the ESR register Error code Error test in the case of queue poll Error explanation Device-specific error -300 SM3-specific error not defined in greater detail. Queue overflow -350 This error code is entered in the queue instead of the actual error code if the queue is full.
  • Page 175 CTS30 List of Commands/Annex C List of Commands / Remote Control General Information 1.1.1 States In the description of the commands, the following abbreviations are used for indication of the permissible states: IDLE: ..Initial state of the CTS; is also achieved by means of PROCedure:SELect[:TEST] NONE.
  • Page 176 List of Commands/Annex C CTS30 1.1.2 DCS1800 (GSM1800) If DCS1800 is the desired network type, the switch over must be made by means of CONFigure:NETWork DCS1800 before changing the configuration set-up. After the switch over, all commands act on the DCS1800 data set, without switch over the GSM data set is used.
  • Page 177 CTS30 List of Commands/Annex C Settings 1.2.1 Input and Output External attenuation at the output RF In/Out Syntax: Arfcn Range: GSM850: source:correction:loss:low:agsm <value> 128 – 169 source:correction:loss:mid:agsm <value> 170 – 210 source:correction:loss:high:agsm <value> 211 – 251 GSM900: source:correction:loss:low:gsm <value> 975 - 1023 and 0 – 30 source:correction:loss:mid:gsm <value>...
  • Page 178 List of Commands/Annex C CTS30 External attenuation at RF Out 2 Syntax: source2:correction:loss:magnitude <value> Value range: GSM850/GSM900 / GSM1800 / GSM1900: Default: 0.0 … +30.0 (unit dB) 0.0 dB With Query State: Option: Note: Set: IDLE Positive values refer to an attenuation, (N1)
  • Page 179 CTS30 List of Commands/Annex C 1.2.2 Signalling and RF Parameters 1.2.2.1 Signalling Parameters of the Mobile Station International Mobile Subscriber Identity (IMSI) Syntax: SENSe:SIGNalling:IDENtity:IMSI? <string> (max. 15 characters) Return: State: MSYN, MCE Option: none Query only Note: (N2) International Mobile Equipment Identity (IMEI)
  • Page 180 List of Commands/Annex C CTS30 Dialled number SENSe:SIGNalling:DNUMber? Syntax: Return: <string> (max. 20 digits) or “- - -“ Option: none Query only State: MCE Note: (N2) Frequency Band SENSe:SIGNalling:FREQuency:BAND:CURRent? Syntax: SENSe:SIGNalling:FREQuency:BAND:SECOnd? Return: P-GSM900 (arfcn: 0 - 124) Default: DUM E-GSM900 (arfcn: 975 - 1023)
  • Page 181 CTS30 List of Commands/Annex C 1.2.2.2 Signalling Parameters for CTS Mobile Country Code CONFigure:SIGNalling:IDENtity:MCC <numeric_value> Syntax: Value range: 0 ... 999 Default: 1 GSM850 0 ... 999 DCS1800: 0 ... 999 DCS1900: 0 ... 999 Option: none With Query State:...
  • Page 182 List of Commands/Annex C CTS30 Channel number (ARFCN) for CCCH CONFigure:CHANnel:CCCH:ARFCn <numeric_value> Syntax: Value range: GSM: 1 ... 124 Default: GSM: GSM850: 128 ... 251 GSM850: DCS1800: 512 ... 885 DCS1800: 512 DCS1900: 512 ... 810 DCS1900: 512 With Query...
  • Page 183 CTS30 List of Commands/Annex C Networks for dualband handover Syntax: CONFigure:SIGNalling:HANDover:NETWORK <value> Value range: Defaults: Current Network GSM900 GSM900 SING | handover not permitted, channel change in GSM900 D180 | handover possible between GSM900 & GSM1800 SING D190 | handover possible between GSM900 and GSM1900 MULTI | handover possible between GSM900/1800 or GSM900/1900.
  • Page 184 List of Commands/Annex C CTS30 Configure access classes bit mask Syntax: CONFigure:SIGNalling:ACLAss[?] Value range: Decimal: 0-65535 Default: 00 Hexadecimal: 0-FFFF State: IDLE Option: none With query Note: The value represents the bit mask for 16 classes. Example: decimal value 31 (hex #H1F)
  • Page 185 CTS30 List of Commands/Annex C 1.2.3 Network and Test Mode Network CONFigure:NETWork[:TYPE] <value> Syntax: GSM | G09 | Default: GSM Value range: GSM850 | G08 | DCS1800 | G18 | PCS1900 | G19 Option: none With Query A Query returns G09, G18 or G19...
  • Page 186 List of Commands/Annex C CTS30 1.2.4 Call Set-up and Release Call set-up from the CTS to the mobile (call) PROCedure:CALL:TOMS Syntax: State: MSYN Option: none No Query Call release from the CTS to the mobile (Release) Syntax: PROCedure:RELease:TOMS State: MCE...
  • Page 187 CTS30 List of Commands/Annex C Burst Analysis Settings Channel number (ARFCN) and Frequency CONFigure:CHANnel:BANalysis:ARFCn <numeric_value> Syntax: Value range: GSM: -75 ... 450 Default: GSM: GSM850: 128 ... 251 GSM850: DCS1800: 461 ... 1511 DCS1800: 711 DCS1900: -239 ... 811 DCS1900: 661...
  • Page 188 List of Commands/Annex C CTS30 RF Generator Settings Channel number CONFigure:RFGen:CHANnel[:CW| <numeric_value> Syntax: Value range: GSM: -175 ... 300 Default: GSM: GSM850: 127...757 GSM850: DCS1800: 511... 1436 DCS1800: 486 DCS1900: -139 ... 811 DCS1900: 611 State: RFG Option: B7 With Query...
  • Page 189 CTS30 List of Commands/Annex C Ramping Mode CONFigure:RFGen:RAMPing:STATe <value> Syntax: Value range: Signal with power ramping Default: OFF Permanent signal State: RFG Option: B7 With Query Output level CONFigure:RFGen:POWer <numeric_value> Syntax: Value range: (-110.0 - ext. att.) ... (-50.0 - ext. att.) dBm Default: -50.0 dBm...
  • Page 190 List of Commands/Annex C CTS30 Measurement, Analysis and Result Query 1.5.1 1.5.1.1 Tolerances for the BER Value for class-Ib Rate Syntax: CONFigure:LIMit:BER:CLIB:RATE 0.0 ... 100.0 Value range: Default: 0.4 State: ALL Option: none With Query Value for class-II Rate Syntax: CONFigure:LIMit:BER:CLII:RATE 0.0 ...
  • Page 191 CTS30 List of Commands/Annex C Maximal number of events CALCulate:LIMit:BER:CLIB:MEVents? Syntax: CALCulate:LIMit:BER:CLII:MEVents? CALCulate:LIMit:BER:EFRames:MEVents? Return: 0 ... 65868 (Class IB) 0 ... 38922 (Class II) 0 ... 499 (Erased Frames) State: ALL Option: none Query only Note: The values are derived from "Frames to send" and thus cannot be set.
  • Page 192 List of Commands/Annex C CTS30 1.5.1.2 BER Measurement Measured values of class Ib Syntax: Execute new READ[:SCALar]:BER:CLIB[:BER]? READ[:SCALar]:BER:CLIB:RBER? measurement and signal result FETCh[:SCALar]:BER:CLIB[:BER]? FETCh[:SCALar]:BER:CLIB:RBER? Read result only BER and RBER: 0 ... 100 (Unit: %) Return: State: MCE Option: none Query only...
  • Page 193 CTS30 List of Commands/Annex C 1.5.2 Power 1.5.2.1 Tolerances for Power Resetting to default values Syntax: CALCulate:LIMit:POWer[:TEMPlate]:CLEar Option: none No Query State: ALL Note: Resets the GSM, GSM850, DCS1800 and DCS1900 tolerances Tolerances for average power in the power time template Syntax: CALCulate:LIMit:POWer[:TEMPlate]:TOLerance1[:DATA] <numeric_value>...
  • Page 194 List of Commands/Annex C CTS30 Tolerances for power time template The level designations used in the power time template for the command CALCulate:LIMit:POWer[:TEMPlate][:DATA] can be obtained from the following illustration: CALCulate:LIMit:POWer[:TEMPlate][:DATA] Syntax: <numeric_value>, <numeric_value>, <numeric_value>, <numeric_value>, <numeric_value>, <numeric_value>, <numeric_value>, <numeric_value>, <numeric_value>...
  • Page 195 CTS30 List of Commands/Annex C Query for observance of the tolerances of the power/time template CALCulate:LIMit:POWer[:TEMPlate]:MATChing? Syntax: Return: MATC in Tolerance NMAT out of Tolerance no measurement result available NRAM | no ramping NTSC no valid TSC found Out of dynamic range...
  • Page 196 List of Commands/Annex C CTS30 1.5.2.2 Power Measurement Average power of the burst Syntax: READ[:SCALar]:BURSt:POWer:AVERage? Execute new measurement and signal result FETCh[:SCALar]:BURSt:POWer:AVERage? Read result only <value> (unit: dBm) Return: State: MCE, RFG, Option: none Query only Note: No default values, (N5)
  • Page 197 CTS30 List of Commands/Annex C Sensitive Power Measurement Offset CONFigure:MODuletest:SPM:OFFSet[?] Syntax: Value range: Default: 2 dB 10 dB +10 dB State: Option: Note: This value can also be adjusted automatically by the SPM calibration routine. Calibration Routine Start PROCedure:CALibrate:SPM? Syntax: Value range: "CALIBRATION_OK",...
  • Page 198 List of Commands/Annex C CTS30 1.5.3 Phase and Frequency Errors 1.5.3.1 Tolerances for Phase and Frequency Errors Resetting to default values Syntax: CALCulate:LIMit:PHFR:CLEar Option: none No Query State: ALL Note: Sets the GSM,GSM850, DCS1800 or DCS1900 tolerances Tolerances for phase and frequency error Syntax: CALCulate:LIMit:PHFR:TOLerance[:DATA] <numeric_value>, <numeric_value>, <numeric_value>...
  • Page 199 CTS30 List of Commands/Annex C 1.5.3.2 Test Parameters for Phase and Frequency Error Measurements Number of bursts for average- and maximum-value measurements CALCulate:LIMit:PHFR:AVERage Syntax: Value range: 1 ... 999 Default: Option: none With Query State: ALL 1094.0006.30 C.25...
  • Page 200 List of Commands/Annex C CTS30 1.5.3.3 Phase Error Measurement Total phase error of a burst Syntax: RMS: READ[:SCALar]:BURSt:PHASe:ERRor:RMS? Execute new measurement and signal Peak: READ[:SCALar]:BURSt:PHASe:ERRor:PEAK? result RMS: FETCh[:SCALar]:BURSt:PHASe:ERRor:RMS? Read result only Peak: FETCh[:SCALar]:BURSt:PHASe:ERRor:PEAK? <value> (current, unit: °) Return: <value> (average, unit: °) <value>...
  • Page 201 CTS30 List of Commands/Annex C 1.5.3.4 Frequency Error Measurement Total frequency error of a burst Syntax: Execute new READ[:SCALar]:BURSt:FREQuency:ERRor? measurement and signal result FETCh[:SCALar]:BURSt:FREQuency:ERRor? Read result only Return: <value> (current, unit: Hz) <value> (average, unit: Hz) <value> (maximum, unit: Hz)
  • Page 202 List of Commands/Annex C CTS30 1.5.5 IQ Spectrum Measurement 1.5.5.1 Settings for IQ Spectrum Measurement Channel number (ARFCN) and Frequency Syntax: CONFigure:CHANnel:IQSPectrum:ARFCn <numeric_value> GSM: -74 ... 449 Value range: Default: GSM: GSM850: 128 ... 251 GSM850: 251 DCS1800: 462 ... 1510...
  • Page 203 CTS30 List of Commands/Annex C Average value CONFigure:IQSPectrum:AVERage[:COUNt] <value> Syntax: Value range: <value> 1 … 50 Default: 1 With Query State: Option: B7 IDLE, MOD 1.5.5.2 Measurements Spectrum measurement Syntax: READ:ARRay:IQSPectrum? Execute new measurement and signal result Read result only FETCh:ARRay:IQSPectrum? <value>...
  • Page 204 List of Commands/Annex C CTS30 1.5.6 GPRS and BLER Measurement Enable/disable GPRS CONFigure:GPRS:STATe? Syntax: Value range: Default: OFF State: IDLE Option: K4 With query Note: GPRS Signalling State SENSe:GPRS:SIGNalling:STATe? Syntax: Value range: ATTACHED, Default: NOT ATTACHED Note: State: MSYN Option: K4...
  • Page 205 CTS30 List of Commands/Annex C Configure number of blocks for the BLER measurement CONFigure:GPRS:BLER:BLOCkstosend[?] Syntax: 10 - 9999 Value range: Default: 1000 State: IDLE,MSYN Option: K4 With query Note: GPRS BLER measurement on/off CONFigure:GPRS:BLER:State[?] Syntax: Value range: ON,OFF Default: State:...
  • Page 206 List of Commands/Annex C CTS30 Miscellaneous 1.6.1 Internal Instrument State Current instrument state Syntax: STATus:DEVice? IDLE Idle (initial state) Return: Default: IDLE MIDL MS test: Idle MSYN MS test: Synched MS test: Call established Module test Idle IQSP IQ-spectrum Burst Analysis...
  • Page 207 CTS30 List of Commands/Annex C Query for Mobile Stations Enhanced Full Rate capabilities CALCulate:MOBILE:EFRC:STATus? Syntax: Return: NSUP Not Supported SUPP Supported State: MCE Option: none Query only Default: NSUP Query for Mobile Stations Half Rate capabilities CALCulate:MOBILE:HRC:STATus? Syntax: Return: NSUP...
  • Page 208 List of Commands/Annex C CTS30 MS RGSM status CALCulate:MOBIle:RGSM:STATus? Syntax: NSUP – not supported Value range: Default: SUPP – supported State: MSYN Option: none Only query Note: 1.6.3 Write to Hard Disk Write Settings to Hard Disk Syntax: PROCedure:SET:WRIte:HD? Return:...
  • Page 209 CTS30 List of Commands/Annex C Specified Commands 1.7.1 Mandatory Commands Clear Status Syntax: *CLS Option: none No Query State: ALL Standard Event Status Enable *ESE <numeric_value> Syntax: Value range: 0 ... 255 Default: 0 State: ALL Option: none With Query Note: MAXimum and MINimum impermissible...
  • Page 210 List of Commands/Annex C CTS30 Operation Complete *OPC Syntax: Return: (return only in the case of query) Option: none With Query Note: Also influences the OPC bit in the event status register State: ALL Parallel Poll Enable Register Enable *PRE <numeric_value>...
  • Page 211 CTS30 List of Commands/Annex C Status Byte Query *STB? Syntax: Return: 0 ... 255 Option: none Query only State: ALL Wait-to-Continue *WAI Syntax: State: ALL Option: none No Query 1094.0006.30 C.37...
  • Page 212 List of Commands/Annex C CTS30 Remarks 1.8.1 (N1) -) The transmitter power is adapted, if necessary (see also (N3)). -) The input may be overdriven if an external amplifier is connected. -) The settings have only influence on the <default mobile>. It should be selected previously.
  • Page 213 CTS30 List of Commands/Annex C Index *CLS ......................................35 *ESE <numeric_value> ................................35 *ESR? ......................................35 *IDN? ......................................35 *IST?......................................35 *OPC......................................36 *PRE <numeric_value> ................................36 *PSC <numeric_value> ................................36 *SRE <numeric_value> ................................36 *STB? ......................................37 *WAI......................................37 CALCulate:BER:CLIB:MSAMples?............................... 17 CALCulate:BER:CLII:MSAMples? ..............................17 CALCulate:BER:EFRames:MSAMples?............................17 CALCulate:BER:TEST:TIME? ..............................17 CALCulate:LIMit:BER:CLIB:MEVents?............................17 CALCulate:LIMit:BER:CLII:MEVents? ............................
  • Page 214 List of Commands/Annex C CTS30 CONFigure:SIGNalling:IDENtity:LAC <numeric_value> .........................7 CONFigure:SIGNalling:IDENtity:MCC <numeric_value> ........................7 CONFigure:SIGNalling:IDENtity:MNC <numeric_value> ........................7 CONFigure:SIGNalling:IDENtity:NCC <numeric_value>.........................7 FETCh:ARRay:BURSt:PHASe:ERRor?............................26 FETCh:ARRay:BURSt:POWer? ..............................22 FETCh:ARRay:IQSPectrum? ...............................29 FETCh[:SCALar]:BER:CLIB:RBER? ............................18 FETCh[:SCALar]:BER:CLIB[:BER]? .............................18 FETCh[:SCALar]:BER:CLII:RBER?..............................18 FETCh[:SCALar]:BER:CLII[:BER]? ..............................18 FETCh[:SCALar]:BER:EFRames[:FER]? .............................18 FETCh[:SCALar]:BURSt:FREQuency:ERRor?..........................27 FETCh[:SCALar]:BURSt:PHASe:ERRor:PEAK? ..........................26 FETCh[:SCALar]:BURSt:PHASe:ERRor:RMS?..........................26 FETCh[:SCALar]:BURSt:POWer:AVERage? ..........................22 FETCh[:SCALar]:BURSt:TIMing:ERRor? .............................27 FETCh[:SCALar]:IQSPectrum:POWer[:REFerence]?........................29 PROCedure:CALL:TOMS................................12 PROCedure:RELease:TOMS ...............................12...
  • Page 215 CTS30 MS Power Charts/Annex D MS Power Charts Mobile Power Classes GSM 900 DCS 1800 PCS 1900 Power Class Max. Peak Power (W) Max. Peak Power (W) Max. Peak Power (W) 0.25 0.25 Mobile Power Control Levels Peak Power (dBm)
  • Page 216 MS Power Charts/Annex D CTS30 Rx_LEV Values The reported Rx_LEV values for received signal level are as follows: Rx_LEV Received Signal Level Rx_LEV Received Signal Level Less than -110 dBm -78 dBm to -77 dBm -110 dBm to -109 dBm...
  • Page 217 CTS30 MS Power Charts/Annex D Rx_QUAL Values The reported Rx_QUAL values for received signal level are as follows: Rx_QUAL Value Bit Error Rate Range Mean Value < 0.2 % 0.14 % 0.2 to 0.4 % 0.28 % 0.4 to 0.8 % 0.57 %...

Table of Contents
