R&S

CMW-KM750/-KM751

TD-SCDMA Firmware Applications

User Manual

(;×îÔ2)

1173.9670.02 ─ 05

Table of Contents

Need help?

Do you have a question about the CMW-KM750 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rohde & Schwarz CMW-KM750

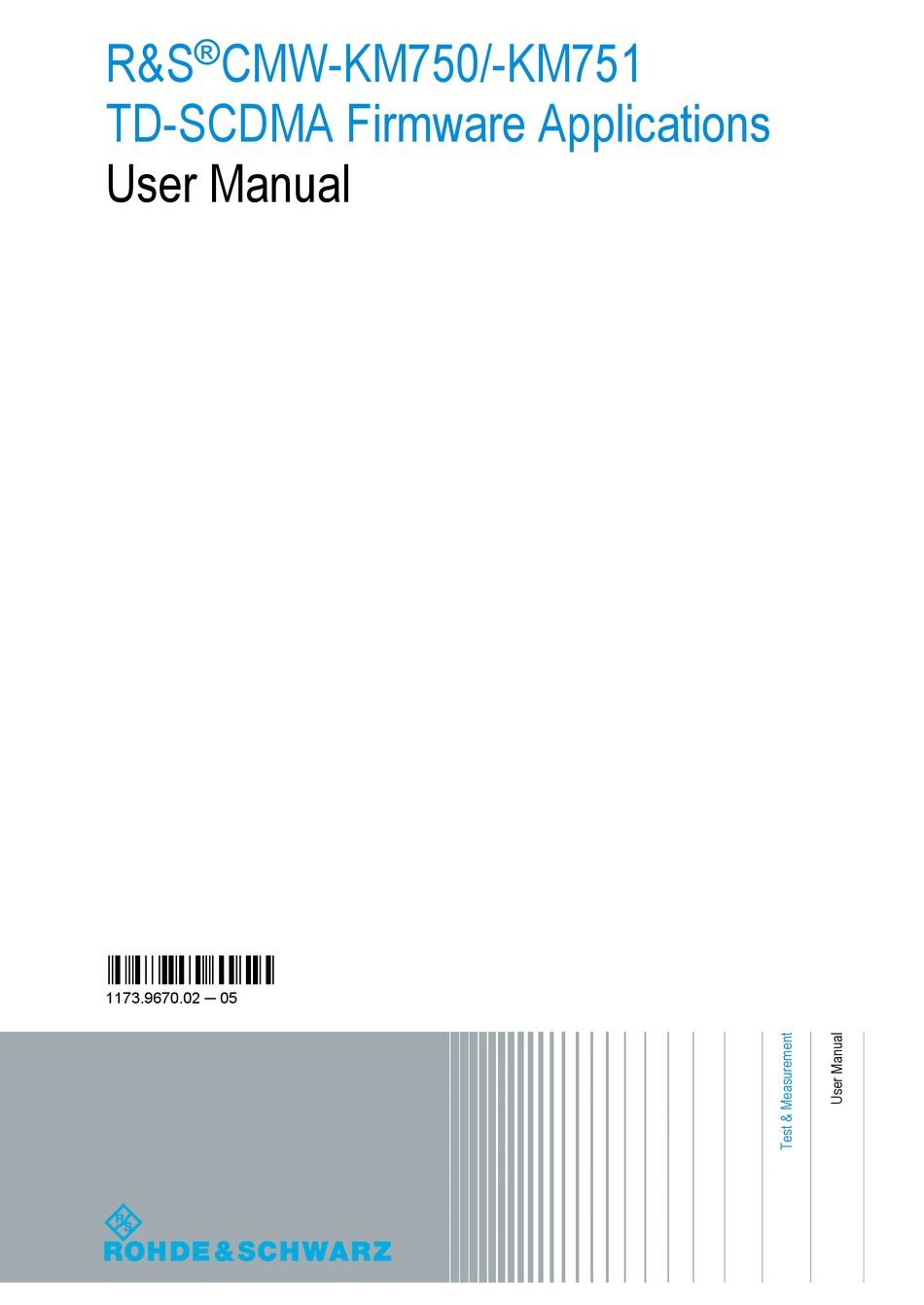

Page 1 ® R&S CMW-KM750/-KM751 TD-SCDMA Firmware Applications User Manual (;×îÔ2) 1173.9670.02 ─ 05...
Page 2 ® This user manual describes the following R&S CMW options: ● ® R&S CMW-KM750 (TD-SCDMA, TX measurement, uplink) ● R&S ® CMW-KM751 (TD-SCDMA enhancement, TX measurement, uplink) © 2012 Rohde & Schwarz GmbH & Co. KG Muehldorfstr. 15, 81671 Munich, Germany...
Page 3: Table Of Contents
® Contents R&S CMW-KM750/-KM751 Contents 1 Preface....................7 How to Read Firmware Application Chapters............7 1.1.1 General Description......................7 1.1.2 Application Sheets......................7 1.1.3 GUI Reference........................8 1.1.4 Programming Examples....................8 1.1.5 Command Reference......................8 2 What's New in this Revision..............9 3 General Description................10 TD-SCDMA TX Tests....................10 3.1.1...
Page 4 ® Contents R&S CMW-KM750/-KM751 3.6.5 Mod. Scalar and BER....................30 3.6.6 Selecting and Modifying Views..................31 3.6.7 Using Markers.......................32 3.6.8 Common View Elements....................32 4 GUI Reference..................34 Measurement Control....................34 Parameters and Settings....................34 4.2.1 Signal Routing and Analyzer Settings................35 4.2.2 UE Signal Info.......................37 4.2.3 Measurement Control Settings..................39...
Page 5 ® Contents R&S CMW-KM750/-KM751 6.1.4 Reliability Indicator......................60 General Measurement Settings.................62 6.2.1 Signal Routing.......................63 6.2.2 Analyzer Settings......................64 6.2.3 UE Signal Info.......................66 Multi Evaluation Measurement Commands..............73 6.3.1 Measurement Control and States.................73 6.3.2 Enabling Results and Views..................75 6.3.3 Measurement Parameters.....................81 6.3.4 List Mode Settings......................87 6.3.5...
Page 6 ® Contents R&S CMW-KM750/-KM751 User Manual 1173.9670.02 ─ 05...
Page 7: Preface
® Preface R&S CMW-KM750/-KM751 How to Read Firmware Application Chapters 1 Preface The operation of the R&S CMW is described in several user manuals: ● The R&S CMW user manual describes the base software, common features of the firmware applications and basic principles for manual operation and remote control.
Page 8: Gui Reference
® Preface R&S CMW-KM750/-KM751 How to Read Firmware Application Chapters 1.1.3 GUI Reference The GUI reference describes the manual operation of the firmware application via the Graphical User Interface (GUI). The description of a configuration dialog usually starts with a screenshot presenting the preset values of the parameters (sometimes preset values are modified to enable hidden parts of a dialog).
Page 9: What's New In This Revision
® What's New in this Revision R&S CMW-KM750/-KM751 2 What's New in this Revision This revision describes version 3.0.30 and later of the "TD-SCDMA Measurement" firm- ware application. Compared to version 3.0.20 it provides the following new features: ● List mode enhancements, see ...
Page 10: General Description
TX tests on TD-SCDMA uplink signals and an RX test (Bit Error Rate and Block Error Ratio). Option R&S CMW-KM750 allows to measure QPSK modulated signals only. To measure 16-QAM modulated signals, option R&S CMW-KM751 is required additionally.
Page 11: Measuring An Uplink Td-Scdma Signal
® General Description R&S CMW-KM750/-KM751 TD-SCDMA TX Tests Fig. 3-1: Connecting an RF transmitter to the instrument 3.1.2 Measuring an Uplink TD-SCDMA Signal After connecting your TD-SCDMA UE to the R&S CMW you have to adjust the following analyzer settings to the properties of the analyzed UL TD-SCDMA signal: ●...
Page 12: Trigger Modes
® General Description R&S CMW-KM750/-KM751 TD-SCDMA RX Tests ● For the multislot measurements statistical results are measured for all slots and are displayed for one slot at a time, the "Scalar Slot". Statistical results are relevant in particular if the "Measurement Length" is measured repeatedly.
Page 13: Test Setup
® General Description R&S CMW-KM750/-KM751 TD-SCDMA RX Tests 3.2.1 Test Setup The downlink RF generator signal of the R&S CMW is fed to the input of the DUT. The R&S CMW measures the uplink signal. Most conveniently, a bi-directional connection with a single coax cable is used.
Page 14: Multi Evaluation List Mode
® General Description R&S CMW-KM750/-KM751 Multi Evaluation List Mode Select an ARB file (see above) and generate the TD-SCDMA downlink signal. ● Select an appropriate test mode, so that the UE loops back the received data, via a 12.2 kbps RMC or DTCH (like downlink signal).
Page 15 ® General Description R&S CMW-KM750/-KM751 Multi Evaluation List Mode One list mode measurement can cover up to 500 segments with in total up to 1600 sub- frames. Up to 6 uplink timeslots can be measured per subframe. In list mode the R&S CMW can measure modulation results and spectrum results. The measured quantities can be enabled or disabled individually for each segment.
Page 16 ® General Description R&S CMW-KM750/-KM751 Multi Evaluation List Mode inaccurate, e.g. because of signal reconfiguration at the UE. Furthermore retriggering from time to time can compensate for a possible time drift of the UE. The retrigger flag of the first segment of the measurement is always ignored (implicitly set to ON).
Page 17: Td-Scdma Signal Properties
® General Description R&S CMW-KM750/-KM751 TD-SCDMA Signal Properties 2. Open the configuration dialog and disable the list mode in section "Measurement Control". Global and list mode parameters The RF settings (expected power, RF frequency) and most of the "UE Signal Info" settings are special list mode settings.
Page 18 ® General Description R&S CMW-KM750/-KM751 TD-SCDMA Signal Properties TS0 is always allocated to the downlink, TS1 to the uplink. Timeslots 2 to 6 are divided between the two directions, separated by the switching point. By moving the switching point the ratio between uplink and downlink data rates can be adapted to increase the spectrum efficiency.
Page 19: Channelization For Cdma
® General Description R&S CMW-KM750/-KM751 TD-SCDMA Signal Properties Fig. 3-6: Traffic timeslot structure 3.4.2 Channelization for CDMA Channelization is applied to the data part of physical channels. This operation transforms each data symbol into a number of chips. The number of chips per data symbol is called Spreading Factor (SF).
Page 20: Limit Settings And Conformance Requirements
® General Description R&S CMW-KM750/-KM751 Limit Settings and Conformance Requirements 3.5 Limit Settings and Conformance Requirements Conformance requirements for TD-SCDMA transmitter tests are specified in 3GPP TS 34.122, section 5, "Transmitter Characteristics". The following sections give an overview of the R&S CMW limit settings and the related test requirements.
Page 21: Power Templates
® General Description R&S CMW-KM750/-KM751 Limit Settings and Conformance Requirements Fig. 3-7: Modulation limit settings The table below lists the test requirements of 3GPP TS 34.122. Characteristics Refer to 3GPP TS 34.122, section... Specified Limit ≤ 17.5 % EVM (RMS) 5.7.1 Error Vector Magnitude...
Page 22: Aclr Limits
® General Description R&S CMW-KM750/-KM751 Limit Settings and Conformance Requirements Fig. 3-8: Power template according to 3GPP The default limit settings comply with 3GPP. The limits within the three areas and the borders (chip positions) of the areas can be modified.
Page 23: Spectrum Emission Mask
® General Description R&S CMW-KM750/-KM751 Limit Settings and Conformance Requirements The ACLR limits are defined in the configuration dialog. Fig. 3-10: Spectrum ACLR limit settings The ACLR shall not exceed –33 dB at frequencies ±1.6 MHz from the carrier (channels ±1) and –43 dB at frequencies ±3.2 MHz from the carrier (channels ±2).
Page 24 ® General Description R&S CMW-KM750/-KM751 Limit Settings and Conformance Requirements Frequency Offset Minimum Measurement from carrier Δf requirement bandwidth 0.8 MHz to 1.8 MHz –35 dBc – 14*(Δf/MHz – 0.8) dBc 30 kHz (--> Point E, D) 1.8 MHz to 2.4 MHz –49 dBc –...
Page 25: Measurement Results
® General Description R&S CMW-KM750/-KM751 Measurement Results Fig. 3-12: Spectrum emission mask 3.6 Measurement Results The results of the TD-SCDMA multi evaluation measurement are displayed in several different views. Use the "Display" parameters to select the views and to change the appearance and contents of the views.
Page 26: Detailed Views: Modulation, Cdp And Cde, Power Vs Time
® General Description R&S CMW-KM750/-KM751 Measurement Results ● Power vs. Time (PvT) ● ACLR ● Spectrum Emission Mask ● Most important results of detailed views "Mod. Scalar" and "BER" See also: "TX Measurements" in the R&S CMW user manual, chapter "System Overview"...
Page 27 ® General Description R&S CMW-KM750/-KM751 Measurement Results ● Code Domain Power (CDP) ● Code Domain Error (CDE) ● Power vs. Time Each of the detailed views shows one or two diagrams and a statistical overview of single- slot results (except Code Domain Monitor).
Page 28: Detailed Views: Aclr
® General Description R&S CMW-KM750/-KM751 Measurement Results 16 occupy several adjacent bars (e.g. SF8 = 2 bars, SF4 = 4 bars). The position of the SICH is indicated if it has been defined in the configuration dialog. The diagrams labeled "Multi Slot" display the CDP and CDE of a selectable code channel for up to 112 timeslots (one result per slot).
Page 29: Detailed Views: Spectrum Emission Mask
® General Description R&S CMW-KM750/-KM751 Measurement Results The central bar shows the power at the nominal carrier frequency (UL Frequency); the bars ±1 correspond to the 1 adjacent channels (±1.6 MHz from the UL frequency) and the 2 adjacent channels (±3.2 MHz from the UL frequency). Either the "Current", "Aver- age"...
Page 30: Mod. Scalar And Ber
® General Description R&S CMW-KM750/-KM751 Measurement Results around 3 MHz). The table below the diagram contains values which are relevant for the limit check. The values are calculated and displayed per limit line section ("AB", "CD", ...). See also ...
Page 31: Selecting And Modifying Views
® General Description R&S CMW-KM750/-KM751 Measurement Results ● EVM, Magnitude Error, Phase Error, I/Q Origin Offset, I/Q Imbalance, Frequency Error, Waveform Quality, Transmit Time Error (relative to an external trigger event) and Peak Code Domain Error. ● Occupied Bandwidth (OBW): width of a frequency range around the assigned chan- nel frequency containing 99% of the total integrated power of the transmitted spec- trum.
Page 32: Using Markers
® General Description R&S CMW-KM750/-KM751 Measurement Results 3.6.7 Using Markers Use the "Marker" parameters to activate markers and to modify their position. The fol- lowing "Marker" hotkeys are available at the bottom of the GUI: Hotkey Description "Ref. Marker ..."...
Page 33 ® General Description R&S CMW-KM750/-KM751 Measurement Results See also: "Statistical Results" in the R&S CMW user manual, chapter "System Overview" Statistic Count Progress bar for the measurement, displayed in all detailed views. During the first single shot after the start of the measurement, the bar shows the number of elapsed measure- ment intervals relative to the "Statistic Count".
Page 34: Gui Reference
® GUI Reference R&S CMW-KM750/-KM751 Measurement Control 4 GUI Reference The following sections provide detailed reference information on the Graphical User Interface (GUI) and the parameters of the "TD-SCDMA measurement" firmware appli- cation. ● Measurement Control....................34 ● Parameters and Settings..................34 ●...
Page 35: Signal Routing And Analyzer Settings
® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings All settings are defined via softkeys and hotkeys or using the "TD-SCDMA Multi Evalu- ation Configuration" dialog. The configuration dialog is described in the following sec- tions. 4.2.1 Signal Routing and Analyzer Settings The following parameters configure the RF input path.
Page 36 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings If a correction table for frequency-dependent attenuation is active for the chosen con- nector, then the table's name and a button are displayed. Press the button to display the table entries. Remote command: ...
Page 37: Ue Signal Info
® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings Mixer Level Advantages Possible Shortcomings Offset < 0 dB Suppression of distortion (e.g. of the inter- Lower dynamic range (due to smaller signal- modulation products generated in the mixer) to-noise ratio) > 0 dB...
Page 38 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings Chn. Detect Threshold Minimum signal strength of each DPCH in the TD-SCDMA signal to be detected in the automatic channelization code search (Channel Info Mode = Auto). The threshold is defined as a ratio of the individual DPCH power to the total power expressed in dB. The power threshold is important to distinguish the real DPCH from unwanted signals, e.g.
Page 39: Measurement Control Settings
® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings SICH Code Number Channelization code number of the shared information channel (HS-SICH). The spread- ing factor of the HS-SICH equals 16. The resulting channelization code is c . As 16,<Index> a result of this setting the channel with this code number is labeled as "SICH" in the Code Domain Error and Code Domain Power result presentations.
Page 40 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings Fig. 4-3: Measurement control settings Repetition Defines how often the measurement is repeated if it is not stopped explicitly or by a failed limit check. ● Continuous: The measurement is continued until it is explicitly terminated; the results are periodically updated.
Page 41 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings No. of Subframes Defines the number of consecutive subframes (7 timeslots per subframe) that form a single measurement interval, also called "Measurement Length". The measured sub- frames can be displayed in the following diagrams: "Error Vector Magnitude", "Magnitude Error", "Phase Error", "CDE Power"...
Page 42 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings Measure on Exception Specifies whether measurement results that the R&S CMW identifies as faulty or inac- curate are rejected. A faulty result occurs e.g. when an overload is detected. In remote control, the cause of the error is indicated by the "reliability indicator".
Page 43 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings The assembly level is ignored as long as the two-shot mode is disabled. Remote command: C ONFigure: T DSCdma: M EAS: M EValuation: H DALevel BER > Data Pattern Selects the expected data pattern for looped-back RX test signals. Set this parameter according to the data pattern used for generating the downlink signal (the ARB file).
Page 44: Trigger Settings
® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings Option R&S CMW-KM012 required. Remote command: C ONFigure: T DSCdma: M EAS: M EValuation: L IST 4.2.4 Trigger Settings The "Trigger" parameters configure the trigger system for the TD-SCDMA multi evalua- tion measurement.
Page 45 ® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings Trigger Threshold Defines the input signal power where the trigger condition is satisfied and a trigger event is generated. The trigger threshold is valid for power trigger sources. It is a dB value, relative to the reference level minus the external attenuation (<Ref.
Page 46: Limit Settings
® GUI Reference R&S CMW-KM750/-KM751 Parameters and Settings This parameter can be used to prevent unwanted trigger events due to fast power var- iations. Remote command: T RIGger: T DSCdma: M EAS: M EValuation: M GAP 4.2.5 Limit Settings The "Limits"...
Page 47: Measurement Results
® GUI Reference R&S CMW-KM750/-KM751 Measurement Results Some examples are listed below. Remote command: C ONFigure: T DSCdma: M EAS: M EValuation: L IMit: M ERRor C ONFigure: T DSCdma: M EAS: M EValuation: L IMit: P VTime: E AReas...
Page 48 ® GUI Reference R&S CMW-KM750/-KM751 Measurement Results Fig. 4-7: TD-SCDMA Multi Evaluation: Magnitude Error User Manual 1173.9670.02 ─ 05...
Page 49 ® GUI Reference R&S CMW-KM750/-KM751 Measurement Results Traces and Bar Graphs The results can be retrieved via the following remote commands. Remote command: etc. F ETCh: T DSCdma: M EAS: M EValuation: T RACe: E VMagnitude: C URRent? ...
Page 50: Programming
® Programming R&S CMW-KM750/-KM751 General Examples 5 Programming The following sections provide programming examples for the TD-SCDMA multi evalu- ation measurement. The examples have been tested with the aid of a simple software tool. See also: "Remote Control" in the R&S CMW user manual ●...
Page 51: Specifying Required Settings
® Programming R&S CMW-KM750/-KM751 General Examples CONFigure:TDSCdma:MEAS:RFSettings:ENPower 7 CONFigure:TDSCdma:MEAS:RFSettings:UMARgin 5 CONFigure:TDSCdma:MEAS:RFSettings:FREQuency 1900E+6 CONFigure:TDSCdma:MEAS:RFSettings:MLOFfset 1 // ***************************************************************************** // Redefine the frequency entering band and channel number // ***************************************************************************** CONFigure:TDSCdma:MEAS:RFSettings:BAND B2 CONFigure:TDSCdma:MEAS:RFSettings:FREQuency 10100 CH 5.1.2 Specifying Required Settings // ***************************************************************************** // Specify number of first active uplink timeslot, switching point,...
Page 52: Specifying Additional Measurement-Specific Settings
® Programming R&S CMW-KM750/-KM751 General Examples CONFigure:TDSCdma:MEAS:UESignal:CIMode AUTO CONFigure:TDSCdma:MEAS:UESignal:CDTHreshold -30 5.1.3 Specifying Additional Measurement-Specific Settings // ***************************************************************************** // Define stop condition (stop on limit failure), analysis mode, error handling // and two-shot assembly level. // Select data pattern and transport channel mode for RX measurements.
Page 53: Specifying Limits
® Programming R&S CMW-KM750/-KM751 General Examples 5.1.5 Specifying Limits // ***************************************************************************** // Define modulation limits // ***************************************************************************** CONFigure:TDSCdma:MEAS:MEValuation:LIMit:MERRor 20, OFF CONFigure:TDSCdma:MEAS:MEValuation:LIMit:EVMagnitude 10, 20 CONFigure:TDSCdma:MEAS:MEValuation:LIMit:PERRor 20, OFF CONFigure:TDSCdma:MEAS:MEValuation:LIMit:IQOFfset -20 CONFigure:TDSCdma:MEAS:MEValuation:LIMit:IQIMbalance ON CONFigure:TDSCdma:MEAS:MEValuation:LIMit:FERRor 150 CONFigure:TDSCdma:MEAS:MEValuation:LIMit:TERRor 2 CONFigure:TDSCdma:MEAS:MEValuation:LIMit:PCDerror -10 CONFigure:TDSCdma:MEAS:MEValuation:LIMit:WQUality 0.95 // ***************************************************************************** // Define power vs.
Page 54 ® Programming R&S CMW-KM750/-KM751 General Examples FETCh:TDSCdma:MEAS:MEValuation:STATe? // ***************************************************************************** // Read the current single-slot traces obtained in the last measurement // without re-starting the measurement // ***************************************************************************** FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:SDEViation? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDERror:AVERage? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDERror:SDEViation? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDMonitor:CDPower? SF1 FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDMonitor:CDERror? SF2 FETCh:TDSCdma:MEAS:MEValuation:TRACe:EMASk:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:PVTime:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:EVMagnitude:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:MERRor:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:PERRor:CURRent?
Page 55: Single-Shot And Continuous Measurements
® Programming R&S CMW-KM750/-KM751 Using the TD-SCDMA List Mode CALCulate:TDSCdma:MEAS:MEValuation:BER? FETCh:TDSCdma:MEAS:MEValuation:LIMit:PVTime:FAILure? 5.1.7 Single-Shot and Continuous Measurements // ***************************************************************************** // Start single-shot measurement, return magnitude error trace. // Return maximum magnitude error trace and maximum phase (without repeating // the measurement. Query the measurement state (should be "RDY").
Page 56: Specifying Global Measurement Settings
® Programming R&S CMW-KM750/-KM751 Using the TD-SCDMA List Mode 5.2.1 Specifying Global Measurement Settings // ***************************************************************************** // System-Reset // ***************************************************************************** *RST; *OPC? *CLS; *OPC? // ***************************************************************************** // Define signal routing and external attenuation // (Note: The general RF frequency and expected power settings are...
Page 57: Retrieving Single Results For All Segments
® Programming R&S CMW-KM750/-KM751 Using the TD-SCDMA List Mode // current and average modulation and spectrum results // Query the measurement state (should be "RDY"). // ***************************************************************************** INIT:TDSCdma:MEAS:MEValuation FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent1:MODulation:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent1:MODulation:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent1:SPECtrum:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent1:SPECtrum:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent2:MODulation:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent2:MODulation:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent2:SPECtrum:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent2:SPECtrum:AVERage? FETCh:TDSCdma:MEAS:MEValuation:STATe? // ***************************************************************************** // Alternatively use segment-independent commands // to retrieve the results for all segments.
Page 58 ® Programming R&S CMW-KM750/-KM751 Using the TD-SCDMA List Mode FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR:LCHannel2:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR:RCHannel1:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR:RCHannel1:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:OBW:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:AB:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:CD:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DE:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:ED:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DC:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:BA:MAXimum? // ***************************************************************************** // Return the individual segment reliability indicators // ***************************************************************************** FETCh:TDSCdma:MEAS:MEValuation:LIST:SRELiability? User Manual 1173.9670.02 ─ 05...
Page 59: Command Reference
® Command Reference R&S CMW-KM750/-KM751 Conventions and General Information 6 Command Reference The following sections provide detailed reference information on the remote control com- mands of the "TD-SCDMA Measurements" application. ● Conventions and General Information..............59 ● General Measurement Settings................62 ●...
Page 60: Current And Statistical Results
® Command Reference R&S CMW-KM750/-KM751 Conventions and General Information 6.1.3 Current and Statistical Results The R&S CMW repeats measurements according to the selected statistic count and rep- etition mode. Consecutive measurement values are stored and used to calculate statis- tical results, e.g. average, minimum, maximum and standard deviation.
Page 61 ® Command Reference R&S CMW-KM750/-KM751 Conventions and General Information The measurement could not be started because the configured RF input path was not active. This problem may occur e.g. when a measurement is started in combined signal path mode and the master application has not yet activated the input path. The LEDs above the RF connectors indicate whether the input and output paths are active.
Page 62: General Measurement Settings
® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings The DAU could not establish a connection to internal components. Please restart the instrument. ● 53 (Configuration Error): The current DAU configuration by the user is incomplete or wrong and could not be applied.
Page 63: Signal Routing
® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings 6.2.1 Signal Routing The following commands configure the scenario, select the input path for the measured signal and define an external attenuation value..............63 ROUTe: T DSCdma: M EAS: S CENario: S ALone...
Page 64: Analyzer Settings
® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings Manual operation: "Scenario" on page 35 ROUTe:TDSCdma:MEAS? Returns the configured routing settings. Return values: <Scenario> SALone SALone: Standalone (Non Signaling) <Controller> For future use - returned value not relevant <RXConnector> RF1C | RF2C | RF3C | RF4C RF 1 COM to RF 4 COM front panel connectors <RXConverter>...
Page 65 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings Parameters: <Band> B1 | B2 | B3 B1: Band 1 (F), 1880 MHz to 1920 MHz B2: Band 2 (A), 2010 MHz to 2025 MHz B3: Band 3 (E), 2300 MHz to 2400 MHz *RST: See ...
Page 66: Ue Signal Info
® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings Firmware/Software: V1.0.2.7 Manual operation: "Expected Nominal Power" on page 36 CONFigure:TDSCdma:MEAS:RFSettings:UMARgin <UserMargin> Sets the margin that the R&S CMW adds to the expected nominal power in order to determine its reference power. The reference power minus the external input attenuation must be within the power range of the selected input connector;...
Page 67 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings ............70 CONFigure: T DSCdma: M EAS: U ESignal: C NUMber ........71 CONFigure: T DSCdma: M EAS: U ESignal: C NUMber: D PCH<chidx> ............71 CONFigure: T DSCdma: M EAS: U ESignal: E CHannel...
Page 68 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings CONFigure:TDSCdma:MEAS:UESignal:SCODe <ScrCode> Selects the cell parameter ID identifying the cell and determining the scrambling code. Parameters: <ScrCode> Range: 0 to 127 *RST: See Example: S pecifying Required Settings Firmware/Software: V1.0.4.11 Manual operation: "Scrambling Code"...
Page 69 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings Parameters: <SICHEnable> OFF | ON OFF: HS-SICH not used ON: HS-SICH used *RST: See Example: S pecifying Required Settings Firmware/Software: V1.0.4.11 Manual operation: "SICH Enable" on page 38 CONFigure:TDSCdma:MEAS:UESignal:CNUMber:SICH <SICHCodeNum> Selects the channelization code number of the shared information channel (HS-SICH).
Page 70 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings CONFigure:TDSCdma:MEAS:UESignal:SFACtor <DPCHSF>(16) Selects the spreading factors of all channels. The spreading factors assigned to the active channels must always be consistent. It may be required to disable channels temporarily for administration. Parameters: <DPCHSF>...
Page 71 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings Parameters: <DPCHCodeNum> 16 values for channel 1 to channel 16 Range: 0 to SF-1 (where SF is the spreading factor of the channel) *RST: 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 See Example: S pecifying Required Settings Firmware/Software: V1.0.4.11...
Page 72 ® Command Reference R&S CMW-KM750/-KM751 General Measurement Settings Return values: <DPCHEnable> OFF | ON List of 16 values for DPCH1 to DPCH16 *RST: Firmware/Software: V1.0.4.11 Manual operation: "DPCH" on page 39 CONFigure:TDSCdma:MEAS:UESignal:ECHannel:ALL <DPCH>(16) Selects or deselects dedicated physical channels. The selection of channels with incom- patible settings (spreading factor and channelization code number) is rejected.
Page 73: Multi Evaluation Measurement Commands
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands 6.3 Multi Evaluation Measurement Commands The commands for the TD-SCDMA "Multi Evaluation" measurement are divided into the groups listed below. The general measurement settings also affect the measurement, see c hapter 6.2, "General Measurement Settings", on page 62.
Page 74 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands ● ABORt... causes a running measurement to stop immediately; the R&S CMW enters the "OFF" state. Use FETCh...STATe? to query the current measurement state. See also: "Measurement Control" in the R&S CMW user manual, chapter "Remote Con- trol"...
Page 75: Enabling Results And Views
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Return values: <MainState> OFF | RDY | RUN OFF: measurement switched off, no resources allocated, no results available (when entered after STOP...) RDY: measurement has been terminated, valid results may be available RUN: measurement running (after INITiate..., READ...),...
Page 76 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands CONFigure:TDSCdma:MEAS:MEValuation:RESult:ALL <EVMEnable>, <MagErrEnable>, <PhaErrEnable>, <CDMEnable>, <CDPEnable>, <CDEEnable>, <PvTEnable>, <ACLREnable>, <EmiMaskEnable>, <ModScalarEnable>, <BEREnable> Enables or disables the evaluation of results and shows or hides the views in the multi evaluation measurement. This command combines all other CONFigure:TDSCdma:MEAS:MEValuation:RESult...
Page 77 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <ModScalarEnable> OFF | ON Modulation Scalar Results *RST: <BEREnable> OFF | ON Bit Error Rate *RST: Firmware/Software: V1.0.2.7 V1.0.5.3: <BEREnable> Manual operation: "Assign Views" on page 43 CONFigure:TDSCdma:MEAS:MEValuation:RESult <ResEnable> Enables or disables the evaluation of all results and shows or hides the views in the multi evaluation measurement.
Page 78 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands CONFigure:TDSCdma:MEAS:MEValuation:RESult:MERRor <MagErrEnable> Enables or disables the evaluation of results and shows or hides the magnitude error view in the multi evaluation measurement. Parameters: <MagErrEnable> OFF | ON OFF: Do not evaluate results, hide the view...
Page 79 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <CDPEnable> OFF | ON OFF: Do not evaluate results, hide the view ON: Evaluate results and show the view *RST: Firmware/Software: V1.0.2.7 Manual operation: "Assign Views" on page 43 CONFigure:TDSCdma:MEAS:MEValuation:RESult:CDERror <CDEEnable>...
Page 80 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Firmware/Software: V1.0.2.7 Manual operation: "Assign Views" on page 43 CONFigure:TDSCdma:MEAS:MEValuation:RESult:EMASk <EmiMaskEnable> Enables or disables the evaluation of results and shows or hides the spectrum emission mask view in the multi evaluation measurement.
Page 81: Measurement Parameters
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands CONFigure:TDSCdma:MEAS:MEValuation:CDERror:MSLot:CINDex <CDEMultSlotChId> Selects the code channel to be displayed in the code domain error multislot diagrams. Parameters: <CDEMultSlotChId> Range: 0 to 15 *RST: Firmware/Software: V1.0.4.11 CONFigure:TDSCdma:MEAS:MEValuation:CDPower:MSLot:CINDex <CDPMultSlotChId> Selects the code channel to be displayed in the code domain power multislot diagrams.
Page 82 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands When the measurement has completed the first measurement cycle (first single shot), the statistical depth is reached and the timer is reset. If the first measurement cycle has not been completed when the timer expires, the mea- surement is stopped.
Page 83 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Firmware/Software: V1.0.2.7 Manual operation: "Stop Condition" on page 40 CONFigure:TDSCdma:MEAS:MEValuation:NFRames <NumOfFrame> Selects the total number of measured subframes. One subframe contains 7 timeslots. Parameters: <NumOfFrame> Range: 1 subframe to 16 subframes...
Page 84 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <ScalarSlot> Range: 0 to 7 * <measured subframes> - 1 *RST: See Example: S pecifying Additional Measurement-Specific Settings Firmware/Software: V1.0.4.11 Manual operation: "Scalar Slot" on page 41 CONFigure:TDSCdma:MEAS:MEValuation:SFOFfset <SubframeOffset>...
Page 85 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands See Example: S pecifying Additional Measurement-Specific Settings Firmware/Software: V1.0.2.7 Manual operation: "Measure on Exception" on page 42 CONFigure:TDSCdma:MEAS:MEValuation:SCOunt:MODulation <StatCntMod> Specifies the statistic count of the measurement. The statistic count is equal to the num- ber of measurement intervals per single shot.
Page 86 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <HighDynAsemLev> Range: -60 dB to -10 dB *RST: -60 dB, OFF Default unit: dB Additional parameters: OFF | ON (disables | enables the limit check using the previous/default limit values) See ...
Page 87: List Mode Settings
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands CONFigure:TDSCdma:MEAS:MEValuation:BER:DATA <Data Pattern> Selects the expected data pattern for looped-back RX test signals. Parameters: <Data Pattern> ONE | ZERO | ZONE | ONEZero | PN9 | PN15 ONE: all 1 ZERO: all 0...
Page 88 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <ListmodeEnable> OFF | ON OFF: Disable list mode ON: Enable list mode *RST: See Example: U sing the TD-SCDMA List Mode Firmware/Software: V3.0.10 Options: R&S CMW-KM012 Manual operation: "List Mode Enable"...
Page 89 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <CellParameterID> Cell parameter ID, identifying the cell and determining the scram- bling code. Range: 0 to 127 *RST: <MidambleK> US2 | US4 | US6 | US8 | US10 | US12 | US14 | US16 Maximum number of users for one timeslot (2 to 16 users).
Page 90 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <Band> B1 | B2 | B3 B1: Band 1 (F), 1880 MHz to 1920 MHz B2: Band 2 (A), 2010 MHz to 2025 MHz B3: Band 3 (E), 2300 MHz to 2400 MHz *RST: <Retrigger>...
Page 91 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <EnableMagError> OFF | ON Disable or enable measurement of magnitude error *RST: <EnablePhaseError> OFF | ON Disable or enable measurement of phase error *RST: <EnableIQ> OFF | ON Disable or enable measurement of I/Q origin offset and imbalance *RST: <EnableModScalar>...
Page 92: Trigger Settings
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <EnableEMask> OFF | ON Disable or enable emission mask measurement *RST: <EnableOBW> OFF | ON Disable or enable measurement of occupied bandwidth *RST: See Example: U sing the TD-SCDMA List Mode Firmware/Software: V3.0.10...
Page 93 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands TRIGger:TDSCdma:MEAS:MEValuation:CATalog:SOURce? Lists all trigger source values that can be set using T RIGger: T DSCdma: M EAS: MEValuation: S OURce Return values: <TriggerName> Comma separated list of all supported values. Each value is rep- resented as a string.
Page 94 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands TRIGger:TDSCdma:MEAS:MEValuation:THReshold <TriggerThres> Defines the trigger threshold for power trigger sources. Parameters: <TriggerThres> Range: -50 dB to 0 dB *RST: -20 dB Default unit: dB (full scale, i.e. relative to reference level minus external attenuation) See ...
Page 95: Limits (Modulation)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <TriggerTimeout> Range: 0.01 s to 300 s *RST: Default unit: s Additional parameters: OFF | ON (disables | enables the timeout) See Example: C onfiguring the Trigger System Firmware/Software: V1.0.4.11 V3.0.10: OFF | ON added, changed unit, *RST value and range...
Page 96 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <MagErrRMS> Range: 0 % to 20 % *RST: 17.5 % Default unit: % Additional parameters: OFF | ON (disables | enables the limit check using the previous/default limit values) <MagErrPeak>...
Page 97 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <PhaErrPeak> Range: 0 deg to 20 deg *RST: 10 deg Default unit: deg Additional parameters: OFF | ON (disables | enables the limit check using the previous/default limit values) See ...
Page 98: Limits (Power Vs. Time)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands CONFigure:TDSCdma:MEAS:MEValuation:LIMit:TERRor <TimeError> Defines an upper limit for the transmit time error. Parameters: <TimeError> Range: -4 chips to 4 chips *RST: 1 chip Default unit: chips Additional parameters: OFF | ON (disables | enables the limit check using the previous/default limit values) See ...
Page 99 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands CONFigure:TDSCdma:MEAS:MEValuation:LIMit:PVTime:YABSolute <PvTYAbsALimit>, <PvTYAbsCLimit>, <PvTYAbsGLimit> Defines upper limits (Y-values) for the areas of the power template, see c hapter 3.5.2, "Power Templates", on page 21. Parameters: <PvTYAbsALimit> Limit area 1 Range:...
Page 100: Limits (Spectrum Aclr)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <PvTXRelFLimit> Start of area 3 Range: 0 chips to 20 chips *RST: 12 chips Default unit: chips <PvTXRelHLimit> End of area 3 Range: 35 chips to 60 chips *RST: 45 chips Default unit: chips See ...
Page 101 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Parameters: <ACLROBWLimit> Range: 0 MHz to 1.6 MHz *RST: 1.6 MHz Default unit: Hz Additional parameters: OFF | ON (disables | enables the limit check using the previous/default limit values) See ...
Page 102: Limits (Spectrum Emission)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Manual operation: "Limits" on page 46 6.3.9 Limits (Spectrum Emission) The following commands define limits for the spectrum emission.......102 CONFigure: T DSCdma: M EAS: M EValuation: L IMit: E MASk: Y ABSolute...
Page 103: Evm Results (Traces)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <EMRelBLimit> Limit at point B Range: -100 dB to 0 dB *RST: -49 dB Default unit: dB Additional parameters: OFF | ON (disables | enables the limit check using the previous/default limit values) <EMRelCLimit>...
Page 104 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands READ: T DSCdma: M EAS: M EValuation: T RACe: E VMagnitude[: R MS]: M SLot: ......................104 CURRent? READ: T DSCdma: M EAS: M EValuation: T RACe: E VMagnitude[: R MS]: M SLot:...
Page 105: Magnitude Error Results (Traces)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands READ:TDSCdma:MEAS:MEValuation:TRACe:EVMagnitude[:RMS]:MSLot: EXTReme? READ:TDSCdma:MEAS:MEValuation:TRACe:EVMagnitude[:RMS]:MSLot: SDEViation? Returns the values of the RMS EVM vs. slot traces. Each trace contains 112 values, one per slot. The number of measured slots is related to the number of measured subframes (see ...
Page 106 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:TRACe:MERRor:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:MERRor:AVERage? FETCh:TDSCdma:MEAS:MEValuation:TRACe:MERRor:MAXimum? READ:TDSCdma:MEAS:MEValuation:TRACe:MERRor:CURRent? READ:TDSCdma:MEAS:MEValuation:TRACe:MERRor:AVERage? READ:TDSCdma:MEAS:MEValuation:TRACe:MERRor:MAXimum? Returns the values of the RMS magnitude error vs. chip traces, measured in the prese- lected slot (see on page 83). C ONFigure: T DSCdma: M EAS: M EValuation: P SLot...
Page 107: Phase Error Results (Traces)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands The results of the current, average, extreme and standard deviation traces can be retrieved. See also c hapter 3.6.2, "Detailed Views: Modulation, CDP and CDE, Power vs Time", on page 26 Return values: ...
Page 108 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands One value per chip is returned. The results of the current, average and maximum traces can be retrieved. See also c hapter 3.6.2, "Detailed Views: Modulation, CDP and CDE, Power vs Time",...
Page 109: Cdp Results (Traces)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <PhaseErr1> ... Range: -180 deg to 180 deg (AVERage: 0 deg to 180 deg, <PhaseErr112> SDEViation: 0 deg to 90 deg) Default unit: deg See Example: P erforming Single-Shot Measurements...
Page 110 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Query parameters: <SF> SF1 | SF2 | SF4 | SF8 | SF16 Selects the spreading factor for which the trace shall be retrieved *RST: Return values: <Reliability> R eliability Indicator <CDP_1>...
Page 111: Cde Results (Traces)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:AVERage? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:MINimum? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:SDEViation? READ:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:CURRent? READ:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:AVERage? READ:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:MINimum? READ:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:MAXimum? READ:TDSCdma:MEAS:MEValuation:TRACe:CDPower:MSLot:SDEViation? Returns the values of the Code Domain Power (CDP) multislot traces of the physical channels. Each trace contains 112 values, one per slot.
Page 112 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands .......113 READ: T DSCdma: M EAS: M EValuation: T RACe: C DERror: M INimum? ......113 READ: T DSCdma: M EAS: M EValuation: T RACe: C DERror: M AXimum? ......113 READ:...
Page 113 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands READ:TDSCdma:MEAS:MEValuation:TRACe:CDERror:MINimum? READ:TDSCdma:MEAS:MEValuation:TRACe:CDERror:MAXimum? READ:TDSCdma:MEAS:MEValuation:TRACe:CDERror:SDEViation? Returns the values of the Code Domain Error (CDE) single slot diagrams of the physical channels. The results of the current, average, minimum, maximum and standard devia- tion diagrams can be retrieved.
Page 114: Power Vs Time Results (Traces + Limits)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands See Example: P erforming Single-Shot Measurements Usage: Query only Firmware/Software: V1.0.4.11 For additional information concerning syntax elements and returned values refer to C on- ventions and General Information. 6.3.15 Power vs Time Results (Traces + Limits) The following commands return the power vs.
Page 115 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands See Example: P erforming Single-Shot Measurements Usage: Query only Firmware/Software: V2.1.10 Manual operation: "Statistical Overviews and Limit Checks" on page 49 FETCh:TDSCdma:MEAS:MEValuation:PVTime:CURRent? FETCh:TDSCdma:MEAS:MEValuation:PVTime:AVERage? FETCh:TDSCdma:MEAS:MEValuation:PVTime:MINimum? FETCh:TDSCdma:MEAS:MEValuation:PVTime:MAXimum? READ:TDSCdma:MEAS:MEValuation:PVTime:CURRent? READ:TDSCdma:MEAS:MEValuation:PVTime:AVERage? READ:TDSCdma:MEAS:MEValuation:PVTime:MINimum? READ:TDSCdma:MEAS:MEValuation:PVTime:MAXimum? Return the OFF power measured in the three areas of the defined power vs. time tem- plate.
Page 116: Spectrum Emission Results (Traces)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands 6.3.16 Spectrum Emission Results (Traces) The following commands return the spectrum emission trace results of the multi evalua- tion measurement.........116 FETCh: T DSCdma: M EAS: M EValuation: T RACe: E MASk: C URRent?...
Page 117 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <MHzRight_1> ... Right section of the 1 MHz trace. <MHzRight_20> These values correspond to test points that are separated by 30 kHz. The covered frequency range is +2915 kHz to +3485 kHz from the carrier.
Page 118: Modulation Results (Single Values)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Usage: Query only Firmware/Software: V1.0.2.7 For additional information concerning syntax elements and returned values refer to C on- ventions and General Information. FETCh:TDSCdma:MEAS:MEValuation:TRACe:EMASk:KFILter:CURRent? FETCh:TDSCdma:MEAS:MEValuation:TRACe:EMASk:KFILter:AVERage? FETCh:TDSCdma:MEAS:MEValuation:TRACe:EMASk:KFILter:MAXimum? READ:TDSCdma:MEAS:MEValuation:TRACe:EMASk:KFILter:CURRent? READ:TDSCdma:MEAS:MEValuation:TRACe:EMASk:KFILter:AVERage? READ:TDSCdma:MEAS:MEValuation:TRACe:EMASk:KFILter:MAXimum? Returns the values of the spectrum emission 30 kHz traces. The results of the current, average and maximum traces can be retrieved.
Page 119 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands ........120 READ: T DSCdma: M EAS: M EValuation: M ODulation: S DEViation? ........120 CALCulate: T DSCdma: M EAS: M EValuation: M ODulation: A VERage? ......120 CALCulate: T DSCdma: M EAS: M EValuation: M ODulation: S DEViation?...
Page 120 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <11_CarrFreqError> Carrier frequency error Range: -5000 Hz to 5000 Hz Default unit: Hz <12_UEpower> User equipment power Range: -100 dBm to 35 dBm Default unit: dBm <13_Slot> Number of measured slot...
Page 121 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <2_EVMRMS> Error vector magnitude RMS and peak value <3_EVMPeak> Range: 0 % to 100 % Default unit: % <4_MagErrRMS> Magnitude error RMS and peak value <5_MagErrPeak> Range: 0 % to 100 % Default unit: % <6_PhaseErrRMS>...
Page 122: Spectrum Results (Single Values)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands 6.3.18 Spectrum Results (Single Values) The following commands return the results of the spectrum multi evaluation measure- ment, measured in the "scalar slot" (see C ONFigure: T DSCdma: M EAS:...
Page 123: Rx Results (Single Values)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <15_FreqAB> Frequency offsets at which the limit line margin values in the 6 <16_FreqCD> emission mask areas have been found. <17_FreqDE> Range: -4.5E+6 Hz to 4.5E+6 Hz <18_FreqED> Default unit: Hz <19_FreqDC>...
Page 124 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands To configure the list mode use the commands described in c hapter 6.3.4, "List Mode Settings", on page 87. For a description of the list mode see c hapter 3.3, "Multi Evaluation List Mode",...
Page 125 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <6_MagErrPeak> Magnitude error peak value Range: -100 % to 100 % Default unit: % <7_PhaseErrRMS> Phase error RMS value Range: 0 deg to 180 deg Default unit: deg <8_PhaseErrPeak> Phase error peak value...
Page 126 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent<Segno>:MODulation: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent<Segno>:MODulation: SDEViation? Return average and standard deviation modulation single value results for segment <Segno> in list mode. Suffix: <Segno> 1..500 Return values: <1_Reliability> R eliability Indicator In list mode, a zero reliability indicator indicates that the results in all measured segments are valid.
Page 127 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <14_PCDE> Peak code domain error Range: -60 dB to 0 dB Default unit: dB <15_PCDECode> Number of the code channel where the PCDE occurred Range: NAV (no average / standard deviation result) <16_WaveformQual>...
Page 128 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent<Segno>:SPECtrum: CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent<Segno>:SPECtrum: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SEGMent<Segno>:SPECtrum: MAXimum? Return spectrum single value results for segment <Segno> in list mode. Suffix: <Segno> 1..500 Return values: <1_Reliability> R eliability Indicator In list mode, a zero reliability indicator indicates that the results in all measured segments are valid.
Page 129: List Mode Results (All Segments, One Result)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <10_MarginAB> Limit line margin values in the 6 emission mask areas <11_MarginCD> Range: -100 dB to 100 dB <12_MarginDE> Default unit: dB <13_MarginED> <14_MarginDC> <15_MarginBA> See Example: U sing the TD-SCDMA List Mode...
Page 130 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:EVM:RMS:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:EVM:RMS:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:EVM:RMS: MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:EVM:RMS: SDEViation? Return error vector magnitude RMS values for all measured list mode segments. Return values: <Reliability> R eliability Indicator <EVMrms> Comma separated list of values, one per measured segment...
Page 131 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:MERRor:RMS: MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:MERRor:RMS: SDEViation? Return magnitude error RMS values for all measured list mode segments. Return values: <Reliability> R eliability Indicator <MagErrorRMS> Comma separated list of values, one per measured segment...
Page 132 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:PERRor:RMS: MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:PERRor:RMS: SDEViation? Return phase error RMS values for all measured list mode segments. Return values: <Reliability> R eliability Indicator <PhaseErrorRMS> Comma separated list of values, one per measured segment...
Page 133 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:IQOFfset:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:IQOFfset: SDEViation? Return I/Q origin offset values for all measured list mode segments. Return values: <Reliability> R eliability Indicator <IQoffset> Comma separated list of values, one per measured segment...
Page 134 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Return values: <Reliability> R eliability Indicator <CarrierFreqErr> Comma separated list of values, one per measured segment Range: -5000 Hz to 5000 Hz Default unit: Hz See Example: U sing the TD-SCDMA List Mode...
Page 135 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Firmware/Software: V3.0.10 Options: R&S CMW-KM012 FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:WQUality:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:WQUality:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:WQUality:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:WQUality: SDEViation? Return waveform quality values for all measured list mode segments. Return values: <Reliability> R eliability Indicator <WaveformQuality> Comma separated list of values, one per measured segment...
Page 136 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Firmware/Software: V3.0.10 V3.0.20: added <PCDECode> to AVERage and SDEViation com- mands Options: R&S CMW-KM012 FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ABSPower:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ABSPower:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ABSPower:MAXimum? Return the UE power for all measured list mode segments. Return values: <Reliability>...
Page 137 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR: LCHannel<ChannelNo>:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR: LCHannel<ChannelNo>:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR: LCHannel<ChannelNo>:MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR: RCHannel<ChannelNo>:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR: RCHannel<ChannelNo>:AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:ACLR: RCHannel<ChannelNo>:MAXimum? Return the power of the adjacent channels for all measured list mode segments. The adjacent channels are located at the following frequency relative to the carrier fre- quency: ●...
Page 138 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Usage: Query only Firmware/Software: V3.0.10 Options: R&S CMW-KM012 FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:AB: CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:AB: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:AB: MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:CD: CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:CD: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:CD: MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DE: CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DE: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DE: MAXimum? Return the limit line margin values in the 3 emission mask areas below the carrier fre- quency for all measured list mode segments.
Page 139: List Mode Results (All Segments, Result Groups)
® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DC: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:DC: MAXimum? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:BA: CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:BA: AVERage? FETCh:TDSCdma:MEAS:MEValuation:LIST:SPECtrum:EMASk:MARGin:BA: MAXimum? Return the limit line margin values in the 3 emission mask areas above the carrier fre- quency for all measured list mode segments.
Page 140 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:CURRent? FETCh:TDSCdma:MEAS:MEValuation:LIST:MODulation:MAXimum? Return current and maximum modulation single value results in list mode. The values listed below in curly brackets {} are returned for the segments {...} , {...} seg 1 , with n determined by ...
Page 141 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <12_CarrFreqError> Carrier frequency error Range: -5000 Hz to 5000 Hz Default unit: Hz <13_UEpower> User equipment power Range: -100 dBm to 35 dBm Default unit: dBm <14_PCDE> Peak code domain error...
Page 142 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands <7_PhaseErrRMS> Phase error RMS and peak value <8_PhaseErrPeak> Range: 0 deg to 180 deg Default unit: deg <9_IQOriginOffset> I/Q origin offset Range: -100 dB to 0 dB Default unit: dB <10_IQImbalance>...
Page 143 ® Command Reference R&S CMW-KM750/-KM751 Multi Evaluation Measurement Commands Return values: <1_Reliability> R eliability Indicator In list mode, a zero reliability indicator indicates that the results in all measured segments are valid. A non-zero value indicates that an error occurred in at least one of the measured segments.
Page 144: List Of Commands
® List of Commands R&S CMW-KM750/-KM751 List of Commands ABORt: T DSCdma: M EAS: M EValuation ......................73 CALCulate: T DSCdma: M EAS: M EValuation: B ER? ..................123 CALCulate: T DSCdma: M EAS: M EValuation: M ODulation: A VERage? ............120 CALCulate:...
Page 145: Configure: T Dscdma: M Eas: M Evaluation: S Count: M Odulation
® List of Commands R&S CMW-KM750/-KM751 CONFigure: T DSCdma: M EAS: M EValuation: R ESult: C DMonitor ..............78 CONFigure: T DSCdma: M EAS: M EValuation: R ESult: C DPower ..............78 CONFigure: T DSCdma: M EAS: M EValuation: R ESult: E MASk ..............80 CONFigure:...

Page 146 List of Commands R&S CMW-KM750/-KM751 FETCh: T DSCdma: M EAS: M EValuation: L IST: M ODulation: E VM: P EAK: C URRent? ........130 FETCh: T DSCdma: M EAS: M EValuation: L IST: M ODulation: E VM: P EAK: M AXimum? .........130 FETCh:...

Page 147 ® List of Commands R&S CMW-KM750/-KM751 FETCh: T DSCdma: M EAS: M EValuation: L IST: M ODulation: W QUality: S DEViation? ........135 FETCh: T DSCdma: M EAS: M EValuation: L IST: S EGMent<Segno>: M ODulation: A VERage? ......126 FETCh:...

Page 148 ® List of Commands R&S CMW-KM750/-KM751 FETCh: T DSCdma: M EAS: M EValuation: L IST: S PECtrum: O BW: M AXimum? ..........137 FETCh: T DSCdma: M EAS: M EValuation: L IST: S RELiability? ..............129 FETCh: T DSCdma: M EAS: M EValuation: M ODulation: A VERage? .............120 FETCh:...

Page 149 ® List of Commands R&S CMW-KM750/-KM751 FETCh: T DSCdma: M EAS: M EValuation: T RACe: E MASk: M FRight: M AXimum? ........117 FETCh: T DSCdma: M EAS: M EValuation: T RACe: E VMagnitude: A VERage? ..........104 FETCh: T DSCdma: M EAS: M EValuation: T RACe: E VMagnitude: C URRent? ..........104 FETCh:...

Page 150 ® List of Commands R&S CMW-KM750/-KM751 READ: T DSCdma: M EAS: M EValuation: T RACe: C DERror: S DEViation? ............113 READ: T DSCdma: M EAS: M EValuation: T RACe: C DMonitor: C DERror? .............112 READ: T DSCdma: M EAS: M EValuation: T RACe: C DMonitor: C DPower? ............109 READ:...

Page 151 ® List of Commands R&S CMW-KM750/-KM751 READ: T DSCdma: M EAS: M EValuation: T RACe: P VTime: M AXimum? ............114 READ: T DSCdma: M EAS: M EValuation: T RACe: P VTime: M INimum? ............114 ROUTe: T DSCdma: M EAS: S CENario: S ALone ....................63 ROUTe:...

Page 152: Index
® Index R&S CMW-KM750/-KM751 Index Analysis Mode Preselected Slot TD-SCDMA measurements ........41 TD-SCDMA measurements ........41 Assign Views programming TD-SCDMA measurements ........43 TD-SCDMA measurements ........50 Band Repetition TD-SCDMA measurements ........36 TD-SCDMA measurements ........40 results TD-SCDMA measurements ........25...

This manual is also suitable for:
Cmw-km751

Rohde & Schwarz CMW-KM750 User Manual

1 Preface

2 What's New in this Revision

3 General Description

4 GUI Reference

5 Programming

6 Command Reference

List of Commands

Index

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz CMW-KM750

Summary of Contents for Rohde & Schwarz CMW-KM750

This manual is also suitable for:

Table of Contents
