RDMOTO H40S Quick Start Manual

Kit for the left side:
ID Description
1 Dural roller - 90mm
2 Dural adapter
3 Screw M10x70
4 Steel protector holder
5 Screws M6x35mm
6 Screw M10x65x1.25mm
7 Insert M10
8 ALU roller d=19,5mm
9 Nut M10
10 Screw M6x25
11 Screw M4x16
Installation (left side):
1. Remove fairing from motorcycle.

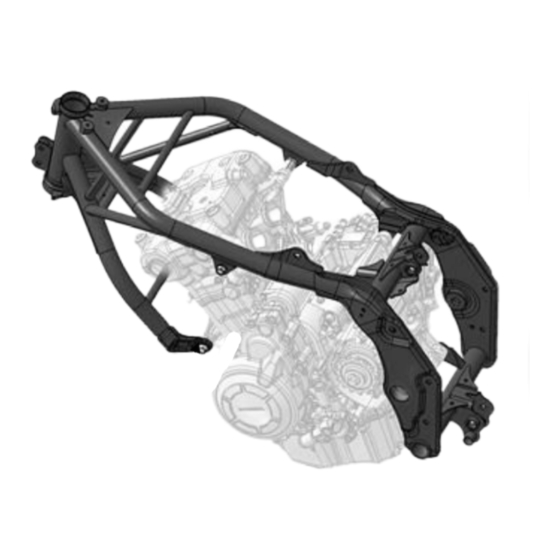

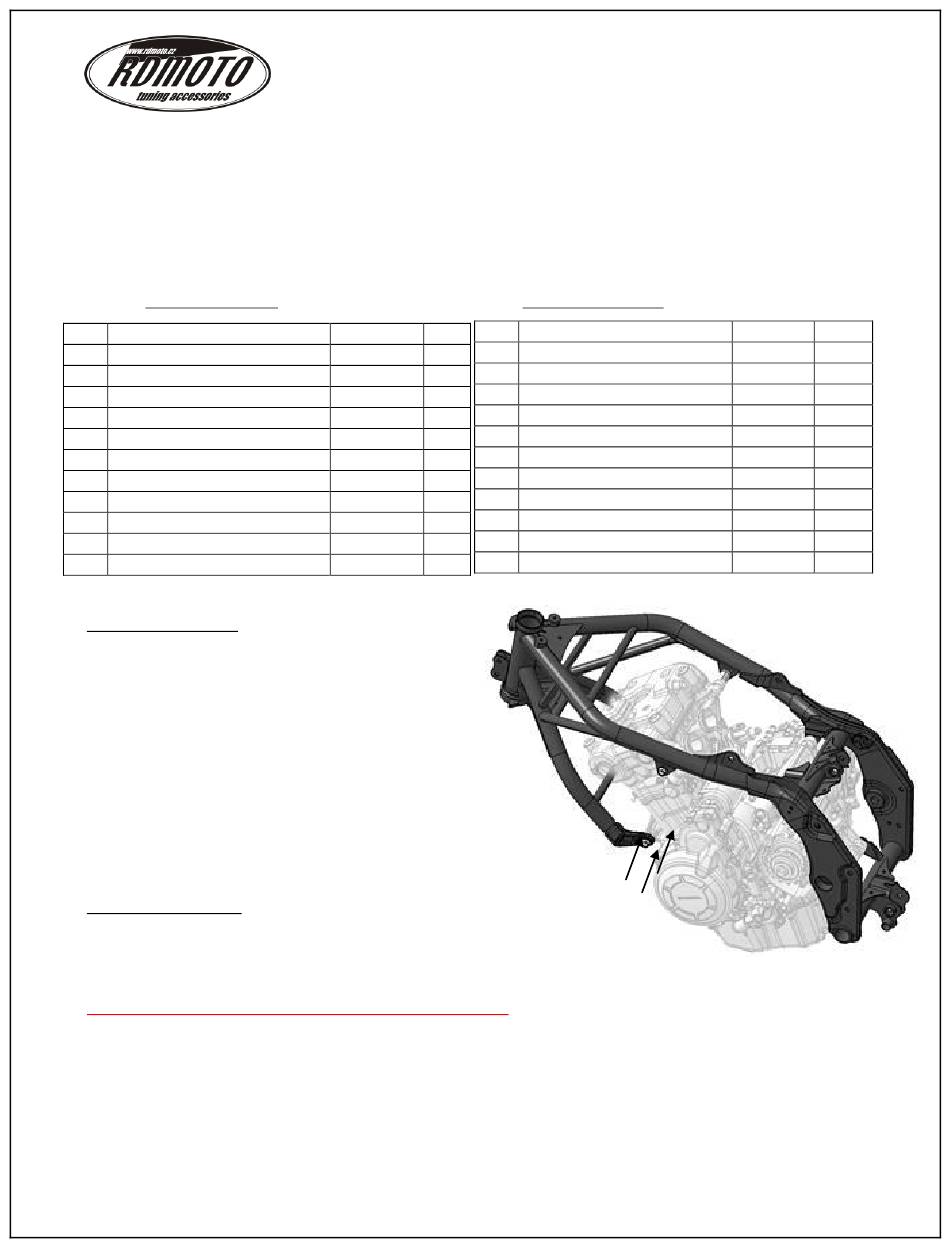

2. Remove original screws according to the
picture.
3. Attach steel adapter ID.4 using screws ID.5.
4. Between frame and steel adapter insert
aluminium roller ID.8. Tighten adapter using
screw M10x65 and insert (ID.7 and ID.6).
5. Place adapter ID2 on screw ID3 and place also
durall roller ID1 under adapter.
6. This set attach on steel adapter on motorcycle.
7. Fit nut and insert M10 from the backside.
8. Fit slider with screws ID10 and isert cover.
9. Tighten colored cover using screws ID11.
Installation (right side:
Almost the same as on the left except one diference:
1) Dimensions of dural roller and screw
M10x100x1.25.
We recommend: use the glue on all threads (medium strong).
Kit for the right side:
ID
Cat.no pcs
Dural roller – 40mm
1
4 1
2 Dural adapter
317 1
3 Screw M10x70
851 1
4 Steel protector holder
660 1
5 Screws M6x35mm
989 2
6 Screw M10x100x1.25mm
945 1
7 Insert M10
804 2
8 ALU roller d=32mm
1121 1
9 Nut M10
810 1
10 Screw M6x25
877 3
11 Screw M4x16
876 2
1
RDMOTO CZECH REPUBLIC
H40S
Honda CBR500R, 2013-15
Description
info@rdmoto.cz
www.rdmoto.cz
Cat.no pcs
4 1
317 1
851 1
661 1
989 2
892 1
804 2
1120 1
810 1
877 3
876 2
