E m b e d d e d C o n t r o l l e r
A E C - 6 9 0 5

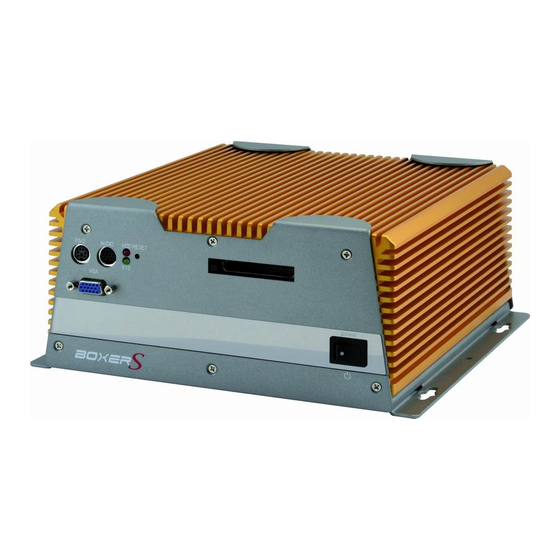

AEC-6905
Fanless Embedded Controller
®
®
Intel
Celeron
M Processor
With 1 PCI slot, 2 PC/104+
™
4 COMs, Audio, CompactFlash
AEC-6905 Manual 1st Ed.
Feb. 2008

Advertisement

Table of Contents
loading

Related Manuals for Aaeon AEC-6905

Summary of Contents for Aaeon AEC-6905

  • Page 1 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 AEC-6905 Fanless Embedded Controller ® ® Intel Celeron M Processor With 1 PCI slot, 2 PC/104+ ™ 4 COMs, Audio, CompactFlash AEC-6905 Manual 1st Ed. Feb. 2008...
  • Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Acknowledgments All other products’ name or trademarks are properties of their respective owners. • Award is a trademark of Award Software International, Inc.
  • Page 4 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Packing List Before you begin operating your PC, please make sure that the following materials are enclosed: AEC-6905 Embedded Controller Phoenix Power Connector Wallmount Brackets Audio Cable Screw Package...
  • Page 5 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Safety & Warranty 1. Read these safety instructions carefully. 2. Keep this user's manual for later reference. 3.
  • Page 6 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 The equipment does not work well, or you cannot get it to work according to the user’s manual. The equipment has been dropped and damaged.
  • Page 7 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Boxer/ Industrial System 有毒有害物质或元素 部件名称 铅...

  • Page 8: Table Of Contents

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Contents Chapter 1 General Information 1.1 Introduction..............1-2 1.2 Features ..............1-4 1.3 Specifications ............1-5 Chapter 2 Hardware Installation 2.1 Dimension ..............
  • Page 9 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.18 Wallmount Kit Installation........2-21 Chapter 3 Award BIOS Setup 3.1 System Test and Initialization........3-2 3.2 Award BIOS Setup ............

  • Page 10: Chapter 1 General Information

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Chapter General Information 1- 1 Chapter 1 General Information...

  • Page 11: Introduction

    USB 2.0, Ethernet and 4 Serial ports allow communication with diverse devices with a high transfer rate. Furthermore, the AEC-6905 can concurrently support three tiers of expansion interfaces – PCI and PCMCIA. These interfaces are fully integrated within the BOXER series and allow an upgrade to their usefulness.
  • Page 12 AAEON retains the perfect product design and management team. Our Quality Control through multiple level experience and test has earned a good reputation in IPC field. AAEON’s whole product series are subjected to high-level standards which make them our best guarantee and assurance to customers. Excellent product quality will always be AAEON’s best advertisement.

  • Page 13: Features

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 1.2 Features • ® ® Fanless Design with Intel Celeron M Processor • Supports 1 PCI slot for expansion •...

  • Page 14: Specifications

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 1.3 Specifications System • ® ® CPU: Intel Celeron Processor • System Memory: DDR SODIMM x 1, Max.
  • Page 15 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Input voltage: 9V DC~30VDC 2. AC Input -- External Power Adapter (Optional) Input voltage: 100V AC ~ 240V AC @ 50 ~ 60Hz •...
  • Page 16 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 • Operating Humidity: 5~95%@40°C, non-condensing • Vibration: 5g rms / 5~500Hz/random operation (CFD); 1g rms / 5~500Hz / random operation (HDD) •...
  • Page 17 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Front Side HDD LED Compact Flash card slot Audio Reset PS/2 Keyboard & Mouse System LED Power Switch PCMCIA x 2...

  • Page 18: Chapter 2 Hardware Installation

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Chapter Hardware Installation Chapter 2 Hardware Installation...

  • Page 19: Dimension

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.1 Dimension AEC-6905 2 - 2 Chapter 2 Hardware Installation...

  • Page 20: Location Of Jumpers

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.2 Location of Jumpers 2 - 3 Chapter 2 Hardware Installation...

  • Page 21: At/Atx Power Selection (Jp1)

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.3 AT/ATX Power Selection (JP1) Function ATX Power (default) AT Power Power Power 2.4 ATX Power Selection (JP2) Function 1-2 ON ATX Power (default)

  • Page 22: Com2 Pin 9 Selection (Jp3)

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.5 COM2 Pin 9 Selection (JP3) Function +12V RI for COM2 (default) RI for COM2 2.6 COM2 RS-232/422/485 Selection (JP4) Function...

  • Page 23: Com2 Rs-232/422/485 Selection (Jp6)

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.7 COM2 RS-232/422/485 Selection (JP6) Function RS-232 (default) RS-422 RS-485 1 2 3 RS-232 RS-422 RS-485 2.8 RTC Battery Selection (JP11)

  • Page 24: Pc/104+ Clk Selection

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.9 PC/104+ CLK Selection Signal PCICLK0 (ON) PCICLK1 (OFF) 2.10 PC/104+ IDSEL Signal ID0 (ON) ID1 (OFF) 2.11 PC/104+ REQ/GNT Selection Signal...

  • Page 25: Pc/104+ Power Selection (Jp16)

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.13 PC/104+ Power Selection (JP16) JP16 Function +3.3V (default) JP16 +3.3V JP16 2.14 ATX Power Selection (JP18) JP18 Function 1-2 ON...

  • Page 26: Atx Power Selection (Jp19)

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.15 ATX Power Selection (JP19) JP19 Function 1-2 ON ATX Power (default) 1-2 OFF AT Power JP19 2 - 9...

  • Page 27: Hard Disk Drive Installation

    2.16 Hard Disk Drive Installation Disassemble the AEC-6905 For Hard Disk Drive (HDD) installation, you have to disassemble the bottom lid of AEC-6905 and some components and covers in the AEC-6905. Step 1: Unfasten the two screws on the rear panel.
  • Page 28 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 3: Unfasten the six screws on the bottom lid. 2 - 11 Chapter 2 Hardware Installation...
  • Page 29 A E C - 6 9 0 5 Assemble the HDD Module After disassembling the AEC-6905, you have to get the HDD module ready for the proceeding installation. Step 1: Fasten the four HDD screws and cover with the four black damper...
  • Page 30 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 2: Assembly the HDD chassis Step 3: Assembly the damper bracket 2 - 13 Chapter 2 Hardware Installation...
  • Page 31 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 4: Connect the HDD cable (for IDE Type HDD) Connect the HDD cable (for SATA Type HDD) HDD DISK SATA Power W /LOCK...
  • Page 32 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 5: Fasten the six screws on the back of the AEC-6905 Step 6: Fasten the screw on rear panel...
  • Page 33 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 7: Fasten the screw on front panel 2 - 16 Chapter 2 Hardware Installation...

  • Page 34: Pci Card Installation

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2.17 PCI Card Installation Step 1: Unfasten the screw on the rear panel. Step 2: Unfasten the screw on the front panel. 2 - 17 Chapter 2 Hardware Installation...
  • Page 35 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 3: Unfasten the six screws on the bottom lid. Step 4: Remove the screw with your finger and get the PCI card ready to install.
  • Page 36 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 5: Insert the PCI card into the PCI slot and reattach the screw. Step 6: Unfasten the screws and push the tenon to lock the PCI card in position.
  • Page 37 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Step 7: Close the bottom lid of the AEC-6905 and fasten six screws on bottom lid.

  • Page 38: Wallmount Kit Installation

    A E C - 6 9 0 5 2.18 Wallmount kit Installation Step 1: Get the brackets ready and fasten appropriate three screws on each bracket. After fastening the two brackets on the bottom lid of AEC-6905, the wallmount kit installation is finished 2 - 21...

  • Page 39: Chapter 3 Award Bios Setup

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Chapter Award BIOS Setup Chapter 3 Award BIOS Setup 3-1...
  • Page 40 3. The CMOS memory has lost power and the configuration information has been erased. The AEC-6905 CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.
  • Page 41 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 3.2 Award BIOS Setup Awards BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.
  • Page 42 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Integrated Peripherals Use this menu to specify your settings for integrated peripherals. (Primary slave, secondary slave, keyboard, mouse etc.) Power Management Setup Use this menu to specify your settings for power management.
  • Page 43 Save CMOS value changes to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup. You can refer to the "AAEON BIOS Item Description.pdf" file in the CD for the meaning of each setting in this chapter.

  • Page 44: Chapter 4 Driver Installation

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Chapter Driver Installation 4 - 1 Chapter 4 Driver Installation...
  • Page 45 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 The AEC-6905 comes with a CD-ROM that contains all drivers and utilities that meet your needs.
  • Page 46 A E C - 6 9 0 5 4.1 Installation Insert the AEC-6905 CD-ROM into the CD-ROM Drive. The Autorun program will run automatically. You also can choose the drivers to install from step 1 to step 5 in order as following instructions.
  • Page 47 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 2. Double click on the .exe file 3. Follow the instructions that the window shows you 4.

  • Page 48: Appendix A Programming The Watchdog Timer

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer...

  • Page 49: Programming

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 A.1 Programming AEC-6905 utilizes ITE 8712 chipset as its watchdog timer controller. Below are the procedures to complete its configuration and the AAEON intial watchdog timer program is also attached based on which you can develop customized program to fit your application.
  • Page 50 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 There are three steps to complete the configuration setup: (1) Enter the MB PnP Mode; (2) Modify the data of configuration registers; (3) Exit the MB PnP Mode.
  • Page 51 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 WatchDog Timer Configuration Registers Configure Control (Index=02h) This register is write only. Its values are not sticky; that is to say, a hardware reset will automatically clear the bits, and does not require the software to clear them.
  • Page 52 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 WatchDog Timer Configuration Register (Index=72h, Default=00h) WatchDog Timer Time-out Value Register (Index=73h, Default=00h) Appendix A Programming the Watchdog Timer...

  • Page 53: It8712 Watchdog Timer Initial Program

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 A.2 IT8712 Watchdog Timer Initial Program .MODEL SMALL .CODE Main: CALL Enter_Configuration_mode CALL Check_Chip mov cl, 7 call Set_Logic_Device ;time setting...
  • Page 54 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 ; game port enable mov cl, 9 call Set_Logic_Device Initial_OK: CALL Exit_Configuration_mode MOV AH,4Ch INT 21h Enter_Configuration_Mode PROC NEAR MOV SI,WORD PTR CS:[Offset Cfg_Port]...
  • Page 55 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Exit_Configuration_Mode ENDP Check_Chip PROC NEAR MOV AL,20h CALL Read_Configuration_Data CMP AL,87h JNE Not_Initial MOV AL,21h CALL Read_Configuration_Data CMP AL,12h JNE Not_Initial...
  • Page 56 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 MOV DX,WORD PTR CS:[Cfg_Port+06h] IN AL,DX Read_Configuration_Data ENDP Write_Configuration_Data PROC NEAR MOV DX,WORD PTR CS:[Cfg_Port+04h] OUT DX,AL XCHG AL,AH MOV DX,WORD PTR CS:[Cfg_Port+06h]...
  • Page 57 E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 push ax push cx xchg al,cl mov cl,07h call Superio_Set_Reg pop cx pop ax Set_Logic_Device endp ;Select 02Eh->Index Port, 02Fh->Data Port Cfg_Port DB 087h,001h,055h,055h...

  • Page 58: Appendix B I/O Information

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 Appendix I/O Information Appendix B I/O Information...

  • Page 59: I/O Address Map

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 B.1 I/O Address Map Appendix B I/O Information...

  • Page 60: Memory Address Map

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 B.2 Memory Address Map Appendix B I/O Information...

  • Page 61: Irq Mapping Chart

    E m b e d d e d C o n t r o l l e r A E C - 6 9 0 5 B.3 IRQ Mapping Chart B.4 DMA Channel Assignments Appendix B I/O Information...
