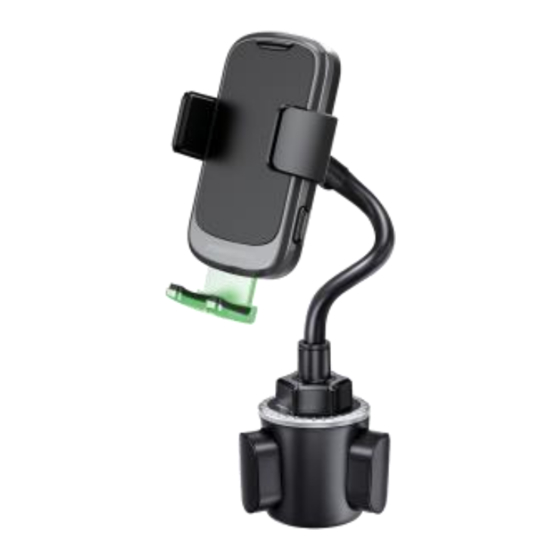

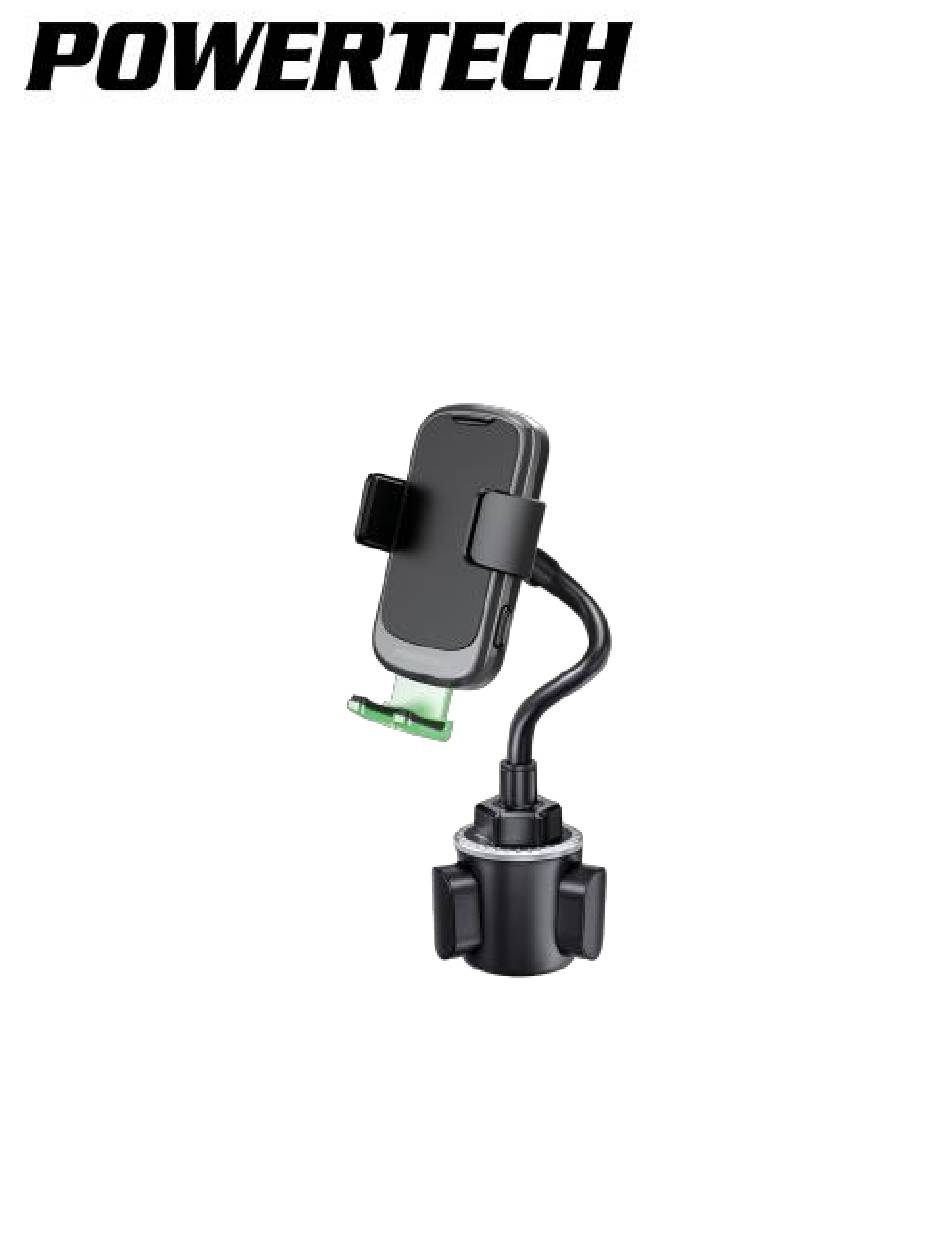

- Page 1 Car Cup Charger with 15W Wireless Charger User Manual HS-9064...
-
Page 2: Box Contents
Box Contents: 1 x Wireless Charger 1 x Cup Mount 1 x USB-C Power Cable... -
Page 3: Product Diagram
Product Diagram:... -
Page 4: Installation
Installation 1. Unscrew the adjustable mounting ring knob from the phone cradle. Place it over the end of the cup mount. 2. Attach the phone cradle to the cup mount and tighten the adjustable mounting ring knob so the cradle and cup mount are secured tightly. - Page 5 3. Place the cup mount in the cup holder of your car. Use the adjustable locking knob at the base of the cup mount to expand the size of the cup mount. Adjust until it fits securely in your cup holder.
- Page 6 Power: 1. Insert the USB power cable in a 5VDC/9VDC USB car charger (not included). 2. Insert the USB-C plug in to the USB power socket of the phone cradle. 3. The LED status indicator will turn green once it has been powered on.
- Page 7 Note: It is suggested to use a Qualcomm Quick Charge ™ ® USB car charger for fast charging. Please check to see if your device supports quick charge otherwise it will charge at 5W.
-
Page 8: Operation
Operation Charging: 1. Press the lock/release button to open the phone clamps. 2. Slide down the adjustable holder located at the bottom of the cradle and slide your smart phone into the cradle. - Page 9 3. The LED status indicator will turn blue once charging has started. Note: You may need to change the position of the adjustable holder at the bottom of the cradle. The wireless charging pads are in a different location depending on the type of smartphone.
-
Page 10: Troubleshooting
Troubleshooting: Problem: Solution: Will not charge Ensure your device smartphone supports Qi wireless charging Ensure the mobile device is placed on the charging pad correctly and adjust the adjustable foot holder accordingly Restart your mobile device and wireless charger... - Page 11 Will not charge Take off your phone device case as it may be interfering with the wireless charger Will not power on Ensure the USB cable is connected properly to a suitable USB car charger...
- Page 12 Safety: 1. Do not place any metal objects, magnets, magnetic stripe cards or metal phone cases between the mobile device and the charger as it may not work properly. 2. Keep the wireless charger at least 20cm away from any implantable medical devices such as a pacemakers or cochlear, etc.
- Page 13 4. Keep the wireless charger away from high temperatures as it may cause damage to the speaker and battery. 5. Do not expose the wireless charger to water, moisture or liquids to prevent the unit from damage.
-
Page 14: Specifications
Specifications: Input: 5VDC @ 2A, 9VDC @ 1.7A Voltage Output: 5VDC, 9VDC Current Output: 5V @ 1A (5W) 9V @ 0.8A (7.5W) 9V @ 1.1A (10W) 9V @ 1.66A 15W) Output Power: 5W/7.5W/10W/15W Charging Efficiency: 73% (Max) Charging Distance: ≤7mm Battery: 3.7V Li-ion, 60mA Battery Standby Time: Up to 30 Days... - Page 15 Distributed by: Electus Distribution Pty. Ltd. 46 Eastern Creek Drive, Eastern Creek NSW 2766 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.electusdistribution.com.au...
