Summary of Contents for PowerTech MB3635

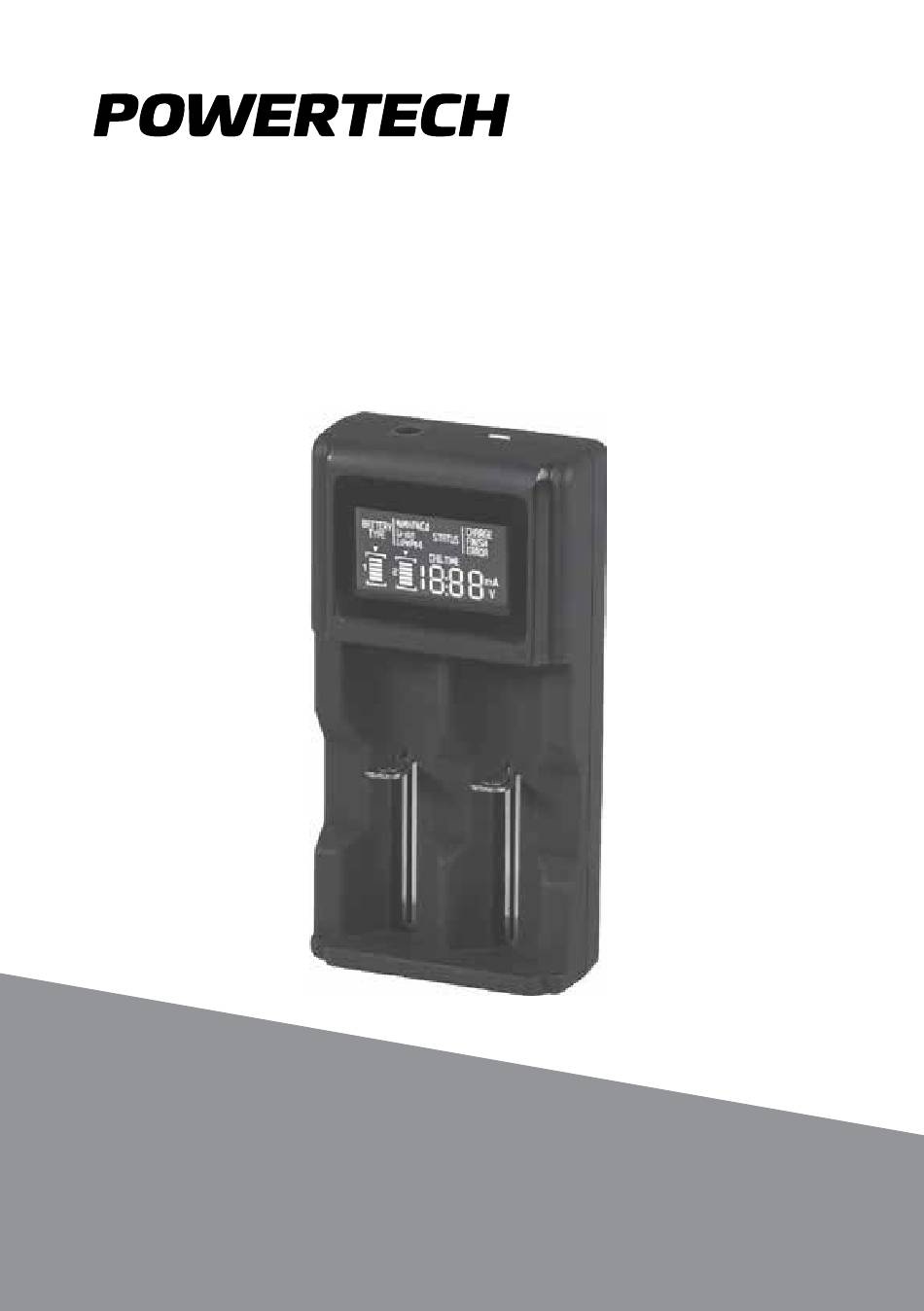

- Page 1 MB3635 Dual-Channel Battery Charger Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ..............3 Before First Use ..................... 3 Box Contents ....................4 Product Diagram ...................4 Features ......................5 Charging Instructions .................. 5 Slot/Mode .......................6 Reverse / Bad Cell / Short Circuit.............6 LCD Reference ....................7 Specifications ....................7 Warranty Information ...................8... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse WARNING: Charger should not be left unattended while in use. • This charger is intended for use with Ni-MH, NI-Cd, Li-ion and LiFePo4 rechargeable batteries only. Attempting to charge other types of batteries may cause personal injury and damage to the charger. -
Page 4: Box Contents
BOX CONTENTS 1 x Battery Charger 1 X User Manual PRODUCT DIAGRAM LCD Display Slot/Mode Charging Charging Slot 1 Slot 2 Micro-USB Car Power Input Port Input Port 5V DC 2A 12V DC 1A... -
Page 5: Features
CHARGING INSTRUCTIONS Connect the unit to a 5V DC 2A USB adaptor with the supplied Micro- USB cable or connect to a DC adaptor with 12V DC 1A. The LCD lights up automatically once the unit has been powered on. Insert a rechargeable Ni-MH / Ni-Cd / Li-ion / LiFePo4 battery into the charging slots. -
Page 6: Slot/Mode
SLOT/MODE When 2 batteries are charging at the same time, press SLOT to switch the display information (Battery Type, Charging Status, Current, Voltage, Time) for next charging slot. Initial charging current is 500mA for all supported type batteries. Press MODE to switch between 500mA & 1000mA. (For Li-ion & LiFePo4 ONLY). -
Page 7: Lcd Reference
LCD REFERENCE A Battery Charging Type Detection B Charging Status C Capacity Gauge D Time, Voltage, Current & Finish Time, Voltage and Current will be shown alternatively by 5 second interval. SPECIFICATIONS Input 5V DC 2A (MICRO USB) 12V DC 1A min. (DC POWER) Output NiMH / NiCd - 2 x 1.48V DC 500mA Li-ion - 2 x 4.2V DC 500mA or 1000mA... -
Page 8: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
