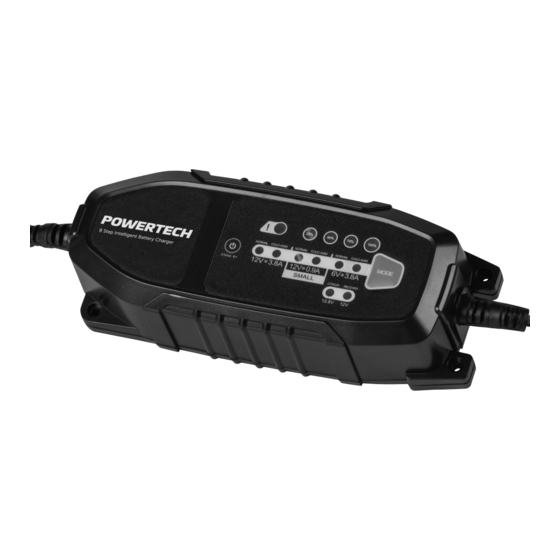

PowerTech MB3904 Instruction Manual

PowerTech MB3904 Instruction Manual

8 step intelligent lead acid and lithium battery charger

Advertisement

MB3904
8 Step Intelligent
Lead Acid and Lithium
Battery Charger
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB3904 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PowerTech MB3904

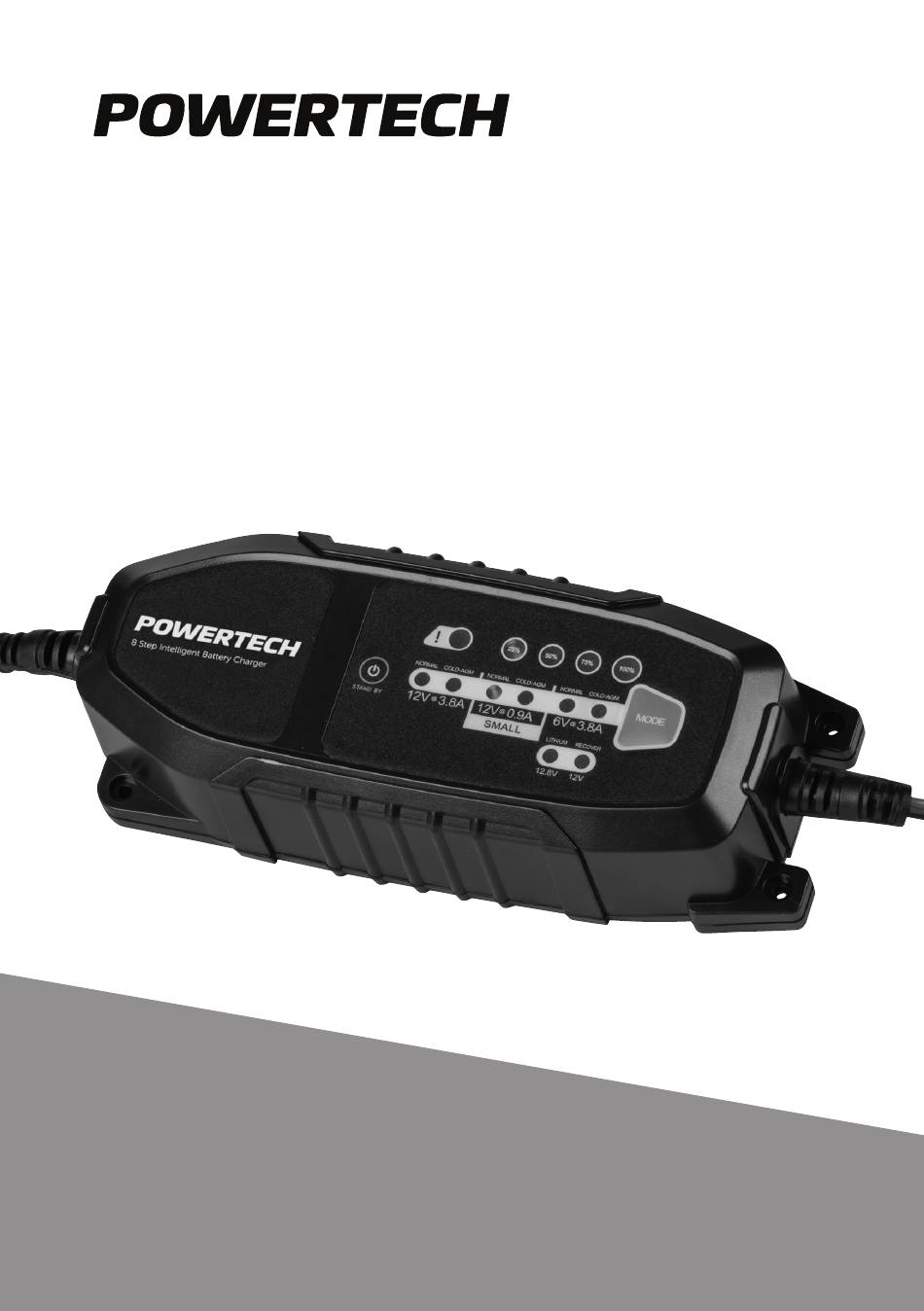

  • Page 1 MB3904 8 Step Intelligent Lead Acid and Lithium Battery Charger Instruction Manual...
  • Page 2: Important Safety Instructions

    SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Charging Modes The MB3904 has eight (8) modes. The Lithium and Recover charge modes require the mode button to be pressed and held for three (3) seconds to enter the enhanced mode. These “Enhanced” modes require your full attention before selecting.
  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS: Input: 220-240V AC 50 Hz 0.6A Output: 12V DC 3.8A / 0.9A 6V DC 3.8A 12.8V DC 3.0A Charges: 6/12V Lead Acid Flooded, Gel, Maintenance-Free, AGM Batteries • 12V Small Mode: 1.2Ah-12Ah • 6/12V Normal Mode: 12Ah-120Ah 12.8V Lithium Iron Phosphate (LiFePO4) 8Ah-50Ah...
  • Page 4: Preparing To Charge

    PREPARING TO CHARGE: If necessary to remove battery from vehicle to charge, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc. Be sure area around battery is well ventilated while battery is being charged.
  • Page 5: Led Display

    CHARGING: The battery charger must be connected to the battery according to the instructions mentioned previously. Starting the charging process: Once you have established that the battery clamps or eyelets have been correctly connected, you can start the charging process. To do so, insert the charger plug into the AC socket.
  • Page 6: Error Diagnostics

    ERROR DIAGNOSTICS: Error conditions are indicated in the LED display. Error Reason/Solution Standard Charging The battery is not Mode accepting a charge. Change charge mode Solid Red LED to Recovery Mode. Recovery Mode The battery cannot be recovered. Battery capacity is too high for the selected mode. Flashing Yellow LED Verify the battery capacity and charge mode.
  • Page 7 WARNINGS: For indoor use ONLY! Do not charge non-rechargeable batteries. Use this charger with 6V or 12V Lead Acid battery only During charging the battery must be placed in well ventilated area. The battery is to be disposed of safety. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision...
  • Page 8 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
