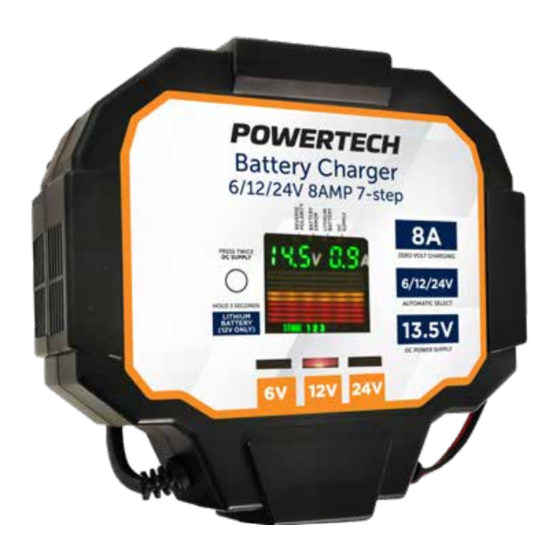

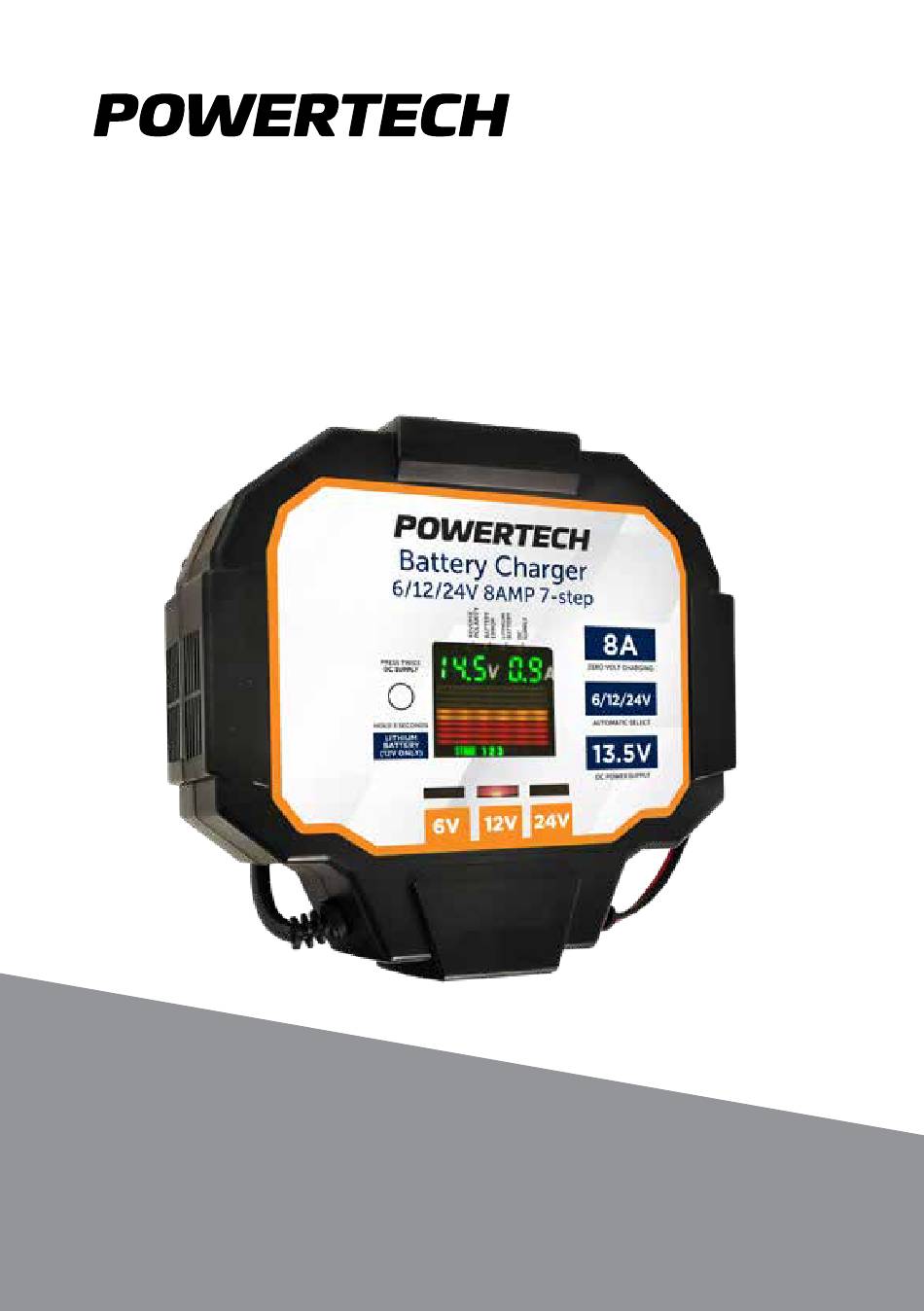

- Page 1 MB3914 Battery Charger 6/12/24V 8AMP 7-step Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS CONTENTS General Information & Safety Instructions ..........3 Box Contents ....................3 Product Diagram ...................4 Before First Use .....................4 Warnings & Safety Information ..............5 Features ......................6 Operating Instructions .................6 Battery Charger operation ................8 Cleaning, Care, Storage & Maintenance ..........9... -
Page 3: Box Contents
BOX CONTENTS 1x Battery Charger PRODUCT DIAGRAM Negative Positive Clamp Clamp Power Lead... -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. - Page 5 • Do not disassemble the battery charger. The warranty will be void if this instruction is ignored. • Ensure the battery charger is off before connecting and disconnecting from the battery. Once connected power can be turned on. • Ensure vehicles ignition is switched off before charging the battery. •...
-
Page 6: Features
FEATURES • Button-less automatic battery voltage selection. This charger is suitable for 6 Volt, 12 Volt and 24 Volt DC automotive batteries. When the charger is connected to a battery and switched on, the unit will take approximately 1 minute to test and initialise the correct voltage program. This occurs automatically with no user input required. - Page 7 • Bulk Charge (Charging stage 3 illuminated) – Maximum charge current is delivered to the battery to minimise charge times. • Absorption (Charging stage 4 illuminated) – Reduces the current supplied to the battery and ensures that the battery has been completely charged without the risk of being overcharged.
-
Page 8: Battery Charger Operation
BATTERY CHARGER OPERATION This charger has been designed to be as simple to use as possible. As a result, there is only one input button for Lithium charging mode. The charger has an advanced on board micro-processor that will take care of every setting required. To commence battery charging: •... -
Page 9: Cleaning, Care, Storage & Maintenance
supply. DC power supply mode does not have memory, so disconnecting power then reconnecting it will mean the charger will return to normal charging mode. To enter the DC power supply mode: • Ensure unit is switched off before making any connections •... - Page 10 SPECIFICATIONS Charger Type Automatic 7 Stage switch mode Trickle charging Input Voltage 230VAC/50Hz Lithium Compatible Yes, hold front button for 3 seconds Output Voltage 6V / 12V / 24V DC (Charger will auto select) Output Current 8A @6V/12V, 4A@24V Zero Volt Start DC Power Supply 13.5V 8A with overload and short circuit protection.
- Page 12 WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 5 Years. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
