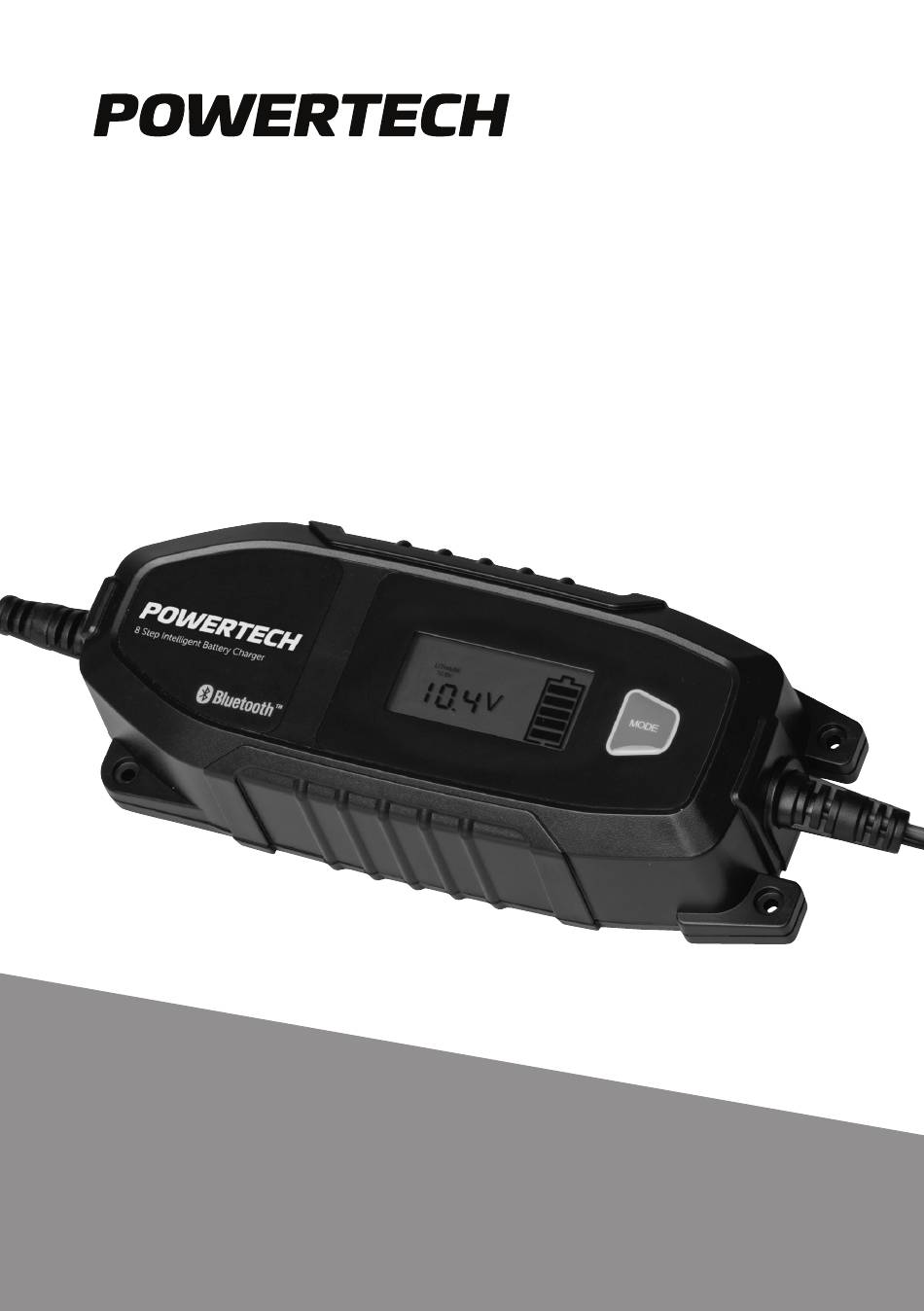

- Page 1 MB3906 8 Step Bluetooth ® Intelligent Lead Acid and Lithium Battery Charger Instruction Manual...
-
Page 3: Table Of Contents
Table of Contents Introduction Part Description Product Specifications Box Contents Safety Information Product Features Operation Connection Disconnecting Select Charging Mode Memory Function / Reset Switching Between Modes Automatic Detection of Battery Recover 12V Mode 6V Lead-acid Battery Mode 12V (Motorcycle) Lead-acid Battery Mode 12V (Automotive) Lead-acid Battery Mode Lithium 12.8V Mode Special Functions... -
Page 4: Introduction
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Use for the intended purpose The MB3906 is a battery charger with a pulse trickle charge mode and is suitable for charging and maintenance charging of the following 6 V or 12 V lead rechargeable batteries with Wet, Gel, AGM and 12.8V 4-cells LiFePO4: •... -
Page 5: Part Description
PART DESCRIPTION: Bluetooth Logo Charging battery level: 1 bar (20%), 2 bars (40%), 3 bars MODE selction button (60%), 4 bars (80%), 5 bars (90%), Mode 1 (12V/0.9A) Stops flashing fully charged. Mode 2 (12V/4.0A) VOLT: The current voltage of connected battery Mode 3 (6V/4.0A) AMP: The charging current when... -
Page 6: Product Specifications
*Reverse current is the current used by the charging station battery, when no mains current is connected. BOX CONTENTS: Check the appliance and all accessories for damage immediately after unpacking. Do not put a defective appliance or parts into operation. • MB3906 Charger • Clamps Cable • Eyelet M6 Cable •... -
Page 7: Safety Information
SAFETY INFORMATION: DANGER! Avoid danger to life and limbs caused by improper use! CAUTION! Do not operate the appliance with a damaged cable, power cord or plug. Avoid danger to life and limbs caused by improper use! PROTECT YOURSELF FROM AN ELECTRIC SHOCK! When connecting the charging station, use a screwdriver and a spanner with an insulated handle! DANGER FROM ELECTRIC SHOCK! - Page 8 SAFETY INFORMATION: Do not leave small children unattended with the battery charger! • Children are too young to assess the possible dangers associated with electrical devices. Children should be supervised in order to ensure that they do not play with the device.
- Page 9 SAFETY INFORMATION: DANGER OF CHEMICAL BURNS! Protect your eyes and skin against chemical burns caused by acid (sulphuric acid) upon contact with the battery! Wear: Acid-resistant glasses, clothing and gloves! If your eyes or skin come into contact with sulphuric acid, rinse the affected part of the body with plenty of clear running water and seek immediate medical assistance! •...
-
Page 10: Product Features
PRODUCT FEATURES: This appliance has been designed for charging a variety of SLA batteries (sealed lead acid batteries), as mainly used in cars, motorbikes and several other vehicles. They may be of types e.g. WET (with liquid electrolyte), GEL (with mit gel-type electrolyte) or AGM (absorbed glass mat) batteries. A special design of the appliance (also named “eight-phase-charging strategy“) enables the recharging of the battery to almost 100 % of its original capacity. -
Page 11: Operation
PRODUCT FEATURES: Step 6: Maintenance 1 Battery is fully charged and ready to use, indicated by the 100% CHARGE LCD and the fact that the battery icon stops flashing. In this step, the battery charger will only deliver enough current to keep the battery full. If the battery tells the charger that more current is needed, the battery charger will switch to Maintenance. -
Page 12: Connection
CONNECTION: • Before starting the charging or discharging procedure on a permanently installed battery in a vehicle, first disconnect the minus pole connecting cable (black) of the vehicle from the minus pole of the battery. The minus pole of the battery is usually connected to the car body. •... -
Page 13: Memory Function / Reset
MEMORY FUNCTION / RESET: After connection to mains, the charger automatically returns to the last charge mode used. If the charger stays on “STANDBY” press the mode key. SWITCHING BETWEEN MODES: Press the MODE selection button the appropriate number of times. The device switches between charging modes in the following order for 12V battery: >... -
Page 14: Automatic Detection Of Battery
AUTOMATIC DETECTION OF BATTERY: As soon as the battery charger has been connected to the mains, the charger recognizes the battery based on the following criteria: If the battery voltage is lower than 2.0 V or higher than 14 V, the battery is not suitable or defective. The error message appears and flashing on the display. -
Page 15: Recover 12V Mode
RECOVER 12V MODE (14.7V 4.0A): REACTIVATION OF DEEP-DISCHARGED 12 V BATTERIES USING PULSE CHARGING This mode is mainly suitable for charging 12 V lead-acid batteries with a capacity greater than 12 Ah. Long press 3 sec. the MODE selection button, if the measured voltage is between 2.0 V and 14 V the battery is identified as a 12V battery to activate mode... -
Page 16: Motorcycle) Lead-Acid Battery Mode
MODES (14.5V 0.9 A / 14.7V 0.9A): This mode is suitable for charging 12 V lead-acid batteries with a capacity less than 12 Ah. Press the MODE selection button to select MODE After doing so, the corresponding LCD display lights up. Then if you do not take any further action, the electronic system will automatically start the charging process together with the LCD display will flash at (with a current of) 0.9A. -
Page 17: Lithium 12.8V Mode
LITHIUM 12.8V MODE (14.5V 3.0A): Long press 3sec. the MODE selection button, if the measured voltage is between 11.6 V and 13.8 V the battery is identified as a Lithium (12.8V 4-cells LiFePO4) to activate mode. Then if you do not take any further action, the electronic system will automatically start the charging process together with the LCD display will flash at (with a current of) 3.0A. -
Page 18: Bluetooth
BLUETOOTH: Download and setup the “MW BT Check & Charge” APP software from Apple Store or Google Play first. Connect charger to MAINS. Make sure unit is powered on. Control panel “Power LED” lights should be on at this stage. Turn on Bluetooth on desired hand held device or laptop. - Page 19 MOBILE APPLICATION USER INTERFACE:...
- Page 20 MOBILE APPLICATION USER INTERFACE:...
-
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE: CAUTION: Disconnect from mains prior to carrying out any cleaning work. Danger of electrocution! Never immerse the charger in water as entering water can damage the charger. When necessary, clean charger with a soft, dry, lint-free cloth. Only when heavily soiled use a damp, well wrung-out cloth and mild, non-abrasive cleaning agent. - Page 24 Made in China...
