2.6 Basic Dimensions of Main Components

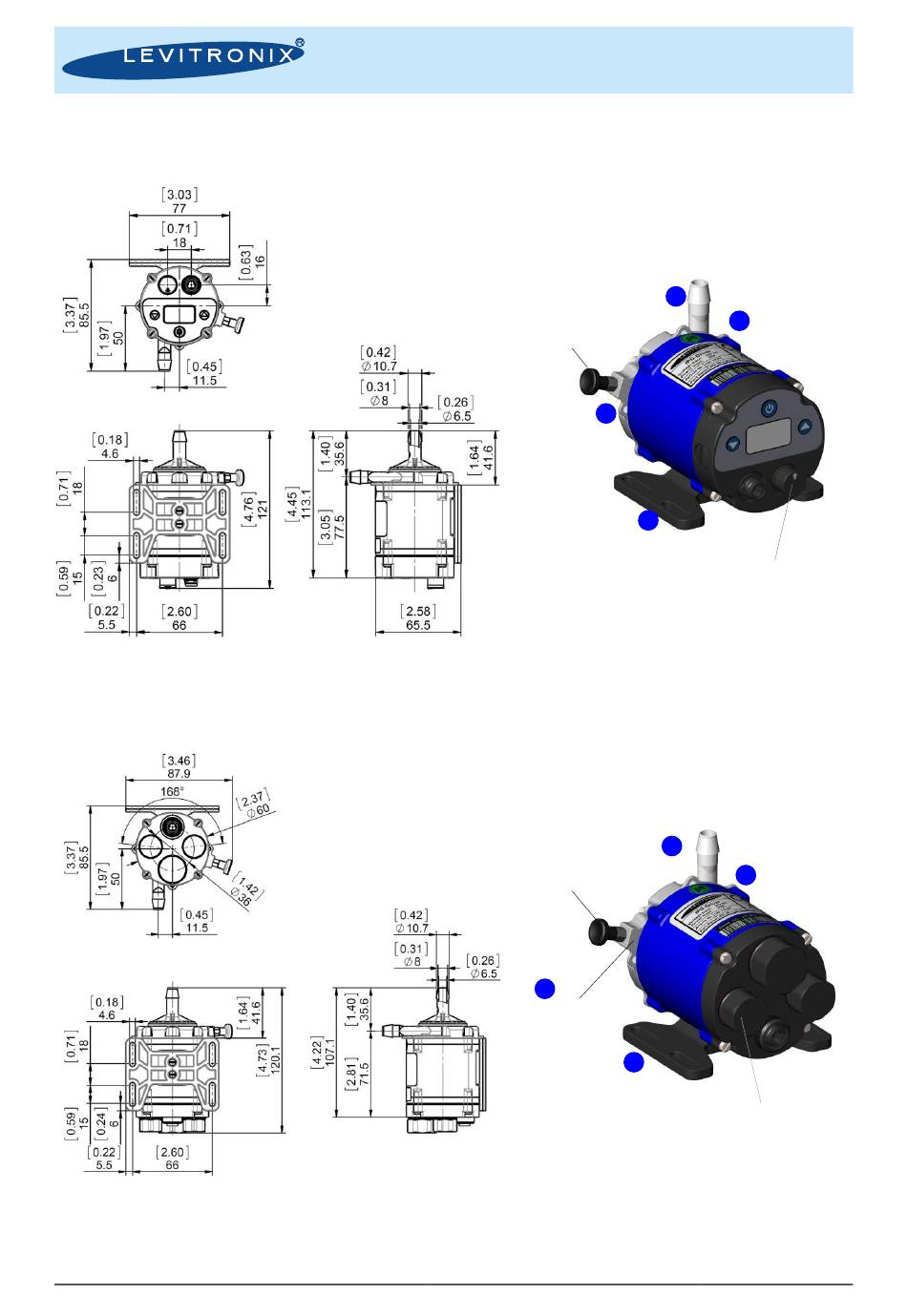

Figure 13: Basic dimensions (in [mm] and [inch]) of Stand-Alone model
Note 1: Drawings with DCP-30.1 (Triclamp) and DCP-30.2-SF1 (Sterile Fittings) are available on request.
Figure 14: Basic dimensions (in [mm] and [inch]) of EasyConnect model
Note 1: Drawings with DCP-30.1 (Triclamp) and DCP-30.2-SF1 (sterile fittings) are available on request.
PL-4051-00, Rev03, DCO# 20-275
Pump Head Inlet and Outlet Fitting:
Barb 3/8" for typical tubing ID = 1/4"
Pump Head Inlet and Outlet Fitting:
Barb 3/8" for typical tubing ID = 1/4"
User Manual for PuraLev
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
Single-Use
Pump Head
1
DCP-30.2
Locking Pin
3
Pump Head Socket
PHS-i30.1
4
Mounting Base Plate MBP-i30.1
(Included in driver Package).
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
Single-Use
Pump Head
DCP-30.2
1
Locking Pin
3
Pump Head Socket
PHS-i30.1
4
Mounting Base Plate MBP-i30.1
(Included in driver Package).
®
i30SU
www.levitronix.com
Driver IPD-30.5
2c
Protective Cover for PLC
Connector
(Included in driver Package).
Driver IPD-30.3
2b
Protective Cover Nut for
PLC and Fieldbus Connectors
(Included in driver package).
11
