- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: VP-715, Video To SXGA / HD Scaler VP-716, Video To SXGA / DVI / HD Scaler...
-
Page 2: Table Of Contents
Figure 1: VP-715 Video To SXGA / HD Scaler Figure 2: VP-716 Video To SXGA / DVI / HD Scaler Figure 3: Connecting the VP-715 Video To SXGA / HD Scaler Figure 4: Connecting the VP-716 Video To SXGA / DVI / HD Scaler... - Page 3 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...
-
Page 4: Introduction
Presentation and conference room systems, board rooms and auditoriums Production studios, rental and staging, and multimedia applications The package includes the following items: VP-715 Video To SXGA / HD Scaler, and/or VP-716 Video To SXGA / DVI / HD Scaler Power adapter... -
Page 5: Vp-715/6 Scaler

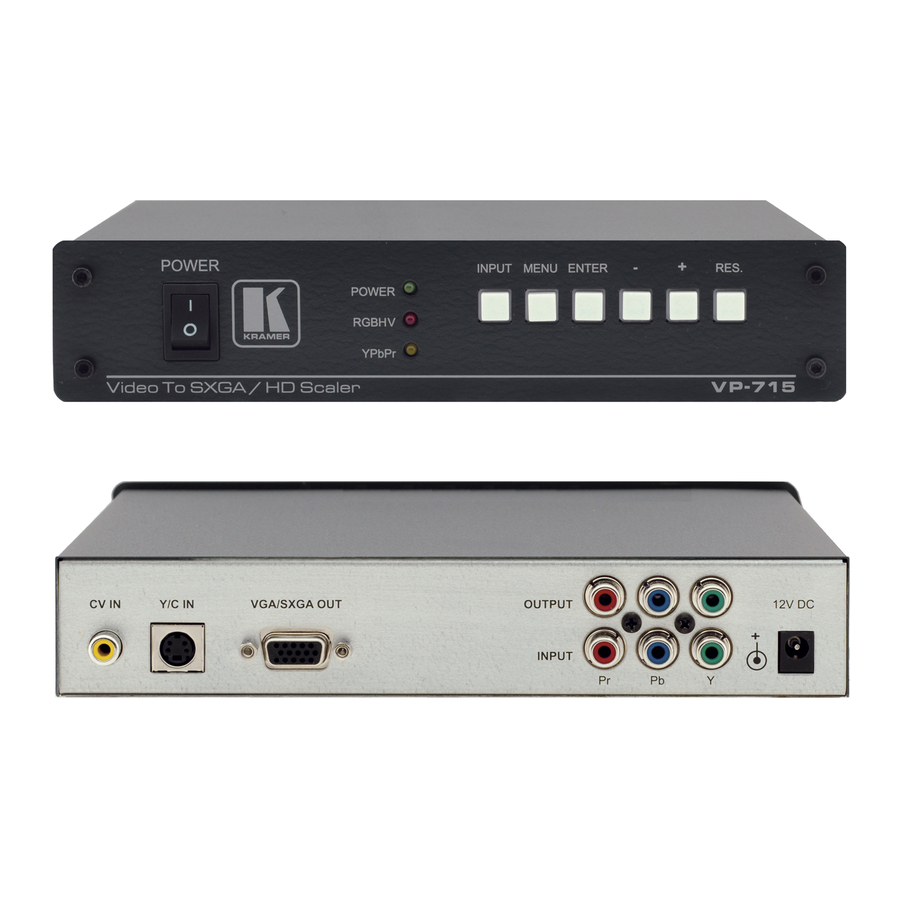

Positioning your VP-715 / VP-716 away from moisture, excessive sunlight and dust Your VP-715 / VP-716 Scaler Figure 1 and Figure 2 illustrate the VP-715 and VP-716, respectively. Table 1 defines the VP-715 and VP-716. 1 The VP-715 has an analog output only... -
Page 6: Figure 1: Vp-715 Video To Sxga / Hd Scaler
Your VP-715 / VP-716 Scaler Figure 1: VP-715 Video To SXGA / HD Scaler Figure 2: VP-716 Video To SXGA / DVI / HD Scaler... -
Page 7: Table 1: Vp-715 / Vp-716 Scaler Features
Table 1: VP-715 / VP-716 Scaler Features Feature POWER Switch YPbRr Orange LED RGBHV Red LED POWER Green LED INPUT Button MENU Button ENTER Button - Button + Button 10 RES. Button 11 CV IN RCA Connector 12 Y/C IN 4p Connector... -
Page 8: Connecting The Vp-715 / Vp-716
(not illustrated in Figure 3 / Figure 4) and connect the transformer to the mains electricity. 1 Switch OFF the power on each device before connecting it to your VP-715/VP-716. After connecting your VP-715/VP-716, switch on its power and then switch on the power on each device... -
Page 9: Figure 3: Connecting The Vp-715 Video To Sxga / Hd Scaler
Connecting the VP-715 / VP-716 Figure 3: Connecting the VP-715 Video To SXGA / HD Scaler Figure 4: Connecting the VP-716 Video To SXGA / DVI / HD Scaler KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 10: Operating The Vp-715 / Vp-716
Operating the VP-715 / VP-716 Using the VP-715 / VP-716 you can select any one of the 3 inputs and scale that input to the output(s) at the set resolution. Table 2 defines the OSD Menu functions: Feature Function Picture... -
Page 11: Technical Specifications
22cm x 18cm x 4.5cm (8.6" x 7" x 1.8") W, D, H. WEIGHT: 1.2 kg. (2.65 lbs.) approx. ACCESSORIES: Power supply OPTIONS: RK-80N 19” rack kit 1 Specifications are subject to change without notice Technical Specifications of the VP-715 / VP-716 KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
