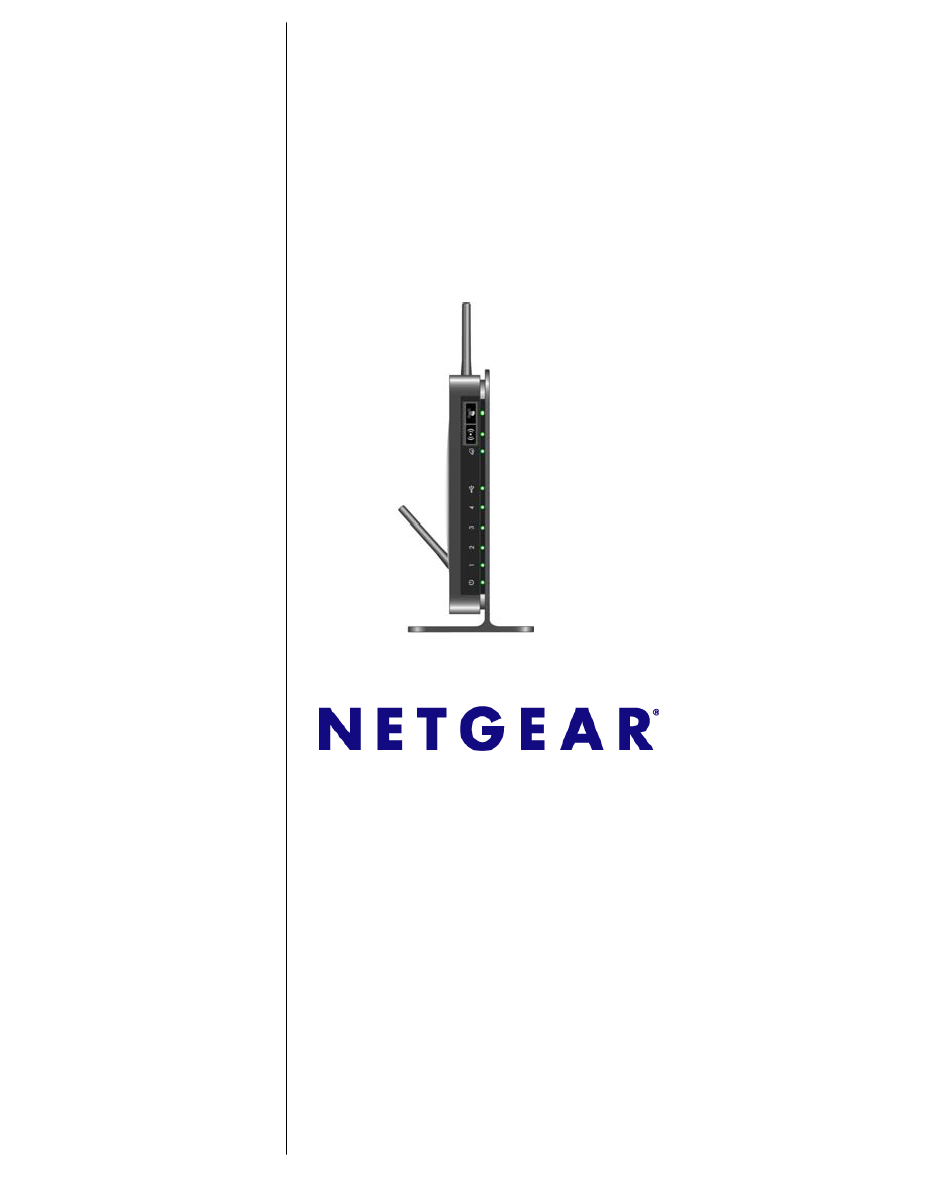

Mobile Broadband
Wireless-N Router
MBRN3000 User Manual
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
202-10578-01
October 2009
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBRN3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NETGEAR MBRN3000

Summary of Contents for NETGEAR MBRN3000

  • Page 1 Mobile Broadband Wireless-N Router MBRN3000 User Manual NETGEAR, Inc. 350 E. Plumeria Drive San Jose, CA 95134 USA 202-10578-01 October 2009 v1.0...
  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 European Union Statement of Compliance Hereby, NETGEAR, Inc. declares that this router is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Èesky NETGEAR, Inc. Mobile Broadband Wireless-N Router tímto prohlašuje, že tento [Czech] MBRN3000 je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES.
  • Page 4 Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the Mobile Broadband Wireless-N Router MBRN3000 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for...
  • Page 5 Refer to the Support Information Card that shipped with your Mobile Broadband Wireless-N Router MBRN3000. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com . A direct connection to the Internet and a Web browser such as Internet Explorer or Mozilla Firefox are required.
  • Page 6 v1.0, October 2009...
