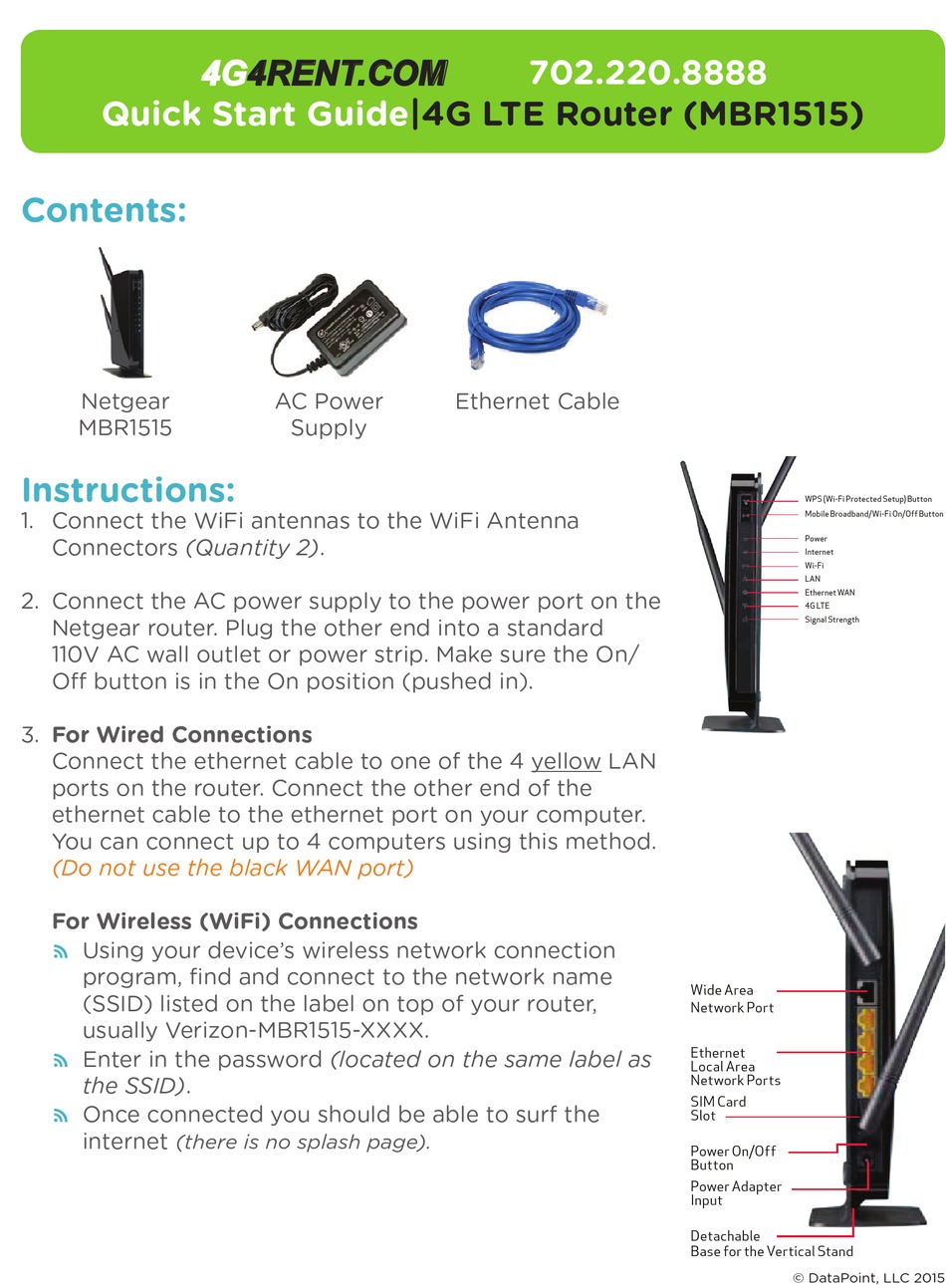

NETGEAR MBR1515 User Manual

4G4RENT.COM
Quick Start
Contents:
Netgear
MBR1515
Instructions:
1. Connect the WiFi antennas to the WiFi Antenna
Connectors (Quantity 2).
2. Connect the AC power supply to the power port on the
Netgear router. Plug the other end into a standard
110V AC wall outlet or power strip. Make sure the On/
Off button is in the On position (pushed in).
3. For Wired Connections
Connect the ethernet cable to one of the 4 yellow LAN
ports on the router. Connect the other end of the
ethernet cable to the ethernet port on your computer.
You can connect up to 4 computers using this method.
(Do not use the black WAN port)
For Wireless (WiFi) Connections
Using your device's wireless network connection
^
program, find and connect to the network name
(SSID) listed on the label on top of your router,
usually Verizon-MBR1515-XXXX.
Enter in the password (located on the same label as
^
the SSID).
Once connected you should be able to surf the
^
internet
(there is no splash page).
Guide|4G LTE Router (MBR1515)
AC Power Ethernet Cable
Supply
702.220.8888
Router Features
Front View
Note: The color-coded LED indicators are easily visible on the front of the Verizon 4G LTE Broadband Router to provide you with
information about network activity and status. Actual product appearance (shape, color, labeling) may differ slightly from that shown in
the following figures.
2
Wide Area
Network Port
Ethernet
Local Area
Network Ports
SIM Card
Slot
Power On/Off
Button
Power Adapter
Input
Detachable
Base for the Vertical Stand
The Verizon 4G LTE Broadband Router includes a Wide Area N
for wired high-speed connections.
WPS (Wi-Fi Protected Setup) Button
Mobile Broadband/Wi-Fi On/Off Button
Power
Internet
Wi-Fi
LAN
Ethernet WAN
4G LTE
Signal Strength
Rear View
SSID/
Password
Label
