Z- axis Calibration
Z-axis calibration is essential for every 3D printer. Run this test to make sure that the
building plate is leveled to the LCD screen. This is to ensure that models and prints
will adhere to the building plate.
SONIC MIGHTY 4K

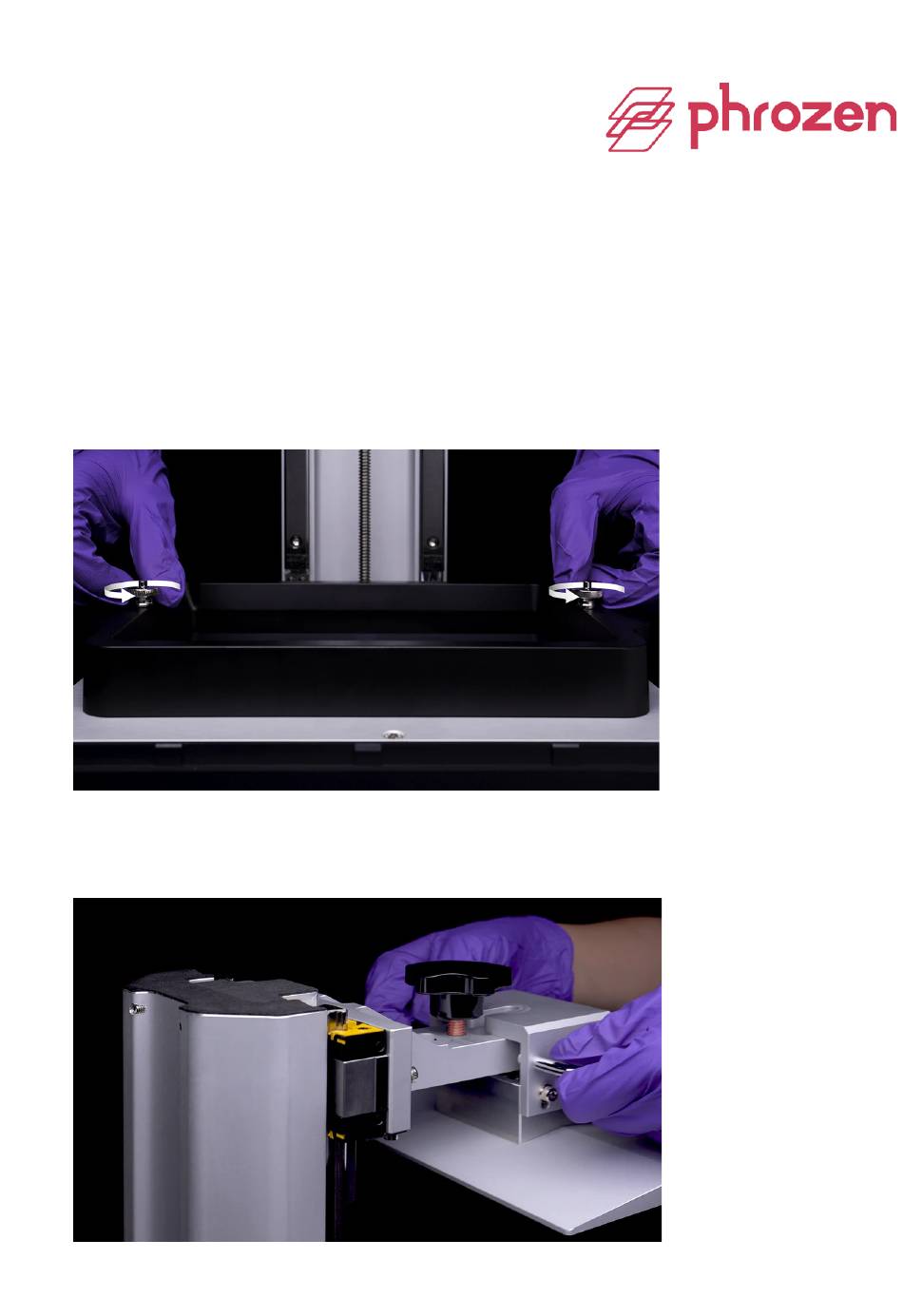

Step 1: Remove the Resin Vat
Make sure to remove any objects present on the machine's platform.
Step 2: Install the Building Plate
Attach the building plate to the printer. Screw and tighten the building plate.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phrozen SONIC MIGHTY 4K
Summary of Contents for Phrozen SONIC MIGHTY 4K
- Page 1 LCD screen. This is to ensure that models and prints will adhere to the building plate. SONIC MIGHTY 4K Step 1: Remove the Resin Vat Make sure to remove any objects present on the machine's platform.
- Page 2 Step 3: Loosen the Screws Use the Allen wrench to loosen all 4 screws on the sides of the building plate in a counterclockwise direction. After loosening it, double-check to see if the plate is loose and movable. *Note: While loosening the building plate, DO NOT remove the 4 screws present on the sides.
- Page 3 Step 4: Place a piece of paper on the LCD Prepare a piece of A4 paper (roughly 0.07-0.10 mm) and lay it flat on the LCD screen. This piece of paper will be used for leveling the building plate.
- Page 4 Step 5: Settings On the touch panel, click TOOLS, then click Z CALIB on your touch panel to begin the calibration process. Click NEXT and wait for 1-2 minutes as the building plate extends to the LCD screen.
- Page 5 Step 6: Apply Pressure on the Building Plate Once the building plate has touched down, apply pressure and press down firmly on the sides of the building plate. Pull on the piece of paper to make sure the building plate is laying tight against it.
- Page 6 Step 8: Tighten all Screws in a Cross Pattern Order After setting all screws, tighten all 4 screws on the building plate in a clockwise direction while pressing down with the other hand in a cross pattern order (as stated above) so that the building plate is securely fastened.
- Page 7 Step 10: Done Click DONE on the touch panel and wait for the building plate to retract. Once the plate has retracted, remove the A4 paper. You are now ready to begin your 3D printing journey!
