Phrozen Shuffle 2019 / Shuffle Lite User Guide
Thank you for purchasing Phrozen products!

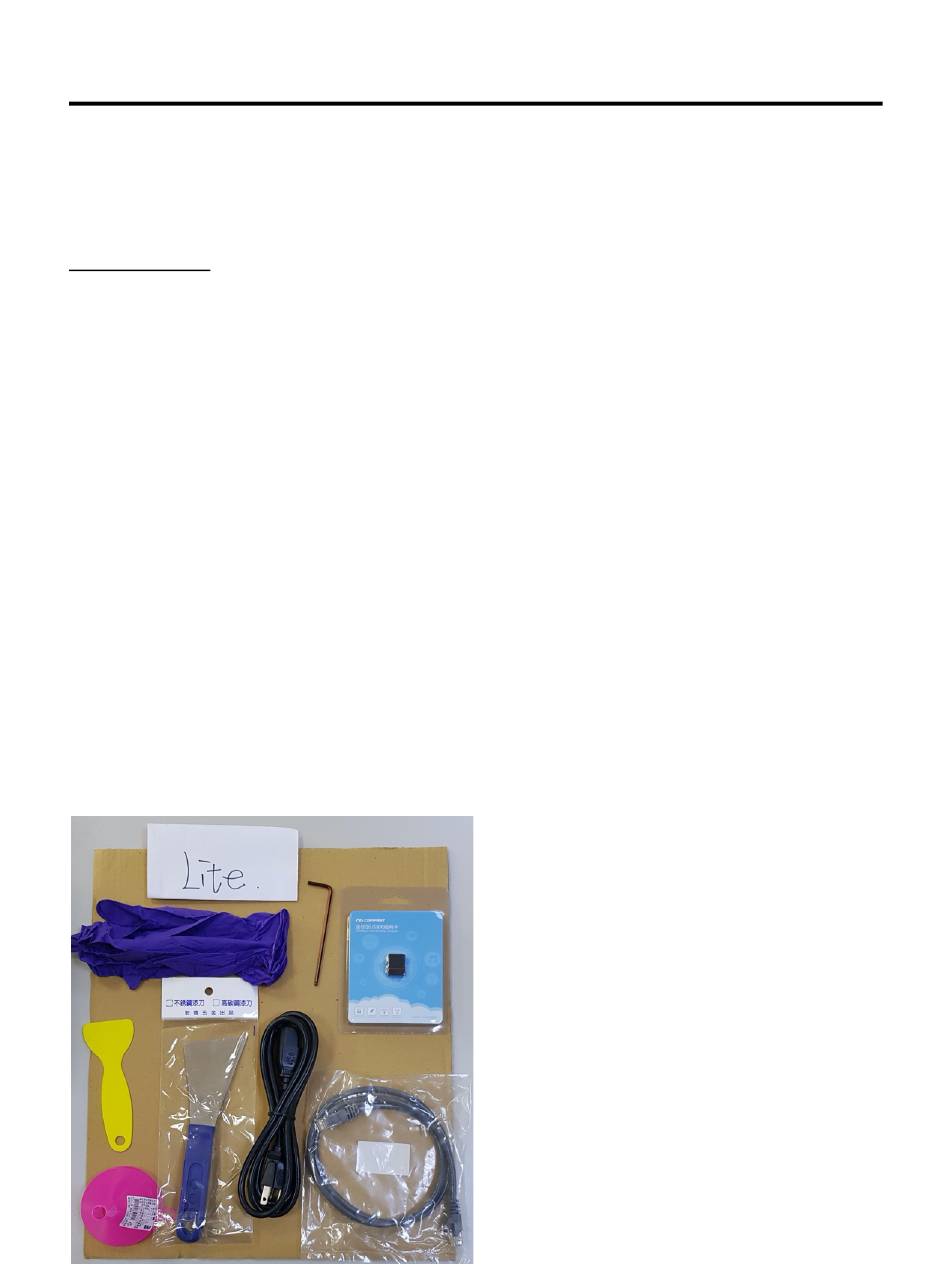

CONTENTS
Phrozen Shuffle 2019/Lite Printer * 1 pc
Resin Vat with Cover and Preinstalled FEP film *1 set
Phrozen Printing Toolkits Box
Plastic Scraper * 1 pc
o
Metal Scraper * 1 pc
o
Funnel * 1 pc
o
Gloves * 1 set
o
AC Power Cord * 1 pc
o
※If you have any missing component or problems, please contact the
Phrozen team directly

Advertisement

loading
Need help?

Need help?

Do you have a question about the Shuffle 2019 and is the answer not in the manual?

Questions and answers

Summary of Contents for Phrozen Shuffle 2019

  • Page 1 Phrozen Shuffle 2019 / Shuffle Lite User Guide Thank you for purchasing Phrozen products! CONTENTS Phrozen Shuffle 2019/Lite Printer * 1 pc • Resin Vat with Cover and Preinstalled FEP film *1 set • Phrozen Printing Toolkits Box • Plastic Scraper * 1 pc...
  • Page 2 BEFORE YOU START… Plug-in AC Power Cord and turn on the button. •...
  • Page 3 Phrozen OS will be ready in 45 secs.
  • Page 4 CALIBRATION Z-axis calibration is an essential process to make your 3D prints successfully printed with good quality, please do start your printing process after a proper Z-axis calibration. Step 1è Take off the resin vat S Step 2è Put 1 piece of A4 paper and make sure no objects on the on the LCD platform.
  • Page 5 Step 4è Click 【Z-AXIS】button to start the calibration process. Step 5è Click the manual dot icon at the right side.
  • Page 6 Step 6è Loosen 4 screws on both sides of the build platform. Ø Tips Gently pull the build platform to see if it’s moveable and well-loosened.
  • Page 7 Step 7 Click 【NEXT】, kindly wait the build platform down to the BOTTOM. è Step 8è Tighten the screws with slightly pressing the build platform to make sure the A4 paper is still and IMMOVABLE.
  • Page 8 Step 9 Click 【DONE】, kindly wait the build platform back to the top. è...
  • Page 9 UPLOARD PRINTING FILES USB connection method: Step 1 è Make sure the printing file in your USB has been sliced to .phz or .zip format. Ø Tips Please name your printing file with ONLY EN ALPHABET. Step 2 è Insert your USB into the socket at the back of the printer. Step 3 è...
  • Page 10 Step 5 è Choose your printing file to start uploading process. Step 6 è The file will be displayed on the PLATES screen...
  • Page 11 Step 7 è After entering the preview screen, please double check the file you are going to print and click √. Step 8 è Before starting to print, please make sure that there is no object around the stage and resin tank to avoid the LCD panel being crushed.
  • Page 12 Printing ●Pour in resin Ø Tip 1 Always wear gloves, goggles, long-sleeved clothing during your printing process. Ø Tip 2 Resin is a kind of chemical material, if feeling any uncomfortable during using it or, moreover, accidently eating it, please go to the nearest medical unit asap for further help.
  • Page 13 Shutdown Step 1 è Touch the screen operation: click SETUP. Step 2 è After clicking, follow the instruction below: Step 3 è ① Setup→ ② Shutdown→ ③ √→ ④ Please turn off the Power Switch...
  • Page 14 Step 1 è Take off your print slightly from the build platform with metal scraper. Ø Tips Always wear gloves and be aware of any danger operations with the metal scraper. Step 2 è Clean your prints by Phrozen Wash/IPA/95% alcohol until no resin on your print. Ø Tips Phrozen Washè https://reurl.cc/8lOv0o Ø...
  • Page 15 Ø Tip 1 Funnel, filter paper and plastic scraper will be the helpful toolkits to store your resins. Ø Tip 2 Always keep new resin and used resin stored in separated container. Step 2 è Clean your resin vat by Phrozen Wash/IPA/95% alcohol until no resin on the resin vat.
  • Page 16 PZSlice Pro Software Operation 1.Basic setting Step 1 è Machine type Step 2 è Select layer thickness (*advice 50um) select『Apply』 Step 3 è Step 4 è Choose language...
  • Page 17 2.Import file Step 1 è Select the upper left file icon Step 2 è Choose the file to import ※ Mobile window: The middle mouse button can move the screen, and the right mouse button can rotate the screen in 3D.
  • Page 18 3. Hollow setup Step 1 è Select the icon- Support mode Step 2 è Choose advanced function Step 3 è Adjust the height of the base to 1mm Step 4 è Hollow out...
  • Page 19 4. Adjust the support type to the bracket type Step 1 è Generate all Step2 è Support type...
  • Page 20 5.Check the internal support function Internal support function - for example, the model itself has a base, the automatic support is the support between the base and the platform; if the inner support is selected, the following place will be added.
  • Page 21 Select "Edit Support" Step1 è The support will be converted to contact point mode; at this time, Step2 è can manually add the support by pressing the left mouse button at the color change of the model.After clicking the left button to select the contact point to be removed, After completing the editing support, please select “Edit Support”...
  • Page 22 6. Simulation check support slice ※After selecting the moving direction of the model slice, left-click and hold the middle square to move left and right to view the simulated slice...
  • Page 23 7.Export Slice Select the output slice file Step1 è Check if the parameters are correct Step2 è The model name can be changed at this time. Step3 è It is suggested to name it in short English. The storage location is preset and cannot be changed here. Step4 è...
  • Page 24 ※ Please do not use non-English name for the file name ※ Please do not use non-English name for the file name ※After selecting the output, the software will slice, and there is a progress bar at the bottom right. If the file is too large, the progress bar will repeat the same %, please be patient.
  • Page 25 After opening the file storage location, save to .php file to the USB. Phrozen Software CHITUBOX User Guide More Phrozen Printers are now on the built-in list in ChituBox Download now to try it NOW (for free) : https://www.chitubox.com/download.html 1.After the CHITUBOX software is supported, the STL file is exported and then sliced with special software 2.Use CHITUBOX slice and save it to zip file...
  • Page 26 1.Upload Printing Files via Internet Step 1 è Connect your 3D printer to the internet via Ethernet Cable or WiFi. Step 2 è Input the IP address showed at the top of Phrozen OS display on your web browser. Step 3 è Click 【PLATES】of the navigation bar.
  • Page 27 2.Resin profile setting Step 1 è Connect your 3D printer to the internet via Ethernet Cable or WiFi. Step 2 è Input the IP address showed at the top of Phrozen OS display on your web browser. Step 3 Click 【PROFILE】of the navigation bar è...
  • Page 28 ※ CONTACT US Phrozen Tech Co., Ltd. +886-3-530-2273 ext. 35 (Tech. Department) +886-3-540-0076 ext. 15 (Sales Department) After-sale Service: sales@phrozen3d.com Online After-sale Service: www.facebook.com/Phrozen3DP Official Facebook Group: www.facebook.com/groups/775284745970028 https://www.facebook.com/groups/1364329960379257 Prints Gallery: www.instagram.com/phrozen3dp...
