Z- axis Calibration

Z-axis calibration is essential for every 3D printer. Run this test to make sure that the

building plate is leveled to the LCD screen. This is to ensure that models and prints

will adhere to the building plate.

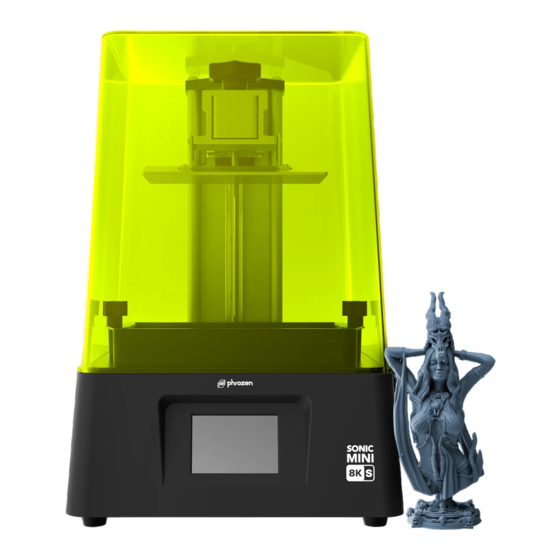

SONIC MINI/ SONIC/ SHUFFLE SERIES

Make sure to remove any objects present on the machine's platform.

Step 2: Prepare a piece of A4 paper and lay it flat on the LCD. This piece of paper will be

used for leveling the building plate.

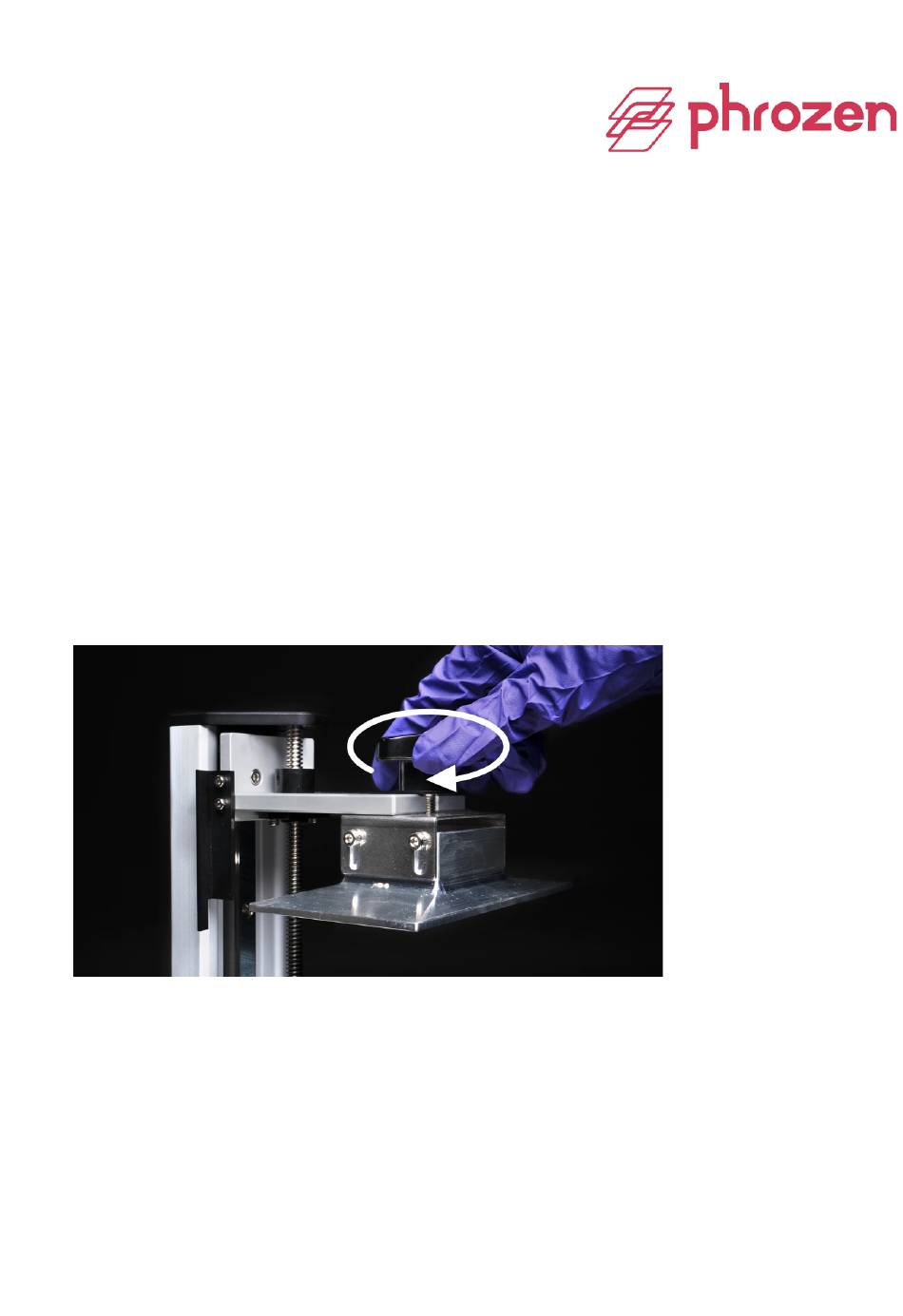

Attach the building plate knob to the printer and align it with the pins. Screw and tighten the

building plate.

Table of Contents

Do you have a question about the Sonic Mini Series and is the answer not in the manual?

Page 1 Z- axis Calibration Z-axis calibration is essential for every 3D printer. Run this test to make sure that the building plate is leveled to the LCD screen. This is to ensure that models and prints will adhere to the building plate. SONIC MINI/ SONIC/ SHUFFLE SERIES Step 1: Remove the Resin Vat Make sure to remove any objects present on the machine's platform.
Page 2 Step 4: Use a wrench to loosen all 4 screws present on the sides of the building plate. After loosening it, make sure to double-check to see if the plate is loose and movable. Step 5: Place a piece of paper on the LCD Prepare a piece of A4 paper (roughly 0.07-0.10 mm) and lay it flat on the LCD screen.
Page 3 Step 6: Settings On the touch panel, click TOOLS, then click Z CALIB on your touch panel to begin the calibration process. Click NEXT and wait for 1-2 minutes as the building plate extends to the LCD screen. Step 7: Apply Pressure on the Building Plate Once the plate has touched down, press down tightly on the sides of the building plate and adjust it to make sure it is lying tight against the sheet of paper.
