Summary of Contents for Kramer VA-256XL

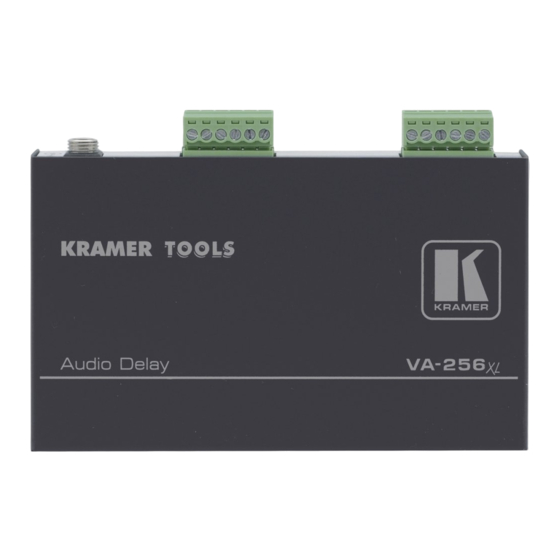

- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VA-256xl Audio Delay...
-
Page 2: Table Of Contents
Figure 3: Connecting the Balanced Stereo Audio Input/Output Figure 4: Connecting the Unbalanced Stereo Audio Input Figure 5: Connecting the Unbalanced Stereo Audio Output Tables Table 1: Features and Functions of the VA-256xl Audio Delay Table 2: Technical Specifications of the VA-256xl Audio Delay Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... - Page 4 Plasma Display Receiver Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY s-Video Source...
-
Page 5: Overview
Overview The Kramer VA-256xl is a balanced stereo analog audio delay that: Lets you adjust for lip sync errors so that the audio delay will match the video delay Provides a delay time, ranging from 1msec up to 5.4 seconds in... -
Page 6: Your Va-256Xl Audio Delay
Your VA-256xl Audio Delay Figure 1 and Table 1 define the VA-256xl Audio Delay: Table 1: Features and Functions of the VA-256xl Audio Delay Feature 12V DC ANALOG OUTPUT Terminal Block Connector ANALOG INPUT Terminal Block Connector DELAY CONTROL DELAY (mSEC) 7-segment Display ON LED 1 For step-by-step response, press and release these button(s) as required. -
Page 7: Using The Va-256Xl Audio Delay
Using the VA-256xl Audio Delay To adjust a lip sync error (when using a scaler, for example, the Kramer VP-724xl Seamless Switcher / Scaler), use the VA-256xl, as the example in Figure 2 illustrates: Connect the VA-256xl, as follows (see section 5.1): Connect the audio output of the “s-Video Source”... -
Page 8: Connecting The Balanced/Unbalanced Stereo Audio Input/Output
Figure 4 illustrates how to wire an unbalanced input connection: Figure 4: Connecting the Unbalanced Stereo Audio Input Figure 5 illustrates how to wire an unbalanced output: Figure 5: Connecting the Unbalanced Stereo Audio Output Using the VA-256xl Audio Delay KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Setting The Delay Time
The dimmer settings mode time out after 20 seconds and the unit returns to normal operation. The dimmer setting is saved in the non-volatile memory. 1 In 1msec steps 2 Ranging from 1 to 100 Using the VA-256xl Audio Delay and + buttons . The delay time is displayed (in... -
Page 10: Technical Specifications
WEIGHT: ACCESSORIES: OPTIONS: 1 Specifications are subject to change without notice Technical Specifications of the VA-256xl Audio Delay 4dBu / 30k on a detachable terminal block connector 4dBu / 50 on a detachable terminal block connector +12dBu balanced 20Hz – 20kHz <... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
