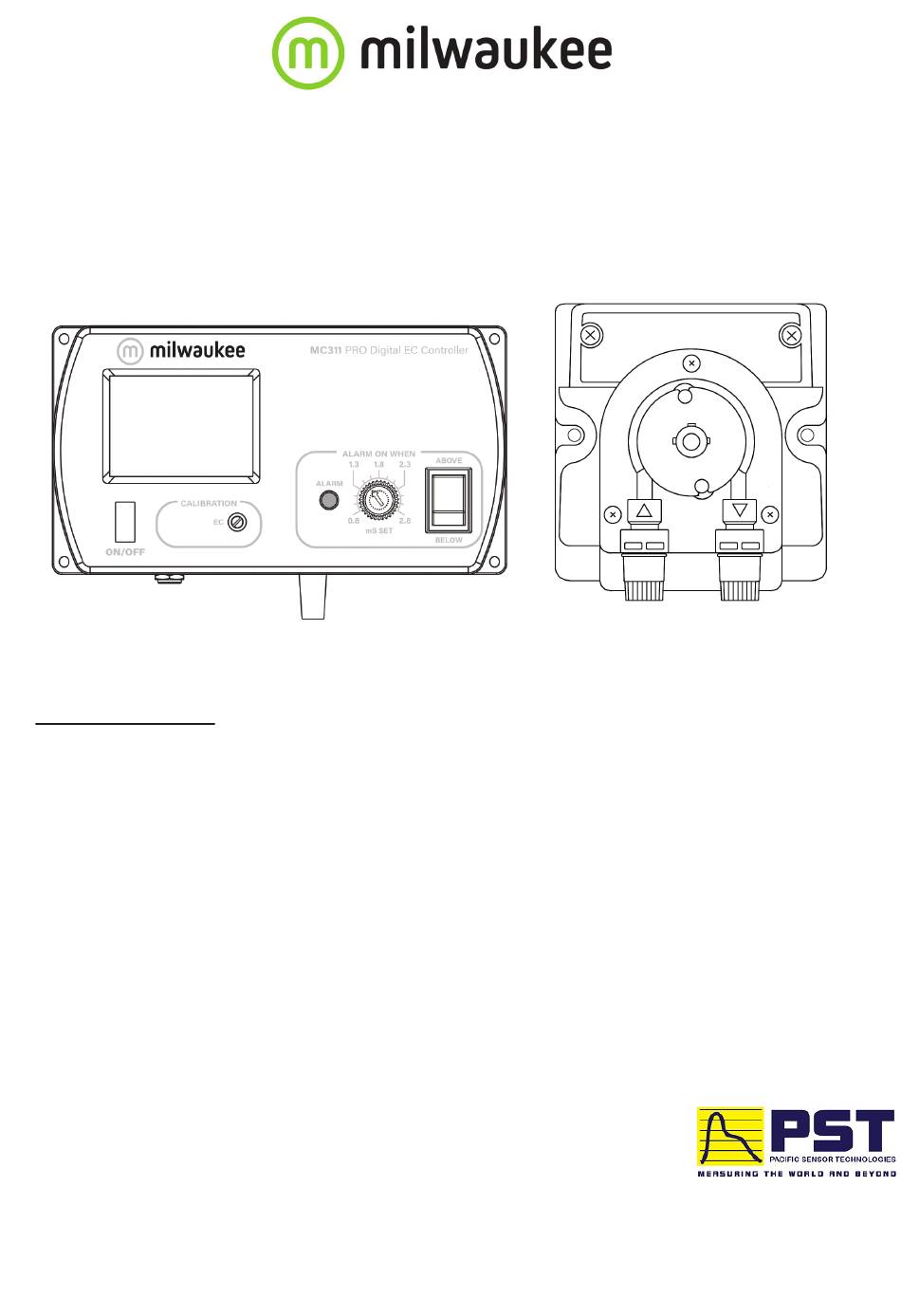

MILWAUKEE MC311 EC CONTROLLER
WITH TWO MP810 1,5 L/H DOSING PUMPS
SPECIFICATIONS
Range
Resolution
Accuracy
Setpoint
Alarm / Output
Power Socket
Power drivers
pH electrode
Environment
Power supply
Dimensions
Weight
USER MANUAL

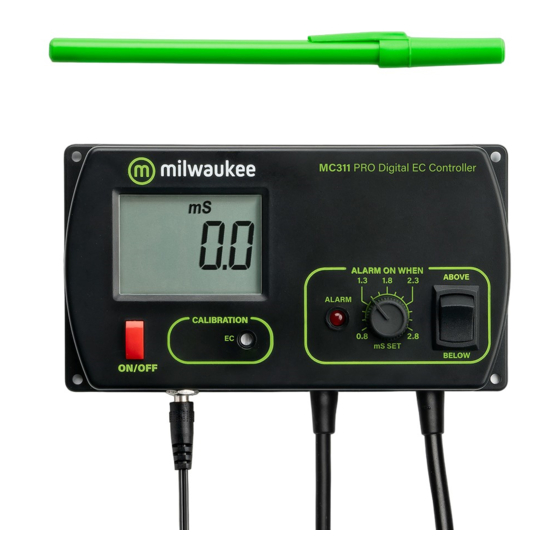

MC311 EC Meter
0.0 to 10.0 mS
0.1 mS
±2% Full scale
0.8 to 2.8 mS
active when measure is
higher/lower than selected
setpoint depending on
user selection
115VAC, 2A, 60Hz
or 230VAC, 1A, 50Hz
MA812/2 (included)
0 to 50°C, 95% RH
not condensing
12 VDC (included)
148.5 x 82.5 x 32 mm
180 g
MC745
MP810 Peristaltic Dosing Pump
• Constant Dosing fl ow of 1,5 l/h
(25 cc/min)
• No regulation
• Maximum pressure: 1 bar
• Made of Polipropilene (PP)
• Peristaltic tube in Santoprene
• Power supply: 230 VAC ± 10%
Pacific Sensor Technologies Pty Ltd
Unit 4, 3 Neutron Place Rowville, VIC 3178 Australia
1300 662 720 | sales@pacificsensortech.com.au
Authorized Distributor in Australia
www.pacificsensortech.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Milwaukee MC745
Summary of Contents for Milwaukee MC745
- Page 1 USER MANUAL MC745 MILWAUKEE MC311 EC CONTROLLER WITH TWO MP810 1,5 L/H DOSING PUMPS SPECIFICATIONS MC311 EC Meter MP810 Peristaltic Dosing Pump Range 0.0 to 10.0 mS • Constant Dosing fl ow of 1,5 l/h Resolution 0.1 mS (25 cc/min) Accuracy ±2% Full scale...
- Page 2 INSTALLATION OF CONTROLLER: Connect the supplied 240VAC/12VDC power adapter to the meter and to the main line. Connect the connection base (black and white outlet) to the main line. Always remove the probe’s protective cap before taking any measurement. Make sure that the meter has been calibrated before taking any measurements Immerse the tip (2.5 cm) of the EC probe into the sample.
- Page 3 • Turn the meter on by pressing the ON/OFF key. • Wait until the reading stabilize for tempera- ture variations, and then adjust the EC calibration trimmer on the front panel with the supplied screwdriver until the display shows: “1.4” mS. The calibration is now complete and the meter is ready for use.
- Page 4 It is suggested to dissolve 10 cL of Mono-nutrient in a 5L container of water. Depending on the volume of your tank and the brand of your Mono-nutrient (and whether it is more or less concentrated), this quantity can be increased later. It is better to dissolve more than less.
