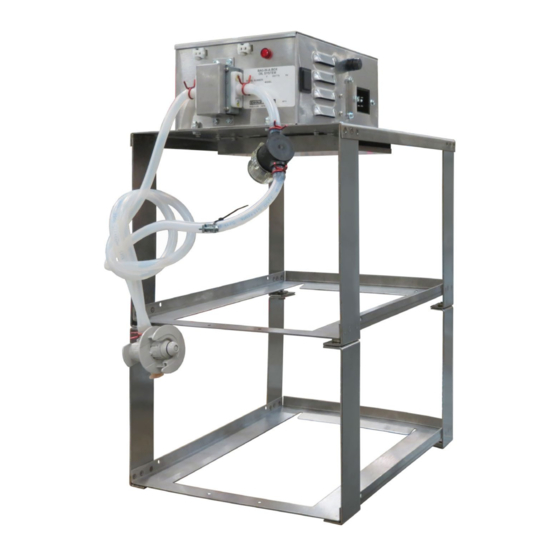

- Page 1 Instruction Manual Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 79431...
-
Page 2: Table Of Contents
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Table of Contents SAFETY PRECAUTIONS ........................... 3 Inspection of Shipment ............................5 INSTALLATION INSTRUCTIONS ........................5 Manual ..................................5 Model Description ..............................5 Items Included with Unit ............................ 5 Setup ................................... 5 Electrical Requirements ............................. -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Inspection Of Shipment
2257: B.I.B. Unit features a Teach Timer (1 timer setting) 2257D: B.I.B. Unit features a Dual Teach Timer (2 timer settings) 2257-00-003: B.I.B. Unit with a Load Cell Sensor (for detecting the oil level), features a Dual Teach Timer (2 timer settings) Items Included with Unit •... -
Page 6: Electrical Requirements
008_051514 This machine is intended to be used with a Gold Medal popcorn popper with a proper power cord to connect to the pump. A certified electrician must furnish sufficient power for proper machine operation (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage requirements). -
Page 7: Unit Installation
5. Insert oil dispense unit into the popper cabinet (position for use), then the unit is ready to have oil installed, and set the Oil Level Indicator (Model 2257-00-003 only; reference Oil Level Indicator section in the Instruction Manual for the popper). -
Page 8: Oil Installation - Attach Universal Bag Connector
This oil system is designed to be used with pre-melted oil. Gold Medal’s Backroom Warmer, Item No. 2262, may be purchased for pre-heating the oil. If using coconut oil, Gold Medal’s Heated Line Kit, Item No. 2457S (sold separately), is recommended to maintain the oil in the lines in a liquid form. -
Page 9: Controls And Their Functions
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 OPERATING INSTRUCTIONS Controls and Their Functions This unit is controlled using the Oil System Master Switch (powers the dispenser), and the Oil Dispense Switch (dispenses oil) located on the control panel of the popper. (Reference the Controls section in the Popper’s Manual.) -
Page 10: Operating The Oil Dispense Unit
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Operating the Oil Dispense Unit Follow the steps below to turn on the oil dispense unit: 1. Turn Oil System Master Switch ON (switch located on Control Panel of the Popper). This provides power to the oil dispense unit to activate the warmer/blower, and heated line kit (if equipped). -
Page 11: Program The E-Z Set Timer
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Program the E-Z Set Timer This section describes how to set the programmable timer; for B.I.B. Models manufactured prior to 2003, see Setting Popping Oil Amount for 2257H (HD) section. Follow the steps below to program the timer to dispense the oil amount needed to pop a batch of popcorn. -
Page 12: Setting Popping Oil Amount For 2257H (Hd)
Model No. 2257, 2257D, and 2257-00-003 Setting Popping Oil Amount for 2257H (HD) In March of 2003 we introduced the Bag-In-Box Oil System (Gold Medal Products Model No. 2257) with an E-Z Set Timer Control. (See E-Z Set Timer Operation section on previous page). -
Page 13: Exterior Surface Cleaning
Measure Cup (for priming unit) 1. Make sure BIB and popper kettle have cooled completely before attempting to clean. 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 14 Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Step 1: Step 2: Step 3: Plunger OUT in open position. Push Plunger IN to lock onto bracket. Plunger ENGAGED on pin. Cleaning Slide Connector Bracket onto Bracket 4. Place hose with cleaning bracket into the pail of sanitizing solution.
-
Page 15: Troubleshooting
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Troubleshooting General unit troubleshooting issues are listed below, also reference the Troubleshooting section in the popper manual. A. Oil System Master Switch A. Check to make sure the Oil System Master Issue... -
Page 16: Maintenance Instructions
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 17: Installation Instructions
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Optional Heated Line Kit Model 2457S Heated Line Kit (optional, sold separate from oil dispense unit) is used to keep the oil in the lines from the pump at the proper operating consistency. -
Page 18: Heated Line Kit Receptacle Replacement
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Heated Line Kit Receptacle Replacement Receptacle replacement must be performed by qualified service personnel. Turn OFF the Oil System Master Switch (located either on the popper or on the oil unit), unplug the oil unit from the popper (or its power source), and allow unit to cool before attempting to replace receptacle(s). -
Page 19: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 20: Cabinet Exterior / Load Sensor - Parts Breakdown
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Cabinet Exterior / Load Sensor – Parts Breakdown Overall view 2257-00-010 *White plastic inlet/outlet can be purchased separately from the pump (sold individually). 9, 10 6, 7 Control Box Top View 15, 16, 17... - Page 21 Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Cabinet Exterior / Load Sensor – Parts List Part Number Item Part Description CONTROL BOX 39148 39148 2257, 2257D 2257-00-003 ROCKER SWITCH HOLE PLUG 42743 42743 CONTROL BOX COVER 79377 79377 8-32 X 3/8 SLT. HWH M/S...
-
Page 22: Tubing And Connectors - Parts Breakdown
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Tubing and Connectors – Parts Breakdown Tubing and Connectors (included with unit) 2457S Complete Heated Line Kit option is (contains both lines shown available for purchase with Heated Rope Wire Assembly attached) (available for purchase Heated Rope Wire Assy. -
Page 23: Control Box Interior - Parts Breakdown
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Control Box Interior – Parts Breakdown Relay (on Dual Timer Models 2257D and 2257-00-003 only) Receptacle, .1 in center (on Dual Timer Models only; not shown) 9, 10, 11 19, 20 Single Timer Unit Shown General images shown for parts reference only. -
Page 24: Accessories
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Control Box Interior – Parts List Part Number Item Part Description 2257D, MOUNTING BRACKET 79428 2257 79428 2257-00-003 TEACH ME TIMER WIRE HARNESS 48732B 48732B TEACH ME TIMER (Programmable Timer) 48732 48732... -
Page 25: Wiring Diagram
Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Wiring Diagram Model No. 2257 gmpopcorn.com Page 25... - Page 26 Bag-In-Box Oil Model No. 2257, 2257D, and 2257-00-003 Model No. 2257D and 2257-00-003 gmpopcorn.com Page 26...
-
Page 27: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
