Power Bank 1000
1000W Inverter with 500W MPPT Charge Controller and 2kWh
Lithium Battery Bank
USER MANUAL
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street,
Kwun Tong, Kowloon, Hong Kong.
Tel: +852 2884 4318 Fax: +8522884 4816
www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com
Rev. 4.0 (01/19/2021)
Advertisement
Table of Contents
Related Manuals for SunSynk Power Bank 1000
Summary of Contents for SunSynk Power Bank 1000
- Page 1 1000W Inverter with 500W MPPT Charge Controller and 2kWh Lithium Battery Bank USER MANUAL Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com Rev. 4.0 (01/19/2021)
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION ............................3 2. PB 1000 COMPONENTS .......................... 4 3. APPLICATIONS ............................5 4. TECHNICAL SPECIFICATION ........................ 6 5. INSTALLATION ............................6 5.1. A ........................6 SSEMBLING THE OWER 5.2. M ..........................7 OUNTING THE YSTEM 6. WIRING ..............................8 6.1. -
Page 3: Introduction
1 x 24V DC Out; 1 x AC Out. Also visible on the bottom, there is an air-intake and an outlet fan-grill. For the power bank to function, it must have both solar panels plugged in. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 4: Pb 1000 Components

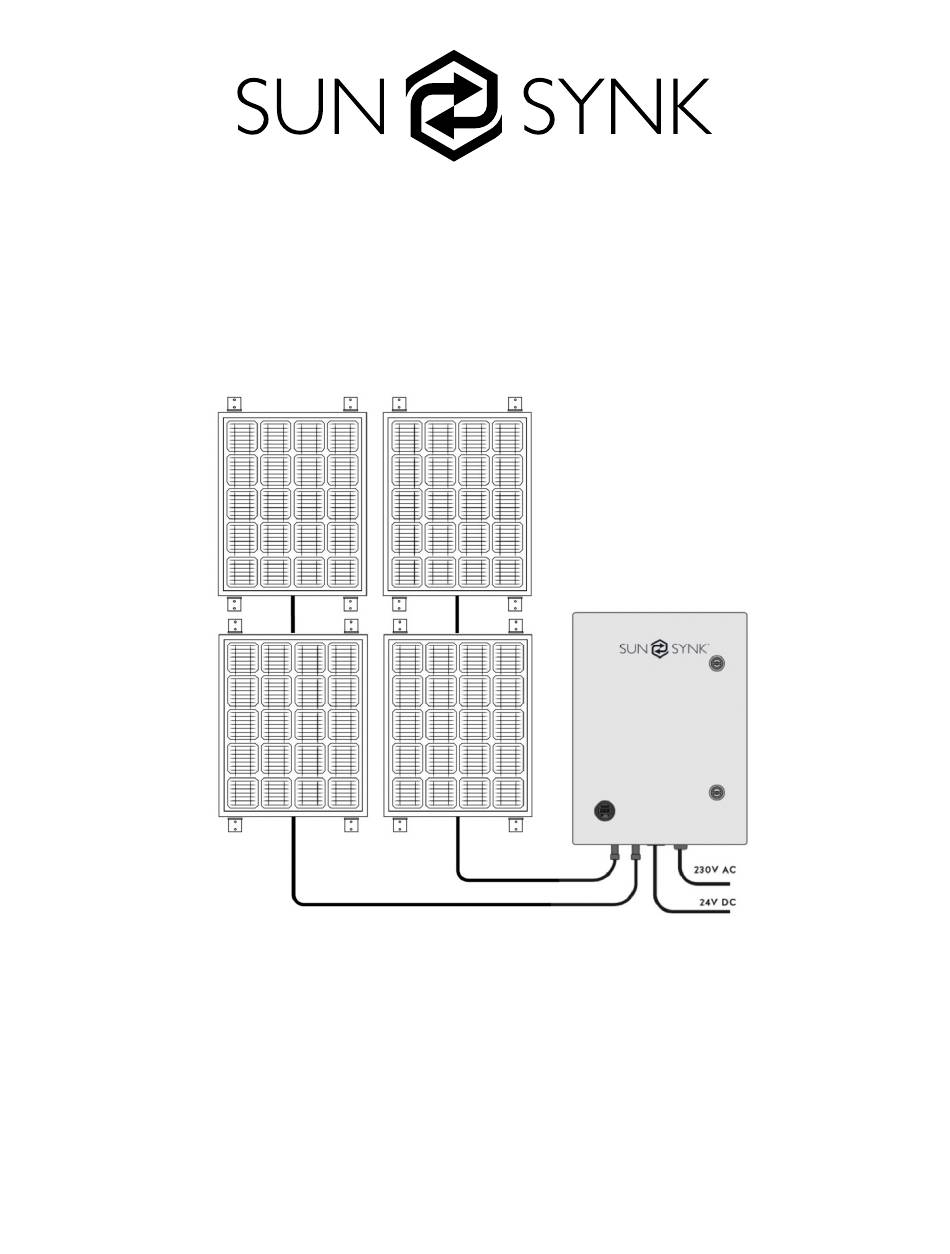

2. PB 1000 COMPONENTS Power Bank 1000 4 x 125W Solar Panels & Fixings 4 x Lithium Battery Packs Total (2kWh) Also includes: Cables and connectors; 500W inverter 230V output; Lithium battery digital charge controller; Digital voltage meter;... -
Page 5: Applications
1 x table fan (10W) 2 x LED lights (10W) 1 x water cooler (70W) 1 x smartphone charger Recharging the batteries is around 5/6 hours in countries with sun radiance of over fiver sun hours. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 6: Technical Specification
MPPT Total Harmonic Distortion Output Voltage 220VAC Output Power 1000W Output Frequency 50Hz Connection Type Sunsynk / MC4 Efficiency Peak Efficiency > 90% Product Size 46cm x 33cm x 13cm Net Weight 13.5 kg Operating Temperature -20 to +50 °C... -
Page 7: Mounting The System
Solar panels can be installed either on the roof or the ground. When selecting the location to install solar panels, several conditions must be taken into account. We will address some technical considerations and details that you should pay attention to before choosing where to install your solar panels. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 8: Wiring
DC MC4 connectors are used. The following is an assembly instruction for both AC/DC connectors. 6.1. The AC three-way connector: a) Yellow/green – Earth b) Blue – Neutral c) Brown – Phase The letters E, N, and L are engraved on the green connector. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 9: Operation
The user must turn on the PB 1000 and select Charging Power On Night only whether it should operate for 12 hours or 24 hours. Then, the box cover should be closed and secured. The device will not require any further adjustment. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 10: Safety Instructions
9. DO NOT immerse the PB 1000 in water; it is not waterproof. 9. TROUBLESHOOTING Once the Power Bank 1000 is set up, there is very little to do. However, if there is no power coming out of the PB 1000 (after 24hrs), please check the following. - Page 11 Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
