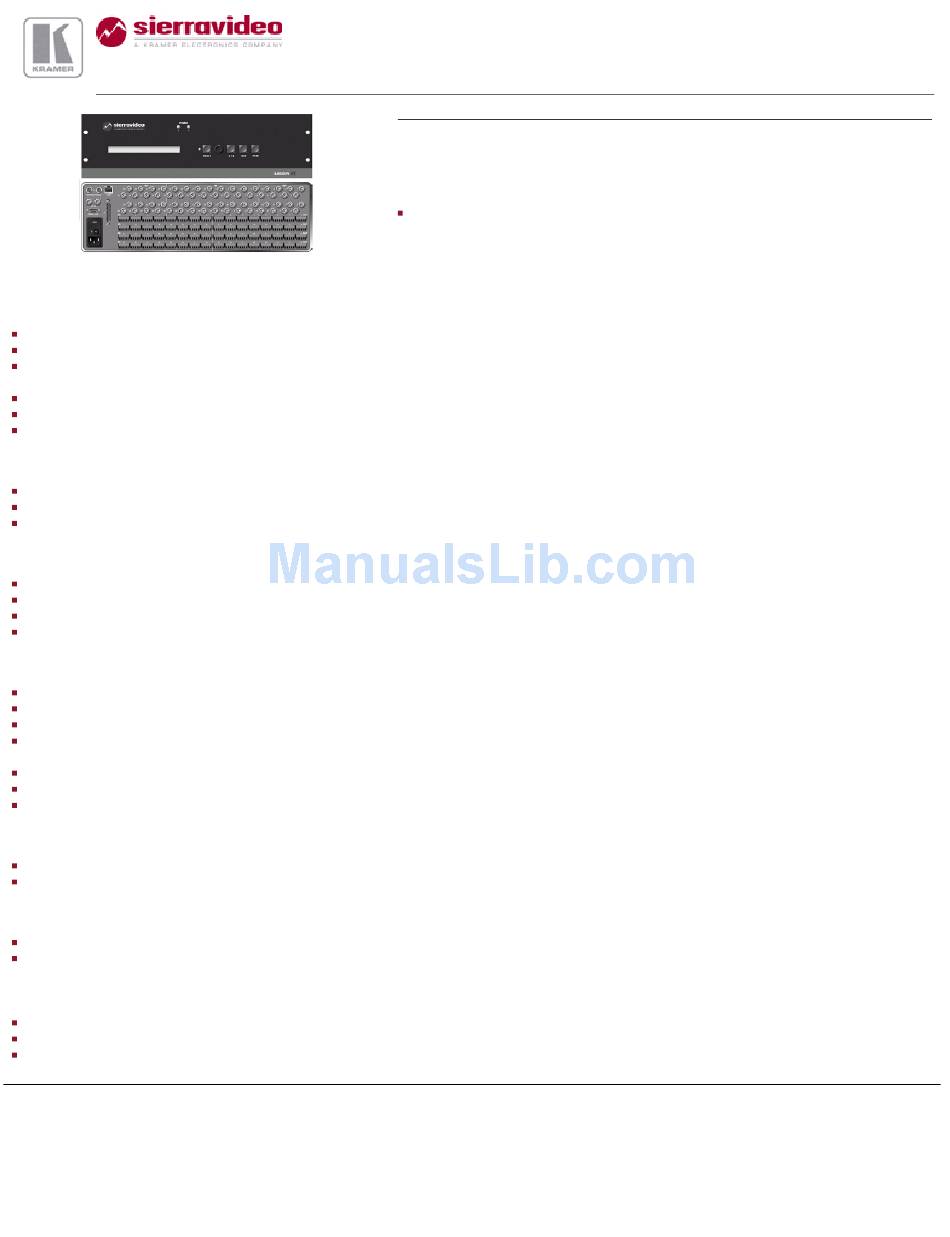

Kramer XL 3216V Specifications

L A S S E N X L 3 2 1 6 V 3 2 x 1 6
COMPOSITE VIDEO.
LASSEN XL ANALOG (COMPOSITE) VIDEO FEATURES -
High Bandwidth - 300MHz (- 3dB) fully loaded.
Very Low Crosstalk - 80dB @ 1MHz, - 47dB @100MHz.
Qwik Adjust Knob™ Rotary Control interface - This user intuitive knob along with the 80 character LCD display provides quick and convenient setup,
adjustment and signal switching.
Video Mute Capability -
Genlock Input - Looping internal sync input for vertical interval switching.
Output Disconnect Feature -
LASSEN SDI VIDEO FEATURES -
Maximum Data Rates - 360Mbits/sec.
Standards - SMPTE 310, SMPTE 259, DVB-ASI.
Jitter - < 0.2UI.
LASSEN HD VIDEO FEATURES -
Backwards compatible with SDI Signals -
Maximum Data Rates - 1.485Gbits/sec.
Standards - SMPTE 310, SMPTE 259, SMPTE 292, DVB-ASI.
Jitter - < 0.2UI.
ANALOG AUDIO FEATURES. -
Audio Type - Balanced or un-balanced on terminal blocks.
Input (Level) Adjustment Capability (-10dB to +15dB) - Each input via RS-232, front panel, and G.R.I.P software.
Output (Volume) Adjustment Capability (Mute, -59.5dB to +15dB) - Each input via RS-232, front panel, and G.R.I.P software.
No Zipper Effect - Lassen routing switchers employ zero crossover chip technology which eliminates the annoying "zipper sound effect" associated with
digital volume controls.
Audio Mute Capability. -
Crosstalk - 80dB @ 1kHz & 70dB @ 20kHz.
S/N (20 - 20kHz) - 90dB.
DIGITAL AUDIO FEATURES -
Standards - Balanced AES/EBU.
Jitter - +/- 20ns.
OTHER FEATURES -
Firmware Updates - Downloadable.
Control - Local front panel control with 80 character LCD readout.
RS-232/422 plus RS-485 for optional control panels.
IP (Ethernet) control.
G.R.I.P: Windows® - based routing switcher setup/diagnostic software.
Redundant Power Supplies - Optional on 32x16 & 32x32 models.
Approvals - UL & CE.
Control Panels (Optional) - Programmable, Single Bus and XY.
LASSEN XL™ 32 SERIES ROUTING SWITCHERS
DESCRIPTION
The Lassen XL 32 series are high performance routing switchers for composite video
signals. These units come in a compact 3U (5.25") frame and can be ordered with or
without balanced stereo audio. They can route any or all inputs to any or all outputs.
Redundant Power Supply optional on all 3232 & 3216 series. Add "R" to the model
number. Frame size = 4U (7").
© www.kramerelectronics.com 2008
LASSEN XL 3216 SERIES SERIES
