VERSION # 20-06- 12
1 / 9
MODEL #
CM7127Q-VN
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Neomi CM7127Q-VN
Summary of Contents for Furniture of America Neomi CM7127Q-VN

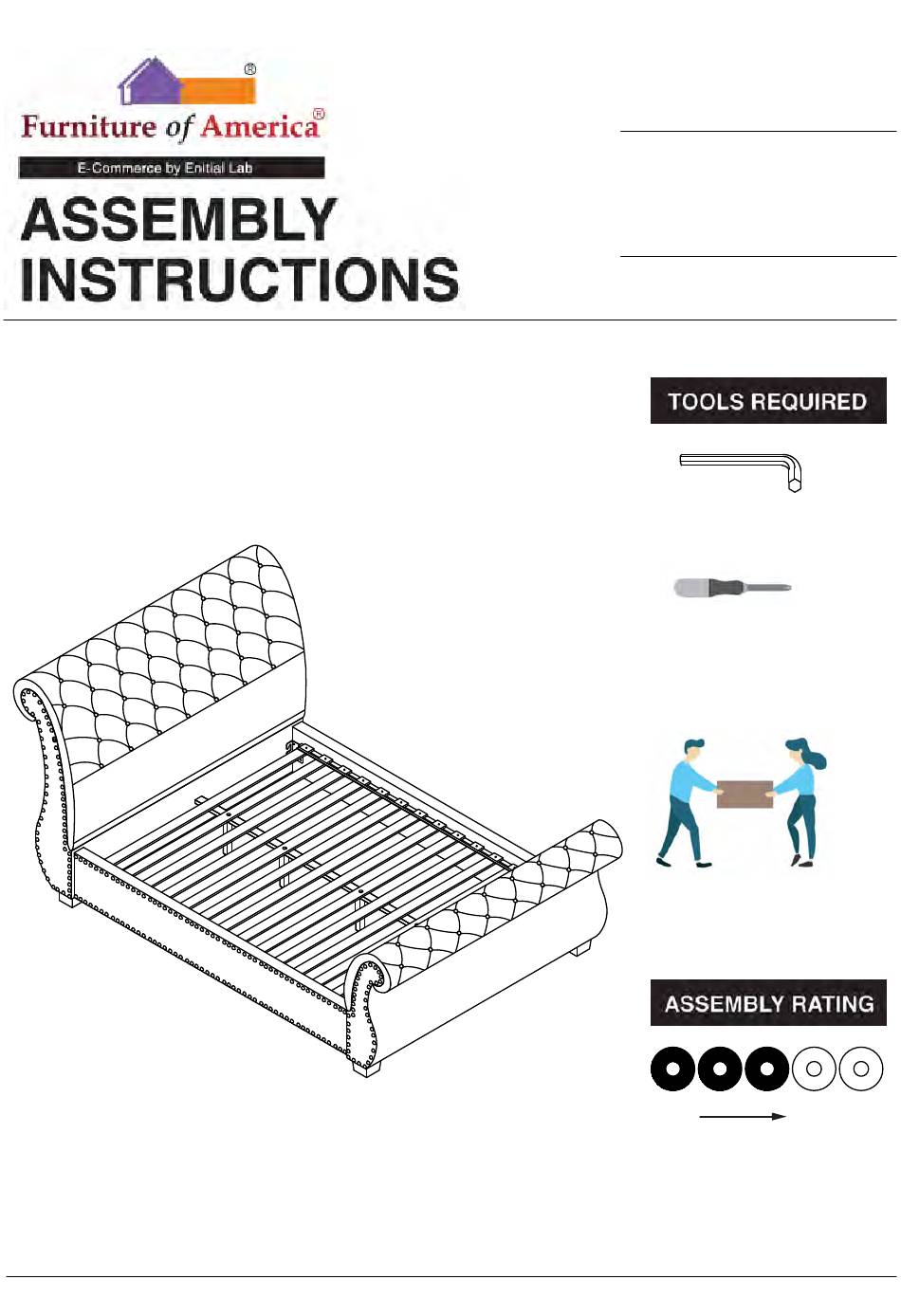

- Page 1 MODEL # CM7127Q-VN Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 CM7127Q-VN #1 1pc #2 1pc #3 2pcs #4 4pcs Ø5/16" Support Leg Headboard Side Rail Footboard 30x30x270mm #5 1Set #6 4pcs #7 1pc Slat (13pcs) HB/FB Foot Support Rail #A 8pcs #B 4pcs #C 12pcs #D 12pcs Bolt Ø5/16"x2-1/2" Flat Washer Bolt Ø5/16"x1-1/2"...
- Page 6 CM7127Q-VN is packed in 3 cases Disignation Part Hardware Carton #A x 8pcs Headboard #B x 4pcs CM7127Q-VN #C x 12pcs Support Leg #D x 12pcs #E x 1pcs Slat (13pcs) #F x 26pc HB/FB Foot CM7127Q-VN Footboard Side Rail CM7127Q-VN Support Rail 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS Align feet (#6) onto the headboard (#1), then Part #1 x1pc secure by using bolts (#B) with washers (#C,D). Part #6 x2pcs Hardware #B x2pcs Hardware #C x2pcs Hardware #D x2pcs 7 / 9...
- Page 8 ASSEMBLY INSTRUCTIONS Align feet (#6) onto the footboard (#2), then secure by using bolts (#B) with washers (#C,D). Part #2 x1pc Part #6 x2pcs Hardware #B x2pcs Hardware #C x2pcs Hardware #D x2pcs Align side rails (#3) to the headboard (#1) and footboard (#2), then secure by using bolts (#A) Part #3 x2pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Align center slat (#7) to slats (#5), then secure by using support legs (#4). Adjust the levelers on the support legs (#4) according to Part #4 x4pcs ground level. Part #5 x1Set Part #7 x1pc Align slats (#5) to the side rails (#3), then secure by using screws (#F).
