MODEL #
CM7124-C
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM7124-C
Summary of Contents for Furniture of America CM7124-C

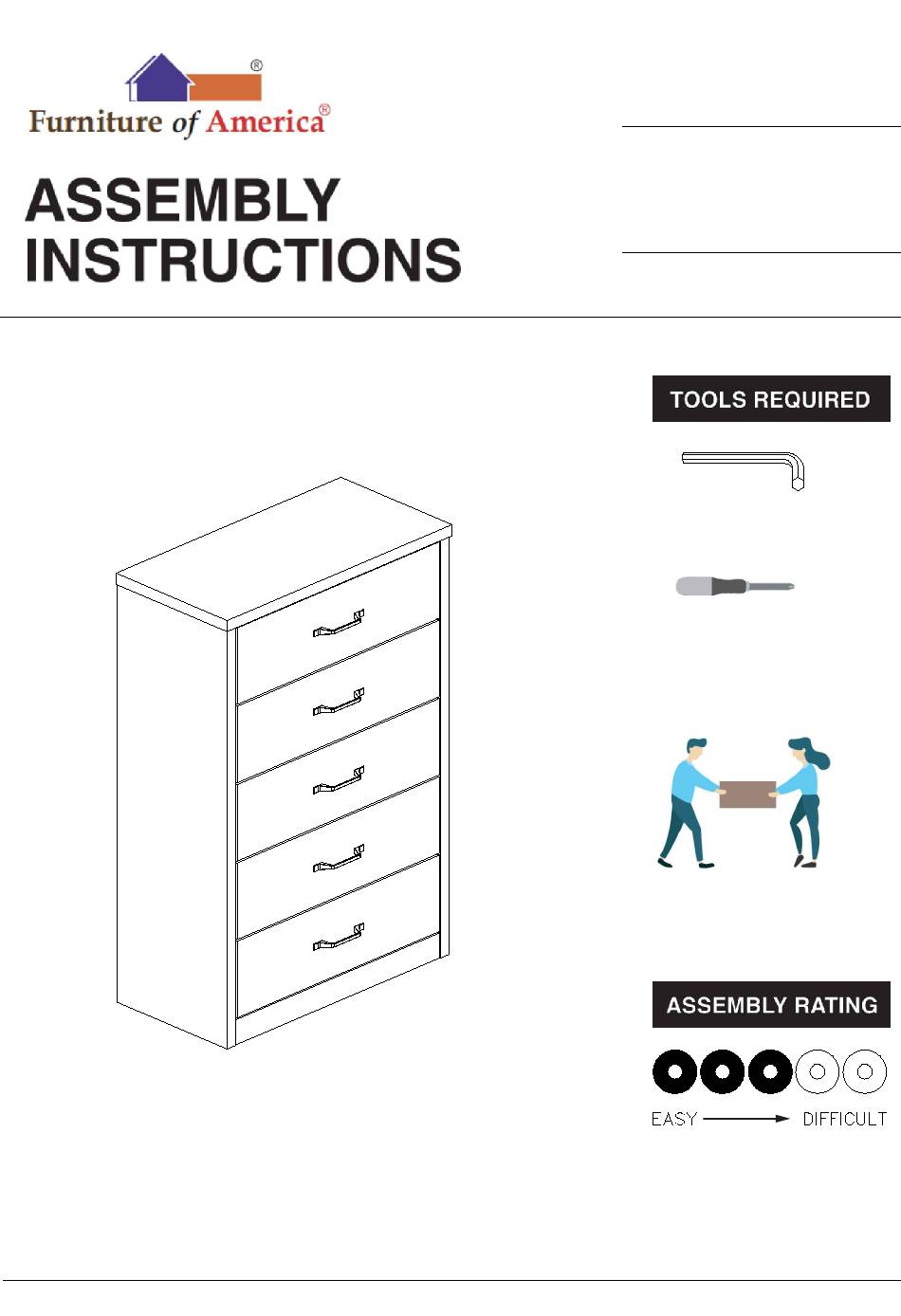

- Page 1 MODEL # CM7124-C Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 3...
- Page 5 CHEST CM7124-C #2 5pcs #1 5pcs 5pcs #4 5pcs Drawer Back Drawer Side (L) Drawer Side (R) Drawer Bottom Support #7 1pc #6 5pcs #5 5pcs Drawer Head Drawer Side Panel (L) Side Panel (R) Bottom Panel #12 2pcs #9 5pcs...
- Page 6 HARDWARE #A 5pcs #B 10pcs #C 70pcs #D 16pcs Drawer Handle Trust Head Screw CSK Screw Panhead Screw M4x20 mm M3.5x16 mm M4x16 mm #E 40pcs #F 45pcs #G 45pcs #H 25pcs Plastic Dowel Minifix Cam Lock Minifix Cam Bolt Panhead Screw M8x25 mm M4x24 mm...
- Page 7 ASSEMBLY INSTRUCTIONS - DRAWER BOX Part #1 x5pcs Hardware #E x10pcs Part #2 x5pcs Part #3 x5pcs Hardware #E x10pcs Hardware #H x20pcs Part #5 x5pcs 7 / 13...
- Page 8 ASSEMBLY INSTRUCTIONS - DRAWER BOX Part #6 x5pcs Hardware #G x25pcs Please reference on the bottom of page 9 on how to Part #4 x5pcs connect cam bolts (#G) onto cam locks (#F). Hardware #F x5pcs Hardware #F x20pcs Hardware #H x5pcs 8 / 13...
- Page 9 ASSEMBLY INSTRUCTIONS - DRAWER BOX Ensure that the wheel side of the rails (#IR/IL) are towards to back area Hardware #C x30pcs of the drawers. Hardware #I x10pcs Hardware #A x5pcs Hardware #B x10pcs REMINDER ! 1. Fix the Cam Bolt (G) first before inserting 2.
- Page 10 ASSEMBLY INSTRUCTIONS - BODY Part #7 #8 x1pc Hardware #G x16pcs Hardware #C x40pcs Ensure wheel side of the rails Hardware #J x10pcs (#JL/JR) are facing towards the front of the side panels (#7,8). Holes for screw are already provided. Be sure to align each holes correctly.
- Page 11 ASSEMBLY INSTRUCTIONS - BODY Hardware #F x5pcs FRONT Hardware #F x3pcs BACK Part #11 x1pc Hardware #E x4pcs Hardware #G x4pcs Hardware #F x4pcs 11 / 13...
- Page 12 ASSEMBLY INSTRUCTIONS - BODY Cellophane Tape Part #12 x2pcs Plain Side Hardware #D x16pcs Body Assembly Drawer COMPLETE Assembly ASSEMBLY Hardware #K x1set 12 / 13...
- Page 13 13 / 13...
