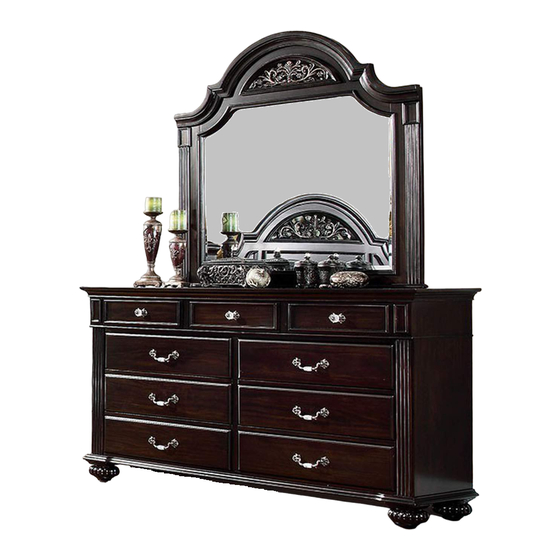

Furniture of America Syracuse CM7129D Assembly Instructions

Dresser

CM7129M

CM7129D

DRESSER AND MIRROR ARE SOLD AND PACKED SEPARATELY

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

Allen Wrench

(Included)

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

DIFFICULT

EASY

2 PERSONS RECOMMENDED

Page 1 of 5

Rev.14-11-28

Table of Contents

Do you have a question about the Syracuse CM7129D and is the answer not in the manual?

Page 1 Assembly Instructions CM7129M CM7129D DRESSER AND MIRROR ARE SOLD AND PACKED SEPARATELY ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Hardware List Parts List #A x 8 pcs #1 x 1 pc Bolt 1/4”x1-3/8” Dresser #B x 8 pcs #2 x 4 pcs Lock Washer Foot...
Page 4 With the help of another person, carefully place the dresser (#1) on its back over a protected surface. Align the threaded end of the 4 feet (#2) with the pre-drilled holes on the bottom of the dresser (#1) and tighten by hand until secured. Turn right (clockwise) to tighten Align the threaded end of the support leg (#3) with the pre-drilled hole on the bottom of the dresser (#1) and tighten by hand until secured.
Page 5 The 2 support rails (#5) are already attached behind the dresser (#1). Position the support rails (#5) vertically to align with the pre- drilled holes of the dresser (#1) and the mirror (#4). II. Prepare 6 bolt assemblies by inserting FIRST the lock washer (#B) onto the bolt (#A) and then the flat washer (#C) onto the SAME bolt (#A), in that order.
