Summary of Contents for Maxon EPOS 50/5

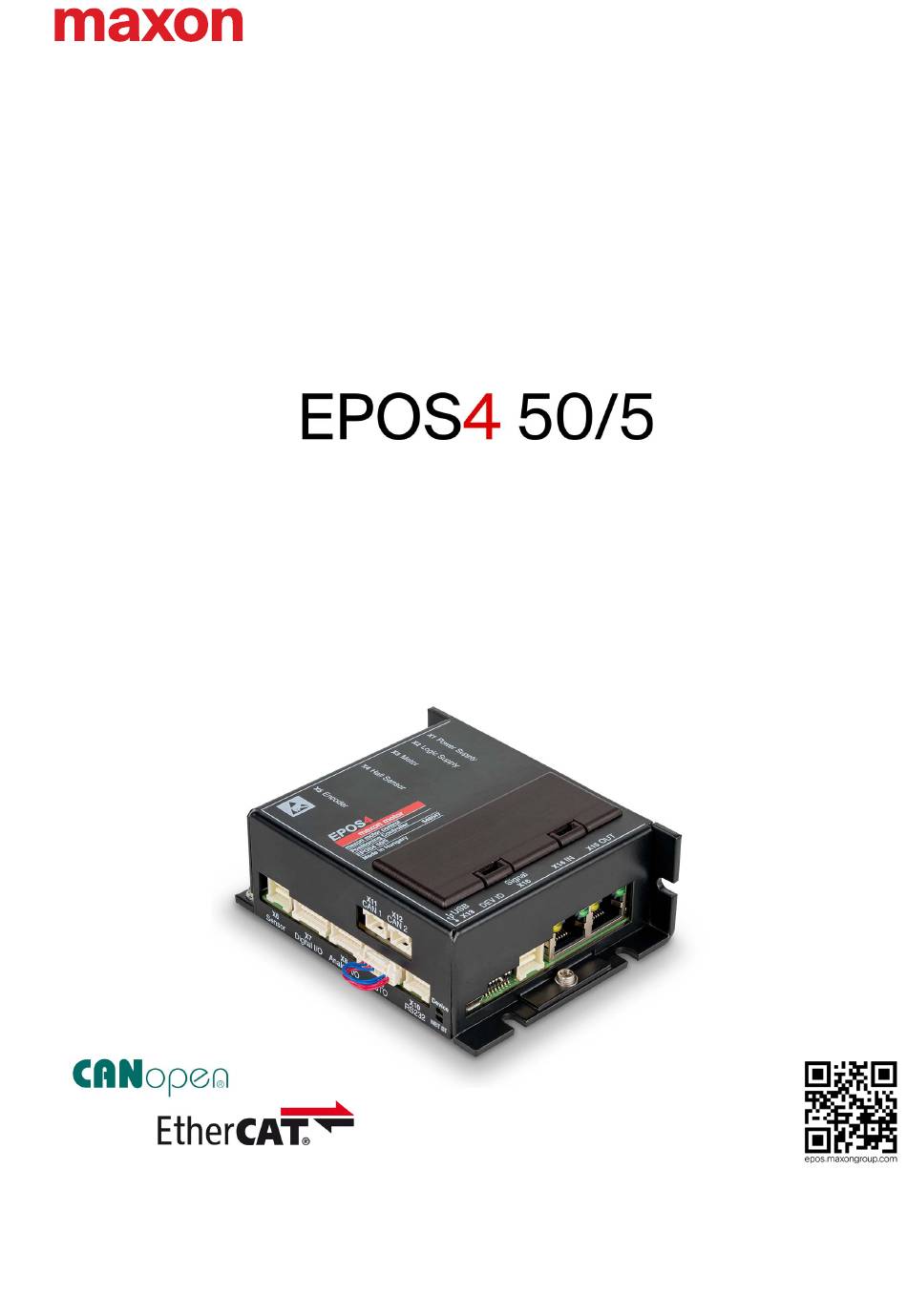

- Page 1 Hardware Reference EPOS4 50/5 Positioning Controller | P/N 546047 Hardware Reference CCMC | Edition 2022-04 | DocID rel10445...
-
Page 2: Table Of Contents
Table of Contents TABLE OF CONTENTS ABOUT About this Document..........5 About the Device. - Page 3 Table of Contents 3.3.7 Digital I/O (X7) ............39 3.3.8 Analog I/O (X8) .
- Page 4 Table of Contents • • p a g e i n t e n t i o n a l l y l e f t b l a n k • • EPOS4 50/5 Hardware Reference CCMC | 2022-04 | rel10445...
-
Page 5: About
About About this Document ABOUT About this Document 1.1.1 Intended Purpose The purpose of the present document is to familiarize you with the EPOS4 50/5 positioning controller. It will docu- highlight the tasks for safe and adequate installation and/or commissioning. Follow the described instruc- ment to…... -
Page 6: Table 1-1 Notation Used
About About this Document 1.1.3 How to use Throughout the document, the following notations and codes will be used. Notation Meaning refers to an item (such as part numbers, list items, etc.) denotes “see”, “see also”, “take note of” or “go to” Table 1-1 Notation used 1.1.4... -
Page 7: Table 1-3 Brand Names And Trademark Owners
The men- tioned trademarks belong to their respective owners and are protected under intellectual property rights. © 2022 maxon. All rights reserved. Subject to change without prior notice. CCMC | EPOS4 50/5 Hardware Reference | Edition 2022-04 | DocID rel10445 maxon motor ag Brünigstrasse 220... -
Page 8: About The Device
– and be kept – in a safe operating mode. • Be aware that you are not entitled to perform any repair on components supplied by maxon. Electrostatic sensitive device (ESD) •... -
Page 9: Specifications
Specifications Technical Data SPECIFICATIONS Technical Data EPOS4 50/5 (546047) Nominal power supply voltage +V 10…50 VDC Nominal logic supply voltage +V 10…50 VDC Absolute supply voltage +V / +V 8 VDC / 56 VDC Output voltage (max.) 0.9 x +V Output current I (<15 s) 5 A / 15 A... -
Page 10: Table 2-4 Technical Data
Specifications Technical Data EPOS4 50/5 (546047) Sensor signals (choice between multiple functions) Inputs • Digital incremental encoder 3-channel, EIA RS422, max. 6.25 MHz & • Analog incremental encoder SinCos 3-channel, resolution 12-bit, ±1.8 V, differential Outputs • SSI absolute encoder configurable, EIA RS422, 0.4…2 MHz (continued) •... -
Page 11: Thermal Data
Specifications Thermal Data Thermal Data 2.2.1 Derating of Output Current Figure 2-2 Derating of output current EPOS4 50/5 Hardware Reference 2-11 CCMC | 2022-04 | rel10445... -
Page 12: Limitations
Specifications Limitations 2.2.2 Power Dissipation and Efficiency Figure 2-3 Power dissipation and efficiency Limitations Protection functionality Switch-off threshold Recovery threshold Undervoltage 8.0 V 8.5 V Overvoltage 58 V 56 V Overcurrent 20 A — Thermal overload 100 °C 90 °C Table 2-5 Limitations EPOS4 50/5 Hardware Reference... -
Page 13: Dimensional Drawing
Specifications Dimensional Drawing Dimensional Drawing Figure 2-4 Dimensional drawing [mm] EPOS4 50/5 Hardware Reference 2-13 CCMC | 2022-04 | rel10445... -
Page 14: Standards
Specifications Standards Standards The described device has been successfully tested for compliance with the below listed standards. In prac- tical terms, only the complete system (the fully operational equipment comprising all individual components, such as motor, servo controller, power supply unit, EMC filter, cabling etc.) can undergo an EMC test to ensure interference-free operation. -
Page 15: Setup
Setup Generally applicable Rules SETUP IMPORTANT NOTICE: PREREQUISITES FOR PERMISSION TO COMMENCE INSTALLATION The EPOS4 50/5 positioning controller is considered as partly completed machinery according to EU Direc- tive 2006/42/EC, Article 2, Clause (g) and is intended to be incorporated into or assembled with other machinery or other partly completed machinery or equipment. -
Page 16: Cabling
Cabling PLUG&PLAY Take advantage of maxon’s prefab cable assemblies. They come as ready-to-use parts and will help to reduce commissioning time to a minimum. a) Check the following table and find the part number of the cable assembly that matches the setup you will be using. -
Page 17: Table 3-8 Epos4 Connector Set - Content
Setup Cabling MAKE&BAKE YOUR OWN If you decide not to employ maxon’s prefab cable assemblies, you might wish to use the prepackaged kit that contains all connectors required to make up your own cabling. EPOS4 Connector Set (520859) Connector Specification... -
Page 18: Connections
In the later course of the document you will find tables containing information on the EPOS4’s hardware connectors, their wired signals and assigned pins as well as details on the available prefab cables. • The first column describes both the pin number of the connector and of the matching prefab maxon cable’s Head A. -
Page 19: Power Supply (X1)
Setup Connections 3.3.1 Power Supply (X1) Basically, any power supply may be used provided that it meets the stated minimum requirements. Use of X1 is mandatory You must employ X1 to connect the controller to the electrical supply. Use X2 only if you wish to connect an optional, separately wired logic supply. -
Page 20: Table 3-12 Power Supply Requirements
Setup Connections Power supply requirements 10…50 VDC Output voltage Absolute output voltage min. 8 VDC; max. 56 VDC Depending on load Output current • continuous max. 5 A • short-time (acceleration, <15 s) max. 15 A Table 3-12 Power supply requirements Use the formula below to calculate the required voltage under load. -
Page 21: Logic Supply (X2)
Setup Connections 3.3.2 Logic Supply (X2) Separate power supply The logic part of the controller may be supplied by a separate supply voltage provided that it meets the below stated minimum requirement: If not supplied separately, the logic supply is internally connected to the power supply. Figure 3-7 Logic supply connector X2 Prefab... -
Page 22: Motor (X3)
Setup Connections 3.3.3 Motor (X3) The controller is set to drive either maxon DC motors (brushed DC motor) or maxon EC motors (BLDC, brushless DC motor). Figure 3-8 Motor connectors X3 Prefab Head B Head A Cable Signal Description Color... -
Page 23: Hall Sensor (X4)
Setup Connections 3.3.4 Hall Sensor (X4) Suitable Hall effect sensors IC use «Schmitt trigger» with open collector output. Figure 3-9 Hall sensor connector X4 Prefab Head B Head A Cable Signal Description Color green Hall sensor 1 Hall sensor 1 input brown Hall sensor 2 Hall sensor 2 input... -
Page 24: Figure 3-10 Hall Sensor 1 Input Circuit (Analogously Valid For Hall Sensors 2 & 3)
Setup Connections Hall sensor Sensor supply voltage (V +5 VDC Sensor Max. Hall sensor supply current 30 mA Input voltage 0…24 VDC Max. input voltage +24 VDC Logic 0 typically <0.8 V Logic 1 typically >2.0 V Internal pull-up resistor 2.7 kΩ... -
Page 25: Encoder (X5)
Setup Connections 3.3.5 Encoder (X5) Best practice • Differential signals offer good resistance against electrical interference. Therefore, we recommend using a differential scheme. Nevertheless, the controller supports both schemes – differential and sin- gle-ended (unsymmetrical). • For best performance, we strongly recommend using encoders with a line driver. Otherwise, limita- tions may apply due to slow switching edges. -
Page 26: Figure 3-12 Encoder Input Circuit Ch A "Differential" (Analogously Valid For Ch B & Ch I)
Setup Connections Encoder Cable (275934) Cross-section 10 x AWG28, round-jacket, flat cable, pitch 1.27 mm Length Head A DIN 41651 female, pitch 2.54 mm, 10 poles, with strain relief Head B DIN 41651 plug, pitch 2.54 mm, 10 poles, with strain relief Table 3-23 Encoder Cable Encoder (differential) -
Page 27: Figure 3-13 Encoder Input Circuit Ch A "Single-Ended" (Analogously Valid For Ch B & Ch I)
Setup Connections Encoder (single-ended) Sensor supply voltage (V +5 VDC Sensor Max. encoder supply current 70 mA Input voltage 0…5 VDC Max. input voltage ±12 VDC Logic 0 <1.0 V Logic 1 >2.4 V = typically +250 μA @ 5 V Input high current = typically −330 μA @ 0 V Input low current... -
Page 28: Sensor (X6)
Setup Connections 3.3.6 Sensor (X6) Additional sensors, both incremental and serial encoders, can be connected. Check on the applied sensor’s data sheet If the specified inrush current or the maximum continuous current of the sensor should exceed 150 mA, you can connect the sensor supply voltage (V ) in parallel to the auxiliary output voltage (V Sensor... -
Page 29: Incremental Encoder
Setup Connections Sensor Cable 5x2core (520852) Cross-section 5 x 2 x 0.14 mm , twisted pair, grey Length Plug Molex CLIK-Mate, dual row, 10 poles (503149-1000) Head A Contacts Molex CLIK-Mate crimp terminals (502579) Head B Wire end sleeves 0.14 mm Table 3-27 Sensor Cable 5x2core 3.3.6.1... -
Page 30: Figure 3-16 Digital Incremental Encoder Input Circuit Ch I
Setup Connections Figure 3-16 Digital incremental encoder input circuit Ch I Continued on next page. EPOS4 50/5 Hardware Reference 3-30 CCMC | 2022-04 | rel10445... -
Page 31: Figure 3-17 Digital Incremental Encoder Input Circuit Ch A "Single-Ended" (Analogously Valid For Ch B)
Setup Connections Digital incremental encoder (single-ended) Auxiliary output voltage (V +5 VDC Max. auxiliary supply current 150 mA Input voltage 0…5 VDC Max. input voltage ±12 VDC Logic 0 <1.0 V Logic 1 >2.4 V typically 210 μA @ +5 VDC (channel A, B) Input high current typically 60 μA @ +5 VDC (channel I) typically −80 μA @ 0 VDC (channel A, B) -
Page 32: Figure 3-18 Digital Incremental Encoder Input Circuit Ch I
Setup Connections Figure 3-18 Digital incremental encoder input circuit Ch I Continued on next page. EPOS4 50/5 Hardware Reference 3-32 CCMC | 2022-04 | rel10445... -
Page 33: Figure 3-19 Analog Incremental Encoder Input Circuit Ch A "Differential" (Analogously Valid For Ch B)
Setup Connections Analog incremental encoder SinCos (differential) Auxiliary output voltage (V +5 VDC Max. auxiliary supply current 150 mA Input voltage ±1.8 V (differential) Max. input voltage ±12 VDC Common mode voltage −9…+4 VDC (referenced to GND) Input resistance typically 10 kΩ A/D converter 12-bit Resolution... -
Page 34: Figure 3-20 Analog Incremental Encoder Input Circuit Ch I (Digital Evaluation)
Setup Connections Figure 3-20 Analog incremental encoder input circuit Ch I (digital evaluation) Continued on next page. EPOS4 50/5 Hardware Reference 3-34 CCMC | 2022-04 | rel10445... -
Page 35: Ssi Absolute Encoder
Setup Connections 3.3.6.2 SSI Absolute Encoder SSI absolute encoder Auxiliary output voltage (V +5 VDC Max. auxiliary supply current 150 mA Min. differential input voltage ±200 mV Min. differential output voltage ±1.8 V @ external load R=54 Ω Max. output current 40 mA Line receiver (internal) EIA RS422 standard... -
Page 36: High-Speed Digital I/Os
Setup Connections 3.3.6.3 High-speed Digital I/Os Alternatively, the sensor interface can be used for high-speed digital I/O operation. High-speed digital input 1…4 (differential) Max. input voltage ±12 VDC Min. differential input voltage ±200 mV Line receiver (internal) EIA RS422 standard Max. -
Page 37: Figure 3-24 Hsdigin1 Circuit "Single-Ended" (Analogously Valid For Hsdigin2
Setup Connections High-speed digital input 1…4 (single-ended) Input voltage 0…5 VDC Max. input voltage ±12 VDC Logic 0 <1.0 V Logic 1 >2.4 V typically 210 μA @ +5 VDC (HsDigIN1, 2) Input high current typically 60 μA @ +5 VDC (HsDigIN3, 4) typically −80 μA @ 0 VDC (HsDigIN1, 2) Input low current typically −7 μA @ 0 VDC (HsDigIN3, 4) -
Page 38: Figure 3-25 Hsdigout1 Output Circuit
Setup Connections High-speed digital output 1 Min. differential output voltage ±1.8 V @ external load R=54 Ω Max. output current 40 mA Line transceiver (internal) EIA RS422 standard Max. output frequency 6.25 MHz Table 3-34 High-speed digital output specification Figure 3-25 HsDigOUT1 output circuit EPOS4 50/5 Hardware Reference 3-38... -
Page 39: Digital I/O (X7)
Setup Connections 3.3.7 Digital I/O (X7) Figure 3-26 Digital I/O connector X7 Prefab Head B Head A Cable Signal Description Color white DigIN1 Digital input 1 brown DigIN2 Digital input 2 green DigIN3 Digital input 3 yellow DigIN4 Digital input 4 grey DigOUT1 Digital output 1... -
Page 40: Figure 3-27 Digin1 Circuit (Analogously Valid For Digin2
Setup Connections Digital inputs 1…4 (Logic level setting) Input voltage 0…30 VDC Max. input voltage ±30 VDC Logic 0 <0.8 V Logic 1 >2.0 V Input current at logic 1 250 µA @ 5 VDC <300 μs @ 5 VDC Switching delay Table 3-37 Digital input specification –... -
Page 41: Figure 3-29 Digout1 Circuit (Analogously Valid For Digout2)
Setup Connections Digital outputs 1…2 Open drain (internal pull-up resistor 2k2 and diode Circuit to +5.45 VDC Table 3-39 Digital output specification Figure 3-29 DigOUT1 circuit (analogously valid for DigOUT2) Continued on next page. EPOS4 50/5 Hardware Reference 3-41 CCMC | 2022-04 | rel10445... -
Page 42: Figure 3-30 Digout1 "Sinks" (Analogously Valid For Digout2)
Setup Connections WIRING EXAMPLES DigOUT “sinks” Max. input voltage +36 VDC Max. load current 500 mA Max. voltage drop 0.5 V @ 500 mA Max. load inductance 100 mH @ 24 VDC; 500 mA Table 3-40 Digital output – Sinks Figure 3-30 DigOUT1 “sinks”... -
Page 43: Analog I/O (X8)
Setup Connections 3.3.8 Analog I/O (X8) Figure 3-32 Analog I/O connector X8 Prefab Head B Head A Cable Signal Description Color white AnIN1+ Analog input 1, positive signal brown AnIN1− Analog input 1, negative signal green AnIN2+ Analog input 2, positive signal yellow AnIN2−... -
Page 44: Figure 3-33 Anin1 Circuit (Analogously Valid For Anin2)
Setup Connections Analog inputs 1…2 Input voltage ±10 VDC (differential) Max. input voltage ±24 VDC Common mode voltage −5…+10 VDC (referenced to GND) 80 kΩ (differential) Input resistance 65 kΩ (referenced to GND) A/D converter 12-bit Resolution 5.64 mV Bandwidth 10 kHz Table 3-44 Analog input specification... -
Page 45: Sto (X9)
Setup Connections 3.3.9 STO (X9) The STO (Safe Torque Off) function can be utilized to bring the drive to a torque-free, safe condition via two independent inputs. The drive output power stage is switched off if either one of the inputs is not powered. For in-depth details on the STO functionality see separate document «EPOS4 Application Notes». -
Page 46: Figure 3-36 Sto-In1 Circuit (Analogously Valid For Sto-In2)
Setup Connections Safe Torque Off inputs 1…2 Circuit type Optically isolated input Input voltage 0…+30 VDC Max. input voltage ±30 VDC Logic 0 <1.0 VDC Logic 1 >4.5 VDC >2 mA @ 5 VDC Input current at logic 1 typically 3.2 mA @ 24 VDC Reaction time <25 ms Table 3-48... -
Page 47: Table 3-50 Sto Logic State
Setup Connections STO Logic State STO-IN1 STO-IN2 STO-OUT Power Stage open inactive closed inactive closed inactive closed active Table 3-50 STO logic state EPOS4 50/5 Hardware Reference 3-47 CCMC | 2022-04 | rel10445... -
Page 48: Rs232 (X10)
Setup Connections 3.3.10 RS232 (X10) Figure 3-38 RS232 connector X10 Prefab Head B Head A Cable Signal Description Color white EPOS_RxD EPOS RS232 receive brown Ground green EPOS_TxD EPOS RS232 transmit yellow Ground Shield Housing Shield Cable shield Table 3-51 RS232 connector X10 –... -
Page 49: Can 1 (X11) & Can 2 (X12)
Setup Connections 3.3.11 CAN 1 (X11) & CAN 2 (X12) The EPOS4 is specially designed being commanded and controlled via a Controller Area Network (CAN), a highly efficient data bus very common in all fields of automation and motion control. It is preferably used as a slave node in the CANopen network. -
Page 50: Table 3-56 Can-Can Cable
Setup Connections CAN-CAN Cable (520858) Cross-section 2 x 2 x 0.14 mm , twisted pair, shielded Length Plug Molex CLIK-Mate, single row, 4 poles (502578-0400) Head A Contacts Molex CLIK-Mate crimp terminals (502579) Plug Molex CLIK-Mate, single row, 4 poles (502578-0400) Head B Contacts Molex CLIK-Mate crimp terminals (502579) -
Page 51: Usb (X13)
Setup Connections 3.3.12 USB (X13) Hot plugging the USB interface may cause hardware damage If the USB interface is being hot-plugged (connecting while the power supply is on), the possibly high poten- tial differences of the two power supplies of controller and PC/Notebook can lead to damaged hardware. •... -
Page 52: Extension In (X14) & Extension Out (X15)
Even though both NET sockets are prepared for identical external wiring, make sure to always connect them as follows. • Use only standard Cat5 cables with RJ45 plug, such as maxon’s «Ethernet Cable» (422827). • Use IN (X14) as «Input». -
Page 53: Extension Signal (X16)
Setup Connections Ethernet Cable (422827) Cross-section Cat. 5e SF/UTP (ISO/IEC 11801), 1:1 patch cable, green Length Head A RJ45 (8P8CS) EIA/TIA-568B Head B RJ45 (8P8CS) EIA/TIA-568B Table 3-62 Ethernet Cable 3.3.14 Extension Signal (X16) The connector provides direct access to the signal extension slot EXT2 (chapter “3.3.15 Extension Slots (EXT1 &... -
Page 54: Extension Slots (Ext1 & Ext2)
Setup Connections 3.3.15 Extension Slots (EXT1 & EXT2) The controller provides two extension slots (Figure 3-43) located underneath the plastic lid at the control- ler housing’s top face. They host optionally available extension cards (Table 3-64) and thereby expand the controller’s comprehensive motion control functionality even further. •... -
Page 55: Figure 3-44 Installation & Removal Of An Extension Card
Setup Connections Switch off the controller’s power supply. Comply with ESD protective measures. Open plastic lid Unlock the two latches (A) on the plastic lid. Lift the plastic lid upward (B) and remove. Remove extension card, if necessary Turn the plastic lid over and look for the molded catch in one of its corners. -
Page 56: Dip Switch Configuration (Sw1)
Setup Connections Extension Cards Slot Description Part number EXT1 EPOS4 EtherCAT Card 581245 EXT2 — — Table 3-64 Extension cards (optional) 3.3.16 DIP Switch Configuration (SW1) Figure 3-45 DIP switch SW1 3.3.16.1 CAN ID (Node-ID) / DEV ID NOTE: Setting the ID by means of DIP switches is currently available for CAN only! The device’s identification (subsequently called “ID”) is set by means of DIP switches 1…5. -
Page 57: Can Automatic Bit Rate Detection
Setup Connections The set ID can be observed by adding the valence of all activated switches. Use the following table as a (non-concluding) guide: Switch Setting – 0 = Switch “OFF” 1 = Switch “ON” Table 3-66 DIP switch SW1 – Examples 3.3.16.2 CAN automatic Bit Rate Detection Switch... -
Page 58: Digital Input Level
Setup Connections 3.3.16.4 Digital Input Level For details chapter “3.3.7 Digital I/O (X7)” on page 3-39. Switch Logic level PLC level (factory setting) Table 3-69 DIP switch SW1 – Digital input level 3.3.17 Spare Parts Order number Description 520860 STO Idle Connector X9 Table 3-70 Spare parts list EPOS4 50/5 Hardware Reference... -
Page 59: Status Indicators
Setup Status Indicators Status Indicators The EPOS4 features three sets of LED indicators to display the device condition. NET Status; the LEDs display communication RUN states and errors conditions Device Status; the LEDs display the device’s operation status and error conditions NET Port;... -
Page 60: Table 3-72 Device Status Leds
Setup Status Indicators 3.4.2 Device Status The LEDs (Figure 3-46; B) display the actual status and possible errors of the EPOS4: • Green LED shows the status • Red LED indicates errors Description Green Power stage is disabled. The EPOS4 is in status… •... -
Page 61: Wiring
Wiring WIRING In this section you will find the wiring information for the setup you are using. You can either use the consol- idated wiring diagram (Figure 4-48) featuring the full scope of interconnectivity and pin assignment. Or you may wish to use the connection overviews for either DC motor or EC (BLDC) motor that will assist you in determining the wiring for your particular motor type and the appropriate feedback signals. -
Page 62: Possible Combinations To Connect A Motor
Wiring Possible Combinations to connect a Motor Possible Combinations to connect a Motor The following tables show feasible ways on how to connect the motor with its respective feedback sig- nals or possible combinations thereof. To find the wiring that best suits your setup, proceed as follows: Decide on the type of motor you are using;... -
Page 63: Figure 4-51 Ec (Bldc) Motor
Wiring Possible Combinations to connect a Motor 4.1.2 EC (BLDC) Motor Power supply & optional logic supply ......... . Figure 4-49 Motor &... -
Page 64: Main Wiring Diagram
Wiring Main Wiring Diagram Main Wiring Diagram Figure 4-54 Figure 4-55 Figure 4-56 Figure 4-48 Main wiring diagram EPOS4 50/5 Hardware Reference 4-64 CCMC | 2022-04 | rel10445... -
Page 65: Excerpts
Wiring Excerpts Excerpts 4.3.1 Power & Logic Supply Figure 4-49 Power & logic supply 4.3.2 DC Motor Figure 4-50 DC motor 4.3.3 EC (BLDC) Motor Figure 4-51 EC (BLDC) motor 4.3.4 Hall Sensors (Sensor 3) Figure 4-52 Hall sensors (Sensor 3) EPOS4 50/5 Hardware Reference 4-65 CCMC | 2022-04 | rel10445... -
Page 66: Figure 4-53 Digital Incremental Encoder 1 (Sensor 1)
Wiring Excerpts 4.3.5 Digital Incremental Encoder 1 (Sensor 1) Figure 4-53 Digital incremental encoder 1 (Sensor 1) 4.3.6 Digital Incremental Encoder 2 (Sensor 2) Figure 4-54 Digital incremental encoder 2 (Sensor 2) 4.3.7 Analog incremental encoder SinCos (Sensor 2) Figure 4-55 Analog incremental encoder (Sensor 2) EPOS4 50/5 Hardware Reference 4-66... -
Page 67: Figure 4-56 Ssi Encoder (Sensor 2)
Wiring Excerpts 4.3.8 SSI Encoder (Sensor 2) Figure 4-56 SSI encoder (Sensor 2) EPOS4 50/5 Hardware Reference 4-67 CCMC | 2022-04 | rel10445... - Page 68 Wiring Excerpts • • p a g e i n t e n t i o n a l l y l e f t b l a n k • • EPOS4 50/5 Hardware Reference 4-68 CCMC | 2022-04 | rel10445...
-
Page 69: List Of Figures
List of Figures LIST OF FIGURES Figure 1-1 Documentation structure ..............5 Figure 2-2 Derating of output current . - Page 70 List of Figures Figure 3-42 Extension Signal connector X16............53 Figure 3-43 Extension slots .
-
Page 71: List Of Tables
Motor connector X3– Pin assignment for maxon EC motor ....... . - Page 72 List of Tables Table 3-42 Analog I/O connector X8 – Pin assignment ........... 43 Table 3-43 Signal Cable 7core .
-
Page 73: Index
Index INDEX alerts 6 DEV ID (see “ID”) analog incremental encoder (differential) 33 device condition, display of 59 analog inputs 44 digital high-speed inputs (differential) 36 analog outputs 44 digital high-speed inputs (single-ended) 37 applicable EU directive 15 digital high-speed output 38 applicable regulations 8 digital incremental encoder (differential) 29 digital incremental encoder (single-ended) 31... - Page 74 Index LEDs, interpretation of 59 regulations, applicable 8 Requirements of power supply 21 mandatory action signs 6 motor types, supported 8 safety alerts 6 safety first! 8 signs used 6 SSI encoder node address (see “ID”) specification 35 Node-ID (see “ID”) wiring 67 notations used 6 standards, fulfilled 14...
- Page 75 Index • • p a g e i n t e n t i o n a l l y l e f t b l a n k • • EPOS4 50/5 Hardware Reference Z-75 CCMC | 2022-04 | rel10445...
- Page 76 The mentioned trademarks belong to their respective owners and are protected under intellectual property rights. © 2022 maxon. All rights reserved. Subject to change without prior notice. CCMC | EPOS4 50/5 Hardware Reference | Edition 2022-04 | DocID rel10445 maxon motor ag Brünigstrasse 220...
