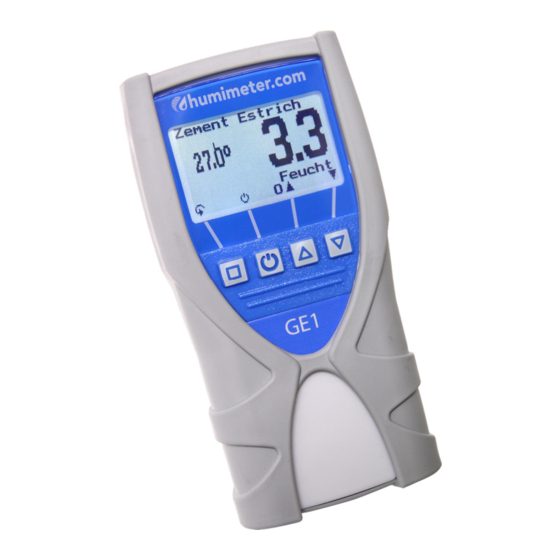

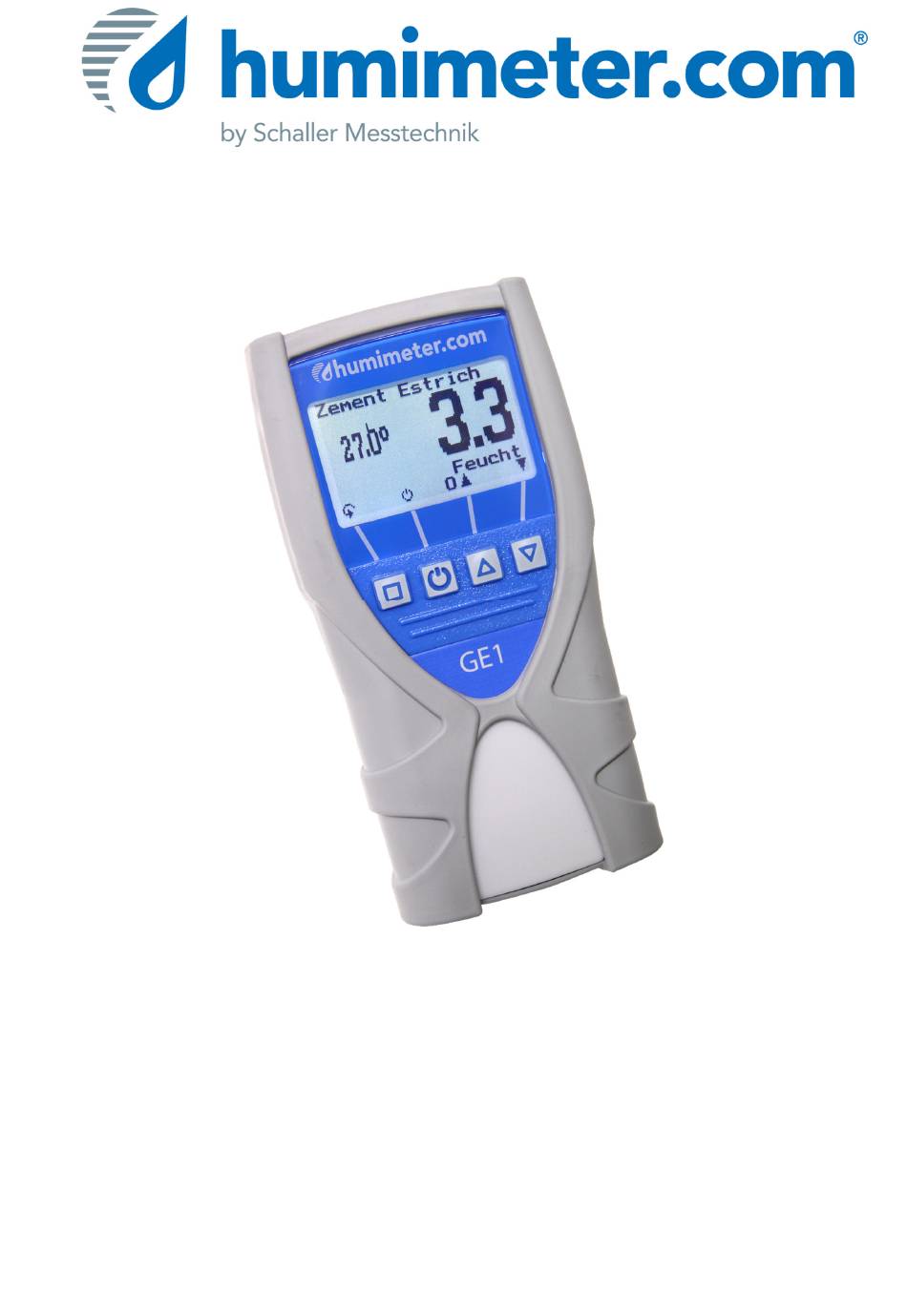

- Page 1 User manual floor screed moisture meter humimeter GE1 Version 1.0_en © Schaller GmbH 2015...
- Page 2 Evaluation scale of measuring value For some calibration curves, the measuring value shown on the display is evaluated in 4 different increments. This evaluation scale bases on the experience of Schaller GmbH. As the increments can differ according to the craft resp.
- Page 3 The interpretation of the shown floor screed water content needs the experience of the user, based on the recommendations of the floor screed producer. The thickness of floor screed can differ. The humimeter GE1 always measures the supreme layer of 30 mm. Version 1.0_en...
- Page 4 If the thickness of floor screed is less than 30 mm, iron gratings, heating pipes and other metal can cause an incorrect measuring value. Therefore please look for a measuring position without any metal in the measuring field. The device displays an average value of a layer of 30 mm. The moisture of deeper layers may be considerably higher than that value.
- Page 5 Density ranges: Concrete: between 2200kg/m³ and 2600kg/m³ Floor screed: between 1800kg/m³ and 2200kg/m³ Anhydrite floor screed: 2600kg/m³ CM method Another common method of determining the moisture of the bottom layer of screed is the CM method. The accuracy of the CM method depends on various parameters and is not suited for a comparison with the humimeter GF2 resp.
-
Page 6: Menu Level Overview
Menu level overview Keypad symbols Type selection menu Measuring window: Rolling Menu Power ON / OFF Next calibration curve Switch upper Previous calibration curve Power off Switch lower Hold last measuring value Hold Menu: Enter Service menu Switch upper Switch lower Exit Switch lower Switch upper... - Page 7 Changing the batteries The delivery of your humimeter GE1 contains 4 enclosed batteries. Please insert resp. change the batteries as follows: 1.) At first remove the rubber protection cover. For that, hold the rubber protection cover at the upper side and pull it over.
-
Page 8: Changing The Userlevel
Operating the instrument Switching on: Press for three seconds. Changing the calibration curve: press Switching off Press the key in the measuring window for 5 seconds. The instrument switches off after releasing the key. The instrument switches off automatically after approx. four minutes. Activation of the “super user”... - Page 9 Notes ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Version 1.0_en page 9...
-
Page 10: Exemption From Liability
Device maintenance instructions To provide a long life of your device please do not expose it to strong mechanical loads or heat e.g. dropping it or direct sunlight exposure. Clean your device using a dry cloth. Any kind of wet cleaning or cleaning agents may damage the device. - Page 11 Technical data humimeter GE1 (article no. 13400) Measuring depth 30 mm Minimum material thickness 30 mm Resolution 0.1% water content; 0.1°C ; 0.3°F Measuring range 0% to 100% water content (dependent on the material) Operating temperature 0°C to +50°C -20°C to +60°C...
-
Page 12: Important! Please Read
!IMPORTANT! Please read Most common reasons for measuring errors • In case of dew on the measuring device resp. on the sensor make sure to wait until it is completely dry again. Switching on resp. using a dewy device may lead to wrong measuring results and in the worst case may destroy the device.
