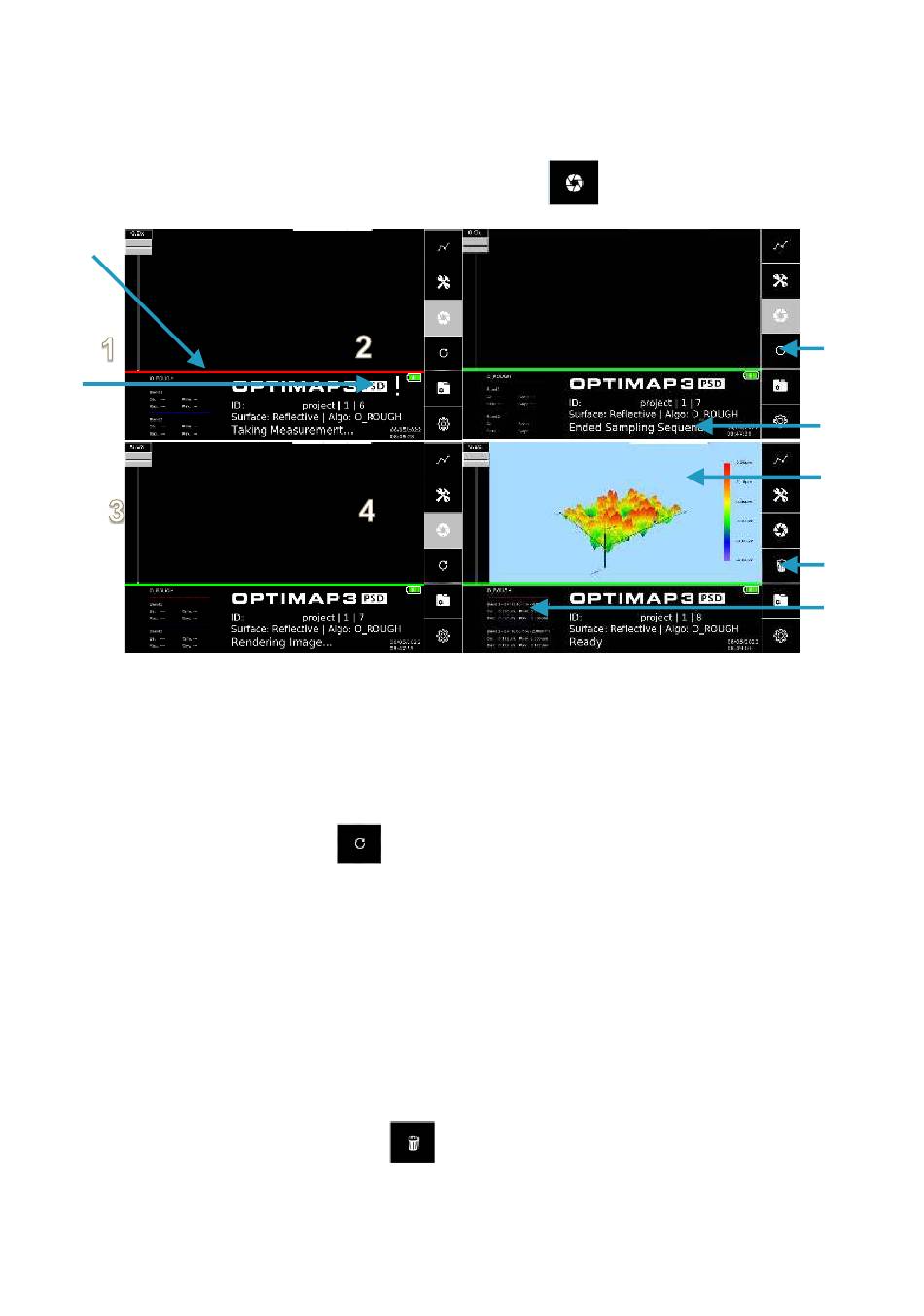

The measurement screen shows the steps that the main screen goes through while taking a
measurement. A measurement is started by pressing the
Status bar
Acquisition
warning
1. When the measurement button is pressed it will grey out to show that the
instrument is taking a measurement. The status bar will turn red and acquisition
warning (!) will show to illustrate that the instrument should not be moved while
acquiring images, to be used in the calculation. The status message will show
that the instrument is in the "Taking Measurement" part of the process. The only
button that is active during the measurement process is the cancel
measurement button
2. When the image acquisition has finished the acquisition warning will disappear
and the status bar will turn green to illustrate that the instrument can now be
moved while the calculation is taking place. The status message will be updated
accordingly.
3. The calculation has now finished, and the 3D altitude map is being rendered to
the map window.
4. The measurement is now finished. The map is displayed in the map window
and graphical results, depending on the algorithm selected, are displayed in the
bottom left corner. The measurement identification tracking is updated, and the
status message shows "Ready". The cancel button is replaced by the delete
last measurement button
measurement taken if not wanted. All buttons are now active to take another

8.4 Measurement Screen

, which can be pressed to cancel the measurement.
, which can be used to delete the last
button.
Cancel
button
Status
message
Map
window
Delete
button
Numerical
results
