Novo-Curve Manual
Rhopoint Instruments Ltd.

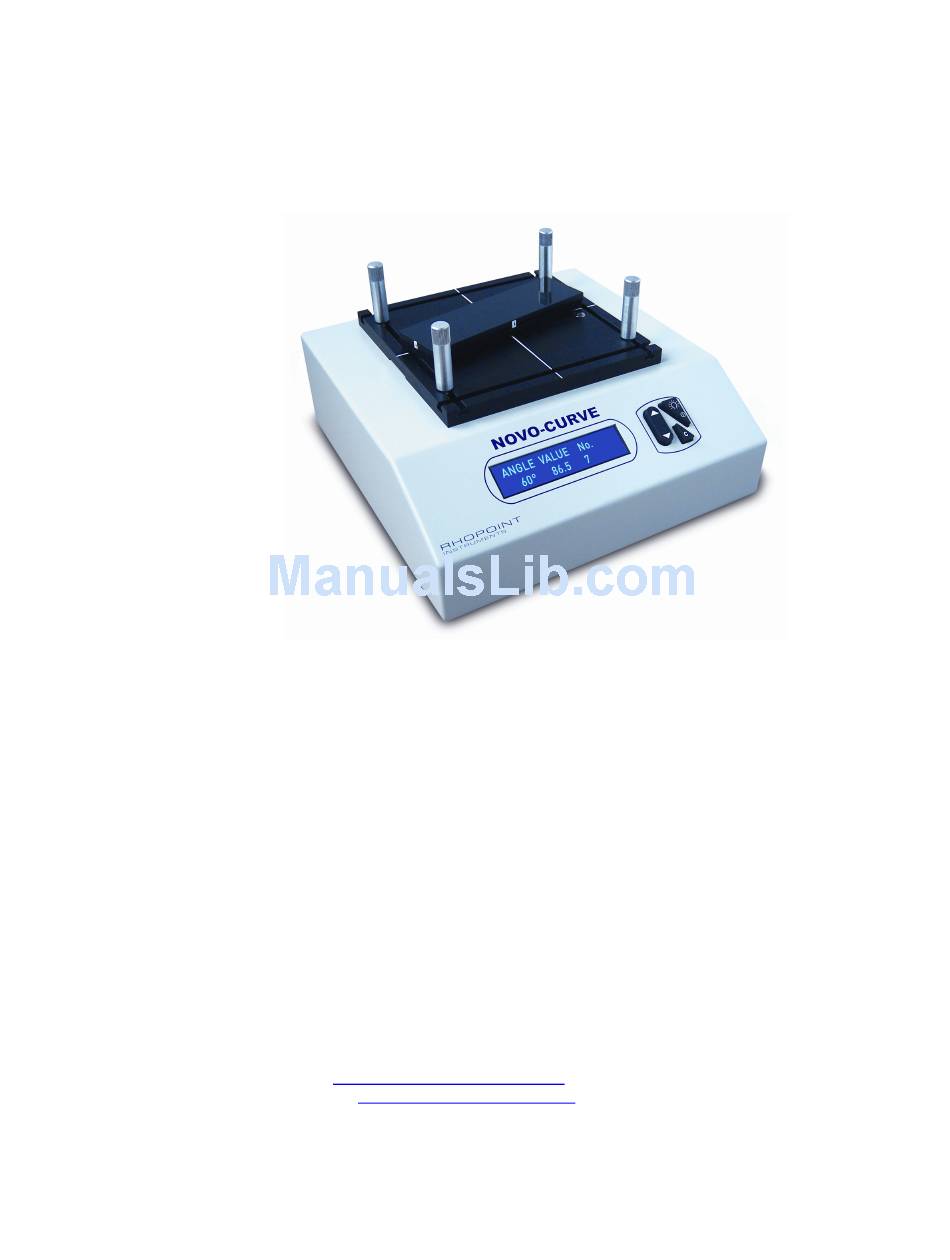

Novo-Curve Operation Manual
Information in this document is subject to change without notice.
© 2008 Rhopoint Instrumentation Ltd. All Rights Reserved.
TM
TM
TM
Novo-Gloss Trio, Novo-Shade Duo
, Novo-Soft
, Novo-Gloss
,
TM
TM
TM
Novo-Gloss Lite
, Novo-Curve
and Rhopoint
are either registered
trademarks or trademarks of Rhopoint Instrumentation Ltd. in the UK
and other countries.
Other product and company names mentioned herein may be
trademarks of their respective owner
Rhopoint Instruments Ltd.
12 Beeching Road,
Bexhill-on-Sea,
TN39 3LG
United Kingdom
Tel: +44 (0)1424 214291
Fax: +44 (0)1424 730600
Email:
sales@rhopointinstruments.com
Web Site:
www.rhopointinstruments.com
Revision B
Sept 2009
DRD1277-500
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novo-Curve and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rhopoint Instruments Novo-Curve

  • Page 1 Novo-Curve Manual Rhopoint Instruments Ltd. Novo-Curve Operation Manual Information in this document is subject to change without notice. © 2008 Rhopoint Instrumentation Ltd. All Rights Reserved. Novo-Gloss Trio, Novo-Shade Duo , Novo-Soft , Novo-Gloss Novo-Gloss Lite , Novo-Curve and Rhopoint are either registered trademarks or trademarks of Rhopoint Instrumentation Ltd.
  • Page 2: Table Of Contents

    Novo-Curve Manual Index Accessories Options Power The Control Panel Read/select key Scroll up/down Angle change/calibrate/cancel Measuring Gloss Check the calibration Positioning the calibration standard Take a single reading Using the move and read feature Calibration Inspection and Tile Care Inspecting and cleaning the optics...
  • Page 3: Accessories

    • Mains cables (UK, EU and USA) Options Replacement BAM Traceable calibration tile • Supplementary calibration/checking tiles • UKAS (ISO17025) BAM traceable calibration/checking tiles • Novo-Curve Cylinder Measurement Jig • Power The Novo-Curve is powered using an external low voltage power supply. - 3 -...
  • Page 4: The Control Panel

    Novo-Curve Manual The Control Panel Read/Select Key The “READ” key has four functions; Power- Press this key to turn the instrument on. Read- In measurement mode press this key to initiate a measurement. Continuous Read- In measurement mode press and hold this key to take a continuous measurement.
  • Page 5: Measuring Gloss

    Using the move and read feature The Novo-Curve has a unique feature to quickly assess large surfaces for gloss variation. To use this feature PRESS and HOLD the READ/SELECT key whilst in read mode.
  • Page 6: Inspecting And Cleaning The Optics

    Novo-Curve Manual Inspection and tile care It is necessary to inspect the condition of the calibration tile and instrument optics before each calibration. Inspecting and cleaning the instrument optics Any dust or debris on the optic should be blown from the lenses using dry clean air- the optics must not be touched without wearing suitable cotton gloves.
  • Page 7: Calibration

    The “C” key can be pressed at any time to abort the calibration process. Measuring a Curved Surface The Novo-Curve is specifically designed to measure curved surfaces; there are two methods to achieve repeatable results. Manual Method- Place the sample to be assessed over the measurement orifice.
  • Page 8: Definition Of Terms Used In Statistics Mode

    Novo-Curve Manual To store this reading in memory, stop depressing the read button or the foot switch. Jig Method- Bespoke jigs can be manufactured which hold a sample in the correct position. They can be accurately located using the grooves around the measurement platen.
  • Page 9: Preferences

    Rhopoint supply a range of gloss, semi-gloss and matt tiles to suit all applications. To calibrate the Novo-Curve using a purchased tile, the calibration value in the instrument memory must be adjusted to match the assigned value of the new tile.
  • Page 10: Language

    Novo-Curve Manual Customising the Novo-Gloss Trio via the hidden set up menu Use the following key combination to access the Novo-Curve set up menu; Press the DOWN KEY whilst simultaneously pressing the C button. SYSTEM SET UP will be shown in the instrument display.
  • Page 11: Connecting To A Pc

    Novo-Curve Manual CONNECTING TO A PC Install the software Place the Novo-Soft mini-cd in the drive of a compatible PC. Depending on the settings of your PC the Novo-Soft Installation program should automatically start, alternatively double click on the Novo-Softinstall.exe icon in the relevant CD drive.
  • Page 12 Novo-Curve Manual Click ‘Install from a list or specific location’ then click ‘next’. Click ‘search removable media’ then click ‘next’. The PC should find the driver and install it from the disc. - 12 -...
  • Page 13: Connecting The Instrument

    Click ‘finish’. The PC will detect another new hardware component, follow the above steps again. Your Novo-Curve is now installed and ready to use. Connect the instrument Connect the instrument to a USB port on your PC with the supplied data cable.
  • Page 14: Connecting Advice

    Novo-Curve Manual CONNECTING ADVICE When the instrument has been successfully connected to the PC the auto-power off function is disabled. Measurements should not be made with the data cable plugged into the instrument as R.F. interference may cause inaccurate readings.
