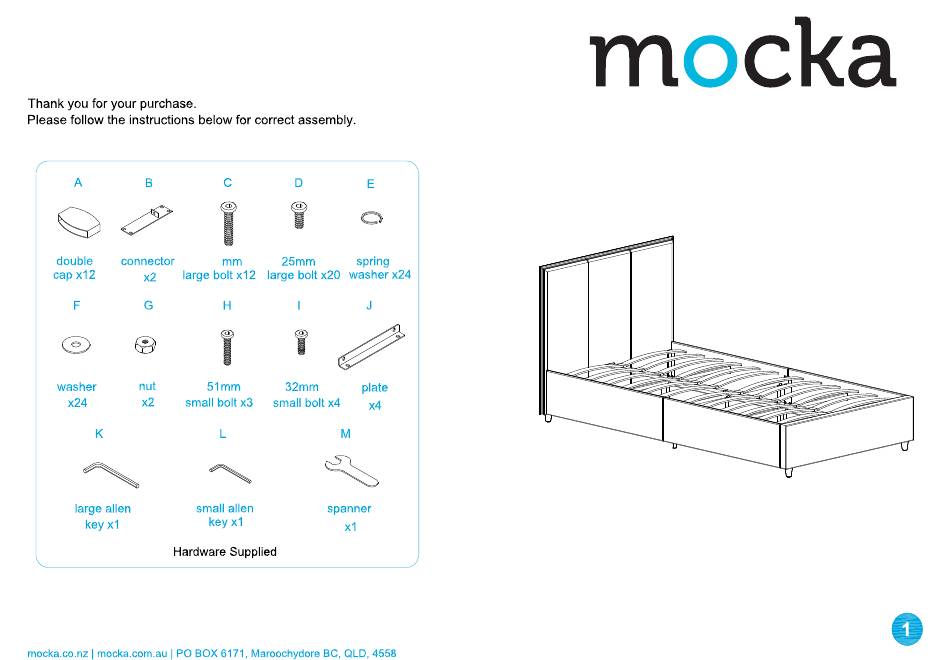

- Page 1 Emmett Bed Assembly Instructions...
- Page 2 Emmett Bed Assembly Instructions Attach legs 4x (3) to panels (1) and (2) as shown. Attach two panels (4) to panel (1) with 2 (J) plates as shown. Repeat this step by attached two panels (4) to panel (2) using the (J) plates.
- Page 3 Emmett Bed Assembly Instructions Attach all panels (4) together with 2x connectors (B) as shown. Attach 2x metal bracing (6) to the bed frame with 4x the 25mm bolt (D) and tighten with the large allen key (K) as shown.
- Page 4 Emmett Bed Assembly Instructions Lay the 2 x bracing bars (8) and (9) across the frame as shown. Attach to panels (1) and (2) with bolts ( C ), tighten with allen key (K). Connect the 2 x bars (8) and (9) and the support leg (7) together in the centre and secure with bolt (H) as shown.
- Page 5 Insert wooden slats (10) into the sides one on each side and join them in the middle by sliding into the double cap (A) then push down to click into place. Repeat this from top of bed to the base. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
