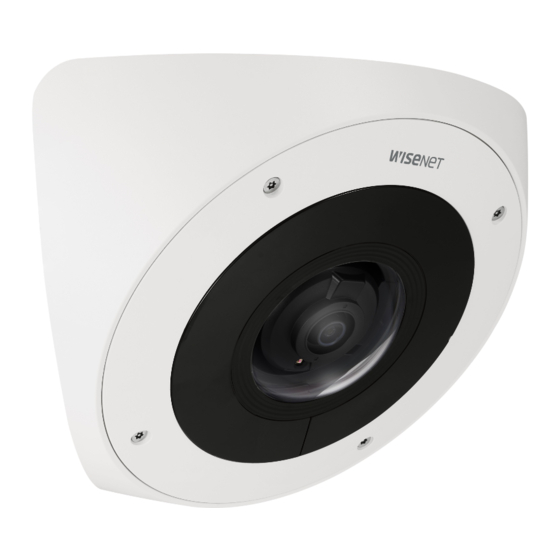

Wisenet TNV-7011RC User Manual
  1. Manuals
  2. Brands
  3. Wisenet Manuals
  4. Security Camera
  5. TNV-7011RC
  6. User manual

Wisenet TNV-7011RC User Manual

Hide thumbs Also See for TNV-7011RC:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
TNV-7011RC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNV-7011RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet TNV-7011RC

Summary of Contents for Wisenet TNV-7011RC

  • Page 1 NETWORK CAMERA User Manual TNV-7011RC...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS video. 23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable is recommended to effectively protect your product and property from transient voltage, thunderstroke, 1. Read these instructions. communication interruption.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs Video output What’s Included At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Connecting with other Device NETWORK CONNECTION AND...

  • Page 6: Overview

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED Appearance Item Name Quantity Description Please check if your camera and accessories are all included in the product package. Used to connect a LAN cable with the diameter (As for each sales country, accessories are not the same.) of Ø7 to 8.5 Appearance Item Name...

  • Page 8: At A Glance

    overview AT A GLANCE Components Appearance Item Description Item Description The button restores all camera settings to the factory default. Camera body Body part where the camera lens and connection terminals are included. Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that DHCP can be Reset Button Housing...
  • Page 9 Item Description Tilt Adjust Lever Adjusts the tilt of the lens. Power port (DC 12 V) Port for power terminal block. Output port for test monitoring the video output. Use the test monitor cable to connect to a Test Monitor Out Port mobile display and check the test video.

  • Page 10: Installation & Connection

    installation & connection installation & connection INSTALLATION Inserting the Micro SD card Slide the Micro SD card into the Micro SD card slot on the camera module in the direction of the arrow. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 11 Removing the Micro SD card Installation Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory 1. Make a hole within the area designated for cable penetration by considering the direction to monitor. card from the slot.
  • Page 12 installation & connection Connecting the LAN cable 3. Use the Cap Installer to allow the RJ45 cable to pass through. 1. Pull off the extruded part of the Cable bushing marked with [NETWORK] on the bottom, as shown in the picture.
  • Page 13 Connecting the power and audio/alarm cables 5. Connect the cables to each port. 1. Pull out the Cable bushing marked with [POWER/AUDIO/ALM] on the bottom by pulling it down, as shown in the picture. 2. Insert the Cable bushing with the alarm/audio cables through the hole created after removing the Cable bushing in Step 2.
  • Page 14 installation & connection Outdoor installation Adjusting the monitoring direction for the camera When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.

  • Page 15: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE Connecting to Audio Input/Output Speaker Monitor to install Power Microphone Ethernet Network The Test Monitor Out port of the product is provided for easier installation, and is not recommended for monitoring purposes. Microphone Speaker Ethernet Connection Microphone Connect the Ethernet cable to the local network or to the Internet.
  • Page 16 installation & connection Connecting to the I/O port box Alarm In Wiring Diagram Connect the Alarm I/O cable to the corresponding port of the port box. External Inside of the camera VCC_3.3V connection RESISTOR RESISTOR Sensor ALARM IN (5mA SINK) RESISTOR DIODE MLCC...

  • Page 17: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 18: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 19: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. TNV-7011RC - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 20: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.

  • Page 21: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _21...

  • Page 22: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration 2.

  • Page 23: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.

  • Page 24: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is PROBLEM SOLUTION set to <Enable>, but no notification A. Check <Data & Time> settings. When an Windows 10 user accesses e-mail reaches me even when an B.
  • Page 25 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
