Summary of Contents for Wisenet TNO-6322ER

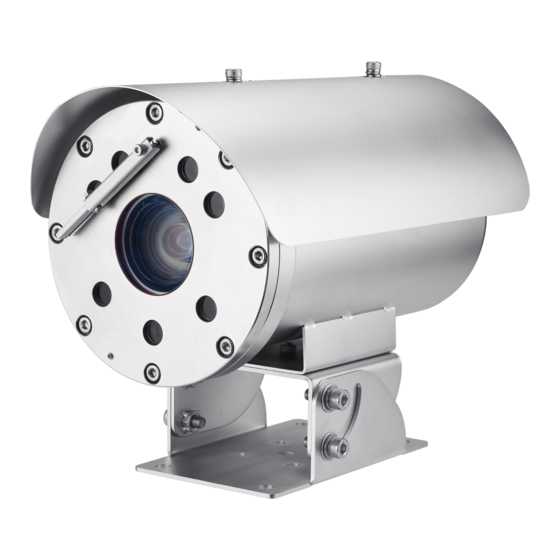

- Page 1 NETWORK CAMERA User Manual TNO-6322ER...
- Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 20. If you want to relocate a product that has already been installed, be sure to turn off the power and then move or reinstall it. Failure to turn off the power may result in fire or electric shock. 1.
-
Page 4: Table Of Contents
overview CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting NAS recommended specs Login What’s Included Camera Web Viewer Setup At a Glance Installation Connecting with other Device APPENDIX Troubleshooting NETWORK CONNECTION AND Connecting the Camera Directly to Local Area Networking SETUP... -
Page 5: Recommended Pc Specifications
RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based) -
Page 6: What's Included
overview WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Options (not included) Fixed explosion-proof camera Wall bracket Used to install a camera on the wall... -
Page 7: At A Glance
AT A GLANCE Appearance Item Description WIPER Wiping out water or dust from camera window. SUNSHIELD Protection of sunlight and unwanted reflection. HOUSING ASSY Camera module and wiper system and IR LED contained in CASE BODY. CABLE ENTRY Install the Ex Equipment Cable Grands or Ex Components ANGLE BRACKET Angle adjuster and bracket mounting EARTH WIRING... -
Page 8: Installation
overview INSTALLATION Installing Sunshield Assembling the Sunshield on the base housing with 2 x screw bolt. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Install the system based on the following directions. If you want to install using a different method, you should confirm the safety recommendations by making a request to the manufacturer in advance. - Page 9 Installing Device with Wall / Pole bracket Earth wiring Connection Screws (M12)4x (Flat washer & Spring washer(M12)) Pole bracket Wall Bracket 1. Assembling the pole bracket side the wall bracket with 4-M12 screws and washers 2. Apply a generous amount of thread locking compound (Loctite 270 (not included)) 1.
-
Page 10: Connecting With Other Device
installation & connection CONNECTING WITH OTHER DEVICE Electrical Resistance of Copper Wire at [20°C (68°F)] Copper Wire Gauge (AWG) #24(0.22mm #22(0.33mm #20(0.52mm #18(0.83mm Ethernet Resistance (Ω/m) 0.078 0.050 0.030 0.018 Drop Voltage (V/m) 0.028 0.018 0.011 0.006 External cables Recommended Distance (m) Less than 20 Less than 30 Less than 30... - Page 11 How to connect the RJ45 waterproof cable to a LAN cable How to interconnect Washer pump It is recommended that the camera use the following washer pump. 1. Insert it through the arrow direction. ~ Honeywell EXWJ400-10A Refer to the washer pump manual for details on connection of washer pump and usage. 2.
-
Page 12: Network Connection And Setup
network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET DSL/Cable Modem 1. -
Page 13: Using Device Manager
USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com). -
Page 14: Manually Registering Camera
~ Example of the Dynamic IP environment configure the IP. TNO-6322ER - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager. -
Page 15: Port Range Forward (Port Mapping) Setup
The settings may differ depending on the connected Broadband Router model. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in For more information, refer to the user manual of the applicable router. -
Page 16: Connecting To The Camera From A Shared Local Pc
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. 16_ network connection and setup... -
Page 17: Connecting To The Camera
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration. -
Page 18: Password Setting
web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network. -
Page 19: Troubleshooting
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION When an Windows 10 user accesses ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is ~ This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome set to <Enable>, but no notification A. - Page 20 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
