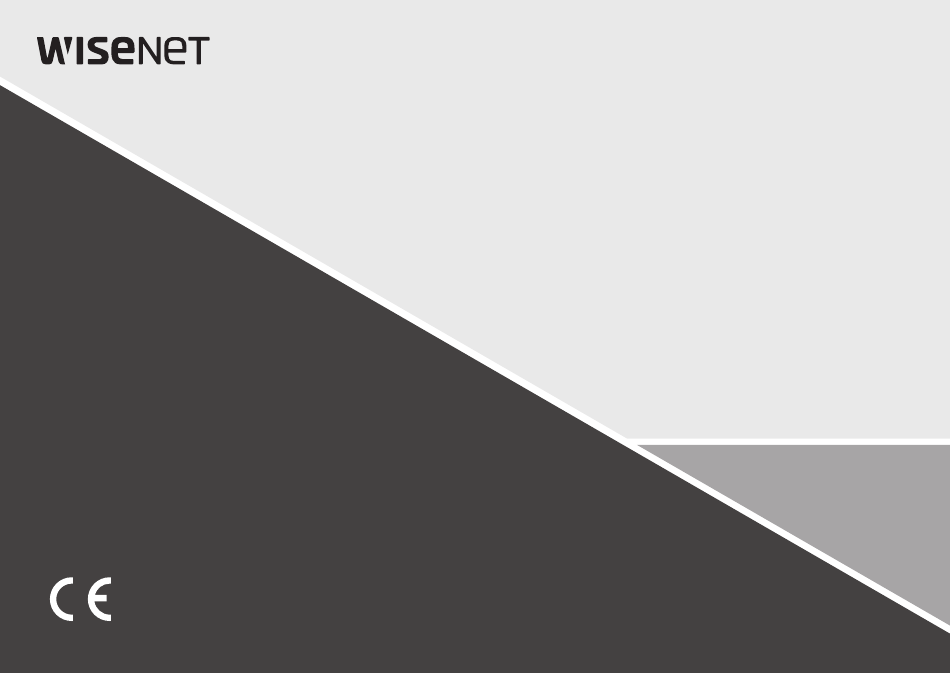

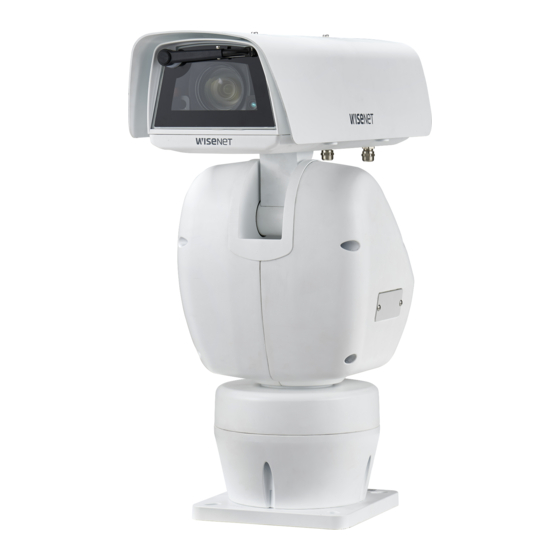

  • Page 1 NETWORK CAMERA User Manual TNU-6321...
  • Page 2 Network Camera User Manual Copyright ©2020 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 1. Before installation, read all manuals thoroughly and proceed with the installation according to 14. You can receive installation support from engineers who are qualified to handle technical the directions. services. 2. When connecting a power cable or signal line, check the external connection port first. 15.
  • Page 4: Table Of Contents

    overview CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recomended Micro SD/SDHC/SDXC Memory Login Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Connecting with other Device NETWORK CONNECTION AND SETUP...
  • Page 5: Recommended Pc Specifications

    RECOMMENDED PC SPECIFICATIONS RECOMENDED MICRO SD/SDHC/SDXC MEMORY CARD SPECIFICATIONS • CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps) • Recommended capacity 16GB ~ 256GB MLC type required) Intel Core i7 2.8 GHz or higher (for using 1920x1080 60 fps) •...
  • Page 6: What's Included

    overview WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description IR illuminator (not included) Camera body IR illuminator body Mounted in the positioning system and used...
  • Page 7: At A Glance

    AT A GLANCE Appearance Cables Item Description Item Alarm cable Sunshield Alarm I/O cable. (Black/Brown/Red/Yellow/Orange) Windshield Wiper Audio cable Audio I/O cable. Network Port Connects the Ethernet cable. Main body Video Output Port Outputs the video. Base housing Cables for the camera power and IR illuminator power. Camera Power cable (Black/Green/Brown/Blue)
  • Page 8: Installation & Connection

    installation & connection INSTALLATION Optional Accessories for Installation For your easier installation, you can purchase appropriate optional accessories available. Precautions before installation ` Installing the IR illuminator Ensure you read out the following instructions before installing the camera: 1. Secure the bracket to the camera with the 3 supplied bolts. •...
  • Page 9 4. Connect the power cable and RS-485 cable of the IR 2. Assemble the main body and bracket using 3 Wrench bolts. illuminator to the board in the housing. O-ring Flat washer M5 x 20 bolts ` Mounting on wall using bracket 1.
  • Page 10: Connecting With Other Device

    installation & connection CONNECTING WITH OTHER DEVICE 1. Connect the AUDIO IN port of the camera with the microphone directly or LINE OUT port of the amplifier that the microphone is connected to. 2. Connect the AUDIO OUT port of the camera with the LINE IN port of the speaker. 3.
  • Page 11 How to connect external cables Network Cable Specification Connect external cables by referring the table below. Item Contents Remark Connector RJ45 Connect alarm input/output cables for each terminals one by one. Ethernet 10/100Base-T 10/100 Mbps Cable UTP Category 5e Label print COLOR Description Remarks...
  • Page 12 installation & connection How to connect the RJ45 waterproof cable to a LAN cable Outdoor installation 1. Insert it through the arrow direction. When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.
  • Page 13: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
  • Page 14: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router Device manager program can be downloaded from <Technical Guides>-<Online Tool> menu at Hanwha Techwin website (http://www. • IP Address : Enter an address falling in the IP range provided by hanwha-security.com).
  • Page 15: Manually Registering Camera

    • Example of the Dynamic IP environment configure the IP. TNU-6321 - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.
  • Page 16: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.
  • Page 17: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _17...
  • Page 18: Connecting To The Camera

    2. Type the IP address and HTTP port number of the camera in the address bar. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.
  • Page 19: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP 1. Click the [Setup ( )] icon. When you access the product for the first time, you must register the login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.
  • Page 20: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION No signal is found at the Alarm Output When an Windows 10 user accesses the y This is what happens when microphone driver has been set to Realtek driver. port even when an intelligent video y Check alarm output port settings.
  • Page 21 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
