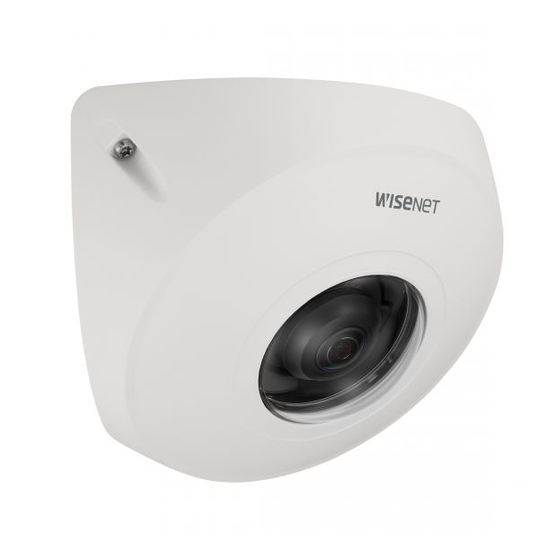

Wisenet TNV-8010C User Manual
  1. Manuals
  2. Brands
  3. Wisenet Manuals
  4. Security Camera
  5. TNV-8010C
  6. User manual

Wisenet TNV-8010C User Manual

Hide thumbs Also See for TNV-8010C:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
TNV-8010C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNV-8010C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet TNV-8010C

Summary of Contents for Wisenet TNV-8010C

  • Page 1 NETWORK CAMERA User Manual TNV-8010C...
  • Page 2 Network Camera User Manual Copyright ©2020 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated The lightning flash with arrowhead symbol, within an equilateral triangle, is from PoE, 0.14A. (TNV-8010C) intended to alert the user to the presence of “dangerous voltage” within the 16.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. y Do not place this apparatus on an uneven surface. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection. y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS WEB VIEWER OVERVIEW Connecting to the Camera Important Safety Instructions Password setting Recommended PC Specifications Login Recommended Micro SD/SDHC/SDXC Camera Web Viewer Setup Memory Card Specifications NAS recommended specs What’s Included Optional Accessories for Installation At a Glance APPENDIX Troubleshooting INSTALLATION &...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS • CPU : Intel(R) Core(TM) i7 3.4 GHz or higher • Recommended capacity : 200GB or higher is recommended. • RAM : 8G or higher • For this camera, you are recommended to use a NAS with the following manufacturer’s specs. •...

  • Page 7: What's Included

    WHAT’S INCLUDED OPTIONAL ACCESSORIES FOR INSTALLATION Please check if your camera and accessories are all included in the product package. You can purchase appropriate optional accessories available. (As for each sales country, accessories are not the same.) Item Name Model name Appearance Item Name Quantity...

  • Page 8: At A Glance

    overview AT A GLANCE Components Appearance Item Description Port to connect the WiFi dongle. You can check the installation video through the applications installed in the smartphone. MICRO USB port Refer to “Connecting WiFi” on page 15. Wifi dongle and OTG adapter are sold separately. Output port for test monitoring the video output.

  • Page 9: Installation & Connection

    installation & connection INSTALLATION 2. Using the provided Torx L wrench, turn the 2 screws that secure the camera module counterclockwise to release the camera module. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 10 installation & connection Inserting the Micro SD card Removing the Micro SD card Insert a Micro SD card in the arrow direction shown in the figure. Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.
  • Page 11 Installation [Installing the network cable] 2. Pull off the extruded parts of the cable bushing to be used. 1. Drill a cable hole for camera mounting in consideration of the direction to monitor. 3. Use the cap installer to route the network cable through the cable bushing. Cap Installer 110mm 90mm...
  • Page 12 installation & connection [Installing the Audio/Alarm cables] 7. Join the camera module to the camera case. 5. Mount the cable bushing of the provided audio/alarm cable to the camera case. 6. Secure the camera case using 5 mounting screws. 8. Connect the network cable and alarm/audio jack to the camera module port. When mounting the camera case, tidy up the cables to avoid them from being damaged or pinched.
  • Page 13 Outdoor installation Join the top cover to the camera case. Before joining them, align the top cover with the bump of the camera case to be able to join them. When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

  • Page 14: Connecting With Other Device

    installation & connection CONNECTING WITH OTHER DEVICE Adjusting the monitoring direction for the camera Wi-Fi dongle SOFT AP Tilt ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. PoE injector Here, the angular adjustment of the camera body is called "tilting".
  • Page 15 Camera Setup 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Speaker Smartphone Setup 1. Install the Wisenet Installation application. Microphone 2. Select the camera SSID after turning on the WiFi. 3. Run the Wisenet Installation application.
  • Page 16 installation & connection Connecting to the I/O port box To connect the external sensor Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the Connect the Alarm I/O cable to the corresponding port of the port box. other strand to the [GND] port.

  • Page 17: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 18: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Guides>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 19: Manually Registering Camera

    • Example of the Dynamic IP environment configure the IP. TNV-8010C - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 20: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.

  • Page 21: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _21...

  • Page 22: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration 2.

  • Page 23: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the Setup ( 1. Click the [ ] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.

  • Page 24: Troubleshooting

    appendix appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION When an Windows 10 user accesses y Verify the settings in the following sequence: <Motion detection> of <Analytics> is y This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome set to <Enable>, but no notification A.
  • Page 25 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
