Summary of Contents for JWA Dean 75130

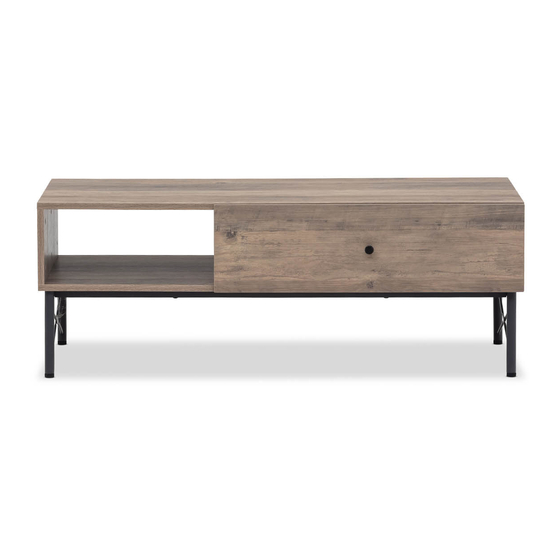

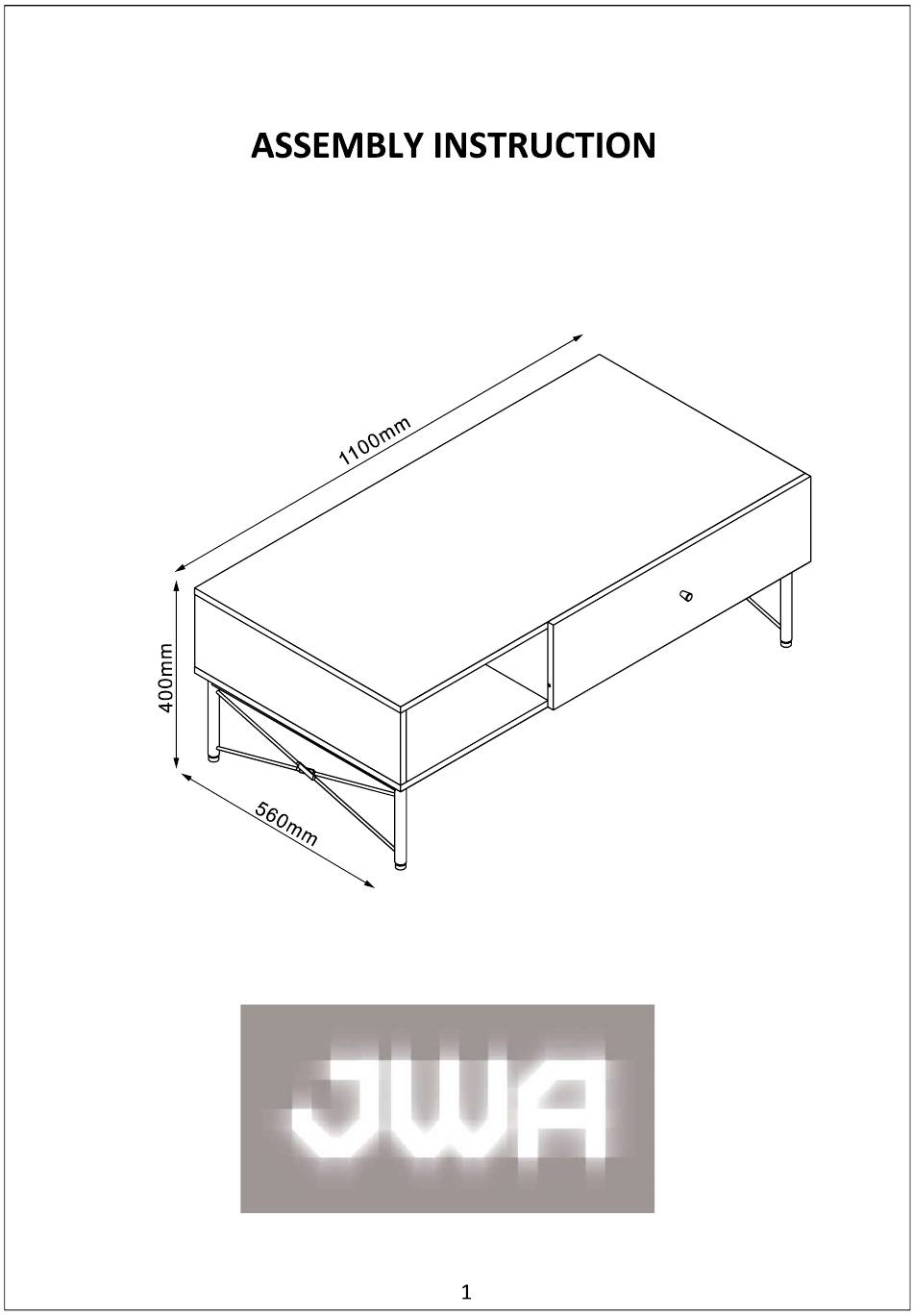

- Page 1 DEAN Coffee Table ITEM CODE 75130 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min...
- Page 3 8X30mm M6X30 mm M6X40 mm 2pcs 30pcs 12pcs 8pcs 4pcs ST3 5X14mm M8X20X10mm M4X18mm ST5X50mm 10pcs 4pcs 4pcs ST4X25mm 2pcs 2pcs Top panel Back baffle panel Drawer bottom panel Bottom panel Drawer front panel Main frame Drawer left panel Connection frame Left panel Middle panel Drawer right panel...
- Page 4 1. Insert part J into frame P1. 1. Attach connection frame P2 to frame P1 with part D.
- Page 5 1. Attach frames P1 and P2 to panel 2 with part C. 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 4 and 5 with part I.
- Page 6 1. Insert part A into panels 4 and 5. 2. Attach panels 4 and 5 to panel 6 with part A. 1. Insert parts A and B into panels 1 and 2.
- Page 7 STEP 7: 1. Attach panels 3, 4, 5 and 6 to panel 2 with parts A and B. STEP 8: 1. Attach panel 1 to panels 3, 4 and 5 with parts A and B. ①...
- Page 8 STEP 9: 1. Insert part A into panel 7. 2. Attach panels 8 and 9 to panel 10 with part H. 3. Slide panel 11 along slots of panels 8 and 9. STEP 10: 1. Attach panel 7 to panels 8 and 9 with part A. 2.
- Page 9 STEP 11: 1. Attach part E2 to panels 8 and 9 with part I. STEP 12: 1. Install drawer 7 into the cabinet, ensure runners are correctly aligned.
- Page 10 STEP 13: Install Tip Kit 1. Attach part K to the back of panel 1 with part I. 2. Attach part K to the wall with part L. ① STEP 14: Assembly complete!
