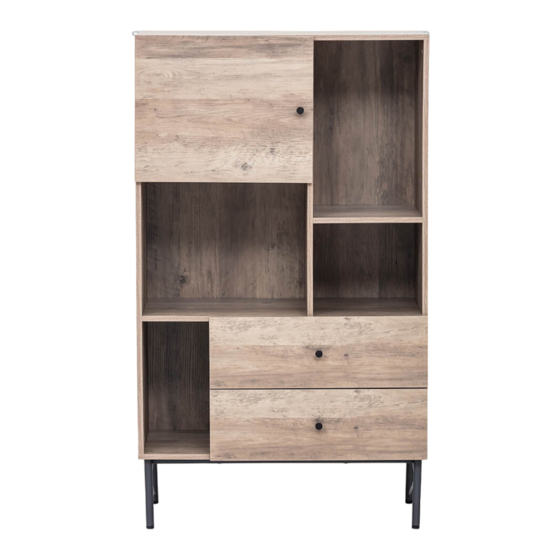

- Page 1 DEAN Tall Wide Bookcase ITEM CODE 75112 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M3.5x14mm 30pcs...
- Page 4 Top panel Door panel Left panel Left layer panel Bottom middle panel Drawer front panel Drawer left panel Right layer panel Up middle panel Low layer panel Right panel Drawer right panel Bottom panel Back panel Drawer back panel Drawer bottom panel Main frame Connection frame ②...
- Page 5 1. Insert part I into frame P1. 1. Attach connection frame P2 to frame P1 with part O.
- Page 7 STEP 5: 1. Insert parts A and G into the front and back of panel 8. STEP 6: 1. Attach panel 8 to panel 4 with parts A and G. 2. Attach panels 2 and 3 to panel 8 with parts A and G. 3.
- Page 8 STEP 7: 1. Insert parts A and G into panel 6. STEP 8: 1. Attach panel 6 to panels 2 and 4 with parts A and G. 2. Attach panel 9 to panels 3 and 4 with parts A and G.
- Page 9 STEP 9: 1. Slide panel 10 along slots of panels 6 and 9. STEP10: 1. Insert parts A and G into panels 1 and 5.
- Page 10 STEP 11: 1. Attach panel 5 to panels 6, 7 and 9 with parts A and G. 2. Attach panel 1 to panels 6, 8 and 9 with parts A and G. STEP 12: 1. Attach frames P1 and P2 to panel 5 with part B.
- Page 11 STEP 13: 1. Insert part H to panels 11 and 12 with part F. 2. Insert part A into panel 12. STEP 14: 1. Attach the right side of part M to panel 11 with part D. 2. Attach the left side of part M to panel 6 with part D.
- Page 12 STEP 15: 1. Attach panels 13 and 14 to panel 15 with part C. 2. Slide panel 16 along slots of panels 13 and 14. STEP 16: 1. Attach panel 12 to panels 13 and 14 with part A.
- Page 13 STEP 17: 1. Attach part E2 to panels 13 and 14 with part D. STEP 18: 1. Insert part L into panel 10. 2. Insert part K into panel 10 with part J.
- Page 14 STEP 19: 1. Install drawers into the cabinet, ensure runners are correctly aligned. STEP 20: Install Tip Kit 1. Attach part N to panel 1 with part D. 2. Attach part N to the wall with part P. ①...
- Page 15 STEP 21: Assembly complete!
