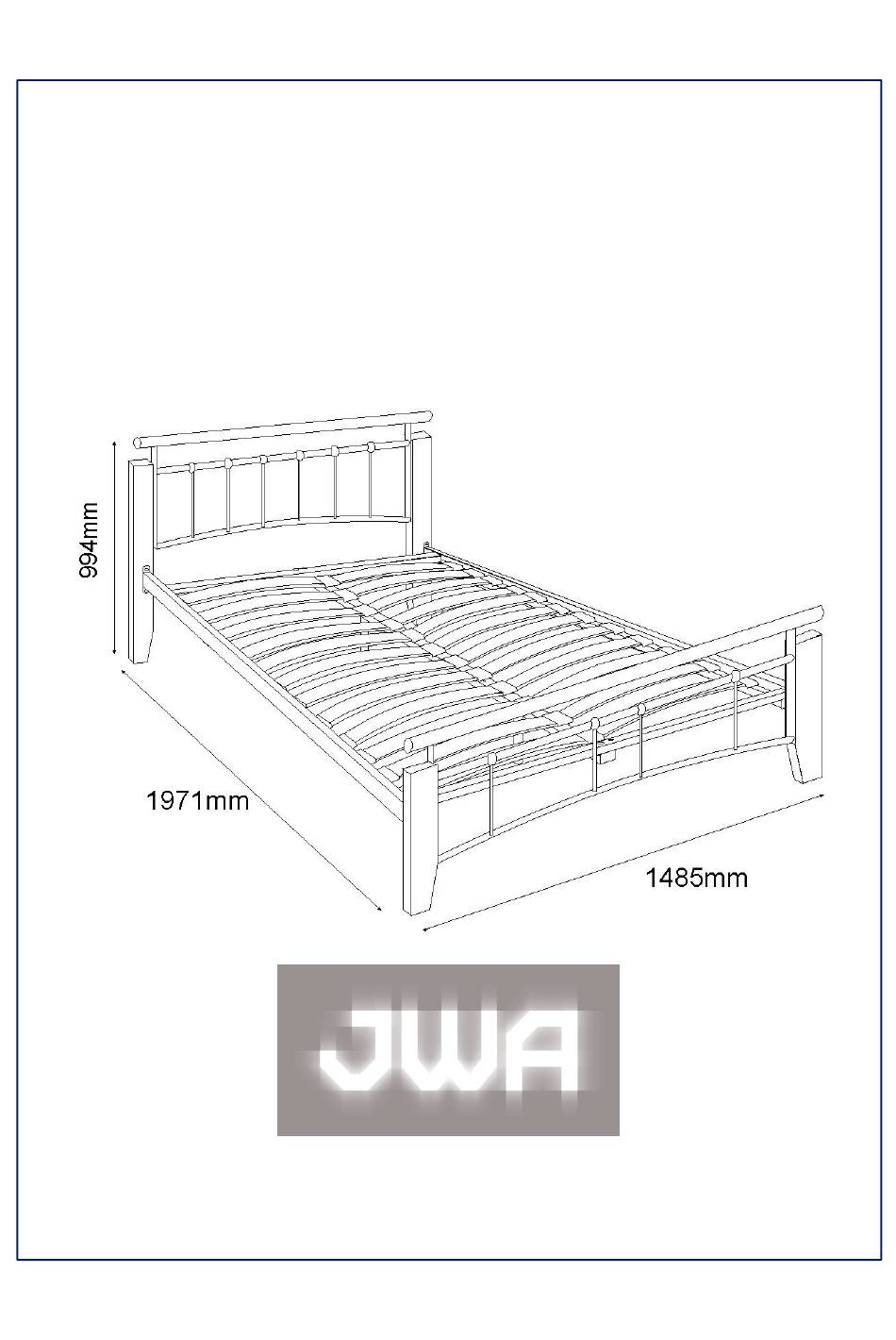

- Page 1 ASSEMBLY INSTRUCTION SAN BERNARDO DOUBLE BED 70590 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST 1 Headboard x 1pc Centre Rail x 1pc 2 Footboard x 1pc Support Leg x 2pcs 3 Head Post x 2pcs End Cap x 24pcs 4 Foot Post x 2pcs 10 Centre Cap x 12pcs 5 Siderail x 2pcs 5 Siderail x 2pcs 11 Slat (678mm) x 24pcs 11 Slat (678mm) x 24pcs...
- Page 4 STEP 1: Prepare a protected surface with a blanket or cardboard. • Attach headboard(1) to the head post(3). Secure with 2x bolt(G) • per side. Fasten with Allen Key(F). Repeat for the footboard(2) and foot post(4). • Connect a side rail(5) to the headboard and footboard. Secure •...
- Page 5 STEP 2: Attach the 2x supports(8) to the centre rail(7), as shown below. • Use 2x bolt(A) per leg, threaded from the top, and lock with nut(E). Fasten with allen key(F) and hold the nut with a pair of pliers. Attach the cross rails(6) near the headboard and footboard, as •...
- Page 6 STEP 3: Attach an end cap(9) onto every slat, 1 per slat(11). • Take 2x slats and cup the non capped end into either side of • the middle cap(10). Form 12x slat pairs. Attach the slat pairs to the bed as shown below. Push the caps •...

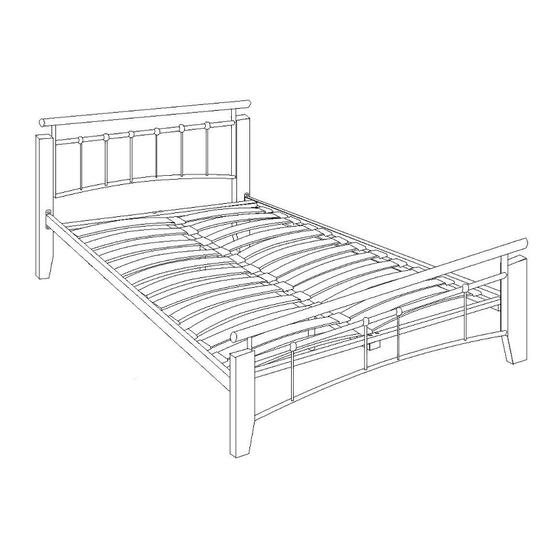

- Page 7 Assembly Is Complete...
- Page 8 PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
