OCTOBER 2003
GENERAL DESCRIPTION
The XRT73L04B, 4-Channel, DS3/E3/STS-1 Line In-
terface Unit is a low power CMOS version of the
XRT73L04A and consists of four independent line
transmitters and receivers integrated on a single chip
designed for DS3, E3 or SONET STS-1 applications.
Each channel of the XRT73L04B can be configured
to support the E3 (34.368 Mbps), DS3 (44.736 Mbps)
or the SONET STS-1 (51.84 Mbps) rates. Each
channel can be configured to operate in a mode/data
rate that is independent of the other channels.
In the transmit direction, each channel encodes input
data to either B3ZS (DS3/STS-1) or HDB3 (E3) for-
mat and converts the data into the appropriate pulse
shapes for transmission over coaxial cable via a 1:1
transformer.
In the receive direction, the XRT73L04B performs
equalization on incoming signals, performs Clock Re-
covery, decodes data from either B3ZS or HDB3 for-
mat, converts the receive data into TTL/CMOS for-
mat, checks for LOS or LOL conditions and detects
and declares the occurrence of Line Code Violations.
F
1. XRT73L04B B
IGURE
E3_(n)
RTIP_(n)
RRing_(n)
REQEN_(n)
LOSTHR
SDI
SDO
SClk
CS/(SR/DR)
REGR
TTIP_(n)
TRing_(n)
MTIP_(n)
MRing_(n)
DMO_(n)
Notes: 1. (n) = 0, 1, 2 , or 3 for respective Channels
2. Serial Processor Interface input pins are shared by the four Channels in HOST Mode and redefined in
Hardware Mode.
Exar
Corporation 48720 Kato Road, Fremont CA, 94538

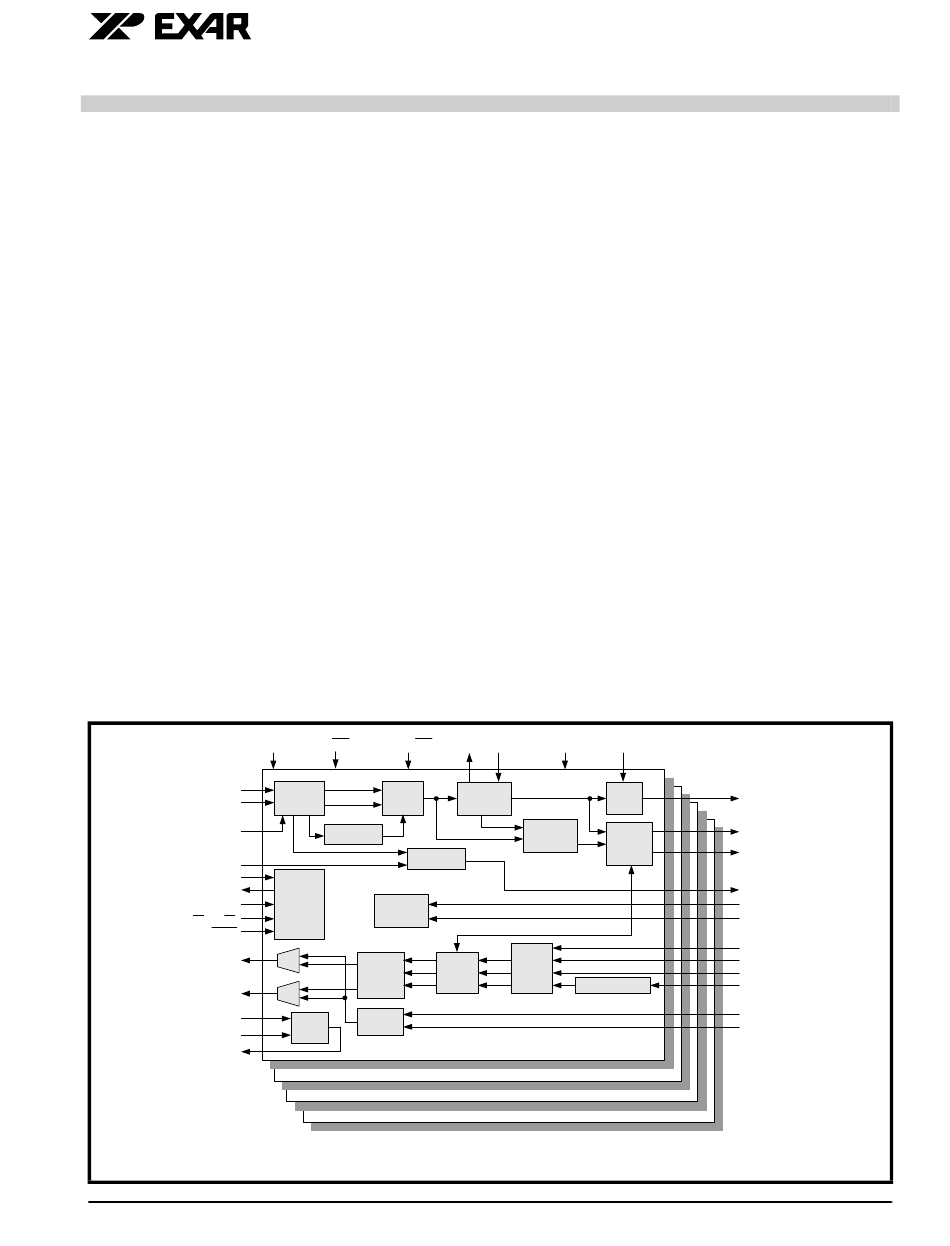

4 CHANNEL DS3/E3/STS-1 LINE INTERFACE UNIT
D
LOCK
IAGRAM
STS-1/DS3_(n)
Host/(HW)
RLOL_(n) EXClk_(n)
AGC/
Slicer
Equalizer
Peak
Detector
LOS Detector
Serial
Processor
Loop MUX
Interface
HDB3/
Pulse
B3ZS
Shaping
Encoder
Tx
Device
Control
Monitor
FEATURES
• Incorporates an improved Timing Recovery circuit
and is pin and functional compatible to XRT73L04A
• Meets E3/DS3/STS-1 Jitter Tolerance Require-
ments
• Contains a 4-Wire Microprocessor Serial Interface
• Full Loop-Back Capability
• Transmit and Receive Power Down Modes
• Full Redundancy Support
• Uses Minimum External components
• Single +3.3V Power Supply
• Low Power CMOS design
• 5V tolerant I/O
• -40°C to +85°C Operating Temperature Range
• Available in a Thermally Enhanced 144 pin LQFP
package
APPLICATIONS
• Digital Cross Connect Systems
• CSU/DSU Equipment
• Routers
• Fiber Optic Terminals
• Multiplexers
• ATM Switches
RxOFF
RxClkINV
Clock
Invert
Recovery
Data
HDB3/
Recovery
B3ZS
Decoder
Transmit
Logic
Duty Cycle Adjust
Channel 0
Channel 1
Channel 2
Channel 3
•
•
(510) 668-7000
FAX (510) 668-7017
XRT73L04B
REV. 1.0.1
RxClk_(n)
RPOS_(n)
RNEG_(n)/
(LCV_(n))
RLOS_(n)
LLB_(n)
RLB_(n)
TAOS_(n)
TPData_(n)
TNData_(n)
TxClk_(n)
TxLEV_(n)
TxOFF
•
www.exar.com
