Exar XRT73LC03A Manual

3 channel ds3/e3/sts-1 line interface unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OCTOBER 2003
GENERAL DESCRIPTION
The XRT73LC03A, 3-Channel, DS3/E3/STS-1 Line
Interface Unit is a low power CMOS version of the
XRT73L03A and consists of three independent line
transmitters and receivers integrated on a single chip
designed for DS3, E3 or SONET STS-1 applications.
Each channel of the XRT73LC03A can be configured
to support the E3 (34.368 Mbps), DS3 (44.736 Mbps)
or the SONET STS-1 (51.84 Mbps) rates. Each
channel can be configured to operate in a mode/data
rate that is independent of the other channels.
In the transmit direction, each channel encodes input
data to either B3ZS (DS3/STS-1) or HDB3 (E3) for-
mat and converts the data into the appropriate pulse
shapes for transmission over coaxial cable via a 1:1
transformer.
In the receive direction, the XRT73LC03A performs
equalization on incoming signals, performs Clock Re-
covery, decodes data from either B3ZS or HDB3 for-
mat, converts the receive data into TTL/CMOS for-
mat, checks for LOS or LOL conditions and detects
and declares the occurrence of Line Code Violations.

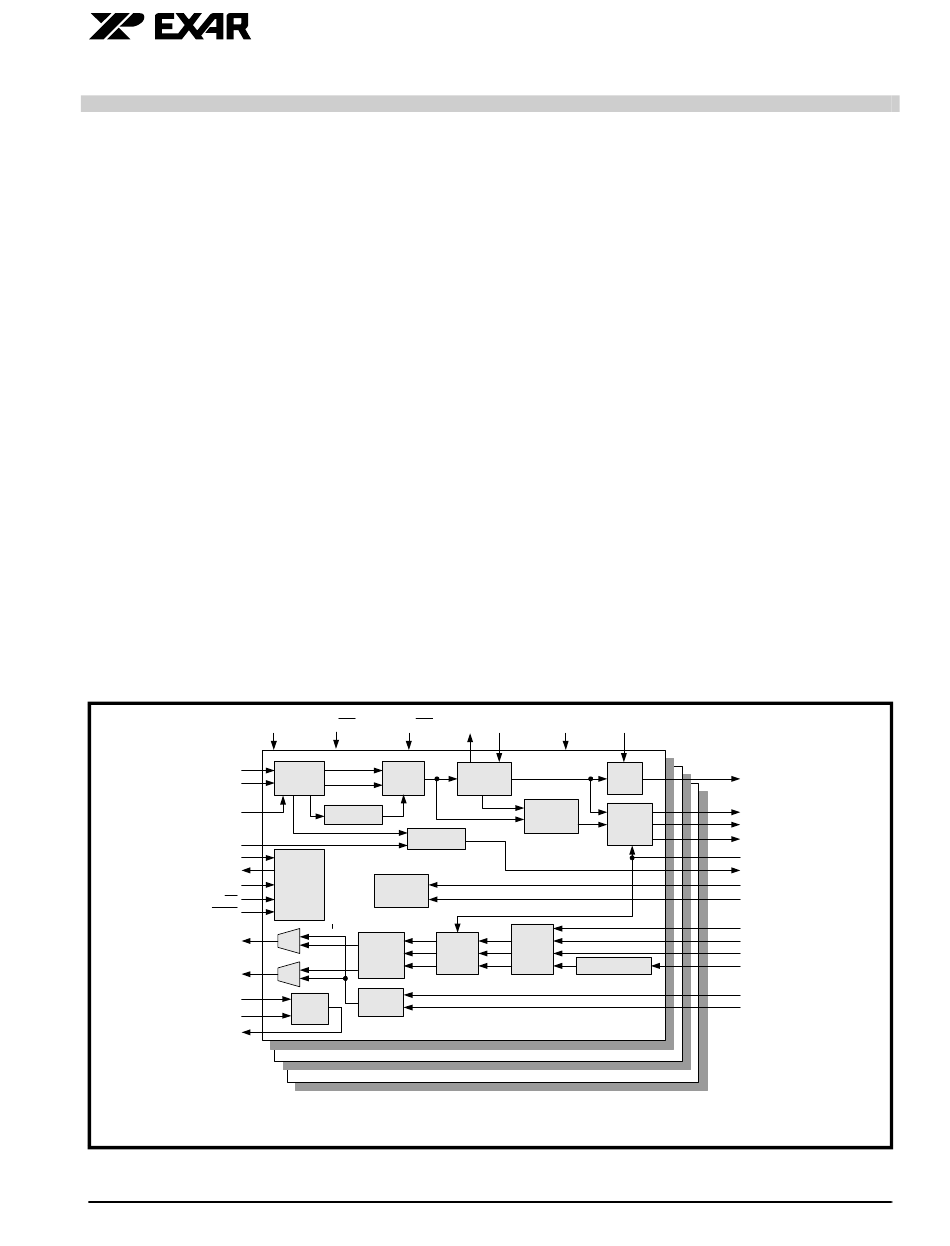

F
1. XRT73LC03A B
IGURE
E3_(n)
RTIP_(n)
RRing_(n)
REQEN_(n)
LOSTHR_(n)
SDI
SDO
SClk
CS
REGR
TTIP_(n)
TRing_(n)
MTIP_(n)
MRing_(n)
DMO_(n)
Notes: 1. (n) = 0, 1, or 2 for respective Channels
2. Serial Processor Interface input pins are shared by the three Channels in HOST Mode and redefined in Hardware Mode.
Exar
Corporation 48720 Kato Road, Fremont CA, 94538
3 CHANNEL DS3/E3/STS-1 LINE INTERFACE UNIT
D
LOCK
IAGRAM
STS-1/DS3_(n)
Host/(HW)
RLOL_(n) EXClk_(n)
AGC/
Slicer
Equalizer
Peak
Detector
LOS Detector
Serial
Processor
Loop MUX
Interface
HDB3/
Pulse
B3ZS
Shaping
Encoder
Tx
Device
Control
Monitor
XRT73LC03A
FEATURES
• Incorporates an improved Timing Recovery circuit
and is pin and functional compatible to XRT73L03A
• Meets E3/DS3/STS-1 Jitter Tolerance Require-
ments
• Contains a 4-Wire Microprocessor Serial Interface
• Full Loop-Back Capability
• Transmit and Receive Power Down Modes
• Full Redundancy Support
• Uses Minimum External components
• Single +3.3V Power Supply
• Low power CMOS design
• 5V tolerant I/O
• -40°C to +85°C Operating Temperature Range
• Available in a 120 pin LQFP package
APPLICATIONS
• Digital Cross Connect Systems
• CSU/DSU Equipment
• Routers
• Fiber Optic Terminals
• Multiplexers
• ATM Switches
RxOFF
RxClkINV
Clock
Invert
Recovery
Data
HDB3/
Recovery
B3ZS
Decoder
Transmit
Logic
Duty Cycle Adjust
Channel 0 - (n) = 0
Channel 1 - (n) = 1
Channel 2 - (n) = 2
•
•
(510) 668-7000
FAX (510) 668-7017
REV. 1.0.1
RxClk_(n)
RPOS_(n)
RNEG_(n)
LCV_(n)
ENDECDIS
RLOS_(n)
LLB_(n)
RLB_(n)
TAOS_(n)
TPData_(n)
TNData_(n)
TxClk_(n)
TxLEV_(n)
TxOFF_(n)
•
www.exar.com
