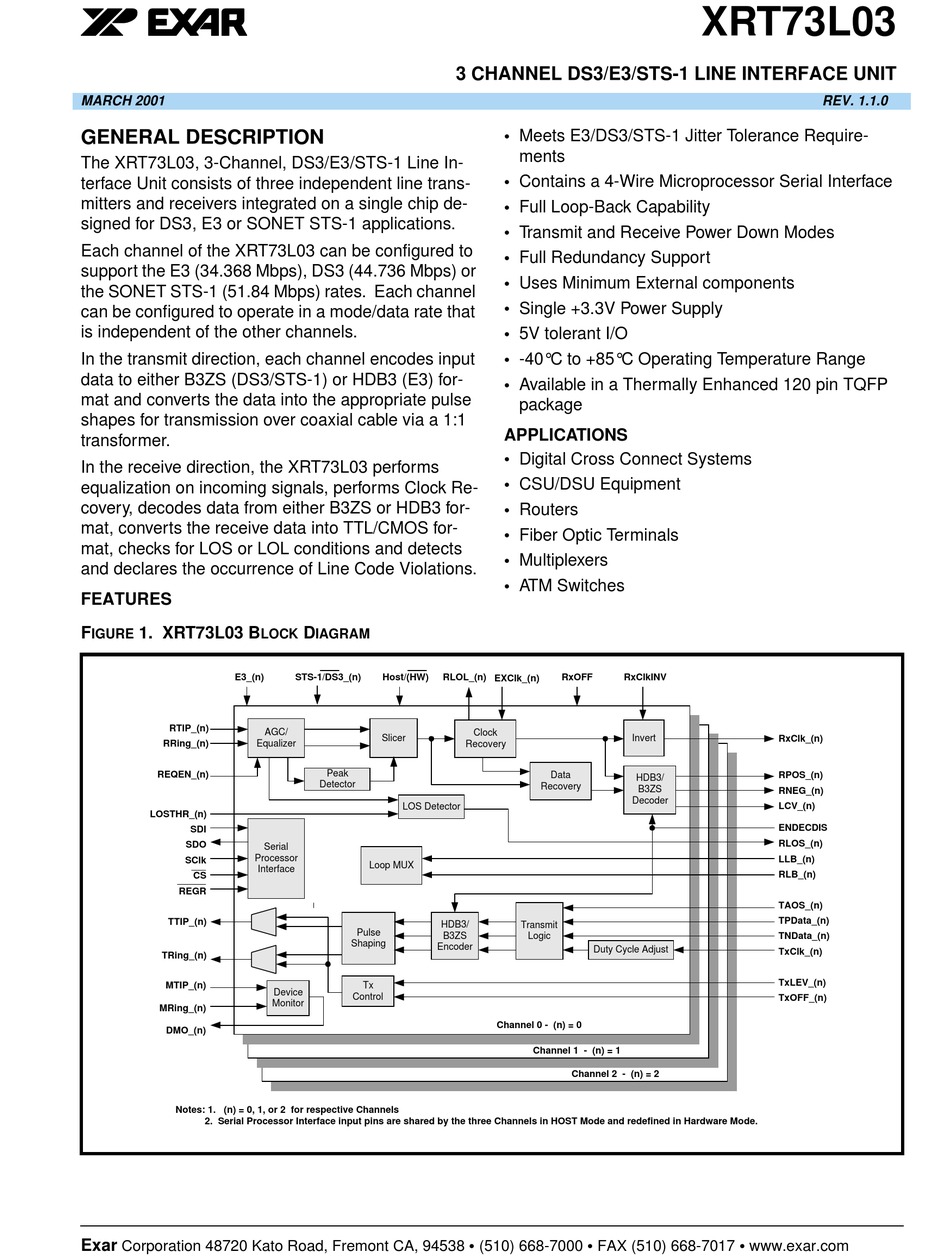

GENERAL DESCRIPTION

The XRT73L03, 3-Channel, DS3/E3/STS-1 Line In-

terface Unit consists of three independent line trans-

mitters and receivers integrated on a single chip de-

signed for DS3, E3 or SONET STS-1 applications.

Each channel of the XRT73L03 can be configured to

support the E3 (34.368 Mbps), DS3 (44.736 Mbps) or

the SONET STS-1 (51.84 Mbps) rates. Each channel

can be configured to operate in a mode/data rate that

is independent of the other channels.

In the transmit direction, each channel encodes input

data to either B3ZS (DS3/STS-1) or HDB3 (E3) for-

mat and converts the data into the appropriate pulse

shapes for transmission over coaxial cable via a 1:1

transformer.

In the receive direction, the XRT73L03 performs

equalization on incoming signals, performs Clock Re-

covery, decodes data from either B3ZS or HDB3 for-

mat, converts the receive data into TTL/CMOS for-

mat, checks for LOS or LOL conditions and detects

and declares the occurrence of Line Code Violations.

FEATURES

1. XRT73L03 B

IGURE

LOCK

E3_(n)

RTIP_(n)

RRing_(n)

Equalizer

REQEN_(n)

LOSTHR_(n)

SDI

SDO

Processor

SClk

Interface

REGR

TTIP_(n)

TRing_(n)

MTIP_(n)

MRing_(n)

DMO_(n)

Notes: 1. (n) = 0, 1, or 2 for respective Channels

2. Serial Processor Interface input pins are shared by the three Channels in HOST Mode and redefined in Hardware Mode.

Exar

Corporation 48720 Kato Road, Fremont CA, 94538

IAGRAM

STS-1/DS3_(n)

Host/(HW)

RLOL_(n) EXClk_(n)

AGC/

Slicer

Peak

Detector

LOS Detector

Serial

Loop MUX

HDB3/

Pulse

B3ZS

Shaping

Encoder

Device

Control

Monitor

3 CHANNEL DS3/E3/STS-1 LINE INTERFACE UNIT

• Meets E3/DS3/STS-1 Jitter Tolerance Require-

ments

• Contains a 4-Wire Microprocessor Serial Interface

• Full Loop-Back Capability

• Transmit and Receive Power Down Modes

• Full Redundancy Support

• Uses Minimum External components

• Single +3.3V Power Supply

• 5V tolerant I/O

• -40°C to +85°C Operating Temperature Range

• Available in a Thermally Enhanced 120 pin TQFP

package

APPLICATIONS

• Digital Cross Connect Systems

• CSU/DSU Equipment

• Routers

• Fiber Optic Terminals

• Multiplexers

• ATM Switches

RxOFF

RxClkINV

Clock

Invert

Recovery

Data

Recovery

Decoder

Transmit

Logic

Duty Cycle Adjust

Channel 0 - (n) = 0

Channel 1 - (n) = 1

Channel 2 - (n) = 2

•

(510) 668-7000

FAX (510) 668-7017

XRT73L03

RxClk_(n)

RPOS_(n)

HDB3/

B3ZS

RNEG_(n)

LCV_(n)

ENDECDIS

RLOS_(n)

LLB_(n)

RLB_(n)

TAOS_(n)

TPData_(n)

TNData_(n)

TxClk_(n)

TxLEV_(n)

TxOFF_(n)

•

www.exar.com

REV. 1.1.0
