Quick Start Guide
AM-19201080NTZQW-T01
CONTENTS
page 2
Part 1: Connecting the driver card to the display
page 2
Part 2: Connecting the touch panel
© IGS Version V1
page 3
page 5
1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM-19201080NTZQW-T01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IDS AM-19201080NTZQW-T01

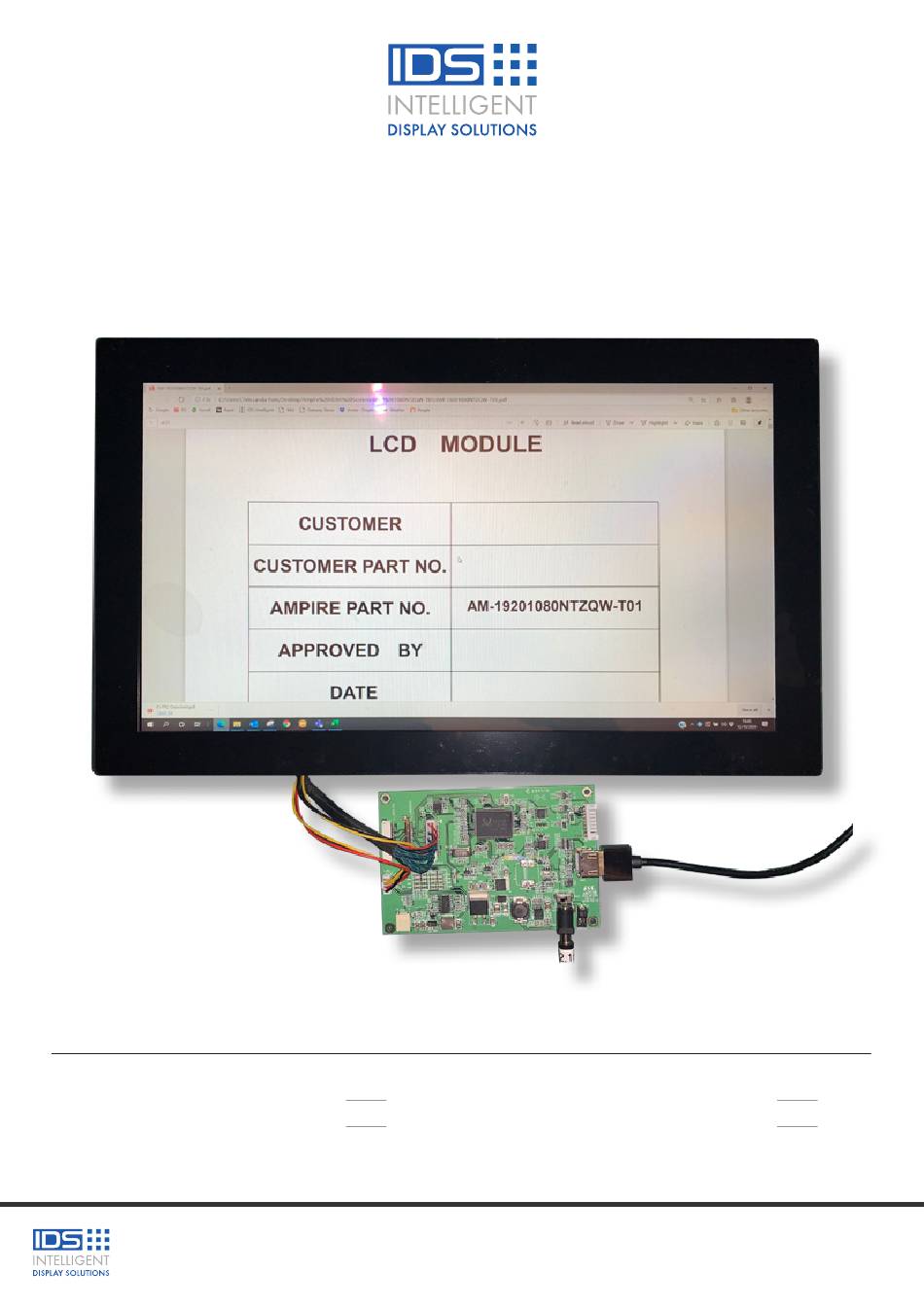

  • Page 1 © IGS Version V1 Quick Start Guide AM-19201080NTZQW-T01 CONTENTS Kit Content page 2 Part 1: Connecting the driver card to the display page 3 Required Parts not Supplied in Kit page 2 Part 2: Connecting the touch panel page 5 +44 (0)1635 294600 | info@i-lcd.com | www.i-lcd.com...
  • Page 2 © IGS Version V1 KIT CONTENTS Item Description Display with touch panel Driver card USB adapter cable from IDS Ltd REQUIRED PARTS NOT SUPPLIED IN THE KIT Item Description RS Part Number 12V 2A Power supply with 2.1mm x 5.5mm DC Jack...
  • Page 3 © IGS Version V1 PART 1: CONNECTING THE DRIVER CARD TO THE DISPLAY Connect the LVDS connector from the driver card to the back of the LCD. Take care to line up the pins and use the correct orientation as per the picture below. Connect the backlight connector from the driver card to the back of the LCD.
  • Page 4 © IGS Version V1 CONNECT THE DRIVER CARD TO THE POWER SUPPLY AND HDMI SOURCE Connect the power connector to the 12V DC power supply using a 2.1mm connector with centre positive and barrel negative. Connect the HDMI connector to your source. +44 (0)1635 294600 | info@i-lcd.com | www.i-lcd.com Intelligent Display Solutions, Unit 2, Berkshire Business Centre, Berkshire Drive, Thatcham, Berkshire, RG19 4EW...
  • Page 5 © IGS Version V1 PART 2: CONNECTING THE TOUCH PANEL The display has a PCB with the touch controller. The PCB has a connector with the USB connections. +44 (0)1635 294600 | info@i-lcd.com | www.i-lcd.com Intelligent Display Solutions, Unit 2, Berkshire Business Centre, Berkshire Drive, Thatcham, Berkshire, RG19 4EW 5 of 7 A division of Intelligent Group Solutions Ltd...
  • Page 6 © IGS Version V1 PART 2: CONNECTING THE TOUCH PANEL Note the correct orientation and then push the USB adapter cable connector into the display touch connector. Insert the USB connector into your PC The touch screen will be automatically recognised and installed by Windows 10. +44 (0)1635 294600 | info@i-lcd.com | www.i-lcd.com Intelligent Display Solutions, Unit 2, Berkshire Business Centre, Berkshire Drive, Thatcham, Berkshire, RG19 4EW...
  • Page 7 The values contained in this data sheet can change due to technical innovation. Any such changes will be made without separate notification. If you require further assistance or have a specific or custom enquiry, please contact the IDS team via email or phone. Alternatively please visit our website for more product info and to see our full range.
