Winegard BMK-300 Quick Start Manual

Winegard Multi-Use Mount Kit BMK-300
®
SET-UP
Hitch mount (required, not included)
CONTENTS:
• bumper sleeve
• bumper plate
• ground mount plate
• 4 large carriage bolts
• 4 small carriage bolts
• 4 lock washers
• 4 nuts
Works with Winegard approved products
and accessories. For complete list see
Winegard website.
products will void Product Warranty.
For help, send an email to help@winegard.com or call 1-800-788-4417.
For more
product details,
visit Winegard's
website.
Winegard Company
2736 Mt. Pleasant St.
Printed in U.S.A. © 2022 Winegard Company
a
b
a
c
a
b
Use with any other
|
Burlington, IA 52601
1

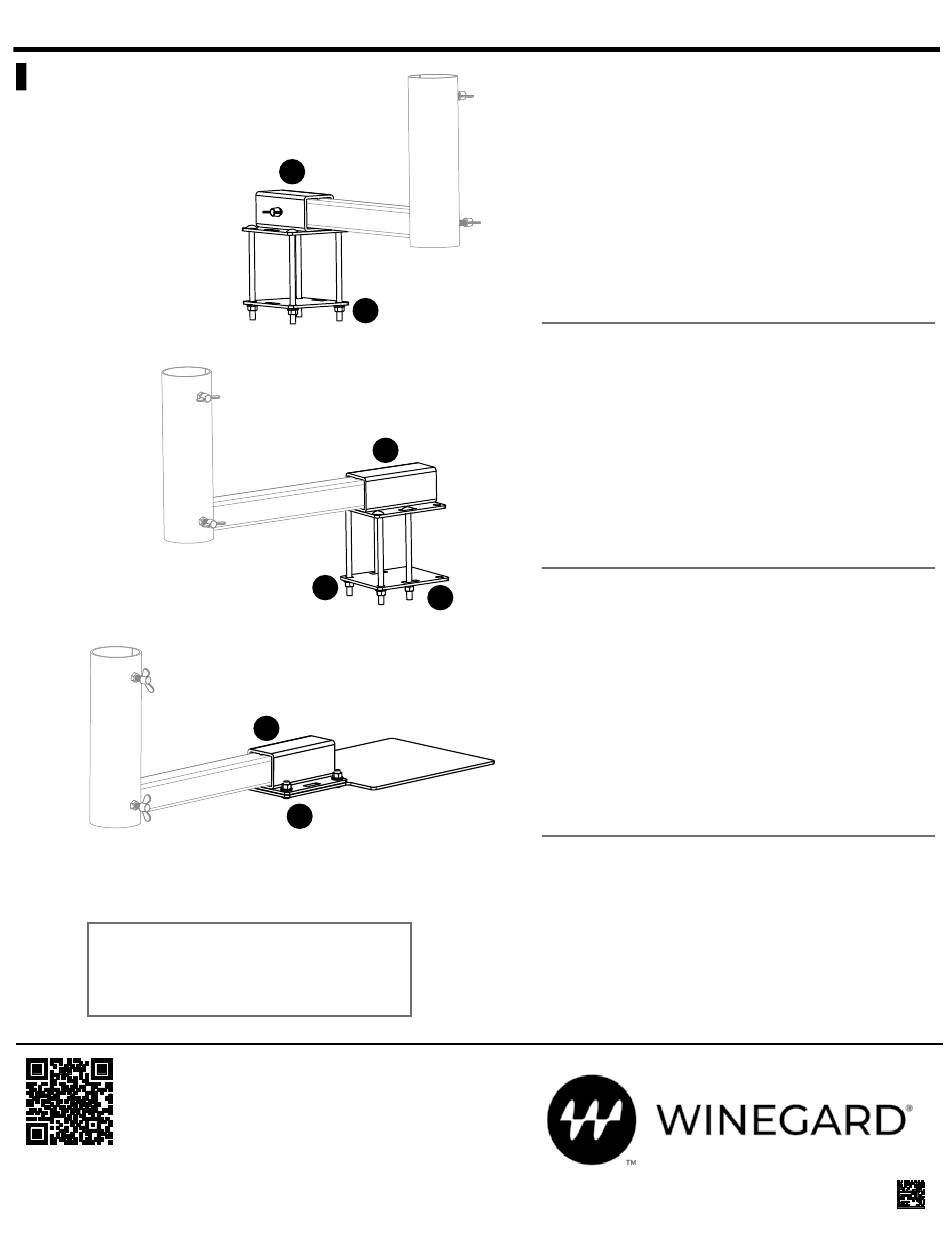

BUMPER MOUNT (OPTION 1)
PLACE bumper sleeve on top of bumper (locking
hole will need to be on left side) (a). Insert a large
carriage bolt in one of the four corner holes.
2
PLACE bumper plate on bottom side of bumper
allowing end of carriage bolt to enter one of the four
corner holes. Place washer and nut onto carriage
bolt and hand tighten (b). Repeat on other 3 corners,
tighten nuts on bolts.
1
FRAME MOUNT (OPTION 2)
PLACE bumper sleeve on top of frame (locking
hole will need to be on left side) (a). Insert a large
carriage bolt in one of the two middle holes (b).
2
PLACE bumper plate on bottom side of frame
allowing end of carriage bolt to enter one of the two
middle holes. Place washer and nut onto carriage
bolt and hand tighten (b). Repeat on 2 front corners,
tighten nuts on bolts (c).
1
GROUND MOUNT (OPTION 3)
b
PLACE one small carriage bolt through bottom of
the ground mount plate. Place bumper sleeve on
top of ground mount plate (locking hole will need to
be on left side) (a).
2
PLACE washer and nut onto carriage bolt and hand
tighten (b). Repeat on other 3 corners, tighten nuts
on bolts. Unit is now ready to drive over.
WARNING: DO NOT allow tire to come in contact with bumper
sleeve. Flat solid ground required.
3
FOR ALL OPTIONS
You are now ready to install HMK-300 kit and
TPLE-15 kit (not included).
WARNING: INSTALLATION OF THIS PRODUCT NEAR POWER LINES
IS DANGEROUS. Watch out for overhead power lines. Check distance
to power lines before installing. Stay a minimum of twice the length of
the antenna plus the length of the mast from all power lines. Pole must
be removed prior to vehicle/camper moving. Failure to do so may cause
damage or death. This product is intended to be used with Winegard
Approved product only. Any other product will void Product Warranty.
Quick Start Guide
2452493 Rev7/22
