WINEGARD
®
OPERATION MANUAL
Made in the U.S.A.
Carryout
®

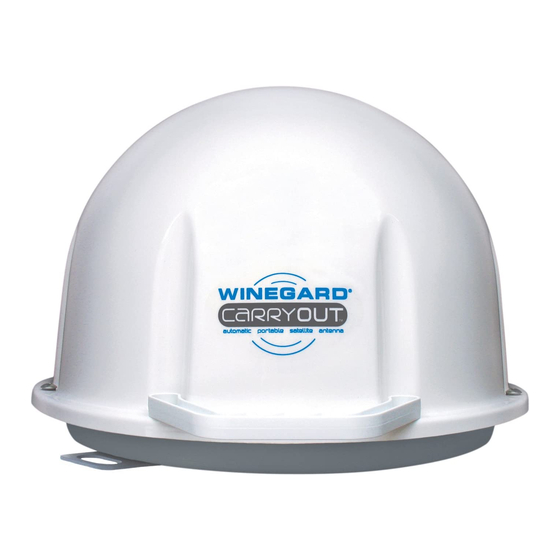

Automatic Portable
Satellite TV Antenna
Model GM-1518
PRODUCT REGISTRATION
Please register your Winegard product by filling
Serial No.
out and returning the Product Registration card
provided or by completing the online registration
form at http://www.winegard.com/registration
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
800/788-4417 • FAX 319/758-5854 • www.winegard.com
Printed in U.S.A. © Winegard Company 2009 2452172 Rev5, 4/29/09
