Nova 9072 Quick Start Manual

HOW TO
ASSEMBLE YOUR

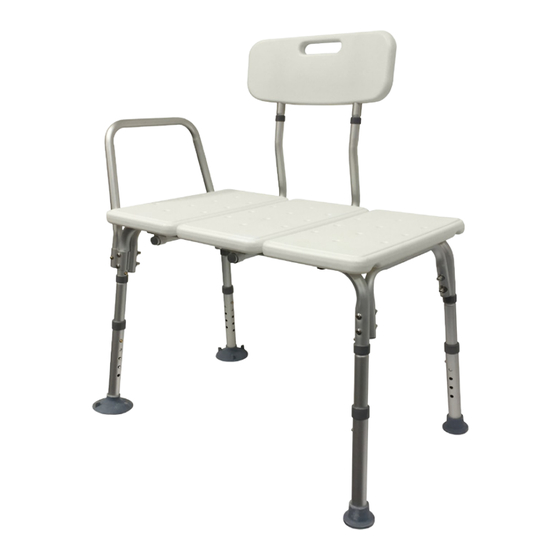

Transfer Bench
Item # 9072/9072-R
Capacity not to exceed 300
1
Remove all parts from box:
(Be sure all parts are included before assembling)
a. (1) Bench
b. (1) Backrest
c. (2) Backrest extensions
d. (2) Legs w/extensions & small suction tips
e. (2) Legs w/extensions & large suction tips
f. (1) Seat handle
2
Place the bench with the seat facing down on a level
surface. Insert the 2 legs with LARGE suction tips into
the end of the frame that has the seat handle slots.
Depress the brass button at the top of the leg and
push the leg into the frame. Ensure that the brass
button "clicks" and locks into position. Following the
same procedure, insert the 2 legs with small suction
tips at the other end of the bench.
3
Insert the backrest extensions into the backrest
tubes. Depress the brass button on the backrest
tube and ensure that the brass button "clicks"
and locks into position.
4
Turn the bench on its side and insert the backrest extensions
into the 4 tubing slots under the seat. Depress the brass
button on the backrest extensions and ensure that the brass
buttons "click" and lock into position from the top tubing
slots . NOTE: The backrest can slide on either side of the
bench depending on the direction the you will be sitting.
5
Place the bench upright so that it is resting evenly on all
four legs and insert the seat handle into the seat handle
slots. Depress both brass buttons on each side of the handle
and push down until the brass buttons "click" and lock into
position.
6
To adjust the legs and seat height, depress the brass push
button on the legs and slide each leg to a desired height.
Be sure all 4 legs are level, stable, and all push buttons fully
engaged before using. NOTE: The 2 legs with LARGE suction
tips should be used inside of the shower.
No tools required
Quick Assembly
Easy to follow
step by step
instructions
a.
b.
c.
Seat handle slots
f.
e.
d.
