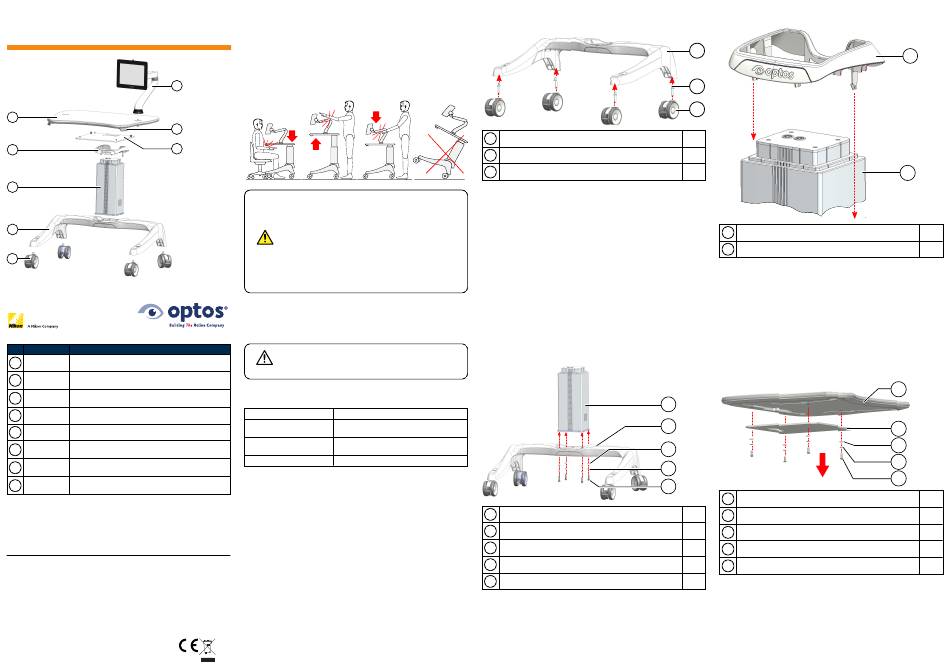

Optos Table
Installation Guide
6
1
7
8
2
3
4
5
No. Part
Description
Table top
Location for equipment.
1
Column
Plastic cover used to protect the base and column.
2
shroud
Table column
The height of the table column is adjusted using the
3
table control switches.
Table base
The wide table base provides wheelchair access.
4
Wheels
Four lockable wheels.
5
Monitor
An adjustable support arm for a monitor. A monitor is not
6
Support Arm
supplied with the table.
Table control
Buttons on the table control switches used for
7
swtiches
controlling the table height adjustment.
Table mount
Used for providing a stable mounting surface for the
8
plate
table top.
Copyright 2017, Optos plc. All rights reserved.
Optos plc. products are protected by patents and patent applications listed at
optos.com/patents.
The information contained within this document is subject to change without notice. The
latest version of this information can be found at optos.com.
Copyright
This document may only be used for your personal, non-commercial use. This document
and all its contents (including without limitation, all text, formats, graphics and logos) are the
property of Optos plc. and are protected from unauthorized copying and dissemination by the
Copyright, Designs and Patents Act 1988 (as amended), by various intellectual property
laws and by international conventions.
Part Number: G-00144/4GME
Print Date: July 2017
Warnings and cautions
EN
The table must be operated within the safety parameters and instructions
defined in the Optos Table User Guide .
If you have any questions regarding the correct use of the table, please contact
your Optos representative before attempting to operate the table.
Please keep this document in a safe place for future reference.
Operational safety
Ensure the patient or operator's arm is
NOT
impacted when the table height is adjusted.
Do
NOT
tilt the table. Ensure the table is used on a flat and even
surface.
You
MUST
ensure that there are no obstructions when
adjusting the height of the table.
If the table continues to move without a button being pressed,
WARNING
move the patient away from the table.
If the table continues to move after you have pressed a button,
stop the table by pressing the button that moves the table in the
opposite direction. Try either button. If this does
remove the plug from the mains socket.
If you suspect the table is faulty, contact your Optos
representative.
In a medical environment, the Optos Table should be installed
CAUTION
by Optos trained personnel or by your site biomedical team.
Tools
Hex key
5mm
Torque driver (suitable up to
6mm Hex key
12Nm)
Open-ended spanner or
17mm
wrench
Phillips screwdriver
#2 bit
1. Fit wheels to base
1
Base
2
Wheel posts
3
Wheels
1. Insert the wheel posts to the base.
trapped or
2. Tighten the wheel posts using the spanner or wrench.
3. Fully click the wheels to the wheel posts.
4. Turn over the base assembly and lock all wheels.
5. Ensure the base is level and all the wheels are in contact with the floor.
NOT
work,
2. Fit column to base
1
Column
2
Base
M8 plain washers
3
4
M8 spring lock washers
5
M8 x 30 Hex socket head cap screws
1. Position the column on the base.
2. Insert all screws with washers and hand-tighten.
3. Tighten screws to 12Nm.
3. Fit column shroud
1
2
3
1 off
4 off
4 off
1
Shroud
2
Column
1. Carefully slide the shroud down over the column.
2. Ensure the shroud clicks into the base.
4. Remove table mount plate from
table top
1
2
3
4
5
Table top
1
1 off
2
Table mount plate
1 off
3
M8 plain washers
4 off
4
M8 spring lock washers
4 off
M8 x 20 Hex socket button head screws
5
4 off
1. The table mount plate is supplied, fitted to the table top for packing
purposes only.
2. Remove and retain all screws and washers.
3. Remove and retain the table mount plate.
1
2
1 off
1 off
1
2
3
4
5
1 off
1 off
4 off
4 off
4 off
