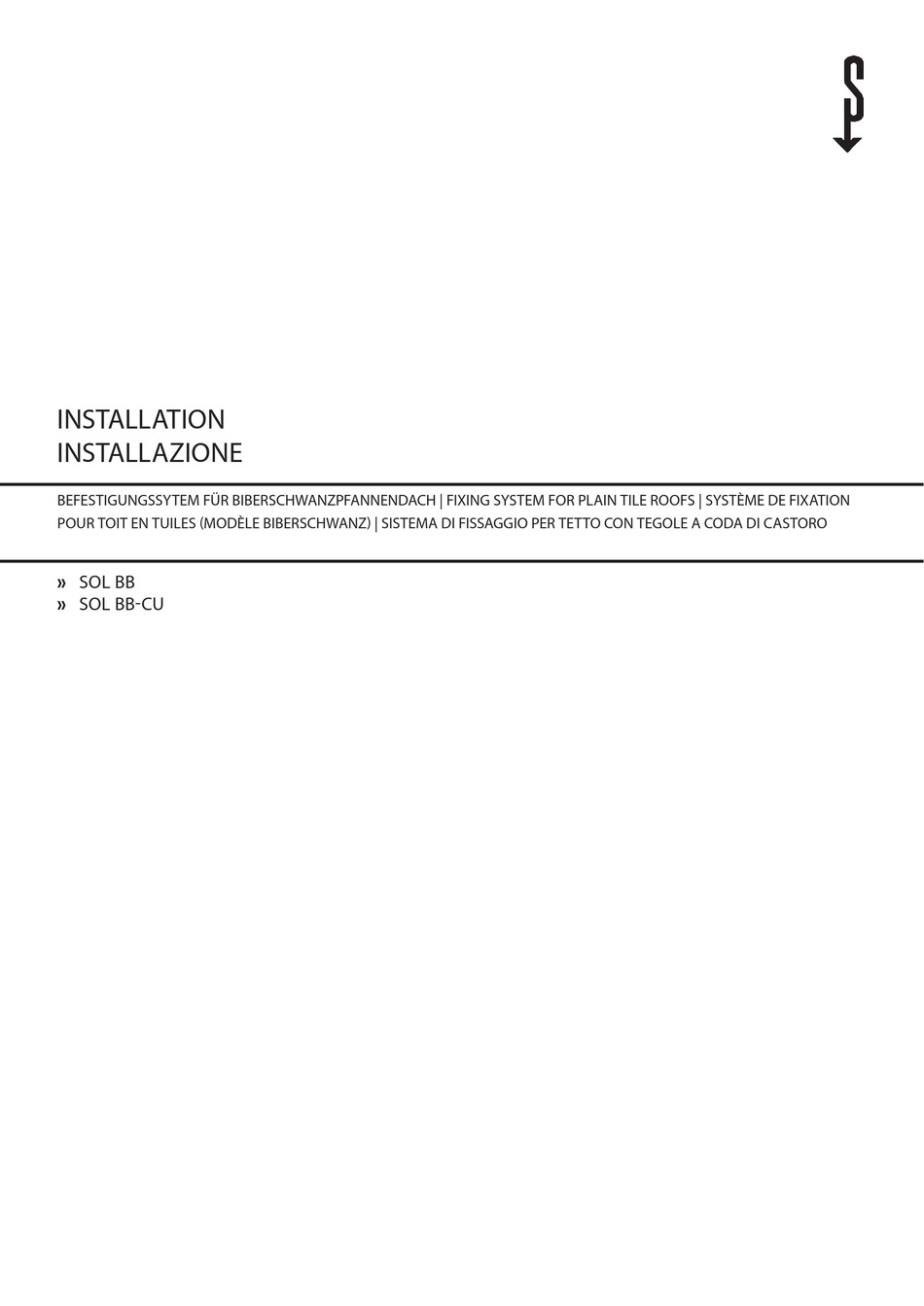

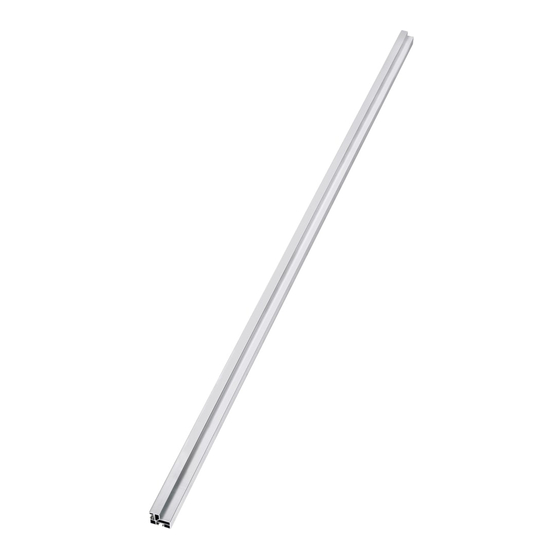

- Page 1 INSTALLATION INSTALLAZIONE BEFESTIGUNGSSYTEM FÜR BIBERSCHWANZPFANNENDACH | FIXING SYSTEM FOR PLAIN TILE ROOFS | SYSTÈME DE FIXATION POUR TOIT EN TUILES (MODÈLE BIBERSCHWANZ) | SISTEMA DI FISSAGGIO PER TETTO CON TEGOLE A CODA DI CASTORO á SOL BB á SOL BB-CU...
-
Page 2: Table Of Contents
Installing the collector strip ___________________ 38 Connecting up the mounting frames ___________ 39 Checking the screws _________________________ 39 Positioning the collectors _____________________ 39 Securing the collector ________________________ 39 Lightning protection ________________________ 39 Warranty and environment __________________ 39 SOL BB | 21... -
Page 3: General Information
Installation with these fixing accessories is only per- mitted up to a height of 20 metres. Appliance disposal f This symbol indicates that you have to do something. The action you need to take is described step by step. 22 | SOL BB... -
Page 4: Product Description
¼ ® Mounting frame SOL R1 230169 Mounting frame SOL R2 230170 Frame connection kit SOL RV* 230171 Fixing set, plain tile SOL BB 230190 Frame supports 15° to 30° SOL RA 230173 Tù|ê êù¼ © ¼ ® › ¼... -
Page 5: Standard Delivery
INSTALLATION PRODUCT DESCRIPTION Standard delivery 3.1.1 Fixing set, plain tile SOL BB/SOL BB-Cu ê ê ¼ › ê ê ¼ ZH< ZH< é Fixing plate Roof hooks Collector strip M10 nut M10x20 screw M10 washer For each BB/BB-Cu fixing kit, provide at least four wood screws (8/80) on site. -
Page 6: Preparing For Installation
Observe the collector installa- tion instructions. f Observe the following when choosing the securing point - existing air vent tiles and vents. - the roof outlets for the hydraulic and electrical connec- tions of the collectors. SOL BB | 25... -
Page 7: On End
Mounting frame SOL R2 230170 Frame connection kit SOL RV* 230171 Fixing set, plain tile SOL BB/SOL BB-Cu 230190/ 230191 * when intending to interconnect the frames of individual hydraulic assemblies, the number of frame connecting kits ordered must match this require- ment. -
Page 8: Fitting Roof Hook
Fit the profile rail by pushing the inserted screws through f Tie a guide line between the outer roof hooks of the the second hole in the collector strip. planned collector array. Align any other roof hooks to this. f Replace the roof tiles. SOL BB | 27... -
Page 9: Connecting Up The Mounting Frames
Where several mounting frames are used, they should be con- nected with frame connection strips. Note Insert the screws into the side of the profile rail chan- nel before installing the adjacent profile rail. 5 Profile rails 13 Frame connection strip 28 | SOL BB... -
Page 10: On End With Support
Mounting frame SOL R2 230170 Frame connection kit SOL RV* 230171 Fixing set, plain tile SOL BB/SOL BB-Cu 230190/ 20191 Frame support 15° to 30° SOL RA 230173 * When intending to interconnect the frames of individual hydraulic assemblies, the number of frame connecting kits ordered must match this require- ment. -
Page 11: Fitting Roof Hook
Align the roof hooks. Use the support plate to compen- sate differences in height. f Tie a guide line between the outer roof hooks of the planned collector array. Align any other roof hooks to this. f Replace the roof tiles. 30 | SOL BB... -
Page 12: Installing Profile Rails
After fitting one support, fit the collector strip to the L-brackets. f Secure the collector strip to the upper roof hook through a suitable slot. 3 Collector strip 5 Profile rail 8 M10 nut 9 M10x20 screw SOL BB | 31... -
Page 13: Installing The Collector Strip
5 Profile rails 13 Frame connection strip 6.8 Checking the screws f Check all screw connections and retighten a little if required. 6.9 Positioning the collectors f Observe the collector installation instructions. 32 | SOL BB... -
Page 14: Across Next To Each Other
Mounting frame SOL R1 W 230920 Frame connection kit SOL RV* 230171 Fixing set, plain tile SOL BB/SOL BB-Cu 230190/ 230191 * When intending to interconnect the frames of individual hydraulic assemblies, the number of frame connecting kits ordered must match this requirement. -
Page 15: Fitting Roof Hook
Secure each roof hook to the roof rafter using at least two woodscrews. 3 Collector strip 4 Profile rail The upper slot and the lowest hole in the collector strip are intended for securing the profile rails. 34 | SOL BB... -
Page 16: Connecting Up The Mounting Frames
Secure the locking bracket with an M10 nut. 4 Profile rail 9 M10x20 screw f Fit a nut to the screw at the bottom of the collector strip. f Secure the collector accordingly with one locking bracket to the top profile rail. SOL BB | 35... -
Page 17: Side By Side Across With Support
Mounting frame SOL R1 W 230920 Frame connection kit SOL RV* 230171 Fixing set, plain tile SOL BB/SOL BB-Cu 230190/ 230191 Frame supports 15° to 30° SOL RA 230173 * When intending to interconnect the frames of individual hydraulic assemblies, the number of frame connecting kits ordered must match this require- ment. -
Page 18: Fitting Roof Hook
Replace the roof tiles. bracket must be at the top. f Secure the short side of the second L-bracket to the short side of the L-bracket fitted to the roof hook. Use the M6 screw, washer and nut. SOL BB | 37... -
Page 19: Installing The Collector Strip
Secure the collector strip through the second hole with 4 Profile rail the L-bracket on the lower roof hook. 9 Screw M10 f Secure the collector strip through a suitable slot to the upper L-bracket of the support. 38 | SOL BB... -
Page 20: Connecting Up The Mounting Frames
Insert an M10x20 screw into the outer channel of the pro- file rail. f Fit the locking bracket in position. f Secure the locking bracket with an M10 nut. f Secure the collector accordingly with one locking bracket to the top profile rail. SOL BB | 39... - Page 21 STIEBEL ELTRON GmbH & Co. KG tecalor GmbH Dr.-Stiebel-Str. | 37603 Holzminden Fürstenberger Str. 77 | 37603 Holzminden Tel. 05531 702-0 | Fax 05531 702-480 Tel. 05531 99068-700 | Fax 05531 99068-712 info@stiebel-eltron.de info@tecalor.de www.stiebel-eltron.de www.tecalor.de . % , . - + Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve d‘erreurs et de modifications techniques! | Onder voorbehoud...
