BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
GEBRUIK EN INSTALLATIE
Sensor-Armatur für druckfeste (geschlossene) Warmwassergeräte | Sensor tap for
pressurised (sealed unvented) DHW appliances| Robinetterie à capteur pour appareils
de production ECS sous pression (en circuit fermé)| Sensorkraan voor drukvaste
(gesloten) warmwatertoestellen
» WSH 10
» WSH 20
Advertisement
Table of Contents
Troubleshooting
Related Manuals for STIEBEL ELTRON WSH 10
Summary of Contents for STIEBEL ELTRON WSH 10
- Page 1 GEBRUIK EN INSTALLATIE Sensor-Armatur für druckfeste (geschlossene) Warmwassergeräte | Sensor tap for pressurised (sealed unvented) DHW appliances| Robinetterie à capteur pour appareils de production ECS sous pression (en circuit fermé)| Sensorkraan voor drukvaste (gesloten) warmwatertoestellen » WSH 10 » WSH 20...
-
Page 2: Table Of Contents
CoNTeNTs | speCIAL INforMATIoN speCIAL INforMATIoN SPECIAL INFORMATION OPERATION General information ��������������������������������������� 14 Safety instructions ���������������������������������������������� 14 - The appliance may be used by children aged 8 Other symbols in this documentation ���������������������� 14 and older and persons with reduced physical, Units of measurement �����������������������������������������... -
Page 3: General Information
operATIoN General information operATIoN Other symbols in this documentation Note General information is identified by the adjacent symbol. f Read these texts carefully. General information Symbol Meaning The chapters „Special information“ and „Operation“ are intended Material losses for both users and qualified contractors. (appliance damage, consequential losses and environmen- tal pollution) The chapter „Installation“... -
Page 4: Product Description

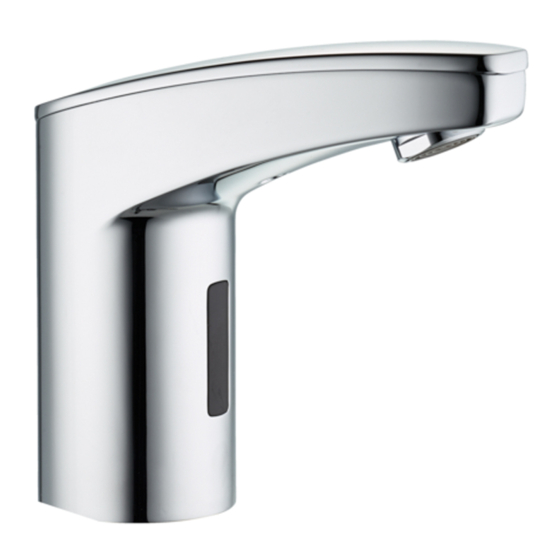

operATIoN Product description Product description Settings Operation of the sensor tap is contactless. The water is turned on Setting the temperature and off via a PCB with a proximity sensor. The PCB is supplied with power as follows: - WSH 10 via a power supply unit - WSH 20 via a battery Your qualified contractor can set a fixed temperature or limit the 1 Sensor and LED... -
Page 5: Standard Settings
operATIoN Settings Symbols 4.3.2 Adjusting the sensor range The sensor range can be adjusted to suit the washbasin. This Symbol Description prevents the sensor tap from running independently. Touch the touch area Factory setting: distance 6 f Touch the touch area for 2 sec- Move your finger away from the touch area onds. - Page 6 operATIoN Settings Deactivating the draw-off pause Setting continuous draw-off in minutes The pause is ended automatically after 2 minutes or by touching Set continuous draw-off from 0.5 to 20 minutes (in increments of the touch area for 2 seconds. 0.5 minutes). Factory setting: approx. 2 minutes f Touch the touch area for 2 sec- onds.
-
Page 7: Troubleshooting
operATIoN Troubleshooting Troubleshooting 4.4.3 Hygiene flush 12/24/48 hours You can set a hygiene flush to take place 12, 24 or 48 hours after Observe chapter „Recalibrating the sensor“ to restore the factory last use. settings. The hygiene flush time corresponds to the setting for continuous Problem Cause Remedy... -
Page 8: Replacing The Battery In The Wsh 20 Sensor Tap
operATIoN Cleaning, care and maintenance Cleaning, care and maintenance Replacing the battery in the WSH 20 sensor tap f Never use abrasive or corrosive cleaning agents or abrasive sponges. f If the sensor tap is dirty or covered in limescale, clean it with soapy water or diluted domestic vinegar, then rinse with plenty of clean water. -
Page 9: Installation
INsTALLATIoN Safety INsTALLATIoN Preparation Installation location Installation example: Safety Only qualified contractors should carry out installation, commis- sioning as well as maintenance and repair of the product. General safety instructions We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the product are used. -
Page 10: Commissioning
INsTALLATIoN Commissioning 12. Settings If required, you can set a fixed temperature and a hot water stop at the sensor tap. 12.1 Setting a fixed temperature You can set a fixed temperature at the sensor tap. f Install the strainer and gaskets (the tee is not included in the standard delivery). -
Page 11: Troubleshooting
