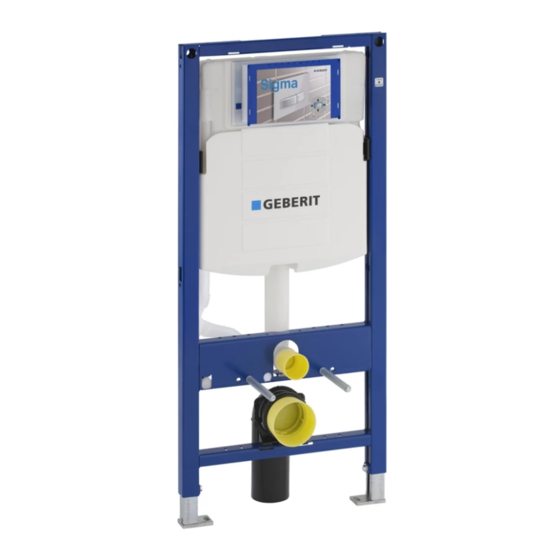

Geberit Duofix Installation Manual
Hide thumbs
Also See for Duofix:
- Installation manual (42 pages) ,
- Installation manual (12 pages) ,
- Installation manual (8 pages)
Related Manuals for Geberit Duofix
Summary of Contents for Geberit Duofix

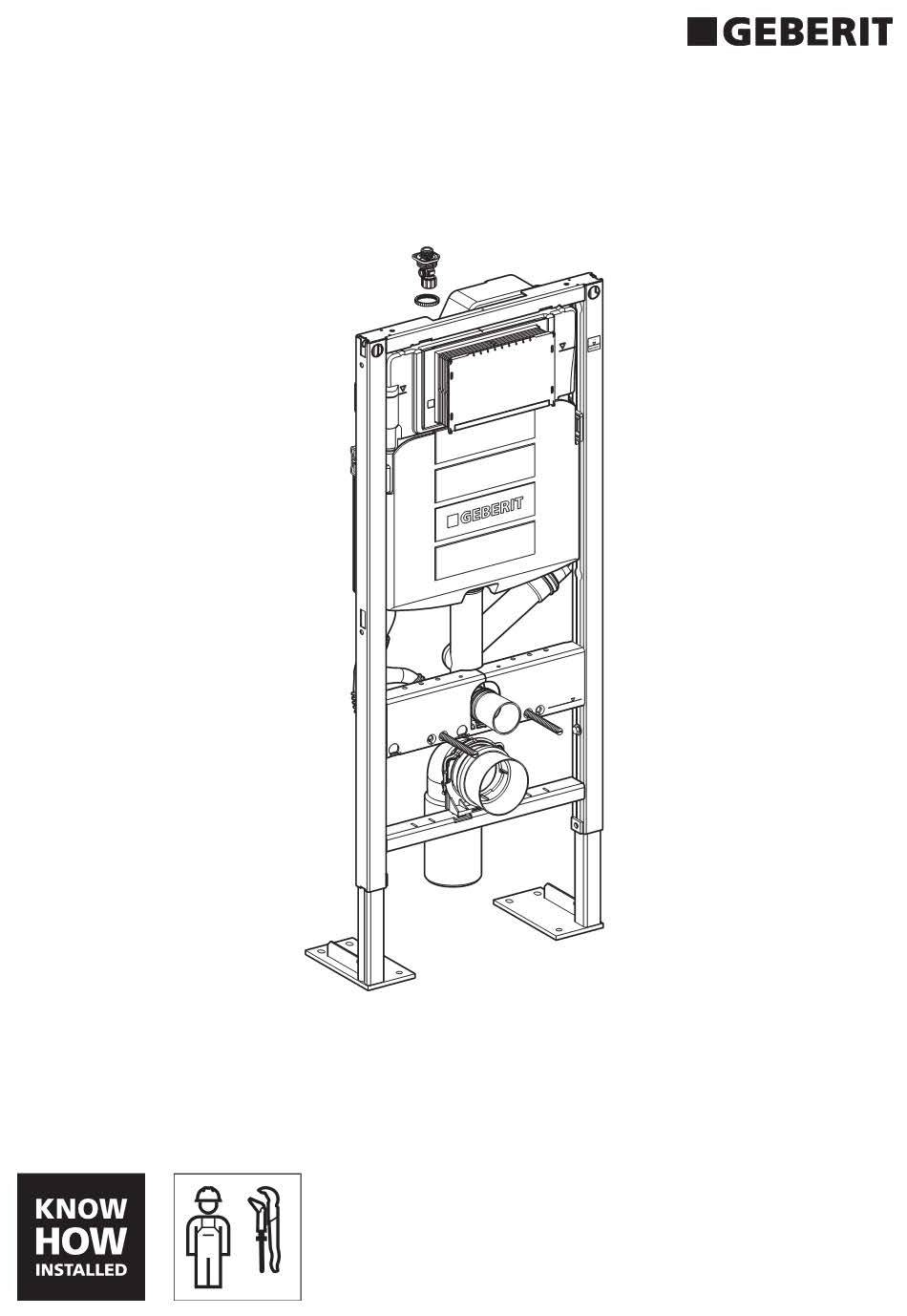

- Page 1 Geberit Duofix Installation Manual Montageanleitung Instructions de montage Istruzioni per il montaggio...
- Page 2 Montagemasse Masse Geberit Duofix Element für Wand-WC, 112 cm, mit Sigma Unterputzspülkasten 12 cm, Geruchsabsaugung R½ 18/23 0–20 2–6 R½ ≤ 62 –1 9−13 D58308-001 © 10-2012 966.021.00.0 (00)
- Page 3 Unterputzdose montieren ø 76 mm D58308-001 © 10-2012 966.021.00.0 (00)
- Page 4 Fussplatten montieren 13 mm D58308-001 © 10-2012 966.021.00.0 (00)
- Page 5 Duofix Element in Trockenbauwand montieren 10 mm ø 8 mm 13 mm 0–20 2–3 mm ≥ 8 cm 15 Nm D58308-001 © 10-2012 966.021.00.0 (00)
- Page 6 Duofix Element an Holzwand montieren 10 mm ø 8 mm 13 mm 0–20 2–3 mm 15 Nm ≥ 8 cm D58308-001 © 10-2012 966.021.00.0 (00)
- Page 7 Duofix Element an sonstige Wände montieren 13 mm ø 10 mm 0–20 1 0 0 2–3 mm 1 1 0 ≥ 8 cm ø 8 mm D58308-001 © 10-2012 966.021.00.0 (00)
- Page 8 PH 3 13 mm 15 Nm Abgangsbogen montieren 13 mm 9–12 –13 D58308-001 © 10-2012 966.021.00.0 (00)
- Page 9 9 -12 9–12 –13 D58308-001 © 10-2012 966.021.00.0 (00)
- Page 10 Leerrohr montieren 0 1 2 110–240 V 4 0 V 2 2 5 1 1 0 – 2 1 1 0 – 2 4 1 2 0 1 2 0 4 0 V 1 1 0 – 2 4 0 V 2 2 5 1 1 0 –...
- Page 11 Wasseranschluss und Bauschutz montieren 19 mm D58308-001 © 10-2012 966.021.00.0 (00)
- Page 12 Geberit AquaClean 4000 Geberit AquaClean 5000 Geberit AquaClean 5000plus ≥ 30 Geberit AquaClean 8000 Geberit AquaClean 8000plus Geberit International AG, Schachenstrasse 77, CH-8645 Jona T +41 55 221 63 00 F +41 55 221 63 16 documentation@geberit.com www.geberit.com D58308-001 © 10-2012...
