GEBERIT WASHBASIN TAPS PIAVE
AND BRENTA
MAINTENANCE
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Piave and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geberit Piave

Summary of Contents for Geberit Piave

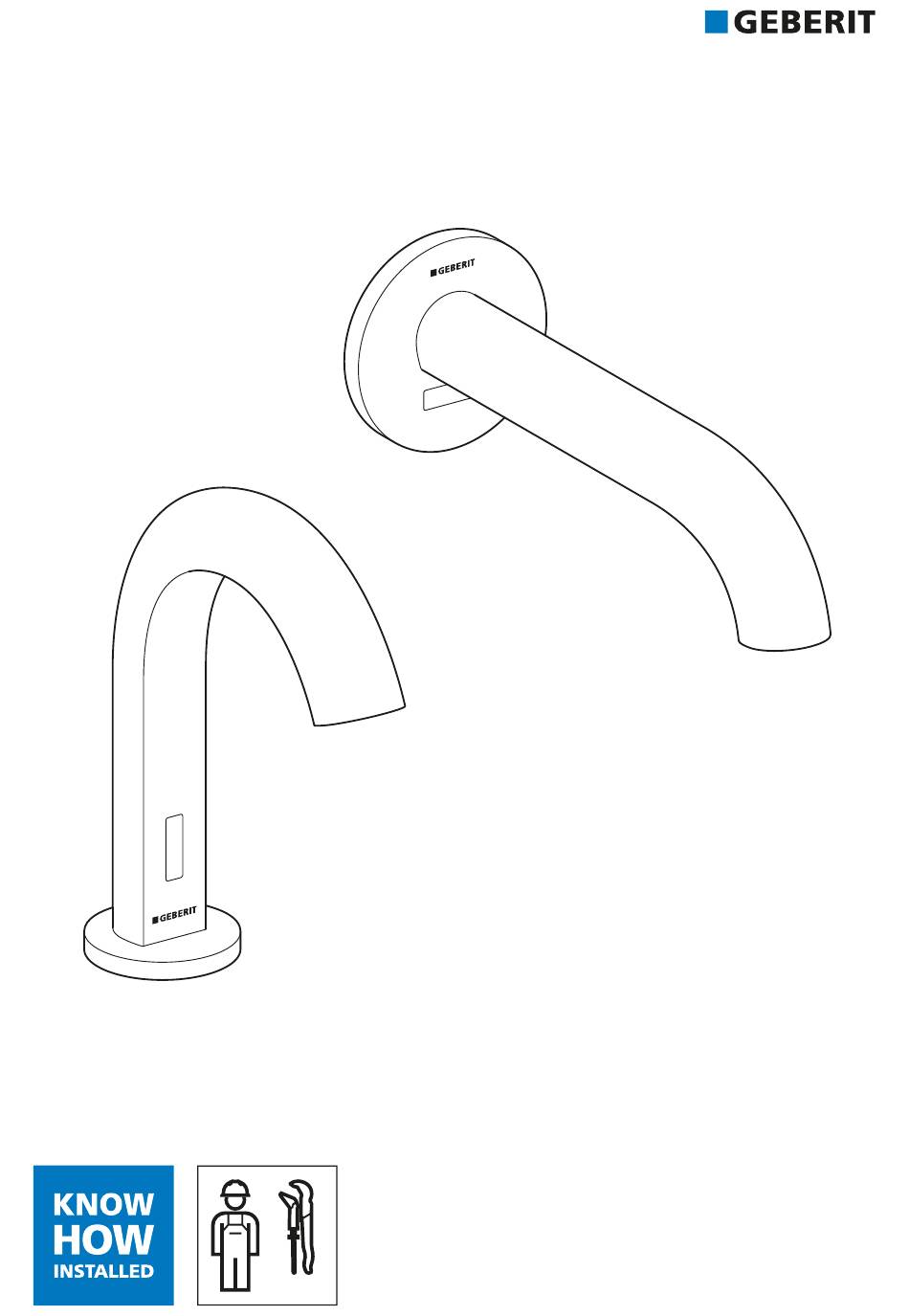

  • Page 1 GEBERIT WASHBASIN TAPS PIAVE AND BRENTA MAINTENANCE MANUAL...

  • Page 2: About This Document

    Intended use The Geberit washbasin taps Piave and Brenta are intended to extract tap water. Using them for any other purpose is deemed improper. Geberit accepts no liability for the consequences of improper use.

  • Page 3: Product Description

    Product description Structure of deck-mounted tap Figure 1: Geberit washbasin taps Piave and Brenta, deck-mounted Tap housing with protecting hose Tap aerator IR sensor Cover plate or cover Power supply (power supply unit, battery compartment or rechargeable battery for generator operation)

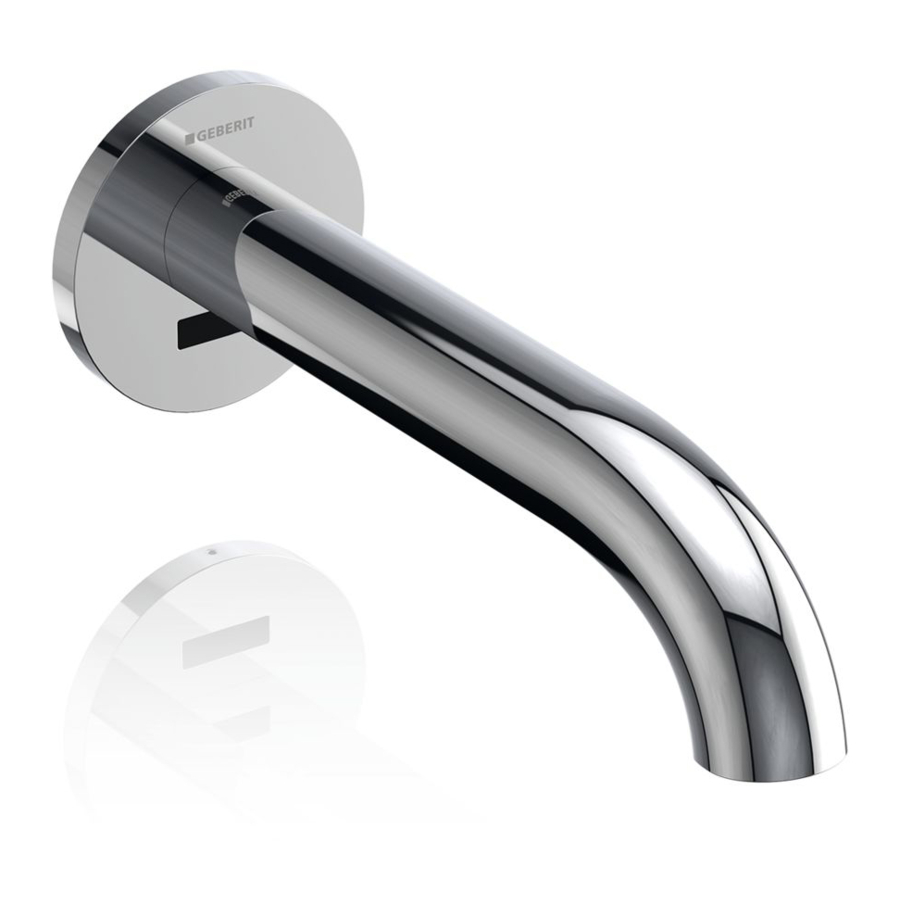

  • Page 4 Structure of wall-mounted tap Figure 2: Geberit washbasin taps Piave and Brenta, wall-mounted Tap housing Tap aerator IR sensor Cover plate Power supply (power supply unit, battery compartment or rechargeable battery for generator operation) Control electronics Basket filter Mixer Thermostatic mixer...

  • Page 5: Technical Data

    Technical data The following technical data applies to the Geberit washbasin taps Piave and Brenta for deck and wall- mounted taps. Mains operation Battery operation Generator operation Nominal voltage 110–240 V AC Mains frequency 50–60 Hz Operating voltage 4.5 V DC 3 V DC 3.2 V DC...

  • Page 6: Rectifying Malfunctions

    Rectifying malfunctions The operator can perform the following measures to rectify malfunctions: • cleaning the tap aerator • cleaning the basket filter • replacing the batteries • charging the rechargeable battery for generator operation These measures are described in the operation manual 967.455.00.0. Malfunction Cause Rectification...
  • Page 7 Malfunction Cause Rectification IR window is dirty or wet ▶ Clean or dry the IR window. IR window scratched ▶ Replace IR sensor. Detection distance of the IR sensor not ▶ Optimise the detection distance. set correctly Unwanted flow of ▶...

  • Page 8: Maintenance Performed By The Operator

    • The option to change the manual settings must be activated (menu item 33 [SetEn] = [ON]). → See "Making settings using Geberit Service Handy", page 11. • The manual settings can only be changed within the first 30 minutes after activating the power supply.
  • Page 9 Setting the run-on time Activating interval flush and setting interval When the hand is removed, the water flows for the set time. A flush is released at the set interval (see "Setting the flush time for the interval flush"). Settings: Settings: •...
  • Page 10 Setting the flush time for the interval Setting the detection distance of the IR flush sensor The detection distance can be set in 5 levels. The water flows for the set flush time when the interval flush is activated. Settings: Settings: •...
  • Page 11 The numbers and terms in the column "Menu item" correspond to what can be seen on the display of the Geberit Service Handy. Further information can be found in the user manual of the Geberit Service Handy.
  • Page 12 Programs Menu item Description Application Value Factory setting [EN] [DE] Select operating mode. • Attendance flush: The tap flushes as long as an object Presence = [A] is in the detection range, with • To select the operating [MainProgr] Water saver = a run-on time from menu item mode [Hauptmenü]...
  • Page 13 Settings Menu item Description Application Adjustment range Factory setting [EN] [DE] Set the starting time of the economy mode. The reaction speed of the IR • To extend the [ESaverT] sensor reduces after the 6–48 h [...] 24 h [24] battery lifetime [EnerSparZ] starting time has elapsed.
  • Page 14 Settings Menu item Description Application Adjustment range Factory setting [EN] [DE] Set mode for upper IR sensor. • Off: Upper IR sensor is switched off. (It is not possible for both IR Off = [0] sensors to be switched off at Auto = [1] •...
  • Page 15 Counters Menu item Description Version [EN] [DE] Total number of days of operation. [Days?] [... ] days Displays the number of days of operation since commissioning. [SumBetrT?] Total number of uses. [Uses?] [... ] uses Displays the number of uses since commissioning. [SumBenut?] Total number of interval flushes.
  • Page 16 Device info Menu item Description Version [EN] [DE] IR sensor article number. [TypeNoS] [...] Indicates the article number of the IR sensor. [TypeNoS] Control electronics article number. [TypeNoC] [...] Indicates the article number of the control electronics. [TypeNoC] Software version. [SWVersion] Indicates the software version of the control electronics (e.g.
  • Page 17 The Geberit washbasin taps Piave and Brenta with Open the solenoid valve using the Geberit thermostatic mixer have a scald protection feature. Service Handy. → See "Making settings This limits the water temperature to 42 °C.

  • Page 18: Replacing The Functional Unit

    Replacing the functional unit Test the water temperature. Detach the cover plate. → See illustration sequence , page 42. Close both shut-off units or angle stop valves. → See illustration sequence page 43. Release the flush to relieve the pressure. Demount the control electronics. Disconnect all cables.
  • Page 19 Demount and dispose of the functional unit. Remove protective caps and lubricate O- rings. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 20 Mount new functional unit. Check the hose adapter. In the case of a functional unit without a thermostatic mixer, the one-piece or two- piece hose adapter may be used. In the case of a functional unit with a thermostatic mixer, the two-piece hose adapter must be used (art.
  • Page 21 Replace the solenoid valve Mount the power supply unit, battery compartment or rechargeable battery and snap the power supply cable into the Detach the cover plate. → See illustration bracket. sequence , page 42. Close both shut-off units or angle stop valves.
  • Page 22 Demount the functional unit. Demount and dispose of the solenoid valve. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 23 Mount the new solenoid valve. Mount the functional unit. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 24 Replacing the IR sensor of the Mount the power supply unit, battery deck-mounted tap compartment or rechargeable battery and snap the power supply cable into the bracket. Detach the cover plate. → See illustration sequence , page 42. Close both shut-off units or angle stop valves.
  • Page 25 Demount the protecting hose. Demount the tap bracket. Unscrew the long nut. Detach the tap with protecting hose from the washbasin. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 26 Unscrew the lower cap. Pull out the sensor cable from the protecting hose. Detach the upper cap. Loosen the sensor bracket. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 27 Pull out the lower part of the sensor bracket Mount a new sensor onto the sensor bracket and push the IR sensor backward. and insert into the tap. Pull the sensor bracket downwards and out and dispose of the sensor. Position the IR sensor in the window and push the sensor bracket together.
  • Page 28 Screw on the sensor bracket. Remove protective foil. Insert the sensor cable into the protecting hose. Make sure you feed it through the lower cap. Check the position of the IR sensor in the sensor window. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 29 Mount the upper cap. Mount the tap onto the washbasin. Screw on the lower cap. Mount the tap bracket from below. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 30 Screw on the tap bracket with the long nut. Connect the connection hose. Secure the protecting hose with the bracket. Insert the hose nipple. Connect the cable to the control electronics. → See illustration sequence , page 44. Mount the control electronics. Open both shut-off units or angle stop valves.
  • Page 31 Replacing the IR sensor of the Mount the cover plate. → See illustration wall-mounted tap sequence , page 45. Detach the cover plate. → See illustration sequence , page 42. Close both shut-off units or angle stop valves. → See illustration sequence page 43.
  • Page 32 Pull out the sensor cable and dispose of the Draw in the sensor cable of the new sensor. sensor. Snap the sensor into the sensor bracket. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 33 Mount the tap. Screw on the tap. Connect the cable to the control electronics. → See illustration sequence , page 44. Mount the control electronics. Open both shut-off units or angle stop valves. Test the function of the tap. Mount the cover plate. → See illustration sequence , page 45.
  • Page 34 The installation manual 967.768.00.0 describes how to replace the connection hose. The connection hose must be replaced by a skilled person from the responsible Geberit sales company. Replacing the connection hose of the wall-mounted tap The connection hose of the wall-mounted tap must only be replaced if there are imperative reasons to do so, for example contamination of the supply pipes.
  • Page 35 Demount the functional unit. Remove the connection bend from the hose holder. Remove the safety pin and separate the connection bend from the connection hose. Loosen the fastening screws. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 36 Detach the tap. Unscrew and remove the screws from the tap bracket. Demount the tap bracket. Pull out the sensor cable and dispose of the sensor. Unscrew the hose holder. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 37 Mounting the connection hose of the Pull the connection hose upwards and out. wall-mounted tap Insert the new connection hose from above. Pull the connection hose downwards and out. Detach the protective cap. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 38 Connect the connection bend with the Screw on the hose holder. connection hose and insert the safety pin. Mount the tap bracket. Snap the connection bend into the hose holder and insert the connection hose into the hose routing. Screw on the tap bracket. Insert the hose holder with the connection hose.
  • Page 39 Draw in the sensor cable of the new sensor. Screw on the tap. Mount the tap. 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 40 Mount the functional unit. Mount the power supply unit, battery compartment or rechargeable battery and snap the power supply cable into the bracket. Connect the cable to the control electronics. → See illustration sequence , page 44. Mount the control electronics. Open both shut-off units or angle stop valves.

  • Page 41: Disposal Of Old Electrical And Electronic Equipment

    Old equipment should be returned directly to Geberit where it will be disposed of appropriately. Addresses to which equipment can be returned can be requested from the relevant Geberit sales company.
  • Page 42 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 43 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 44 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 45 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 46 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 47 63050396564933131 © 04-2020 967.696.00.0(03)
  • Page 48 Geberit International AG Schachenstrasse 77, CH-8645 Jona documentation@geberit.com www.geberit.com 63050396564933131 © 04-2020 967.696.00.0(03)

This manual is also suitable for:

BrentaPiave
